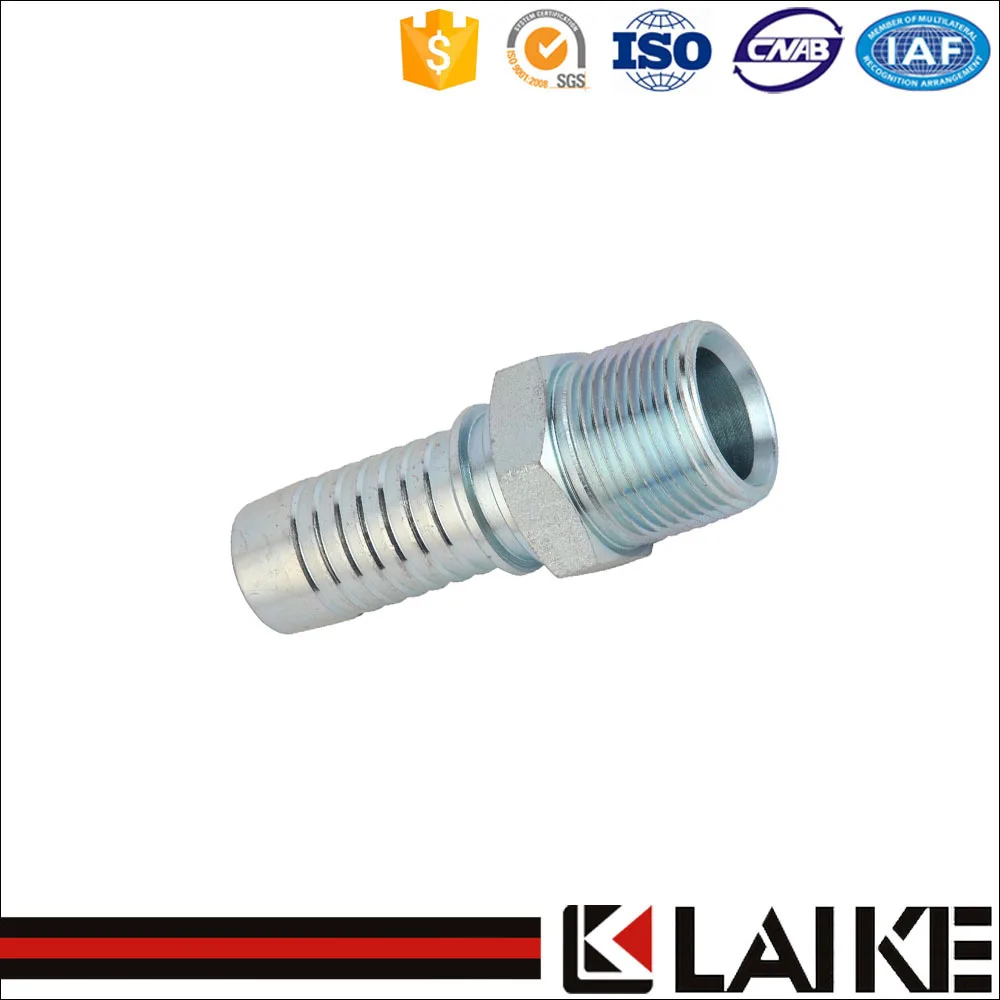

(NPT MALE)hydraulic fitting 15611
- Category: >>>
- Supplier: Ningbo Laike Hydraulics Co. Ltd.
Share on (270936983):
Product Overview
Description
Product Description

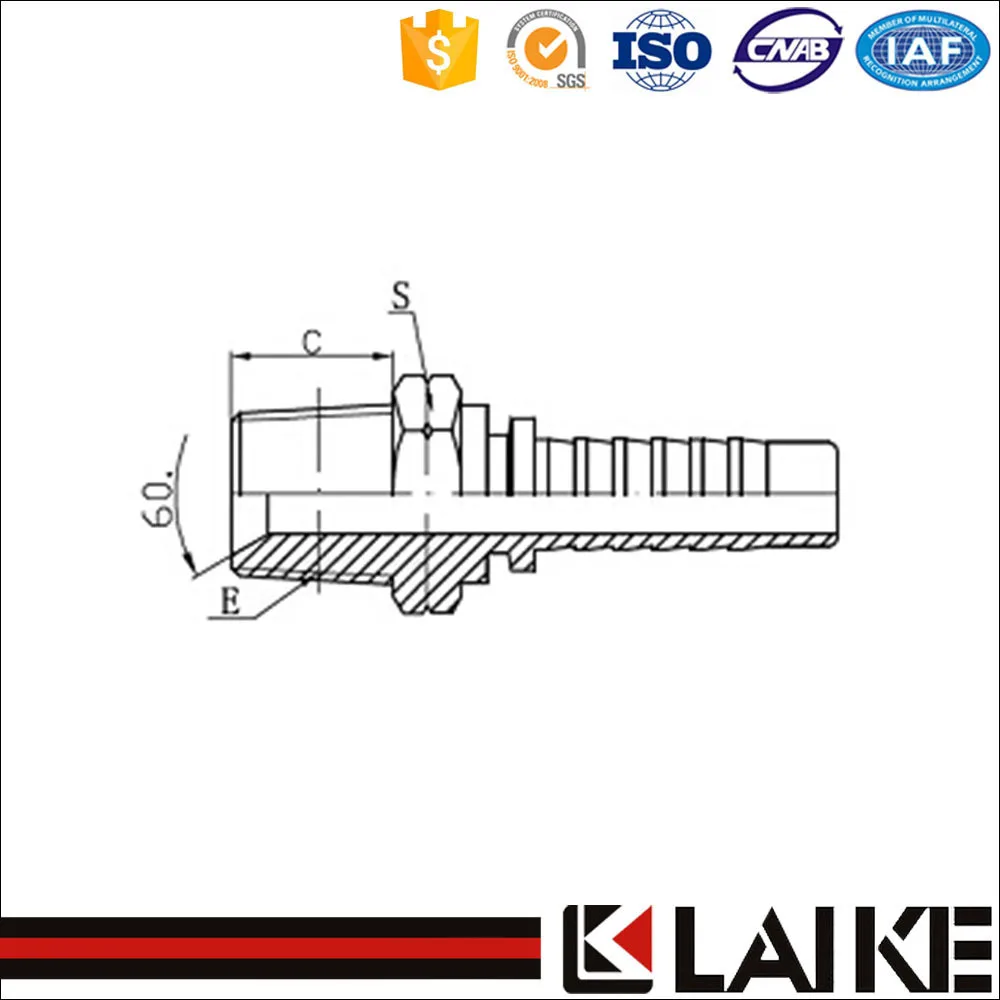

| E | HOSE BORE | DIMENSIONS | ||||
| PART NO. | THREAD E | DN | DASH | A | C | S1 |
| 15611-02-03 | Z1/8"X27 | 5 | 03 | 22.5 | 10.5 | 12 |
| 15611-02-04 | Z1/8"X27 | 6 | 04 | 22.5 | 10.5 | 12 |
| 15611-04-03 | Z1/4"X18 | 5 | 03 | 27.5 | 15 | 17 |
| 15611-04-04 | Z1/4"X18 | 6 | 04 | 28 | 15 | 17 |
| 15611-04-05 | Z1/4"X18 | 8 | 05 | 28 | 15 | 17 |
| 15611-04-06 | Z1/4"X18 | 10 | 06 | 27 | 15 | 17 |
| 15611-06-04 | Z3/8"X18 | 6 | 04 | 28 | 16 | 19 |
| 15611-06-05 | Z3/8"X18 | 8 | 05 | 28 | 16 | 19 |
| 15611-06-06 | Z3/8"X18 | 10 | 06 | 30 | 16 | 19 |
| 15611-06-08 | Z3/8"X18 | 12 | 08 | 30.5 | 16 | 19 |
| 15611-08-06 | Z1/2"X14 | 10 | 06 | 34.5 | 19.5 | 22 |
| 15611-08-08 | Z1/2"X14 | 12 | 08 | 34.5 | 19.5 | 22 |
| 15611-08-10 | Z1/2"X14 | 16 | 10 | 36 | 19.5 | 22 |
| 15611-12-08 | Z3/4"X14 | 12 | 08 | 37.5 | 19.5 | 27 |
| 15611-12-10 | Z3/4"X14 | 16 | 10 | 38 | 19.5 | 27 |
| 15611-12-12 | Z3/4"X14 | 20 | 12 | 38.5 | 19.5 | 27 |
| 15611-12-16 | Z3/4"X14 | 25 | 16 | 39.5 | 19.5 | 32 |
| 15611-16-10 | Z1"X11.5 | 16 | 10 | 45 | 25.5 | 36 |
| 15611-16-12 | Z1"X11.5 | 20 | 12 | 45 | 25.5 | 36 |
| 15611-16-16 | Z1"X11.5 | 25 | 16 | 44.5 | 25.5 | 36 |
| Note:1.For use with braide hoses.2.if use with spiral hoses,hose fitting series number is 15612-xx-xx | ||||||
