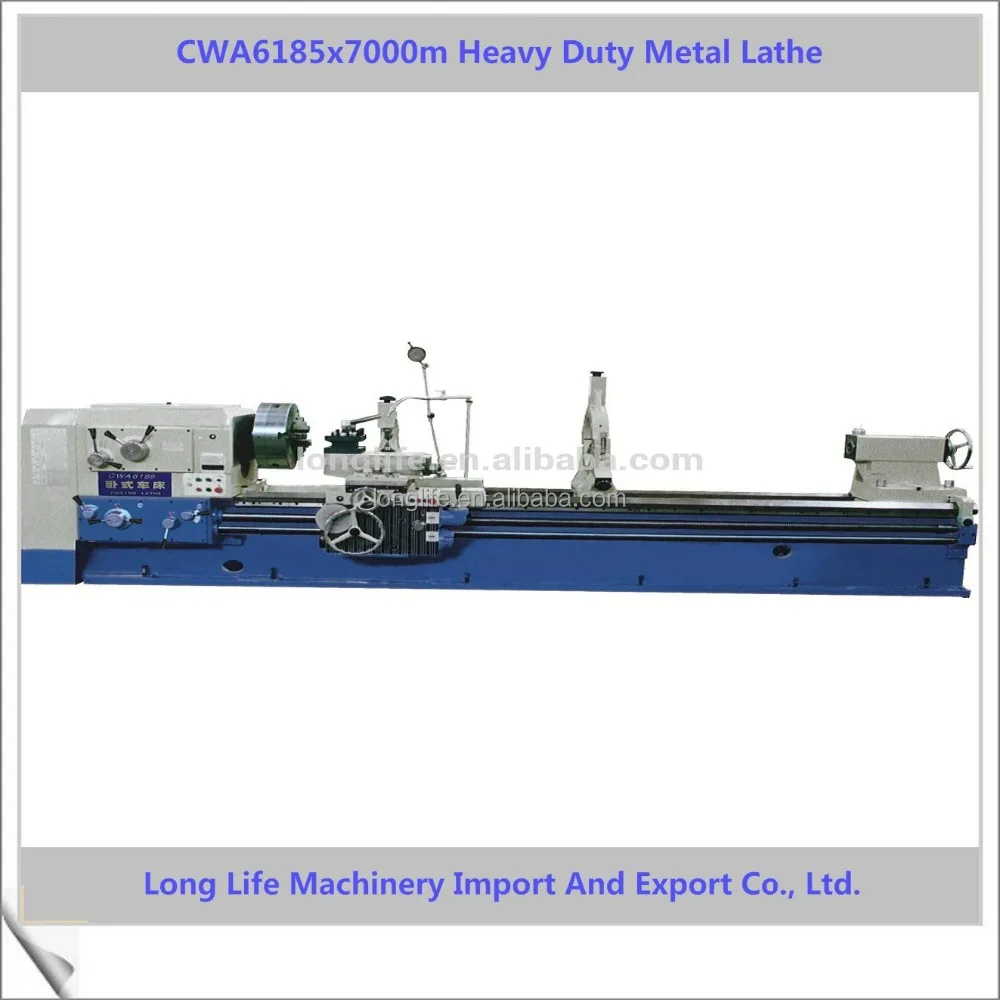

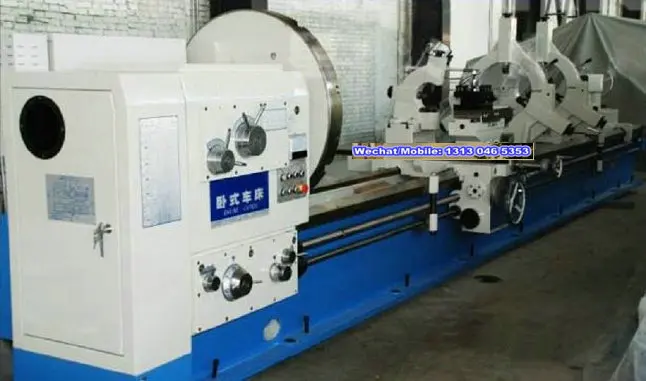

CWA6185x4000 Heavy Duty Engine Lathe Machine
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (272238724):
Product Overview
Description
CWA6185x4000mm heavy duty metal lathe machine
Main Usage
1. I.D. & O.D. cylindrical turning,
2. end face turning,
3. I.D. & O.D. cone turning,
4. grooving,
5. threading
* As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice. TS
Main Technical Data
Specifications | Unit | Parameter |
Max. swing over bed | mm | 850 |
Max. Swing over carriage | mm | 520 |
Max. Swing over gap | mm | 1150 |
Gap width from chuck | mm | 470 |
Distance between centers | mm | 4000 |
Max. length to be cut | mm | 3800 |
Max. bed ways width | mm | 600 |
Max. supporting capacity of centers | kg | 4000 |
Spindle nose |
| ISO A2-11 |
Spindle bore | mm | 100 |
Spindle speed | rpm | 5~630 (4 steps) |
Number of feeds and range |
| 64 |
Longitudinal | mm | 0.08 ~ 9.6 |
Cross slide | mm | 0.04 ~ 4.8 |
Compound slide | mm | 0.02 ~ 2.4 |
No. & Range of metric threads | mm | 56 Kinds, 1 ~ 120 |
No. & Range of inch threads | 56 Kinds 30 ~ 1 / 4 | |
No. & Range of module threads |
| 56 Kinds 0.5 ~60 |
No. & Range of diametric pitchs |
| 56 Kinds 60 ~ 0.5 |
Rapid traverse speed (longitudinal) | mm / min | 3640 |
Rapid traverse speed (cross) | mm / min | 1800 |
Max. travel of cross slide | mm | 600 |
Max. travel of tool post | mm | 250 |
Dia. Of tailstock sleeve | mm | 120 |
Travel of tailstock sleeve |
| Morse No. 6 |
Power of main motor with inverter | kW | 15 |
Power of rapid motor | kW | 1.5 |
Power of pump motor | kW | 0.55 |
Power of cooling motor | kW | 0.15 |
Net dimension of the machine | mm | 5850 x 1500 x 1500 |
Packing dimension of the machine | mm | 6400 x 1900 x 1820 |
N. W./ G. W. | kg | 7300 / 8850 |
Free Std Accessories
Name | Size | Note |
4 jaw chuck | Dia. 800 mm | 1 Set |
Steady rest | Range 40~350 mm | 1 Set |
Follow rest | Range 30~120 mm | 1 Set |
Dead center |
| 2 Pcs |
Reducing sleeve |
| 1 Pcs |
Automatic lubrication for guideways |
| Yes |
Cooling system |
| Yes |
Work light |
| Yes |
Special tools |
| yes |
English operating manual |
| 1 Set |

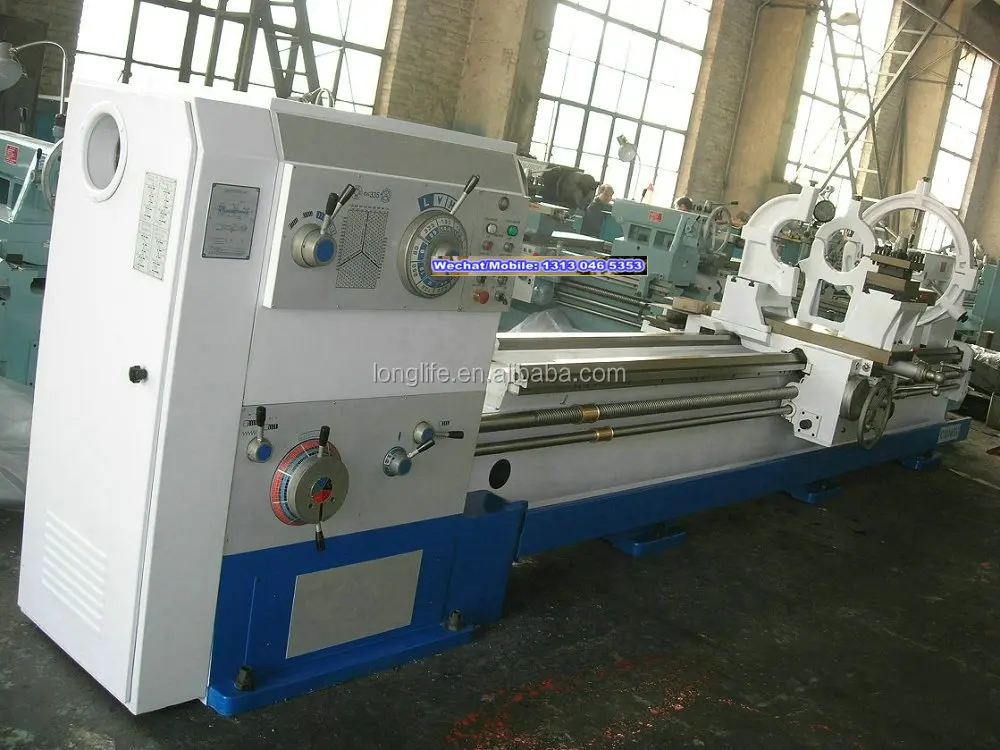

Brief Introduction
Such heavy duty lathe machines have following features:
1. mainly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various pipe thread cutting.
2. can also be used for drilling, boring trepanning etc.
3. gap lathe(optioanl) can process the deformation parts;
4. fine appearance, concentrated control arrangement for easy operating and convenient maintenance.
5. threads types: Metric, inch, diametrical pitch, module thread
6. DRO is avaible;
Our Services
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
6, Call us at any time: +86-1313 046 5353/156 411 21240|Wechat: 1313 046 5353
7, Fax us:+86-411-84410129

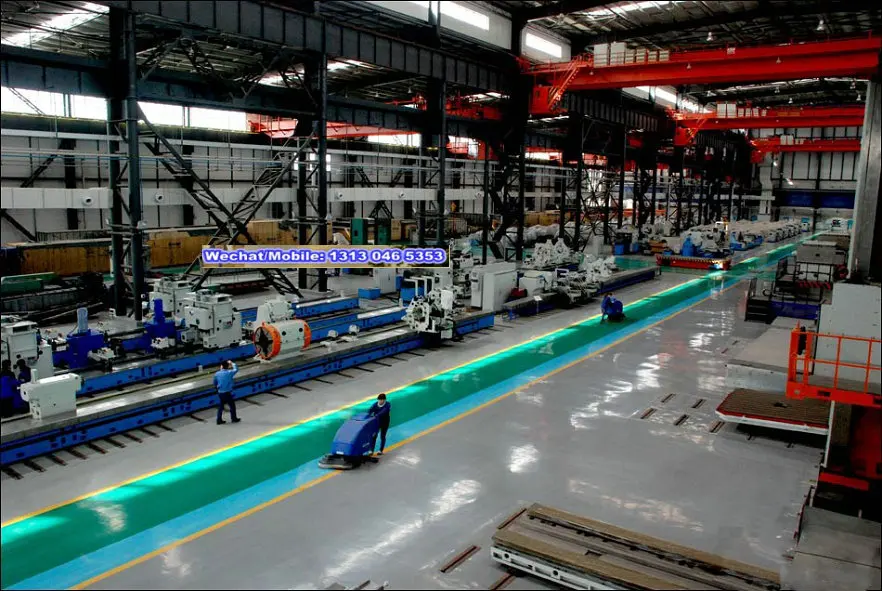

Factory Overview
kinds of colors for your choice/can be customized
