L6140 Keyway Broaching Machine/Maquina De Brochado Horizontal
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (272238780):
Product Overview
Description

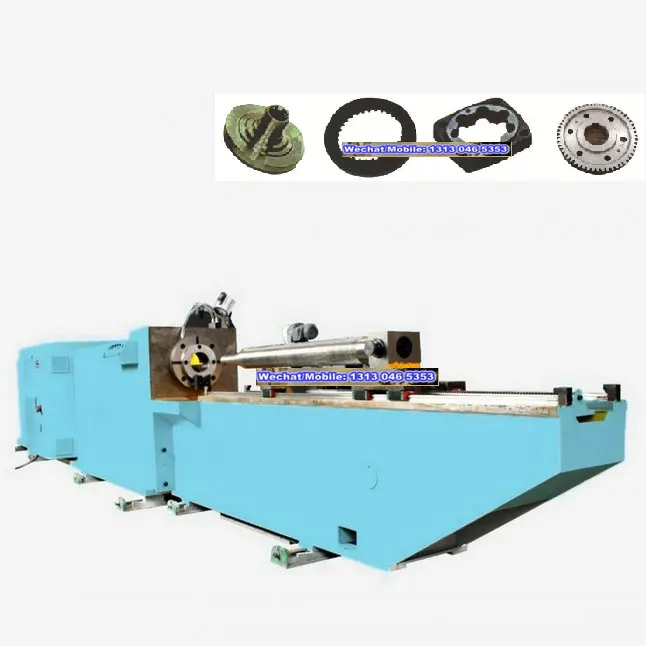

L6140 Keyway Broaching Machine
Brief Introduction
This kind of broaching machine is mainly used for machining inner holes of various types of parts, such as round holes, squred splined holes, holes with single key, involute profile and others.

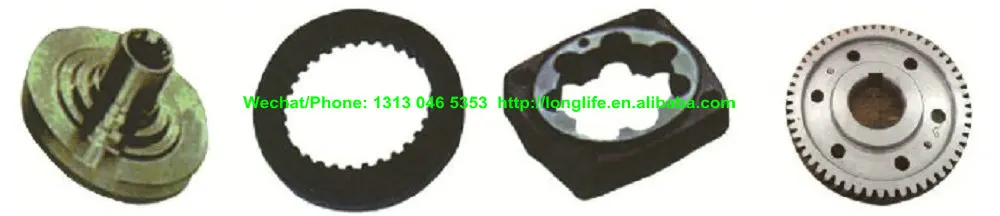

Typical Parts
Main Technical Data
Specifications | Unit | Parameter |
Rated pulling capacity | kN | 400 |
Nominal working stroke | mm | 2000 |
Working stroke speed | m/min | 1.5~7 |
Return stroke speed | m/min | 3~18 |
The aperture of the faceplate | mm | φ150H7 |
The aperture of end-plate bearing | mm | φ250H7 |
The aperture center high degree of the faceplate | mm | 850 |
Main oil pump flow | L/min | 252 |
Max. working pressure | MPa | 13 |
Size of end-plate | mm | 640x550 |
Axial plunger pump for main drive |
| A3H180-FR14K |
Displacement | mL/r | 180 |
Max. working pressure | MPa | 16 |
Rotated working pressure | MPa | 11 |
Main drive motor |
| Y225M-4-B35 |
Displacement | mL/r | 22.2 |
Max. working pressure | MPa | 6 |
Rated working pressure | MPa | 4 |
Auxiliary pump motor power | kW | 2.2 |
Auxiliary pump motor speed | rpm | 1470 |
The main motor power | kW | 45 |
Main motor rotational speed | rpm | 1470 |
Cooling pump flow | L/min | 100 |
Cooling pump power | kW | 0.25 |
Rotational speed cooling pump | rpm | 3000 |
Total power requirement | kW | 48 |
Overall size (LxWxH) | mm | 8630x2500x1480 |
Net weight | kg | Appro.10500 |
Free Std Accessories
Pls send inquiry to me for standard accessories and other further information about such broaching machines.
Optional Accessories
Optional accessories will be provided according to customers' exact machining requirements;
FAQ
Payment Term:
1. 30% down payment, 70% by T/T before shipment;
2. 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
1. 1 Set;
2. ≥2 sets, there will be much discounts.
Warranty:
1. Normally, 12 months for parts as of delivery of the machines;
Shipment:
1. For machine itself, by sea or train(inland countries).
2. For documents, by international express. eg DHL, TNT or EMS.

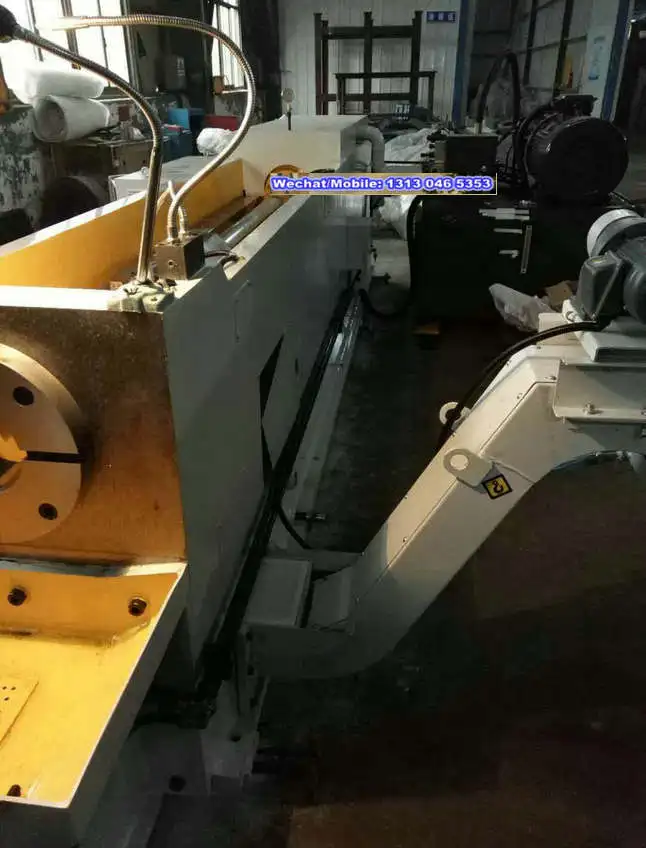

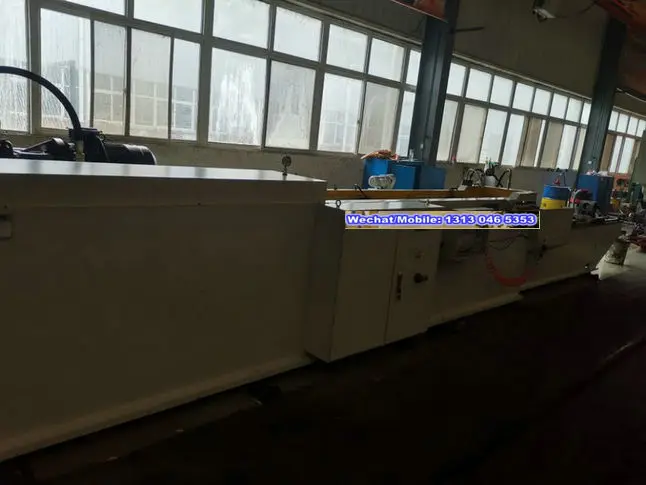

Real Photos
