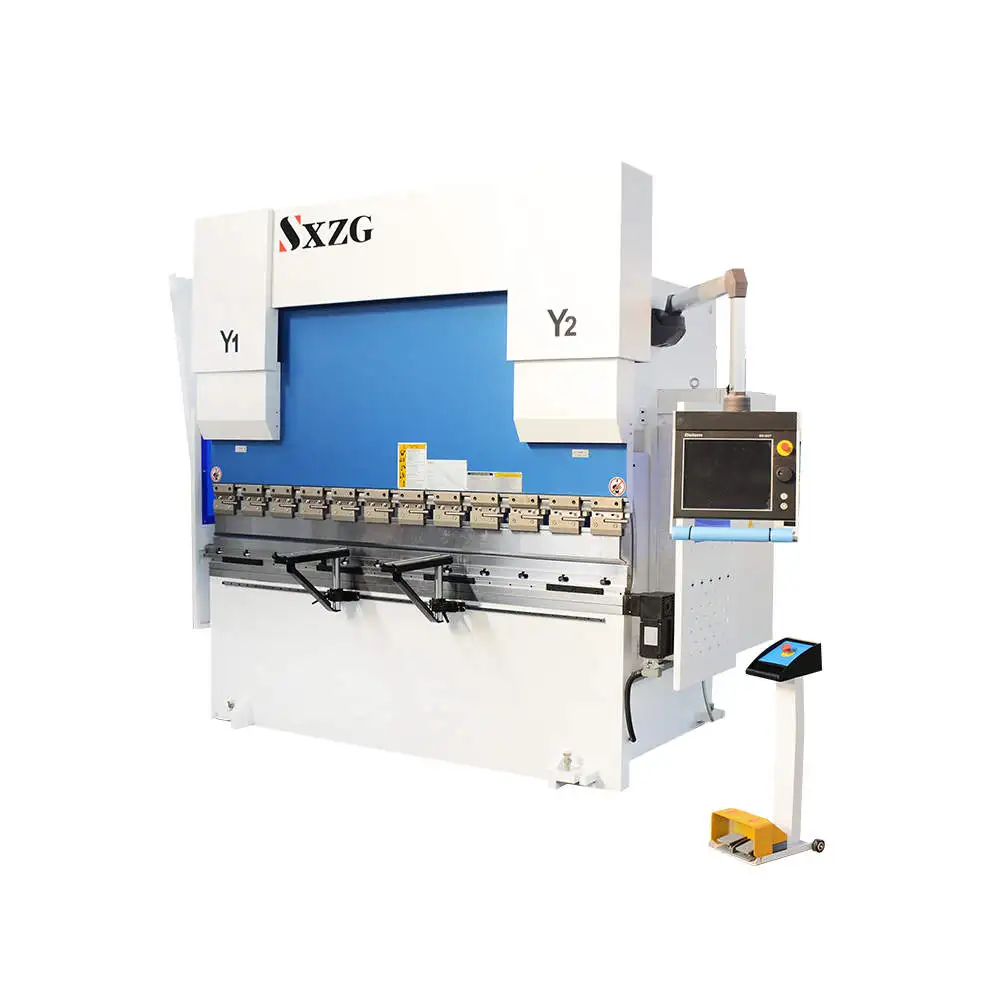

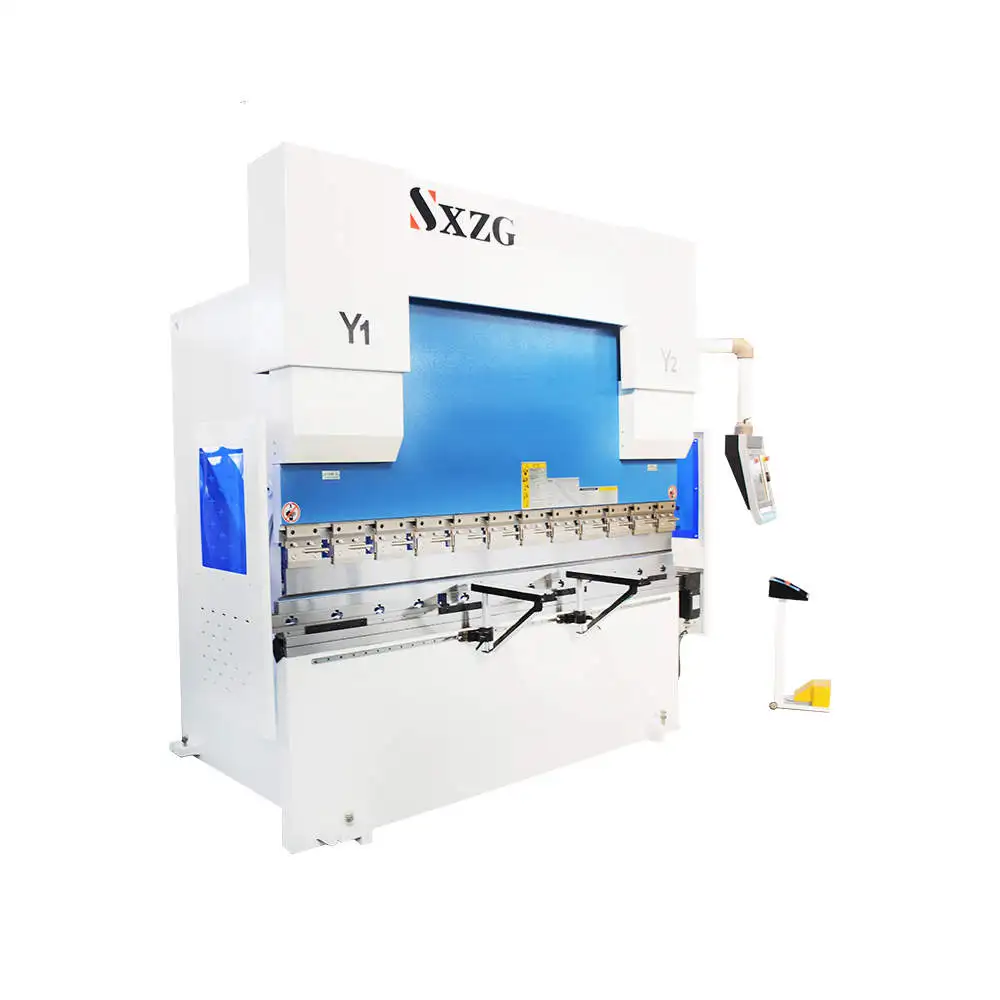

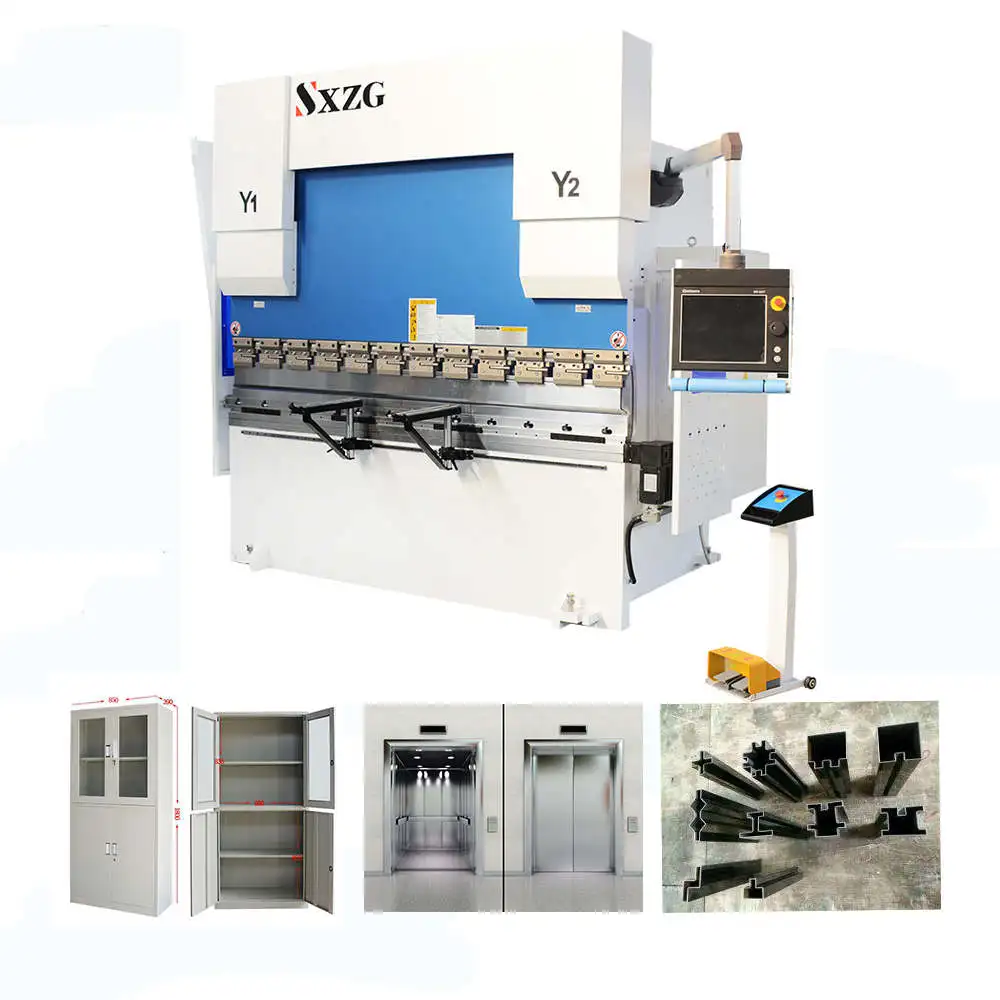

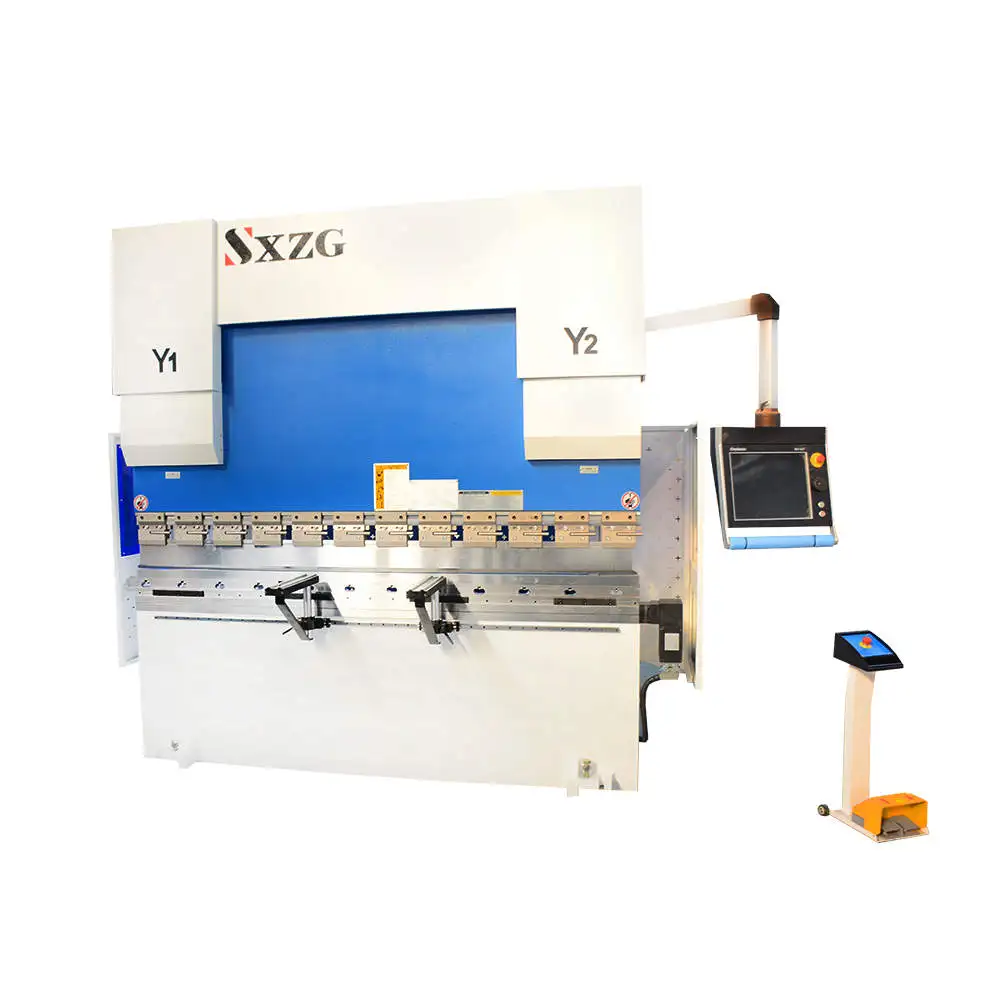

300t 400t 500 ton 3000 3200mm 100t 300 ton large da 69t delem press brake machine
- Category: >>>
- Supplier: Anhui Sanxin Heavy Industry Machinery Manufacturing Co. Ltd.
Share on (272390488):
Product Overview
Description
300t 400t 500 ton 3000 3200mm 100t 300 ton large da-69t delem press brake suppliers
Press Brake CNC
DELEM DA69T 3D CNC SYSTEM
DA69T SOFTWARE MAXIMISES MACHINE EFFICIENCY AND PRODUCTION OUTPUT OF PRESS BRAKE. THE PROFILET SOFTWARE FACILITATES OFFLINE
PROGRAMMING AND SIMULATION THE BENDING PROCESS. PRODUCTION PREPARETION, MAKE ABILITY AND TOOLING VERIFICATION, OPERATOR TRAINING,
ADDING NOTES FOR PRODUCTION CAN BE CARRIED OUT OFFLINE.
DA69T SOFTWARE MAXIMISES MACHINE EFFICIENCY AND PRODUCTION OUTPUT OF PRESS BRAKE. THE PROFILET SOFTWARE FACILITATES OFFLINE
PROGRAMMING AND SIMULATION THE BENDING PROCESS. PRODUCTION PREPARETION, MAKE ABILITY AND TOOLING VERIFICATION, OPERATOR TRAINING,
ADDING NOTES FOR PRODUCTION CAN BE CARRIED OUT OFFLINE.
Product Description

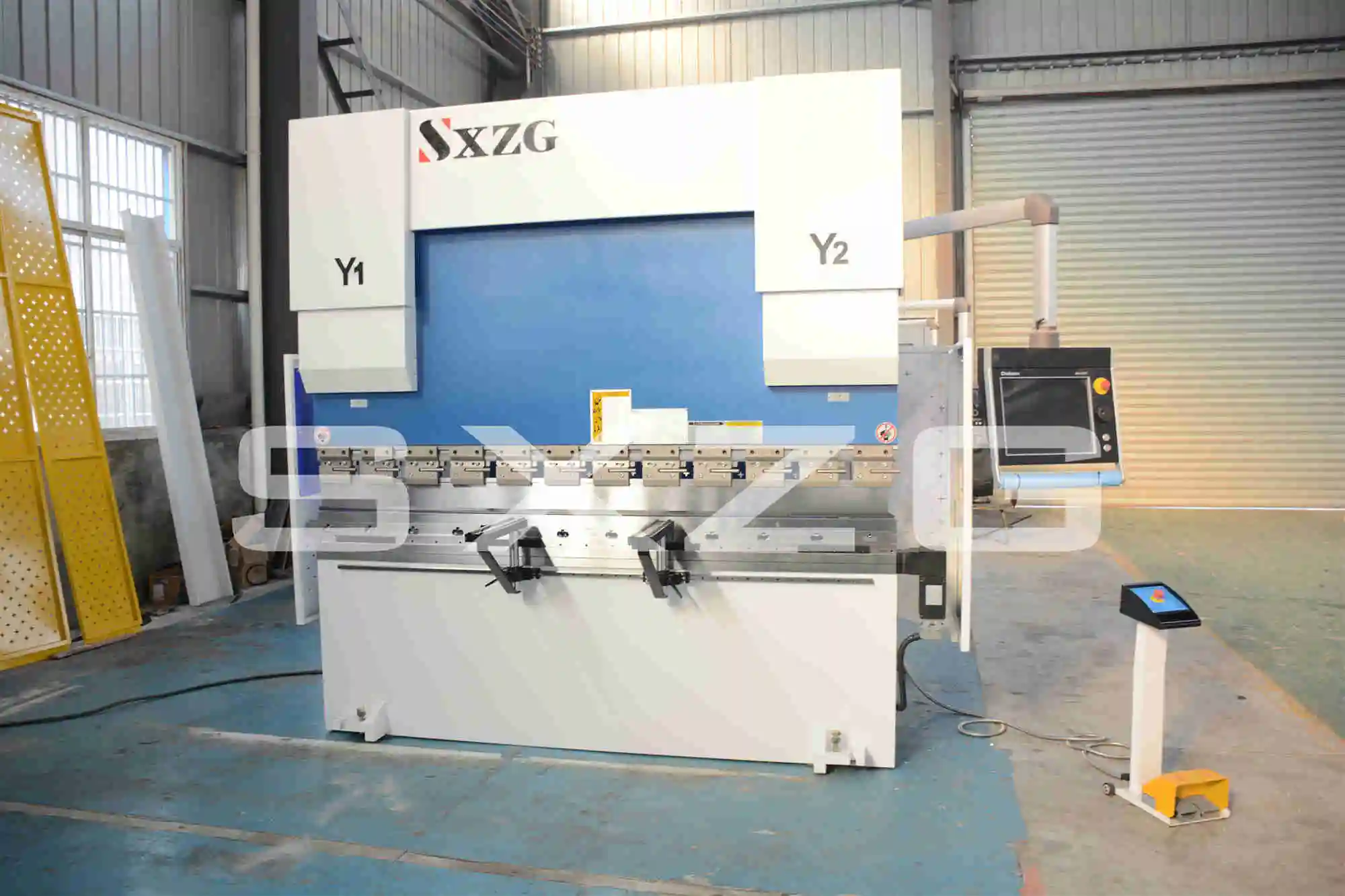

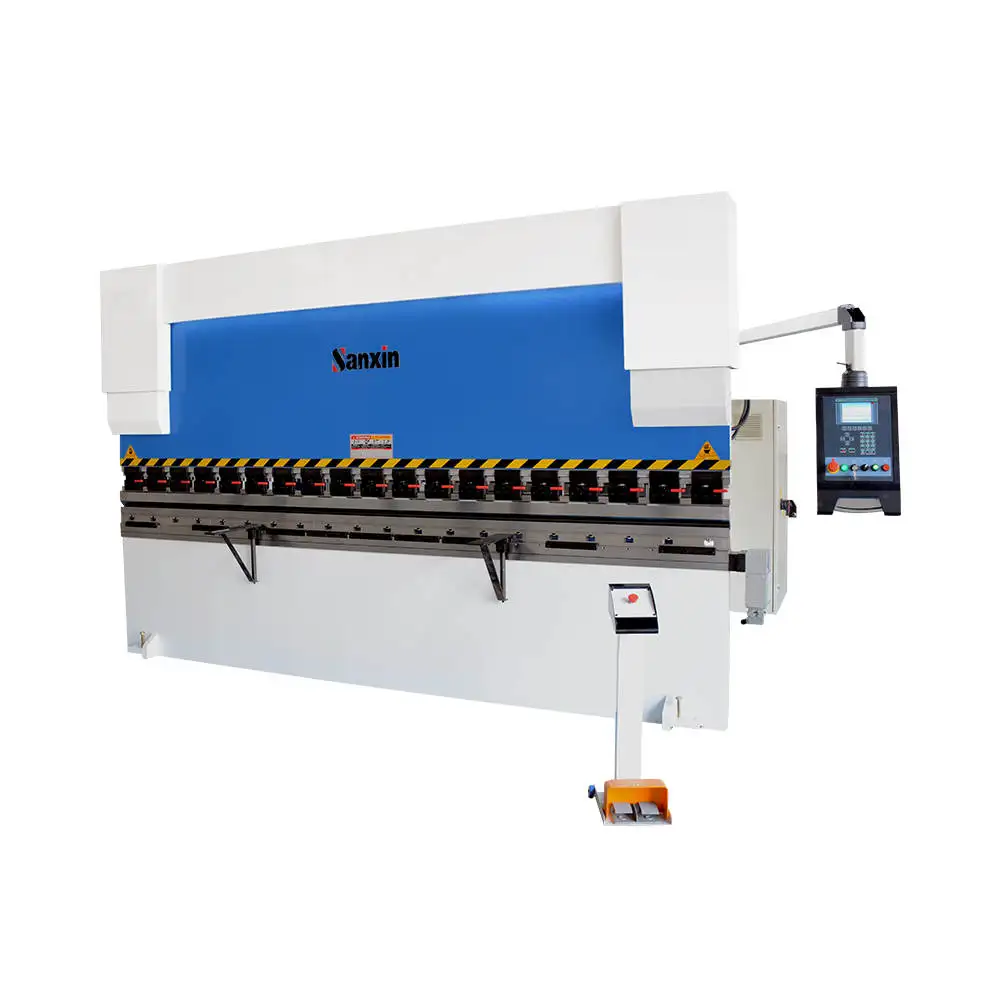

CNC PRESS BRAKE EURO SERIES
SXZG Series press brake features the crowning system for improved quality, a servo driven back gauge system for increased speeds.Also has increased working speeds, stroke, daylight, and pressing capacities of machines. The future - as a result of rising energy costs and increasingly cost efficient speed-controlled drives offered on the market, variable-speed solutions are on the advance.
This series is fully in accordance with European standards, high precision, high security.
Detailed Images
EUROPEAN DESIGN STYLE
EURO series one step beyond robustness, Engergy-efficient, reliability,precision and performance make Euro an election model.

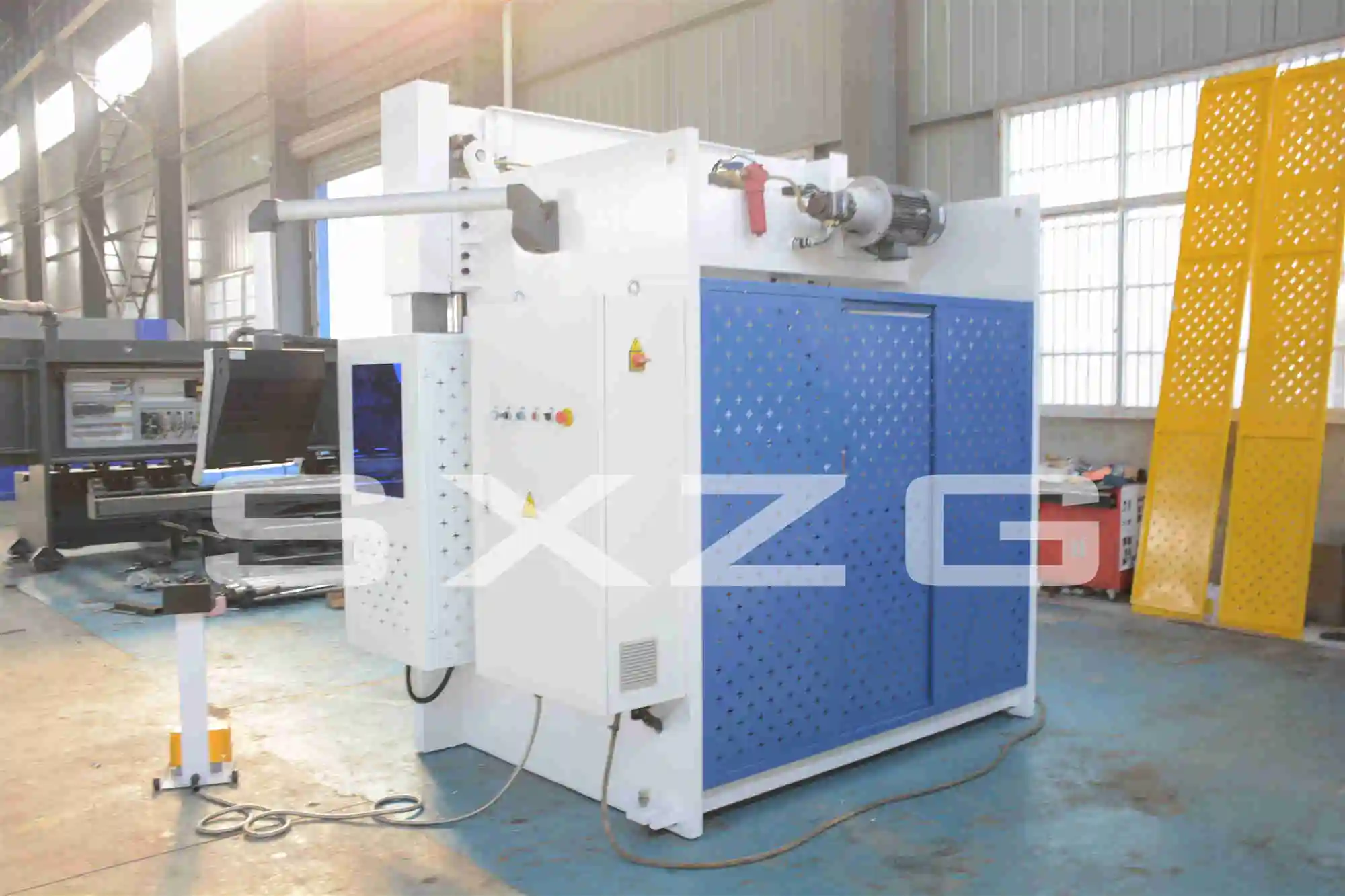

Safety Fence
Sanxin®press brake 6 axis of Proctective guards on each side can protect the user during operation
SIEMENS MOTOR
German famous brand motor improves the lifespan of the and keeps the machine working in low noise environment
Bosch Rexroth hydraulic Valve
Germany Bosch Rexroth integrated hydraulic transmission with high reliability, integrated hydraulic
system can effectively alleviate problems caused by leakage of hydraulic fluid

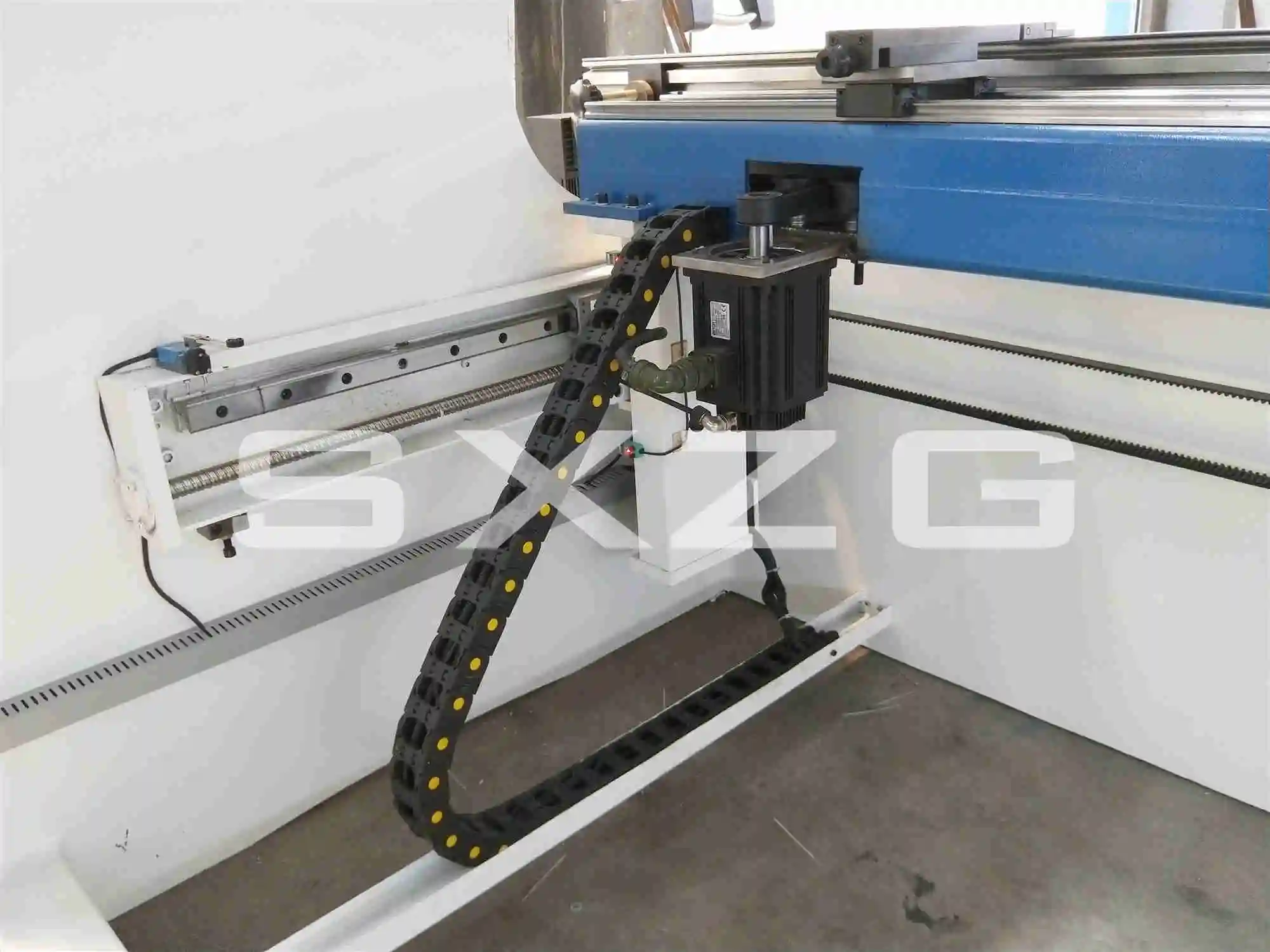

Backgauge up and down
Sanxin®horizontal press brake of Optional Servo motor drive R Axis-Backgauge up and down

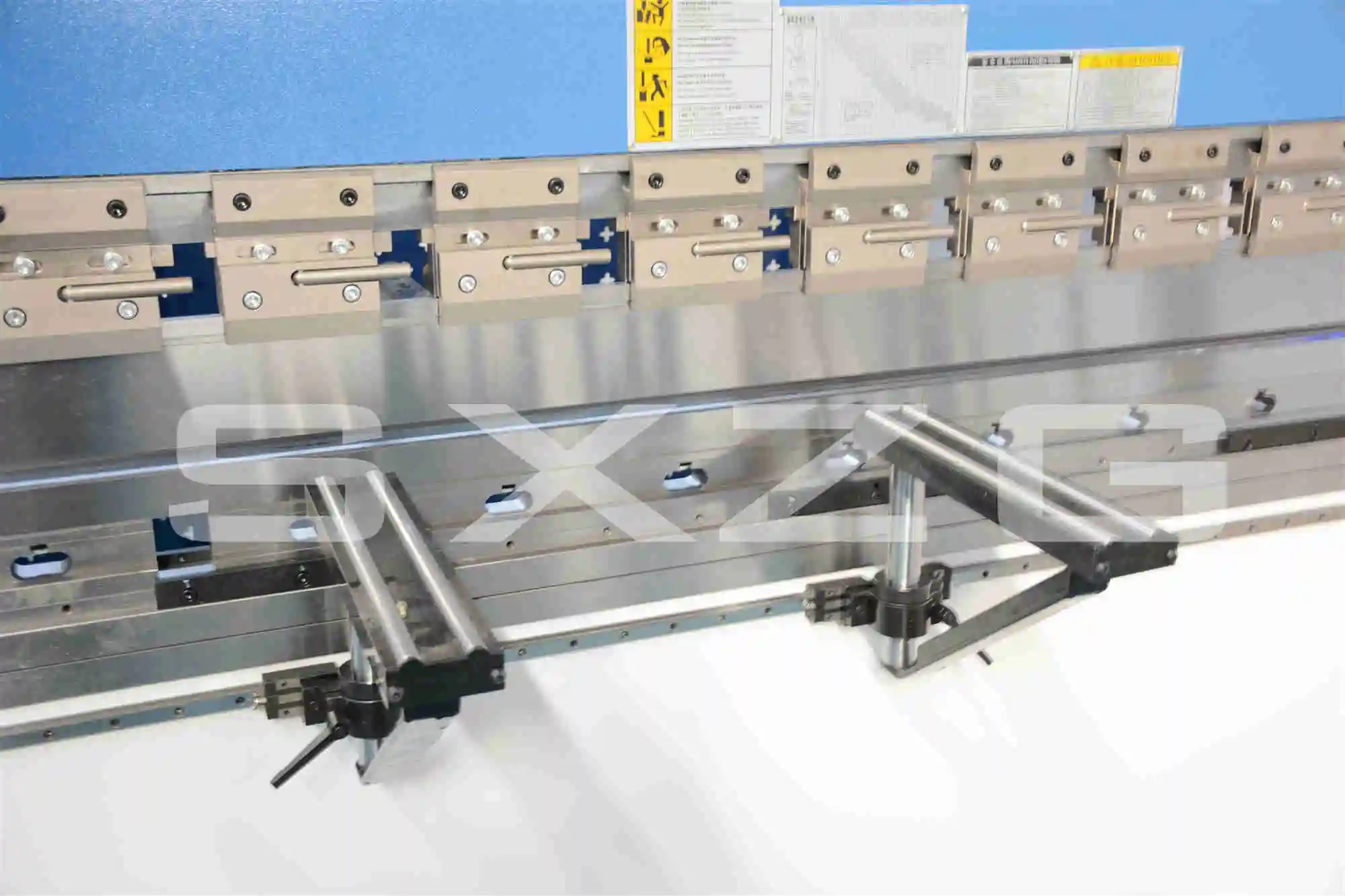

Front Plate Support
Movable front material support on HIWIN linear guider, can move left and right by hand very easy.
Movable front material support on HIWIN linear guider, can move left and right by hand very easy.
Mechanical Crowning
Optional electric mechanical crowning, improving the precision of bending angle and linearity

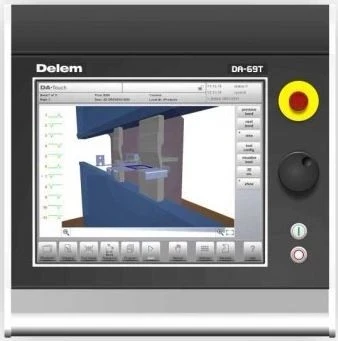

DA69T CNC CONTROLLER
Sanxin®hydraulic press brake cnc
Size Information
Machine | Nominal Force(KN) | Bending Length(mm) | Poles Distance(mm) | Throat Depth(mm) | Slider Travel(mm) | Height of table(mm) |
63T2500 | 630 | 2500 | 2100 | 350 | 150 | 780 |
80T3200 | 800 | 3200 | 2700 | 350 | 150 | 850 |
100T3200 | 1000 | 3200 | 2700 | 450 | 200 | 850 |
100T4000 | 1000 | 4000 | 3500 | 450 | 200 | 890 |
125T3200 | 1250 | 3200 | 2700 | 450 | 200 | 890 |
125T4000 | 1250 | 4000 | 3500 | 450 | 200 | 890 |
160T3200 | 1600 | 3200 | 2700 | 450 | 200 | 890 |
160T4000 | 1600 | 4000 | 3500 | 450 | 200 | 890 |
200T3200 | 2000 | 3200 | 2700 | 360 | 200 | 900 |
200T4000 | 2000 | 4000 | 3500 | 400 | 200 | 900 |
250T3200 | 2500 | 3200 | 2700 | 360 | 250 | 840 |
250T4000 | 2500 | 4000 | 3500 | 400 | 250 | 900 |
300T4000 | 3000 | 4000 | 3500 | 360 | 250 | 980 |
400T4000 | 4000 | 4000 | 3500 | 400 | 250 | 800 |
500T5000 | 5000 | 5000 | 3900 | 500 | 250 | 800 |
Optional Camponents
Italy DSP Laser protection
Optional Italy DSP laser protection, protecting the workers' fingers
Optional Segment Die
Press brake segmented die are available for your choice
Main Motor Sevo Motor
Save electricity costs; Low noise; Low oil temperature, extend the life of the seal

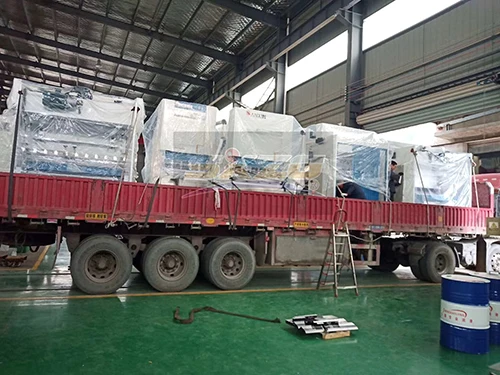

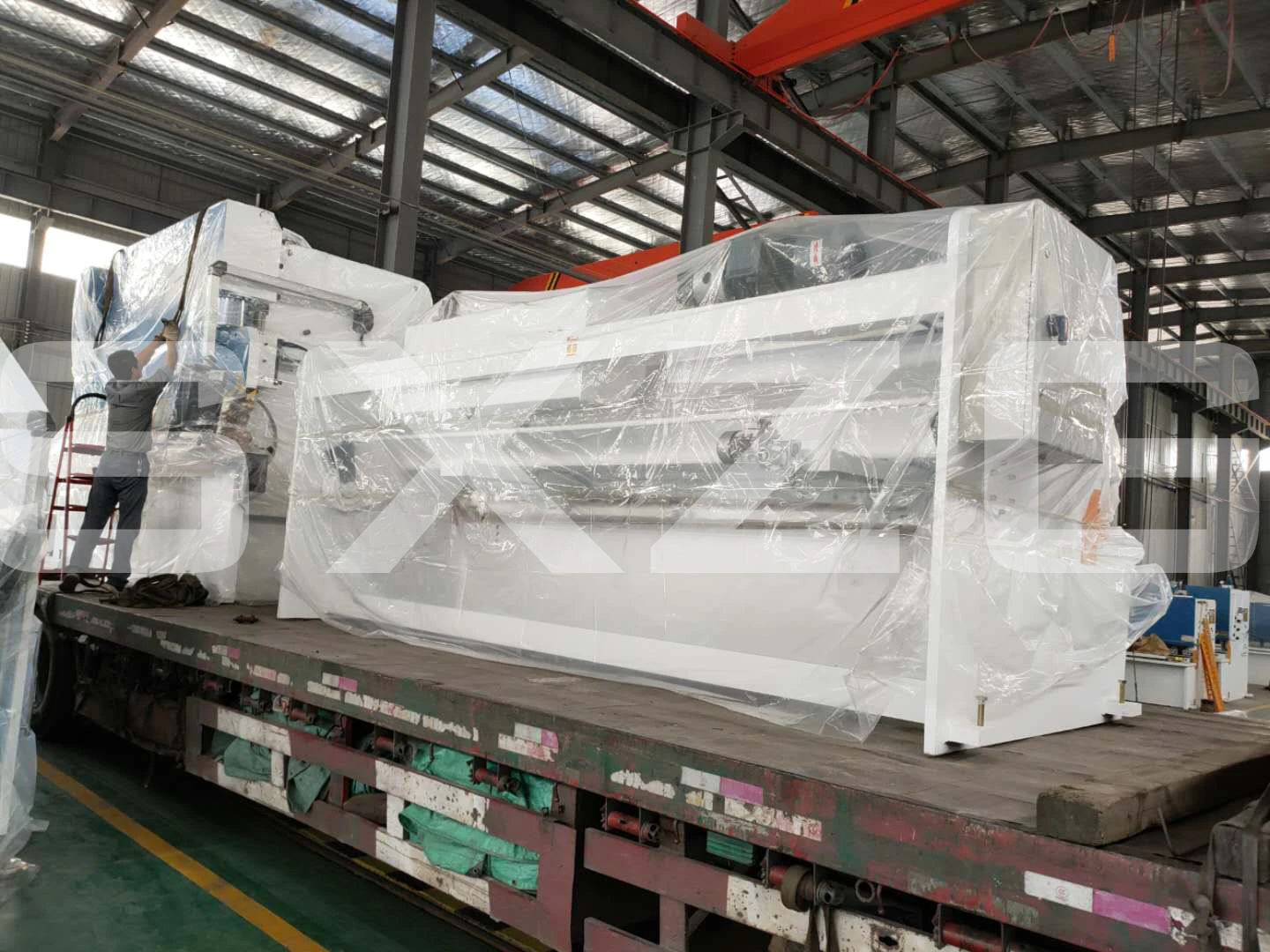

Packing&Shipping
1.Our wooden case is after fumigation treatment. Needn't timber inspection,saving shipping time
2. All the spare parts of the machines were covered by the some soft materials mainly using pearl wool.
3. The outmost is wooden case with fixed formwork
4. The bottom of the wooden case has firm iron jack, convenient to handing and transport.
