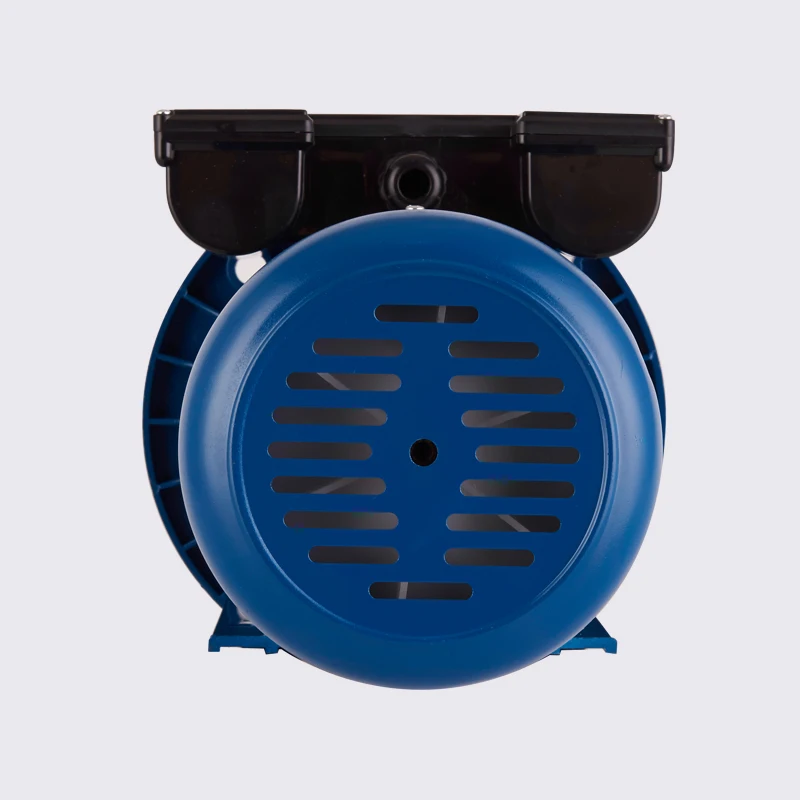

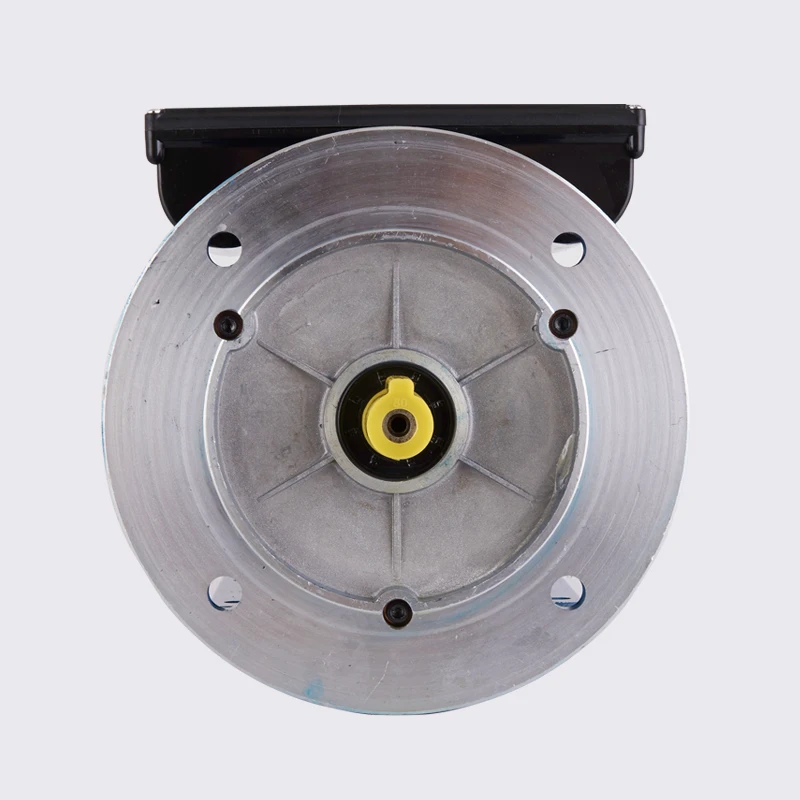

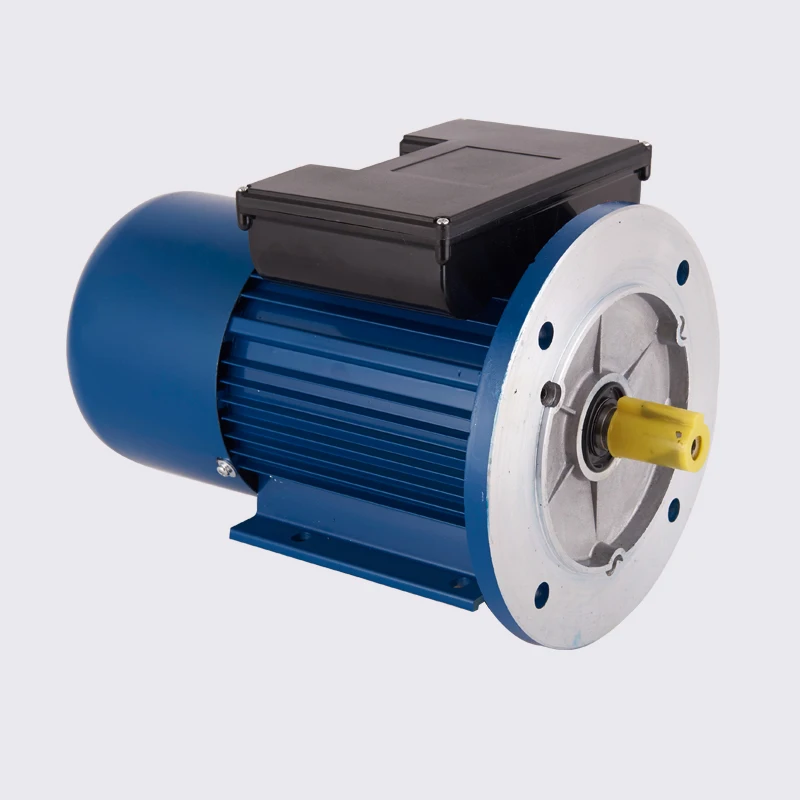

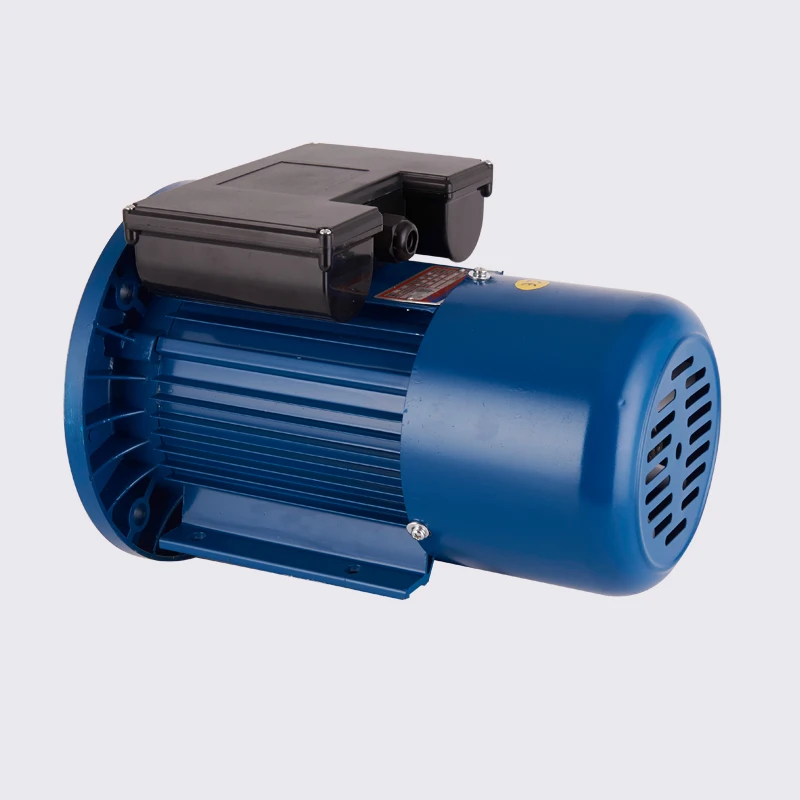

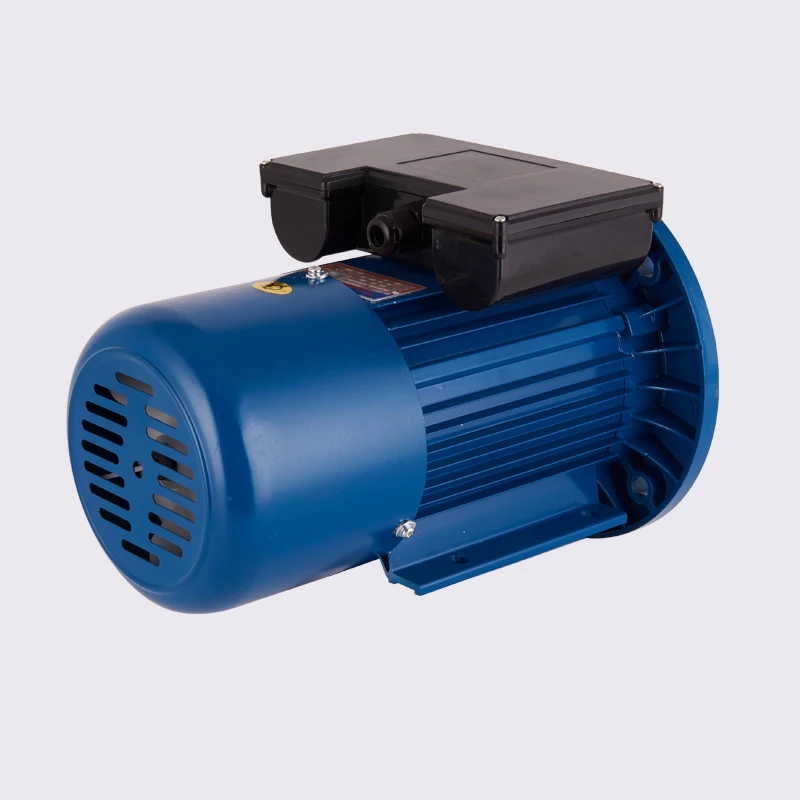

(Y90S 4) Y Series 4 pole three phase asynchronous electric motor

Product Overview

Description

Induction motor



Specifications:
1) Frame sizes: 90

2) Rated power: 1.1kW
3) Rated voltage: 220 - 660V
4) Frequency: 50Hz, 60Hz
5) Protection class: IP55
6) Insulation class: F
7) Materials: Copper wire,Aluminium
8) EFF: EFF2
9) Poles: 4
10) Cooling method: IC411
11) Mounting types: IMB3
12) Color: blue
13) Operating mode: S1
14) Ambient temperature: -35°C < θ < 40°C
15) The altitude should be lower than 1,000m above the sea level
16) Relative humidity: not higher than 90%
17) Special motors can be designed according to customers' requirements
18) Export markets: Europe, North America, the Middle East, Africa, Southeast Asia, East Asia, South America
19)Inner packing:Foam box, carton box
20)Conveyance:Qty/20' FCL: 490pcs
