hollow elevator guide rails,lift/elevator

Product Overview

Description

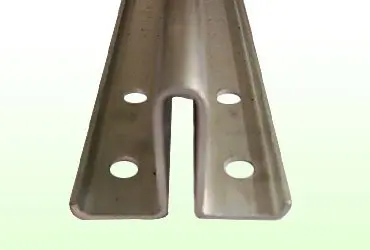

Hollow elevator guide rail is one of our main product, styles are as TK3,TK3A,TK5,TK5A.







Size & Tolerance of Guide rail(mm)				Size & Toerance of Guide rail fishplate(mm)
Type/Tolerance	b1	h1	k	Type/Tolerance	L1	b2	V
T45/A	45	45	5	T45/A	160	50	8
T50/A	50	50	5	T50/A	200	50	8
T70/B	70	65	9	T70/B	250	70	10
T75-3/B	75	62	10	T75-3/B	250	70	10
T78/B	78	56	10	T78/B	250	70	10
T89/A(/B)	89	62	16	T82/B	216	80	10
T90/B	90	75	16	T89/A(/B)	305	90	13
T114/B	114	89	16	T90/B	305	90	13
T127-1/B	127	89	16	T114/B	305	120	18
T127-2/B	127	89	16	T127-1/B(2/B)	305	130	18
TH3	75	55	10	TH3	220	72	2.5
TH5	87	60	16.4	TH5	350	87	4
TH3A	78	60	16.4	TH3A	200	78	4
TH5A	78	60	16.4	TH5A	200	78	4
Remark:
All our material quality according to Q235A
We produce our elevator guide rail under international standard ISO7465
All price are according to current raw materail price
Our payment Terms are T/T & L/C, Our ability is 600 Tons per month
