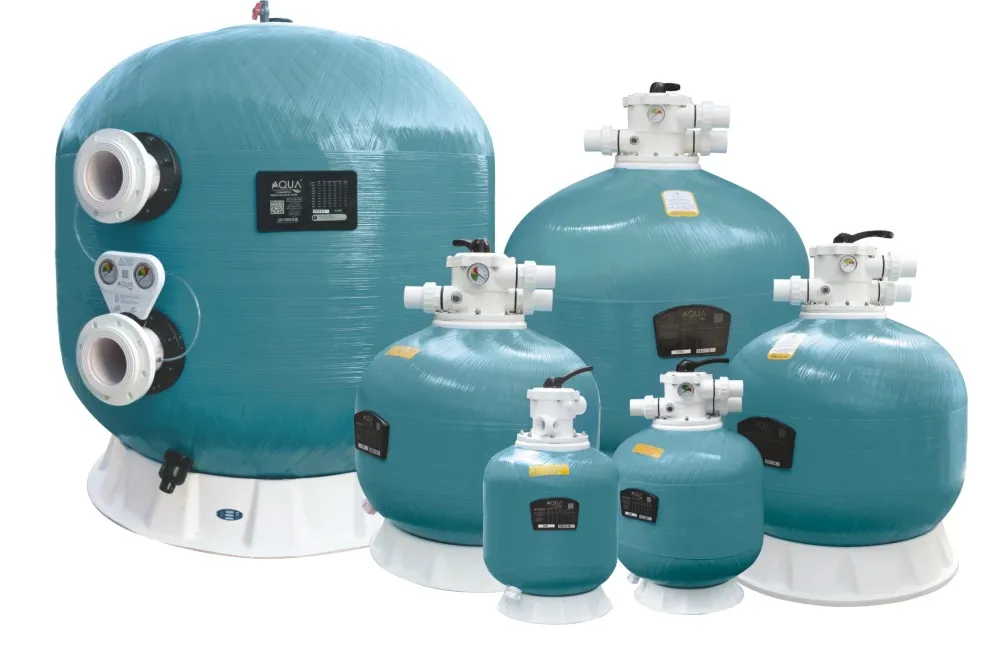

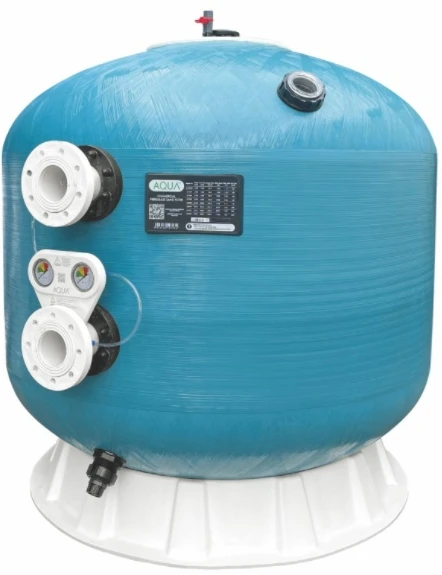

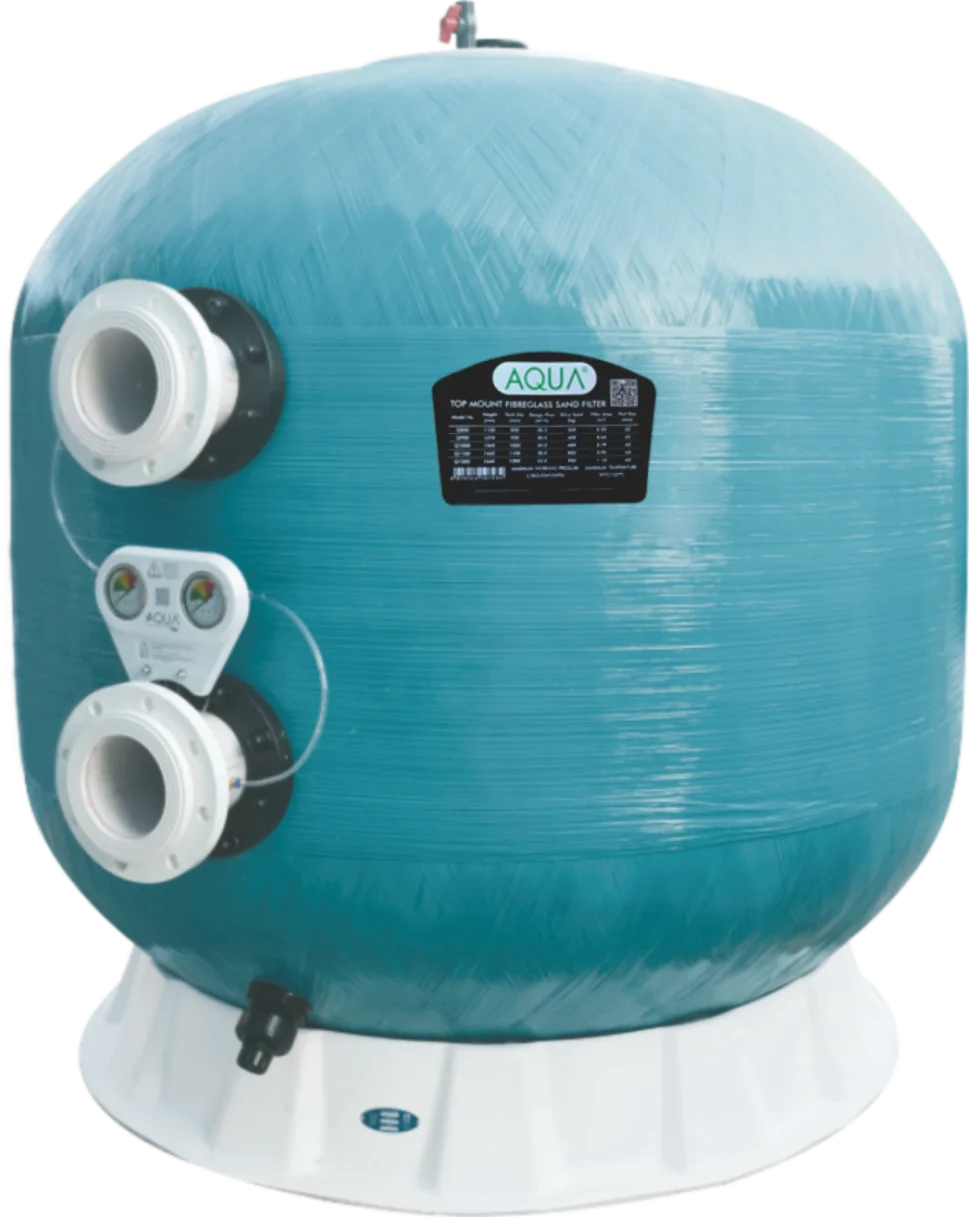

AQUA fiberglass big commercial swimming pool Sand Filters
- Category: >>>
- Supplier: Guangzhou Chuangdi M & E Technology Co. Ltd
Share on (273388097):
Product Overview
Description
Product Description
COMMERCIAL SAND FILTERS
Maximum working pressure:
250Kpa/36psi/2.5bar
400Kpa/58psi/4.0bar(Optional)
Maximum temperature: 50°C
- Anti-UV protective layer of fiber glass wound reinforced filter tank.
- Integral structural polyester fiberglass bases for superior tank support.
- Fully pressure tested at the factory.
- Metric or imperial piping flanges available.
- Vertical design consumes small space footprint.
- Suitable for any filter media.

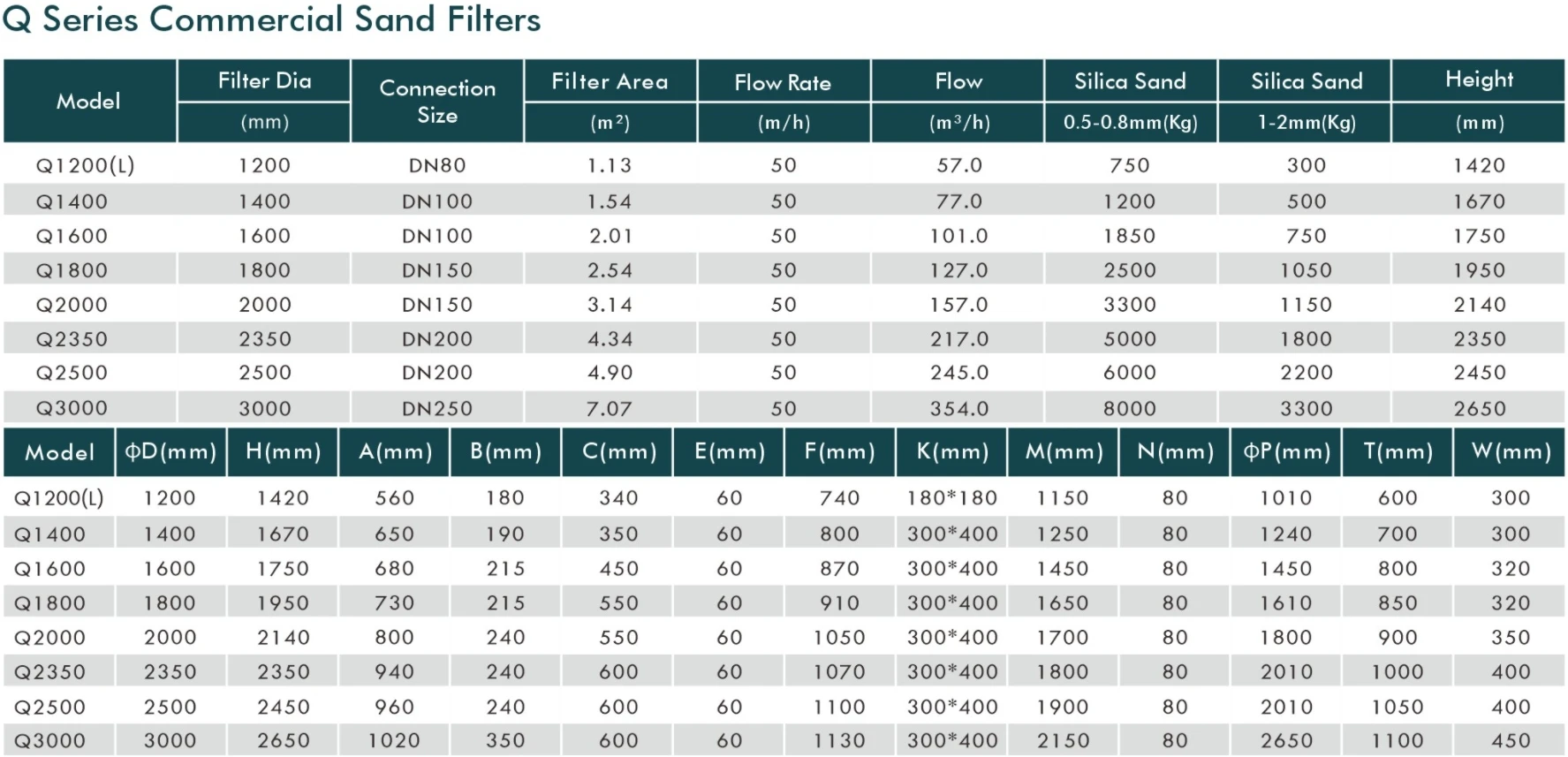

Specifications
Model | Filter Dia. (mm) | Connection Size | Filter Area (㎡) | Flow Rate (m3/h/㎡) | Flow (m3/h) | Silica Sand 0.5-0.8mm (Kg) | Silica Sand 1-2mm (Kg) | Height (mm) |
Q1200(L) | 1200 | DN80 | 1.13 | 50 | 57.0 | 750 | 300 | 1420 |
Q1400 | 1400 | DN100 | 1.54 | 50 | 77.0 | 1200 | 500 | 1670 |
Q1600 | 1600 | DN100 | 2.01 | 50 | 101.0 | 1850 | 750 | 1750 |
Q1800 | 1800 | DN150 | 2.54 | 50 | 127.0 | 2500 | 1050 | 1950 |
Q2000 | 2000 | DN150 | 3.14 | 50 | 157.0 | 3300 | 1150 | 2140 |
Q2350 | 2350 | DN200 | 4.34 | 50 | 217.0 | 5000 | 1800 | 2350 |
Q2500 | 2500 | DN200 | 4.90 | 50 | 245.0 | 6000 | 2200 | 2450 |
Q3000 | 3000 | DN250 | 7.07 | 50 | 354.0 | 8000 | 3300 | 2650 |
