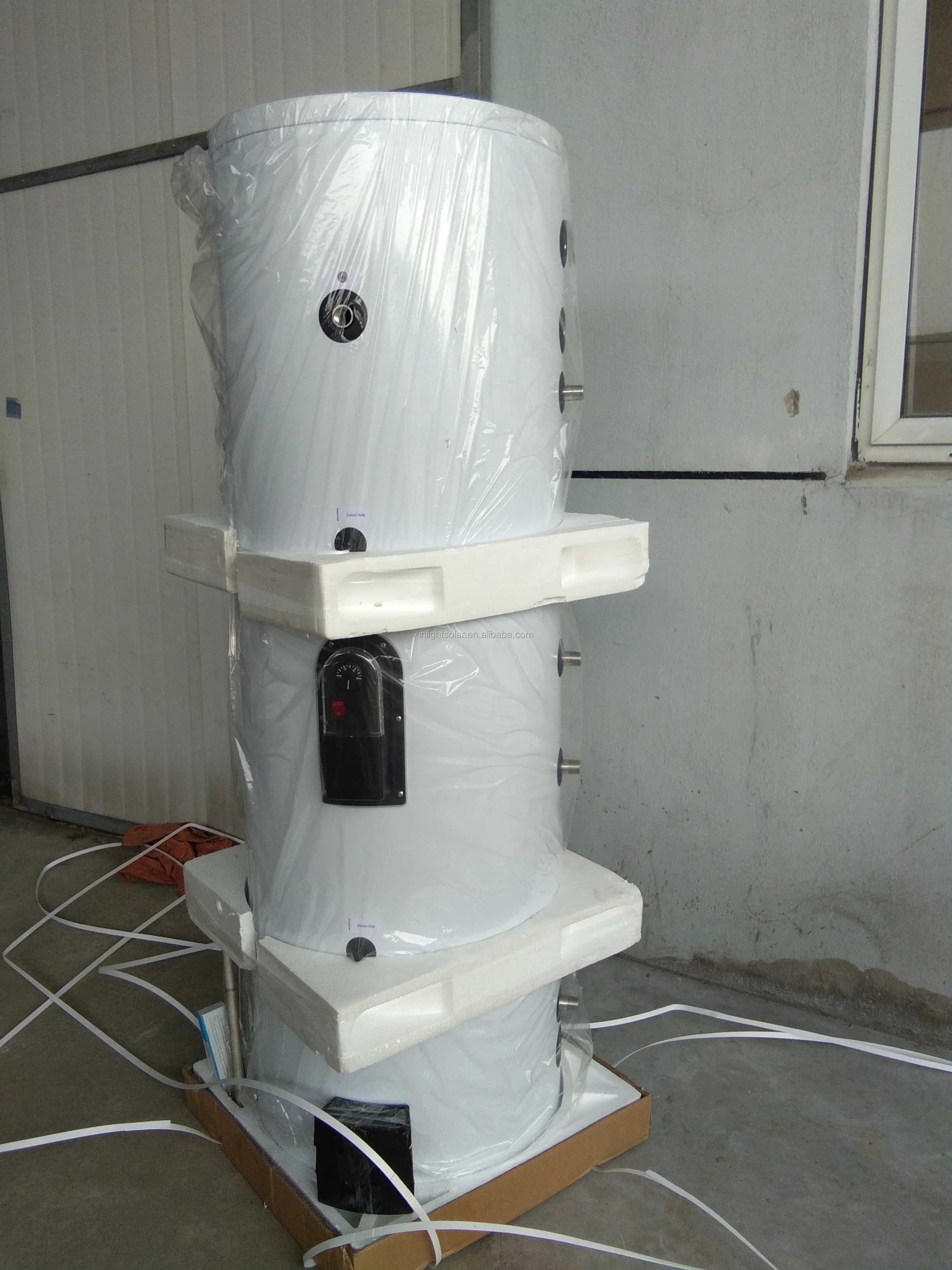

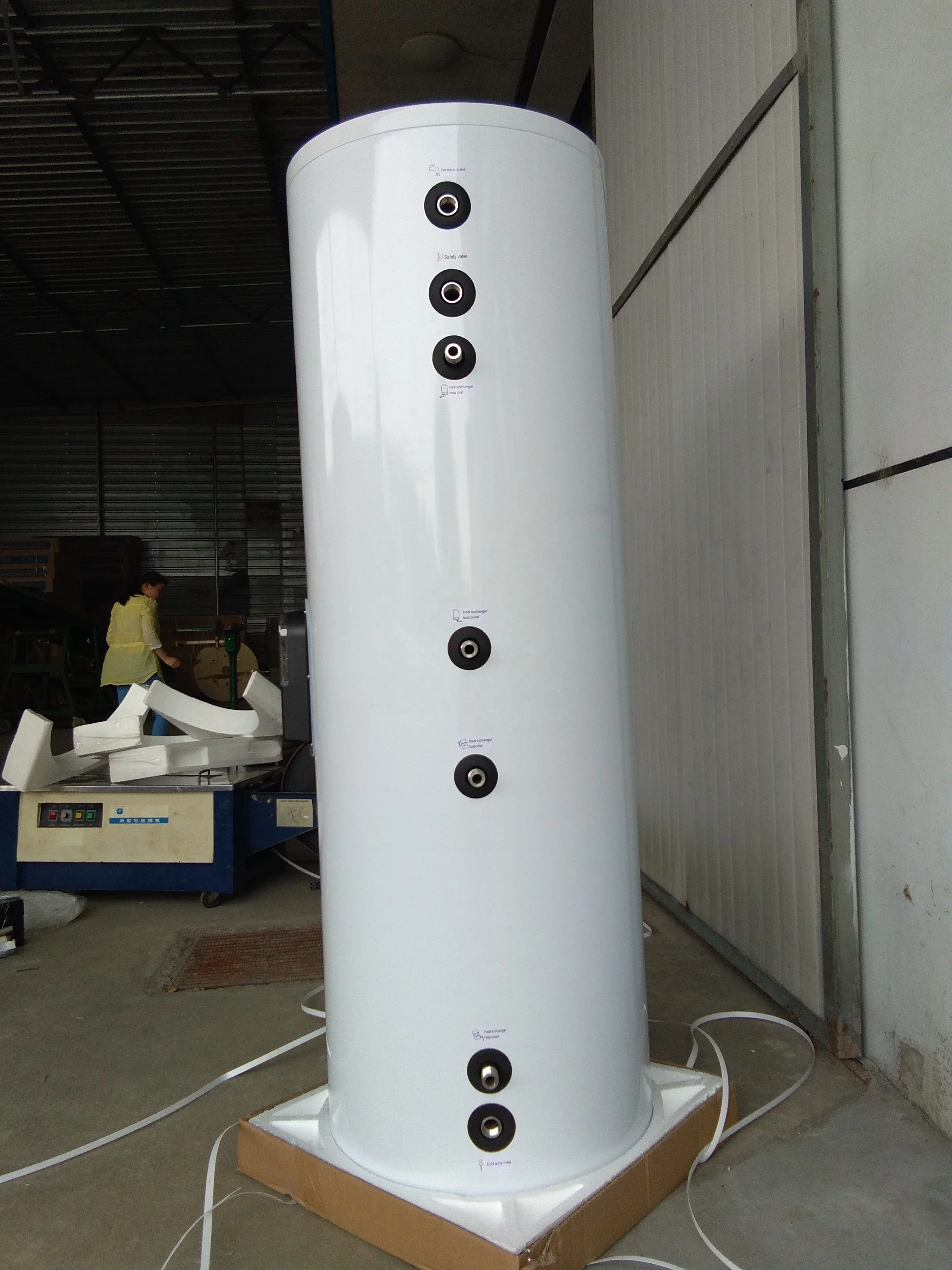

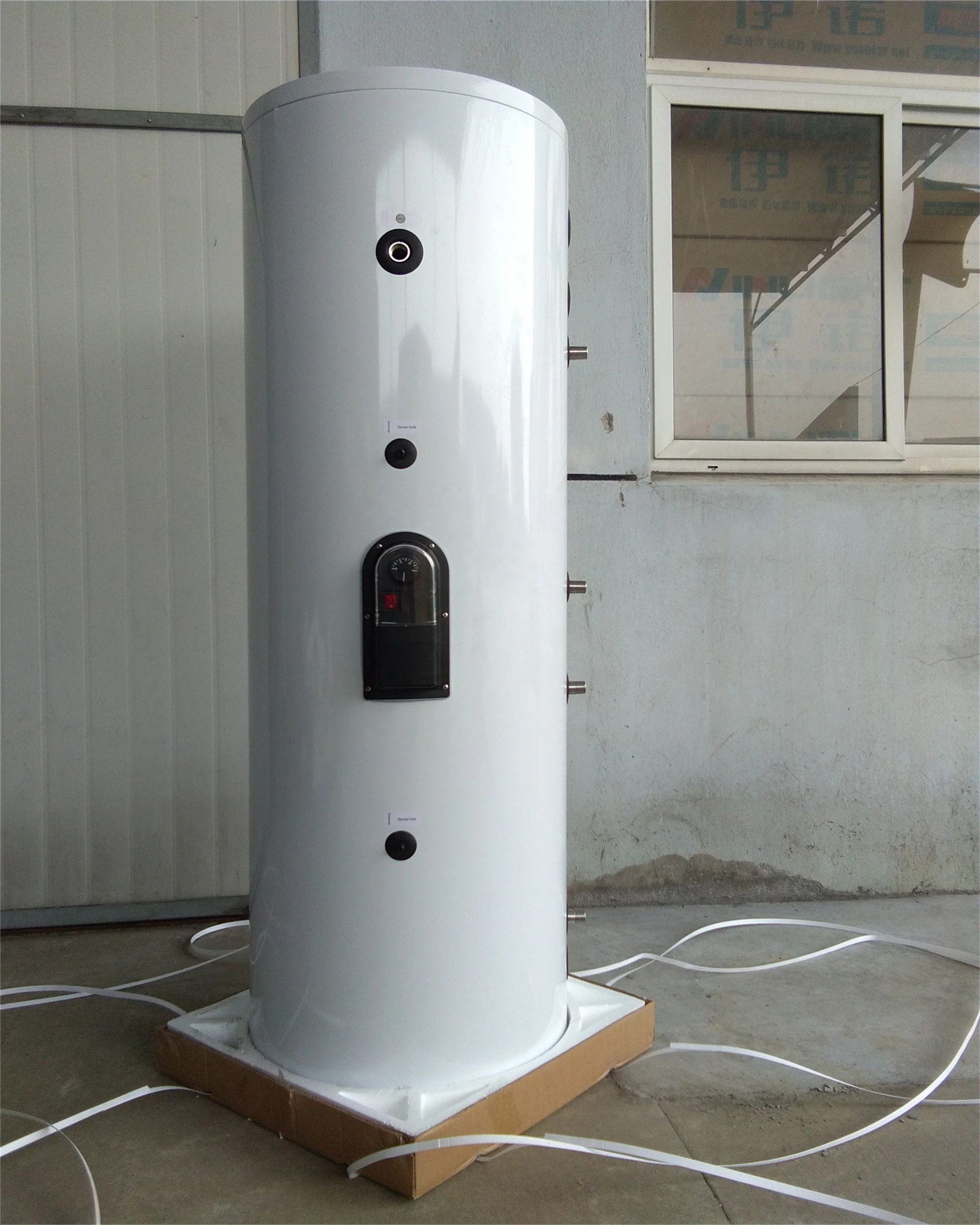

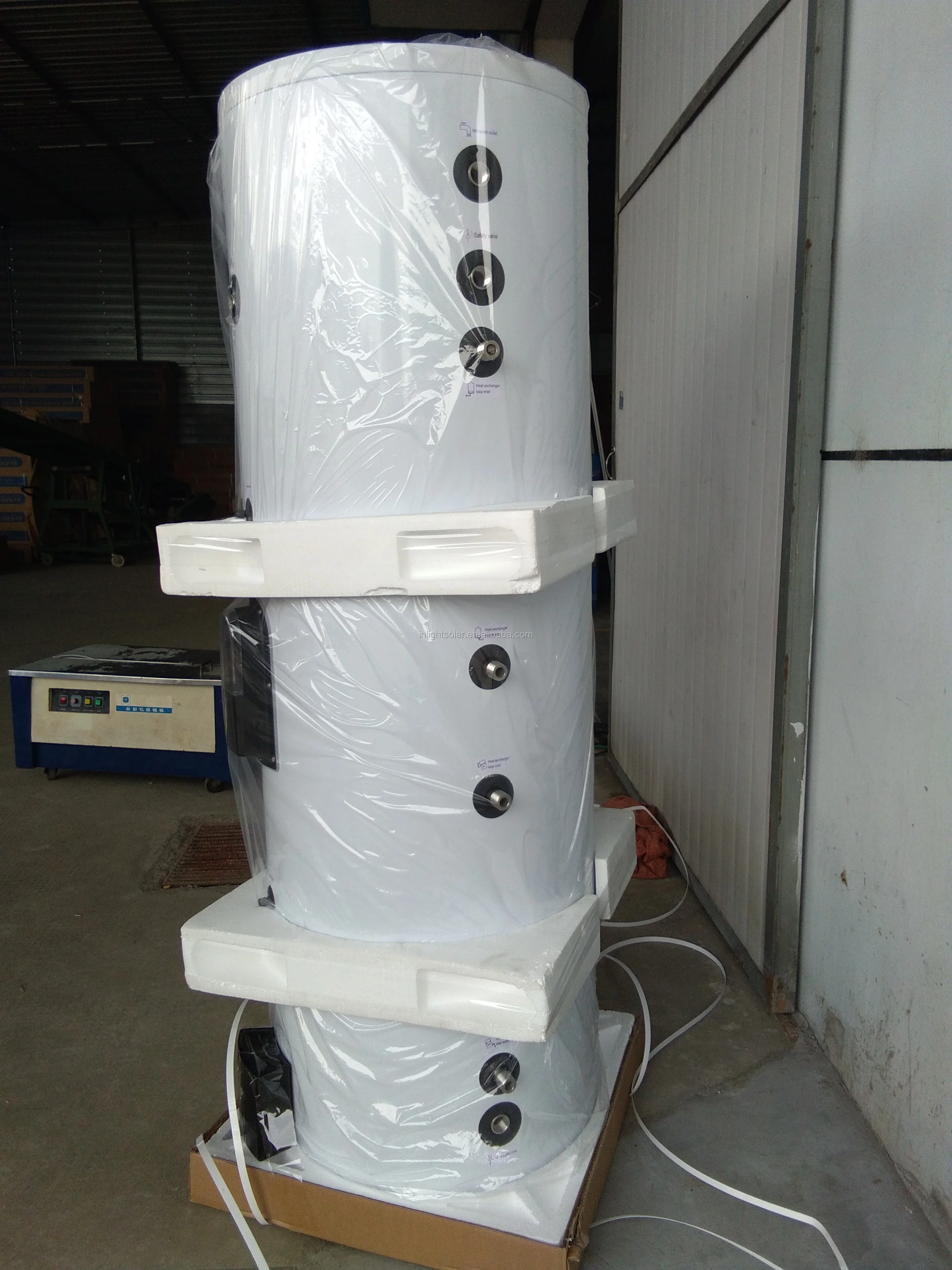

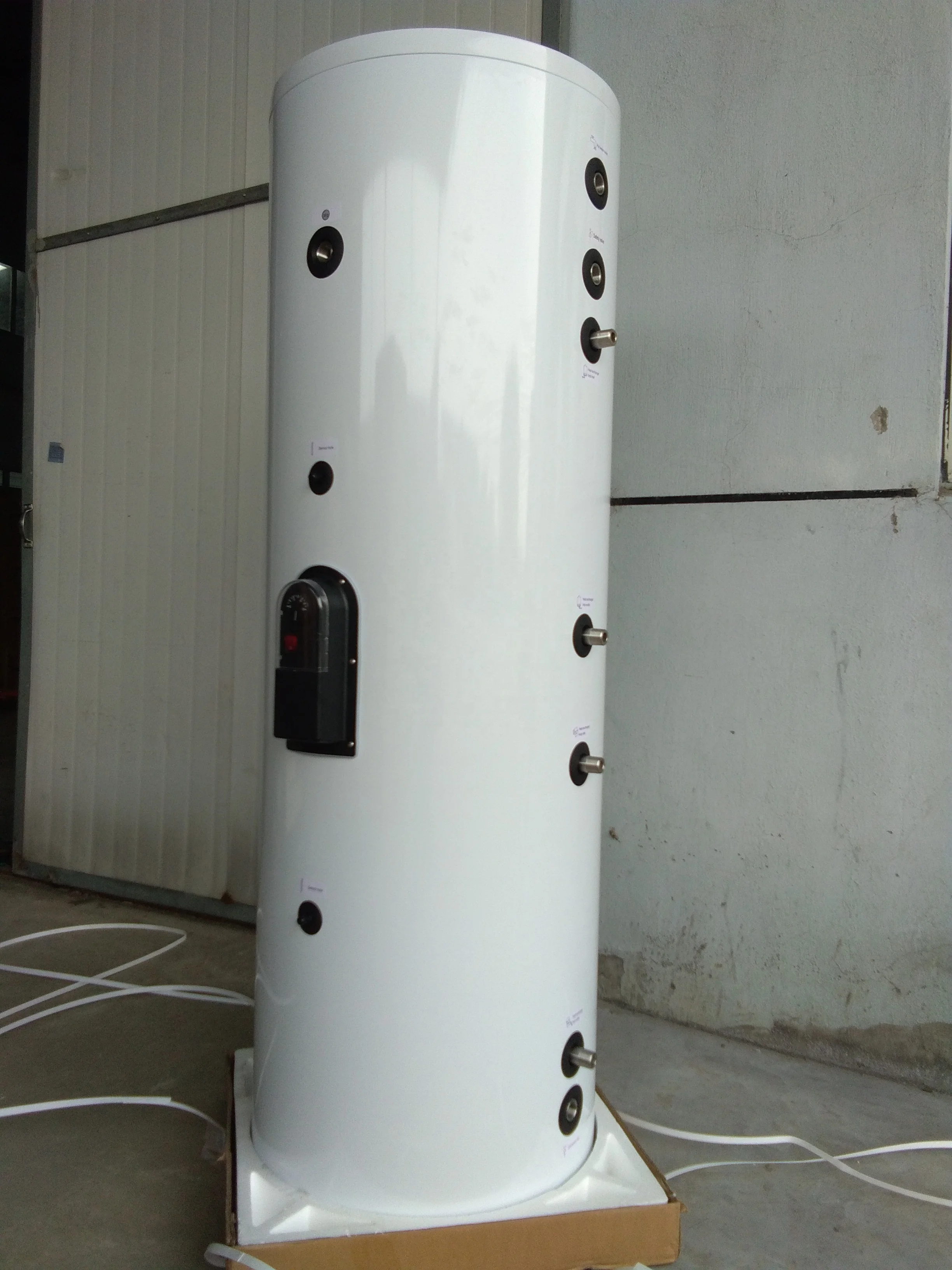

300L Split Pressurized Solar Water Tank

  Solar Water Tank

Water Tank
(1) Inner storage tank: Stainless SUS304-2B/ SUS316L 1.5-2.0mm (100-300L), 2.0-2.5mm (400-1000L)
together with advanced welding technics to ensure it with a long lifespan (15 years).

(2) Tank shell: High-quality white coated color steel plate 0.5-0.6mm,with its outer coating treatment ensures a long life even to ocean coast weather.

(3) Tank insulation: High-density polyurethane integrated foam-forming 50-100mm,preserves hot water constantly as long as 70~80 hours

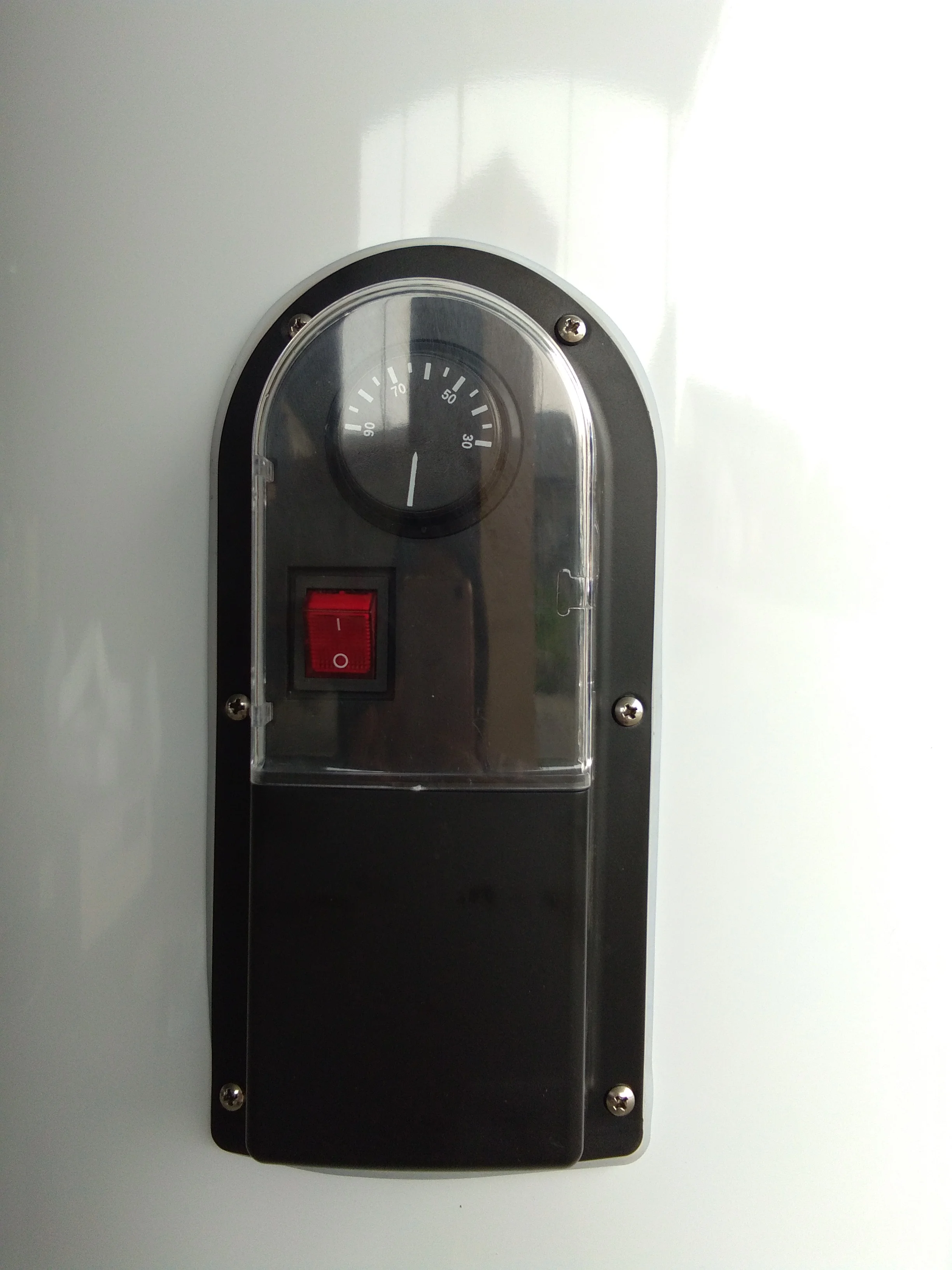

(4) Accessories: Thermostat electrical heater with regulator, Anode magnesium, T/P valve, Relief valve

.
Optional Devices

Electrical heater, as an auxiliary heating element in case of raining or snowing days so as to ensure a continous hot water supply

Intelligent controller, automatically controls water refill and startup of auxiliary heating device, more intelligent operation

Anode Magnesium: With the anode consumption to protect solar system from water scale and erosion

Warranty: 3 years international responsibility for integrated system and 15 years for glass vacuum tubes due to original quality problems

Accessories:

1) Electrical heater, as an auxiliary heating element in case of raining or snowing days so as to ensure a continous hot water supply

2) Anode magnesium Bar: soften hard water in system so as to protect storage tank and copper coil from water scale effectively

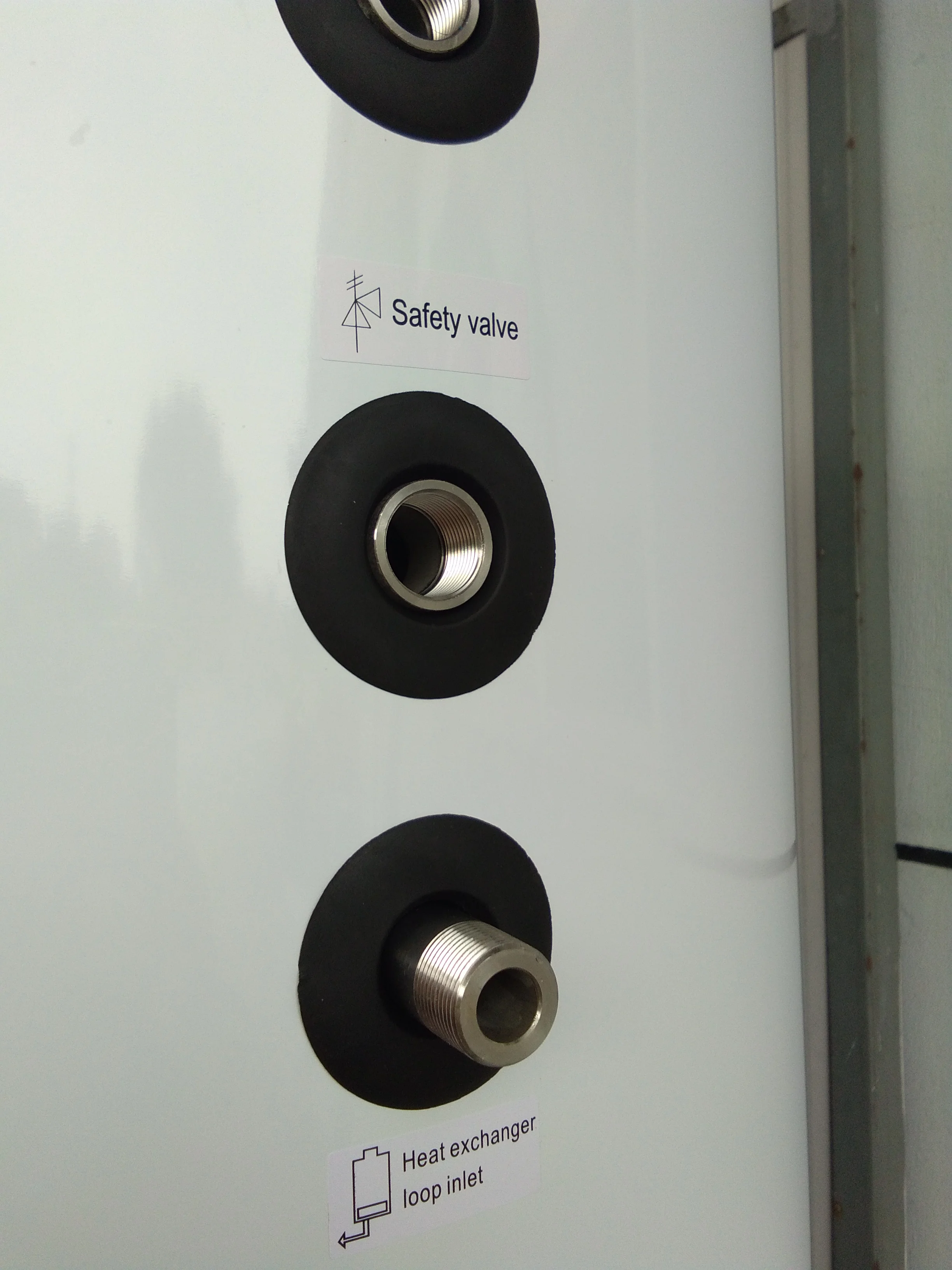

3) T/P valve, Stainless bolts & nuts, anti-aging rubber seal, pipe holder make their life as long as other parts of the system

Warranty:

3 years international responsibility for integrated system exchange and 15 years for glass vacuum tube compensation due to original quality problems
