Product Overview

Description

filter press malaysia Edible Oil Plate Filter Press

GEMCO is engaged in offering a wide range of oil filter machines to our valued customers. Characterized by convinient operation, stable technical effect, high capacity and low impurity, the oil filter press we designed is to give maximum filtration efficiency, with longer life and least maintenance.


What's oil filter press

GEMCO oil filter press is a oil filtering machine for separating solids and liquids in industries, which is particularly being used as a oil purifier in the oil processing for edible or vegetable oils. The plate filter press we supplies is quite suitable for filter crude oil and refined oil, and it can also be used forbleaching oil in the refining process.


Click Now for Catalogs & Factory Price!





Specification of oil filter press

Model	YLX65	YLB470	YLB307L	YLB307	Z26
Capacity	800kg/h	450kg/h	240kg/h	180kg/h	85-100kg/h
Filtration Area	20 m²	7m²	4m²	3m²	1 m²
Plate Quantity	29pcs	18pcs	18pcs	13pcs	8pcs
Filtering Pressure	0.5MPa	0.3MPa	0.1~0.3MPa	0.1~0.3MPa	0.1~0.3MPa
Power	1.5Kw	1.5Kw	1.5Kw	1.5Kw	0.55Kw
Outline Dimension	2900*920*1040 m³	1650*700*780mm³	1520*570*640mm³	1270*570*640mm³	900*410*750 m³
Weight	2950kg	1040kg	520kg	430kg	162kg

We offer different models of oil filter press for your best choice. If you are interested in it, please contact us directly!


Click Now for Catalogs & Factory Price!



BEST filter press malaysia for sale

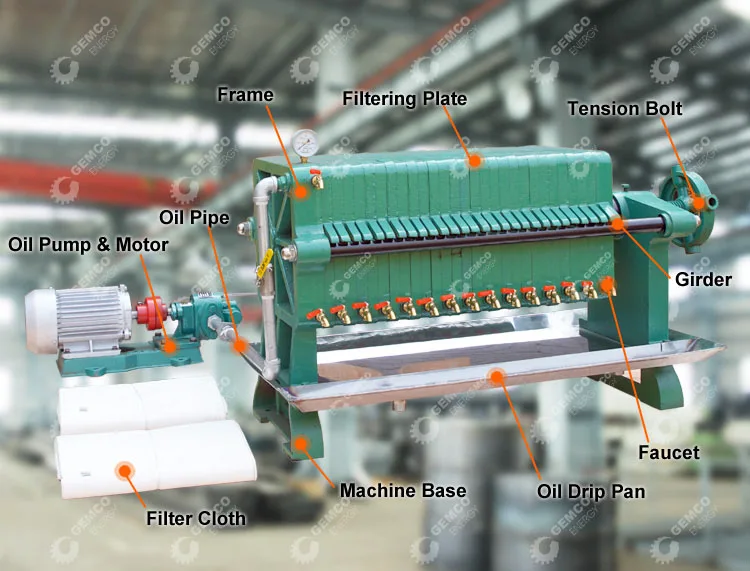

With fine-mesh filtering clothes, the filtering machine can be also applies to clean waste water and waste cooking oils. The filtrating cloth between the filter plates forms many rooms. The oil under the pressure goes through the filtrating cloth, gets out from the faucet beneath the filtrating cloth.

Click Now for Catalogs & Factory Price!

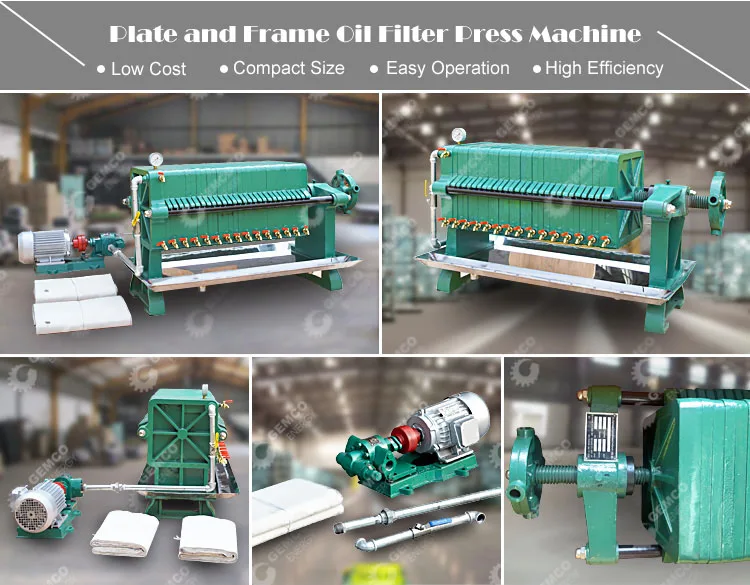

Customized filter press malaysia

Our filter press malaysia is great filtration machine in edible oil processing plant. It can be used for filtering crude oil, refined oil, bleaching oil in the oil refining plant. This series of frame filter press own matched electric motor and cloth. They have many outstanding features, including

Click Now for Catalogs & Factory Price!

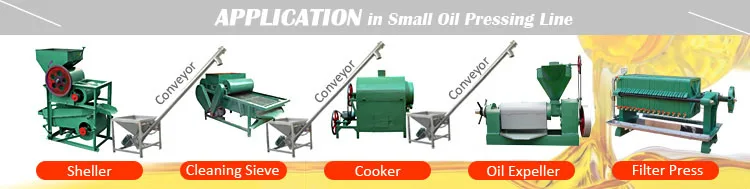

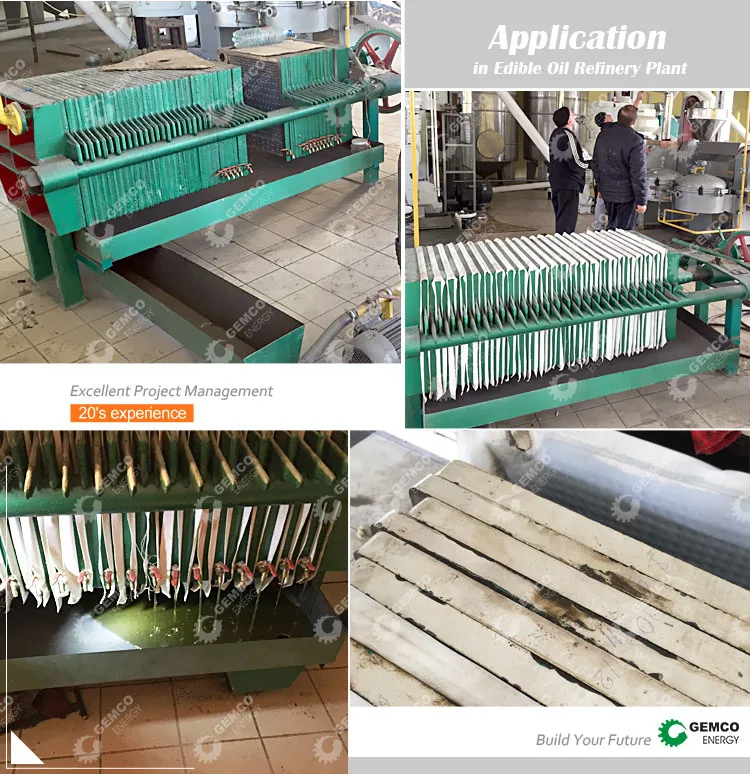

Small plate filter press in application

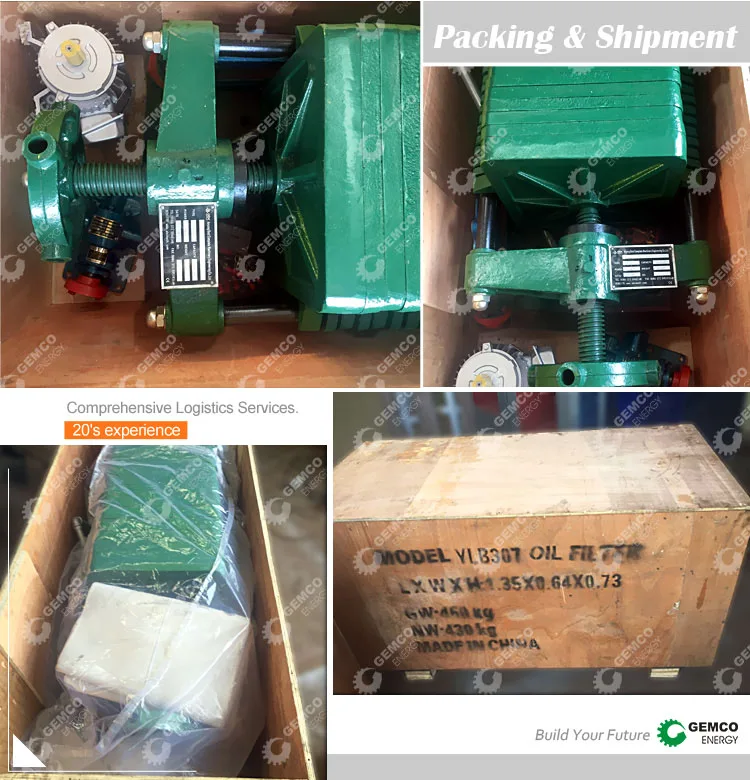

Packing of edible oil filter press



Click Now for Catalogs & Factory Price!

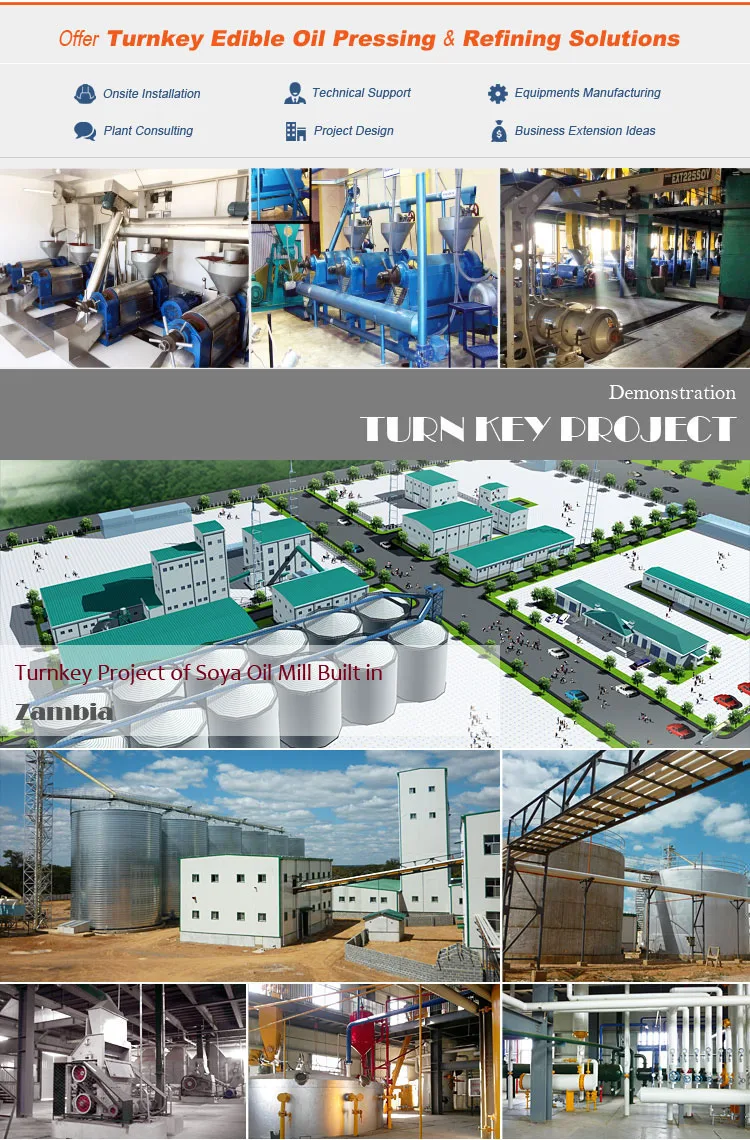

Reliable plate filter press supplier

Click Now for Catalogs & Factory Price!



Certifications of plate filter press

Click Now for Catalogs & Factory Price!



Why our plate filter press at factory price

Click Now for Catalogs & Factory Price!



Customer visit for plate filter prss
