KTC 200mm resistive linearity measurements 10V resistive linearity measurements
- Category: >>>
- Supplier: Shenzhen Minor Electronics Co. Ltd.
Share on (273795627):
Product Overview
Description

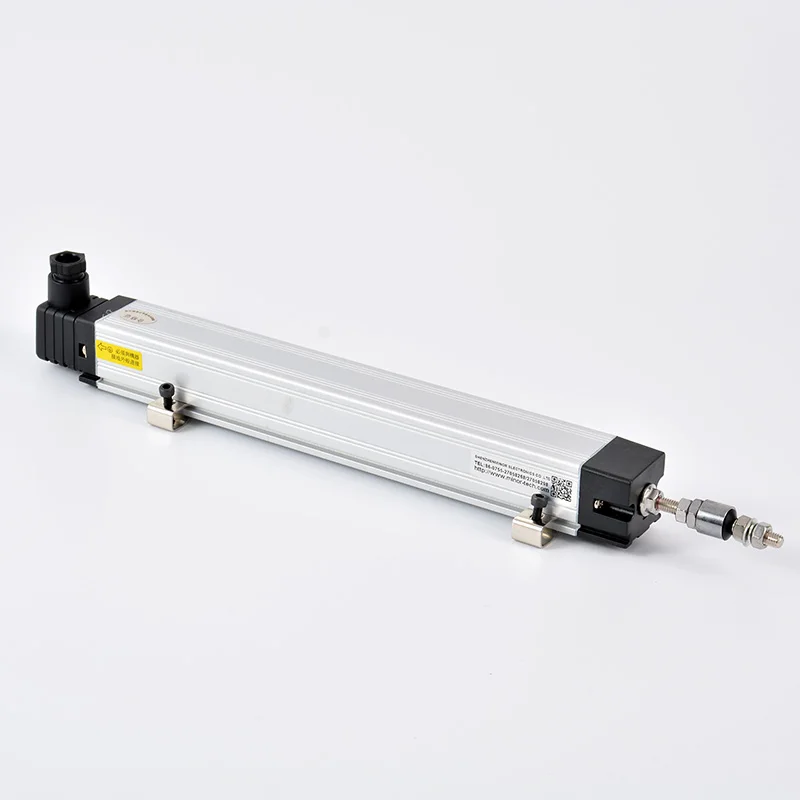

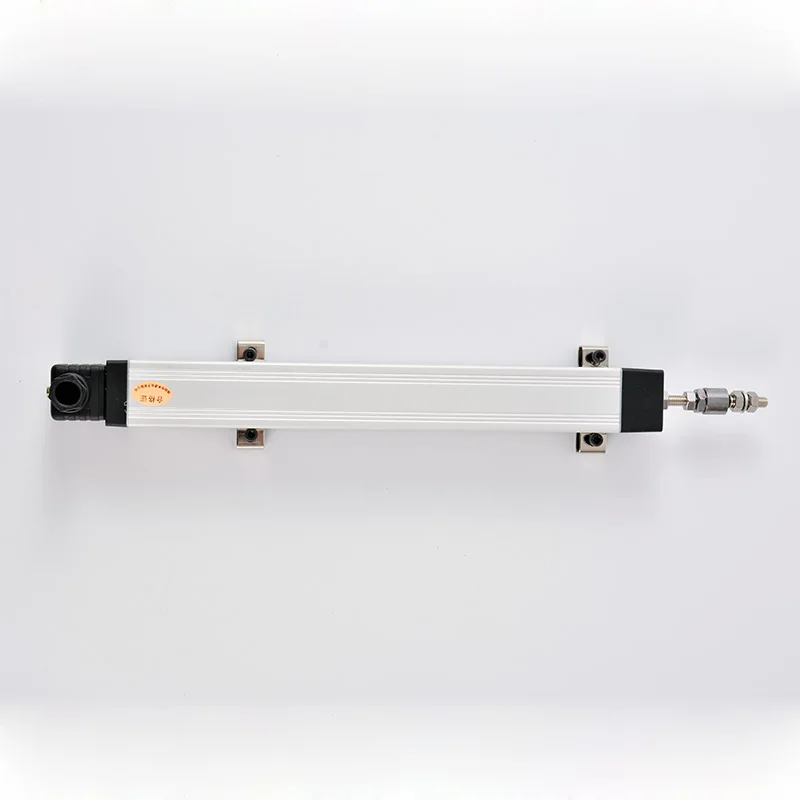

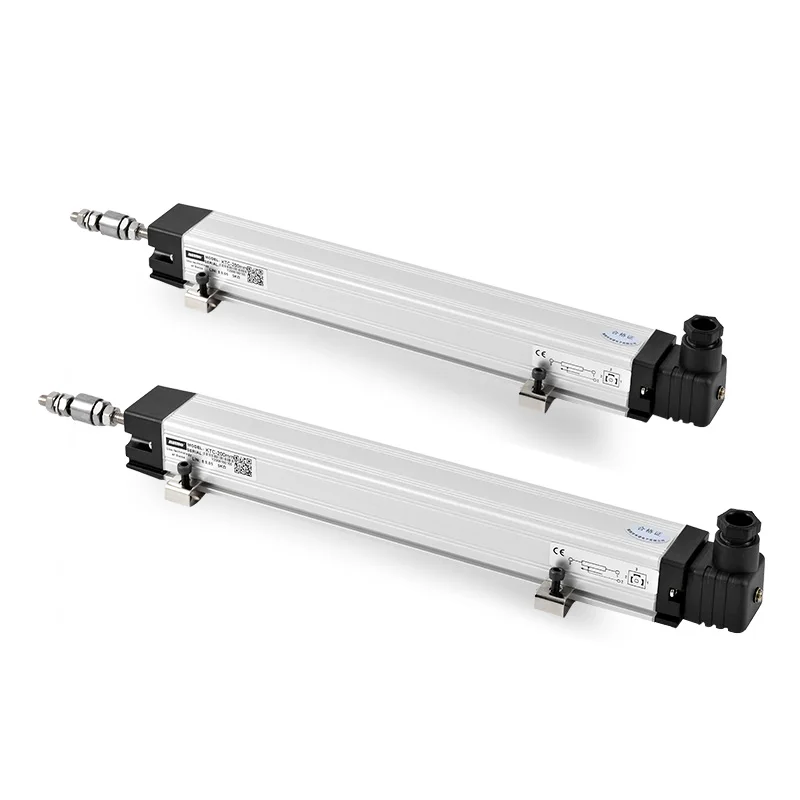

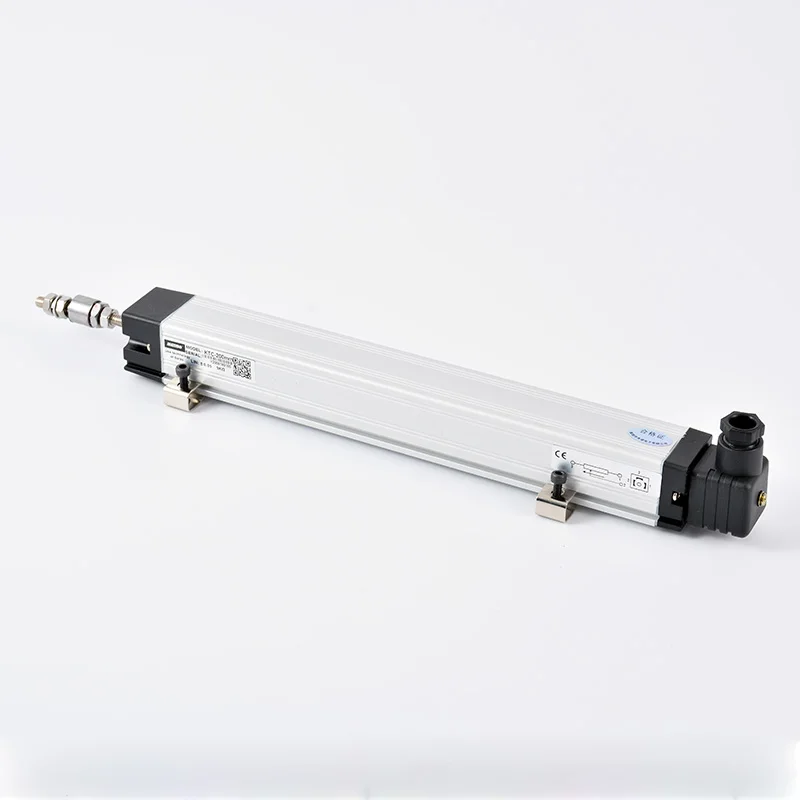

KTC Linear Position Sensor and Components

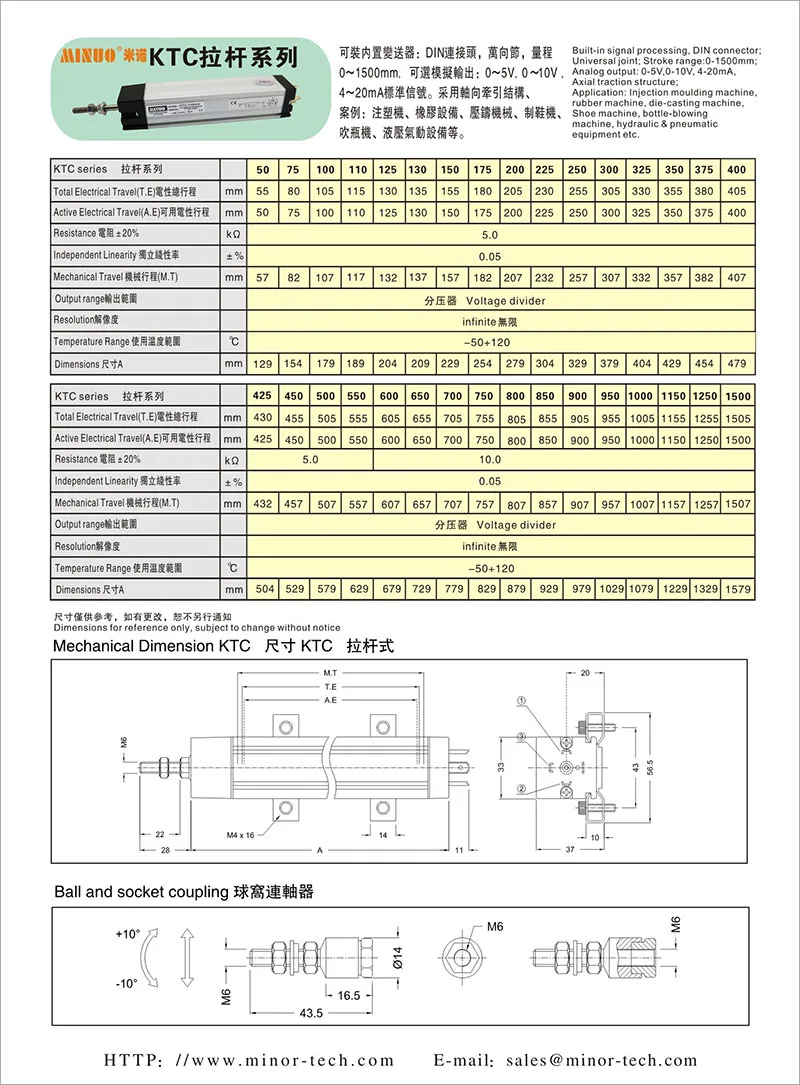

Standard Dimensions:
KTC Pull Pole series linear position sensors are designed for precise measurement of displacement and length. The Measuring range of KTC is up to 1500mm with repeatability of ±0.01mm and linearity of 0.05% (model size>350mm).Its structure is designed for simple installation and reliable work. Anodized aluminium housing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic track inside ,the product could run smoothly and have low-noise output signals.
There is a cardan joint or ball-bearing coupling at the top of pull pole to offset the effects of misalignment with the actuating part. Credited to the technology of trimming resistance, MINUO could not only provide you with required linearity, but also any resistance you need, such as 5678Ω or 8765Ω.
Output signal mode
| Output signal mode |
| A.Resistance: 1K,2K, 5K,10K,20K Ω |
| B.Current: 4-20mA |
| C.Power: 5V,10V,12V,24V |
| D.Related digital indicator: up-limit and bottom-limit setting function |
| (relay output, analogue, RS232/485 interface) |
Product Characterist
1.Simple structure, small size, light weight, affordable, but with stable and high
precision quality.
2.Less impact generated by the environment (Such as temperature, humidity,
magnetic interfere etc).
3.Any function of input and output can be implemented.
4.Strong output signal, normally no need to additional amplifier.
5.Suitable for the condition which any optical rule or rotary encode can not be used.
6.Easily installing and maintaining.
7.Save mechanical costs about 30%
Application Range
Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting
molding machine), glass machine, printing machine, medical machine, wood and coal
mine machine and so on.
MINUO products can be used with PLC industrial control systems, servo, frequency
converter, singlechip microcomputer, supporting the use of achieve frequency control,
the precise position detection and control signal feedback ect.
Product Description
 |  |  |

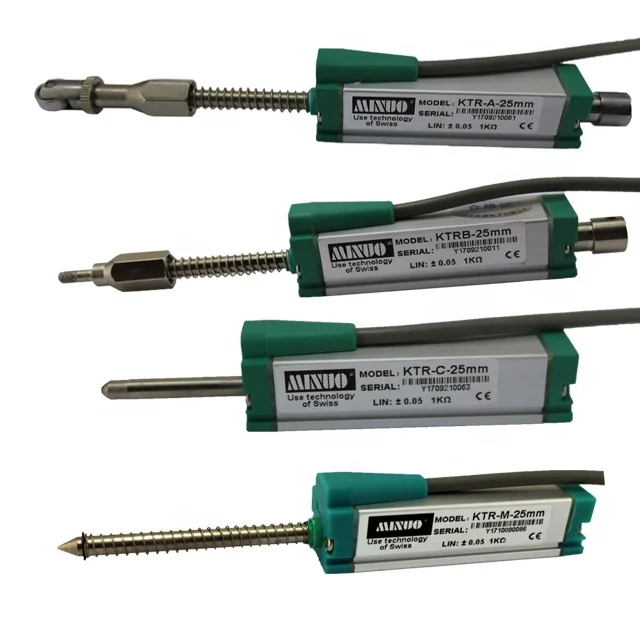

| KDC | KTR-C | KPY3 |
 |  |  |

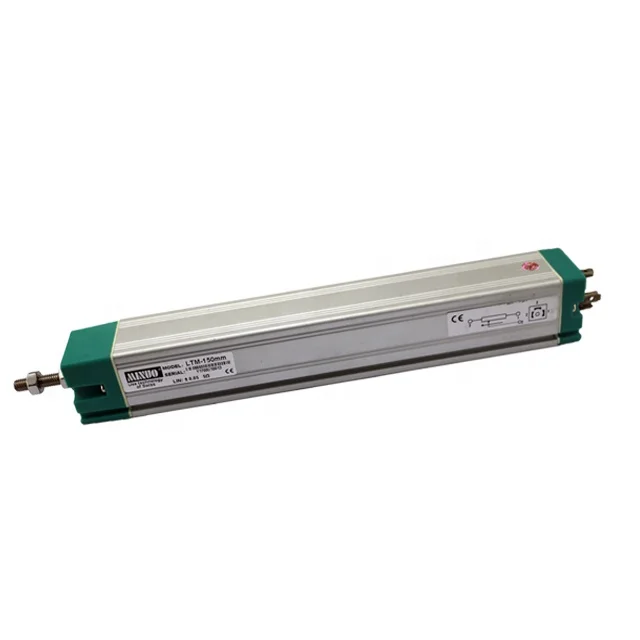

| LWH | LTM | KTW-A |
 |  |  |

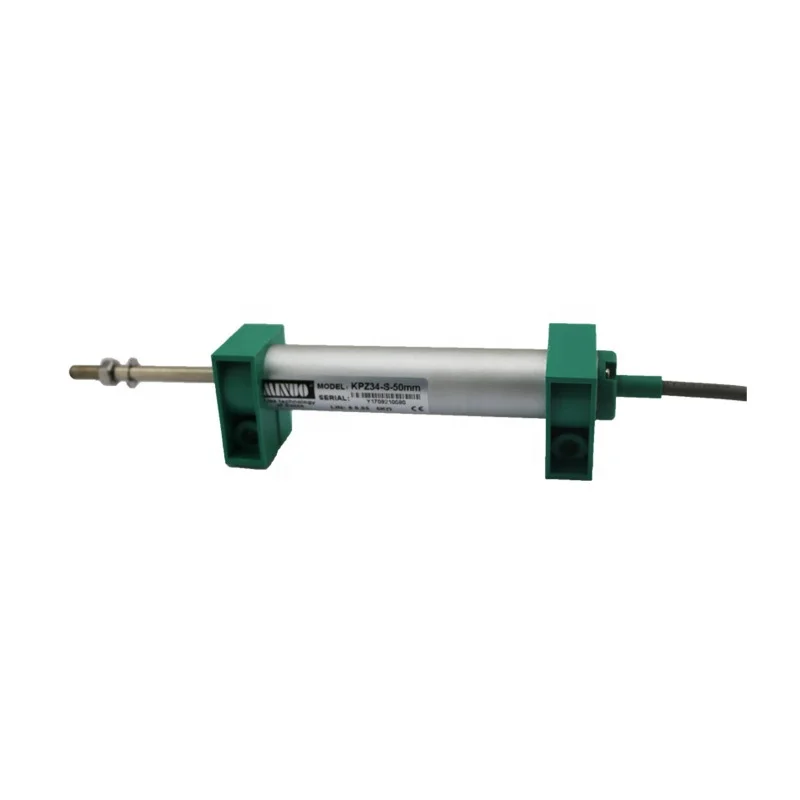

| KPZ34 | PKM | KTR-M |
