For more details,please feel free to send us your detailed inquiry,include type,quantity,finish floor height.It's our great pleasure to quote you our best products with best quotation.
ITEM:Steel Cementitious Raised Flooring with Antistatic HPL tiles/Vinyl/PVC/Ceramic tiles
Sixe:600*600*35(mm)/610*610*35(mm)
OA Steel Panel is made of quality steel plate, which is stretched forming welded and sprayed with bubble cement filled in its inner cavity. Its pedestal is plated with zinc and cast aluminum alloy, whose height is adjustable and can be self-locked. The steel panel can be shaped by either slicing or riveting. In order to meet the requirements of the multi-functional intelligent building, OA raised floor is equipped with double wiring chip boxes to avoid the unnecessary inconvenience. Installed by beamless angle bars, the panels are firm, stable and easy to handle.
OApanel

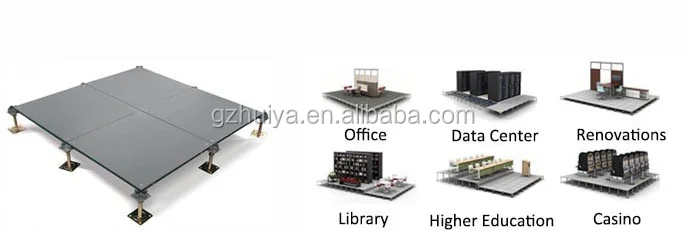

OA Bare Finished Raised Floor System(Bare Panel)
Model: OA600-Q/B/Z/CZ
Dimension: 600×600×35/30(mm)

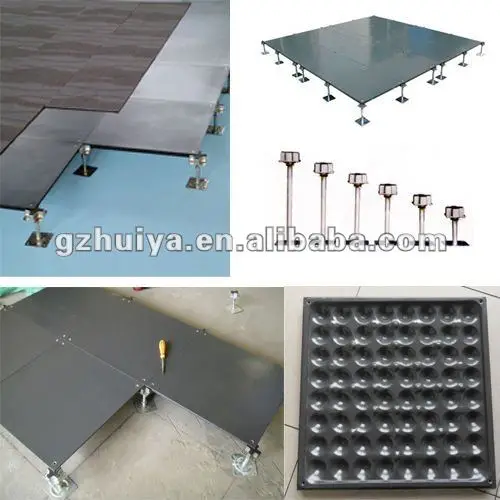

OA Raised Floor panel is made of good quality cold-rolled steel sheet with foaming cement fully filled. The bottom is high quality deep stretch coil steel plate. The top is cold rolled hard plate. The top steel plate and bottom steel plate are spot-welded to form a high quality shell. The shell is treated by phosphate and painted with epoxy powder coating. Then foaming cement will be filled into the shell. After curing, the structure will be stable and strong to support the designed loading capacity .
TYPE
Concentrated Load
Impact Load
Ultimated Load
Uniform Load
Rolling Load
LB
N
KG
N
N
N/SQM
10passes
10000passes
OA600-Q
≥800
3550
363
670
≥9400
≥14680
3560
2670
OA600-B
≥1000
4450
453
670
≥11970
≥16900
4450
3560
OA600-Z
≥1250
5550
567
670
≥14360
≥22240
5560
4450
OA600-CZ
≥1500
6660
680
780
≥17950
≥26690
≥6670
5560
Common specification/Panel material: Steel + Lightweight Cement
Pedestal
OA Steel Panelis made of quality steel plate, which is stretched forming welded and sprayed with bubble cement filled in its inner cavity. Its pedestal is plated with zinc and cast aluminum alloy, whose height is adjustable and can be self-locked. The steel panel can be shaped by either slicing or riveting. In order to meet the requirements of the multi-functional intelligent building, OA raised floor is equipped with double wiring chip boxes to avoid the unnecessary inconvenience. Installed by beamless angle bars, the panels are firm, stable and easy to handle.
Installed Example
Applicable fields:
OA Steel Panel is fit for intelligent office building, OA classroom or places need to be raised, dust-free or waterproof.
Characteristics:
All steel assembly structure with high strength and strong anti-impact ability. High precision of dimensions and good interchange ability. Surface is treated with static electricity painting, owning good performance for anti-corrosion and long life for use. Fire-proof, water-proof and dust-proof. Wiring chip port is molded forming to make it easier for assembling wires and outlet boxes. Lower space can be used for air-conditioning ventilation. With regard to bearing loads of excessive heavy equipment, the loading problem can be solved by adding pedestals under the floor. Convenient work for both assembling and dismantling brings high re-use factor.
Certifications
About us
Packing:
Applicable fields:
OA Steel Panel is fit for intelligent office building, OA classroom or places need to be raised, dust-free or waterproof.
Characteristics:
All steel assembly structure with high strength and strong anti-impact ability. High precision of dimensions and good interchange ability. Surface is treated with static electricity painting, owning good performance for anti-corrosion and long life for use. Fire-proof, water-proof and dust-proof. Wiring chip port is molded forming to make it easier for assembling wires and outlet boxes. Lower space can be used for air-conditioning ventilation. With regard to bearing loads of excessive heavy equipment, the loading problem can be solved by adding pedestals under the floor. Convenient work for both assembling and dismantling brings high re-use factor.
BEISIDE computer, server, control room, and general office access floors is China fastest growing raised access-flooring manufacturer. BEISIDE help design and create smarter buildings utilizing BEISIDE's state of the art raised flooring systems to help organize your voice and data requirements. Create your intelligent building by using the access floor as an open-air plenum. With over 15 years of experience around the construction industry,BEISIDE is committed to being part of the solution.
Businesses have responded quickly and dramatically to rapid technological changes over the last several years. Yet, building systems have been slow to accomodate these demands. Changes to office environments continue to be disruptive, slow and wasteful. Repairs to sensitive equipment and data remains unnecessarily high. Environmental efficiency and comfort is more important than ever. BEISIDE's Raised Access Flooring systems eliminate the need for embedded wiring and provides instant access to wiring and cabling, allowing for quick and easy reconfiguration of your office space. BEISIDE has the technology to address advances in electronic work flow, conservation and occupant comfort.
Why an Access Floor?
* Construction programmes are reduced by at least two weeks per floor due to elimination of a sand cement screed.
* As warm air rises, considerable cost savings are achieved by an underfloor air plenum delivering conditioned air exactly where it is needed - compared with the traditional uneconomic alternative of forcing conditioned air from the ceiling.
* Maximum flexibility for the installation and reconfiguring of services to equipment and workstations a matter of hours.
* In new construction the use of an access floor for total service distribution reduces the overall building height by about 13%. Or, for the same height, you can increase the number of floors.
