RJ45 RJ11 network cable inline coupler keystone
- Category: >>>
- Supplier: Cixi Sembanx Electronic Technology Co. Ltd. [Zhejiang China]Cixi
Share on (274335292):
Product Overview
Description

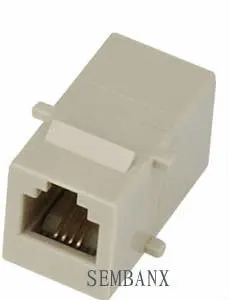

RJ45 Keystone jack inline Coupler
| Item name | Keystone jack |
| Model Number | SMB-KJ-C3-031 |
| Material | PC, Phosphor Bronze gold plating |
| Color | White ,Black (other color need discussion) |
| Application | Networking |
| Performance | Pass the Fluke Test |
| Category | Cat3 /5e/6/6A |
| Packing | 1pc/bag, 1000pcs/carton |
| MOQ | 1000pcs |
| Lead Time | about 3-25 days |
| Payment Terms | T.T / L.C / PAYPAL / WESTERN UNION |
| OEM Service | Welcome |
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements.
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 3 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Angle: 90 Degree
Termination: 110 Type
Electrical:
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.
