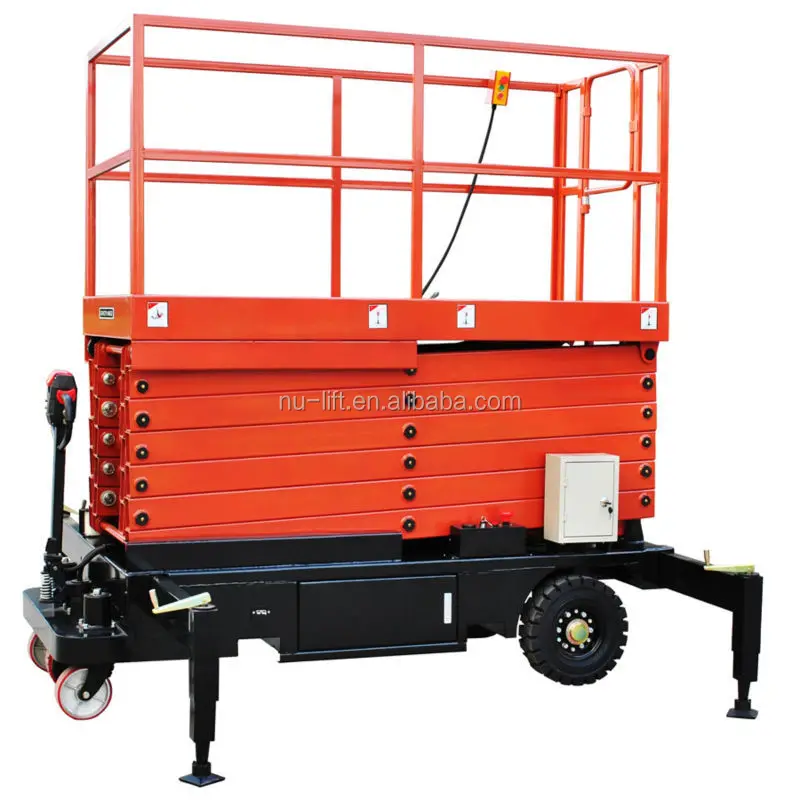

Hydraulic Scissor Type Work Platform Lift

Product Overview

Description

Standard equipment
Can Bus Technology
Proportional controls
Automatic Pothole Protection

AC Type and DC type available









Model		SJY0.5-6	SJY0.5-7.5	SJY0.5-9	SJY0.5-11
Lift Rated Capacity	kg	500	500	500	500
Max.Platform Height	mm	6000	7500	9000	11000
Min.Platform Height (Guardrail removed)	mm	1080	1200	1360	1480
Platform Size	mm	2200x1000x1100
Elevating Time	s	77
Motor Power	kw	24/2.2	24/2.2	24/2.2	24/3
Battery	v/Ah	2*12/150	2*12/150	2*12/150	2*12/150
Charger	v/A	24/20	24/20	24/20	24/20
Overall Length	mm	2540	2540	2540	2540
Overall Width	mm	1300	1300	1300	1300
Overall Height	mm	1180	1300	1460	1580
Net Weight	kg	950	1350	1600	1800
