Rubber belt Factory,EP100 150 200 250 Rubber Conveyor Belt
- Category: >>>
- Supplier: Zhejiang Guangzheng Rubber Co. Ltd.
Share on (276466727):
Product Overview
Description
Product Description
The functions of conveyor is according to its covering rubber, they can be divided into types of common,
heat-resistance, cold-resistance, alkaline-resistance, oilresistance, static resistance, abrasion resistance and chevron belt etc.
Usage:convey materials of non-corrosiveness, lump-shape, granular, or powder, such as coal, coke, sand stone, cement, or
ready-made articles.
Specification:
Fabric type | Fabric structure | Fabric specs | Ply thickness | Strength(N/mm) | Cover thickness | width | length | |||||
warp | weft | mm/ply | 2ply | 3ply | 4ply | 5ply | upper | lower | mm | m | ||
polyester
| EP80 | 160 | 240 | 320 | 400 | 1.5-12 | 0-4.5 | 400-2500 | 50-500 | |||
EP100 | 1 | 200 | 300 | 400 | 500 | |||||||
EP150 | 1.1 | 300 | 450 | 600 | 750 | |||||||
EP200 | 1.2 | 400 | 600 | 800 | 1000 | 500-2500 | ||||||
EP250 | 1.35 | 500 | 7500 | 1000 | 1250 | |||||||
EP300 | 1.45 | 600 | 900 | 1200 | 1500 | |||||||
EP350 | 1.6 | 1050 | 1400 | 1750 | 800-2500 | |||||||
EP400 | 1.75 | 1600 | 2000 | 1000-2500 | ||||||||
EP500 | 1.9 | 2000 | 2500 | |||||||||
EP630 | 2.1 | 2400 | 3000 | |||||||||
Belt carcass | Adhesive strength(N/mm) | Elongation(10%) | ||
Between plies | Between rubber and carcass | Longitudinal elongation at break | Longitudinal elongation at reference load | |
EP canvas | ≥5 | ≥5 | ≥10 | ≤2.0 |

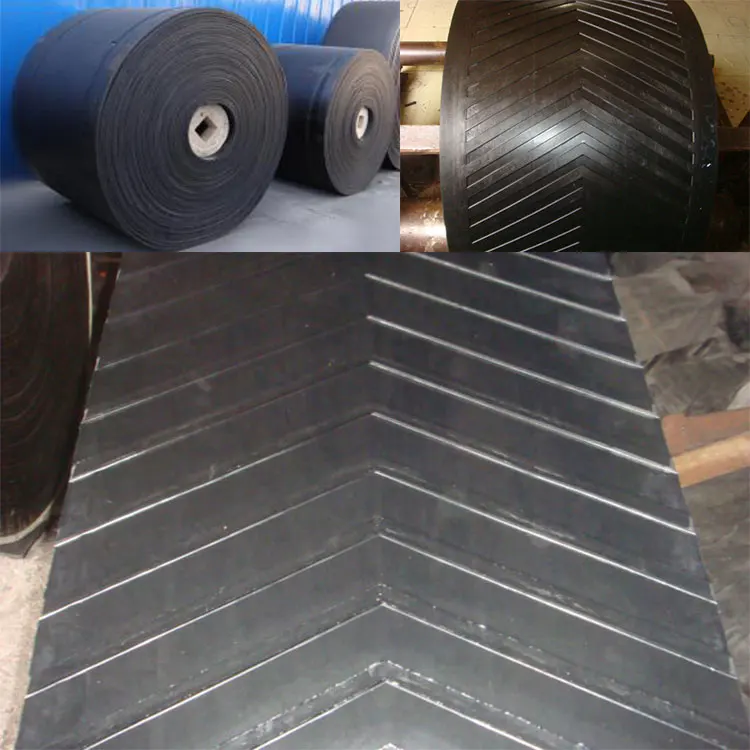

Related picture
Advantage

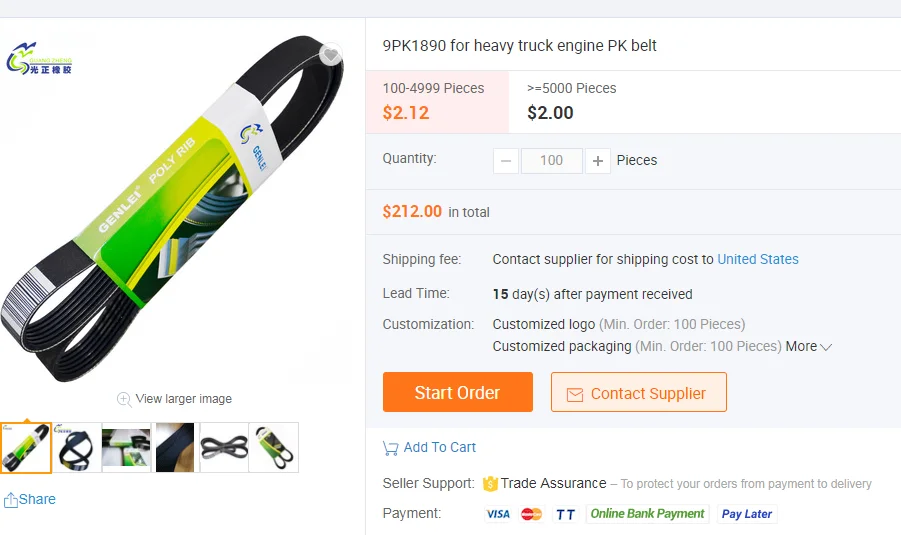

1. Order Online-- You can clink start order here when open specific product or clink contact
supplier to reach us.

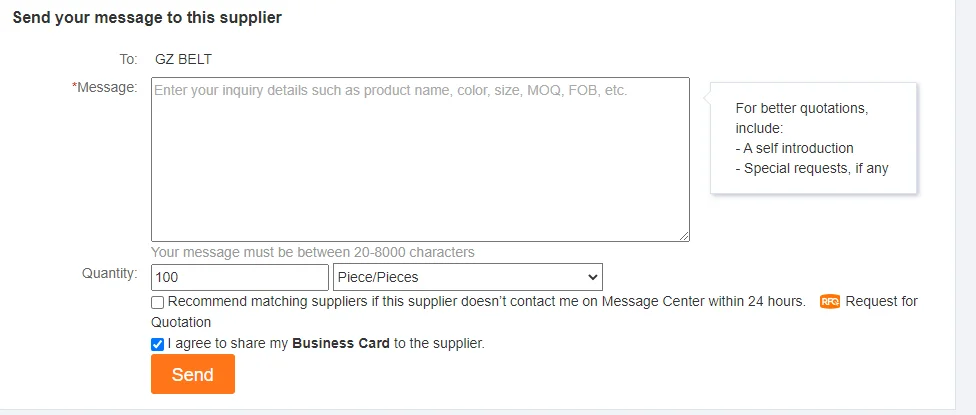

2. Send inquiry --You can send message to us about your requirement after finish surfing
specific product and reach bottom.
3. Chat online-- You can choose sales online to chat directly about order details.
Company Profile
FAQ
Q1;:What's the MOQ of the conveyor belt?
A:200 meters.
Q2:What type belt do you manufacture?
A: We mainly produce V-Ribbed Belt,Cogged Belt, Laminated Belt, Auto Timing Belt,Industrial Synchronous Belt,etc.
Q3:What is the terms of payment?
A: We usually use T/T 30% as deposit,and 70% before delivery.We'll show you the pictures of the products and packages before you pay the balance.
Q4: How about the delivery time?
A: Generally,it will take 15-30 days after receiving your advance payment.The specific delivery time depend on the items and the quantity of the order.
Q5:What is your sample policy?
A: We can send you the free sample but the customers have to pay the freight.
Q6:Do you test all the goods before delivery?
A: Yes, we have inspectors to inspect the products.
