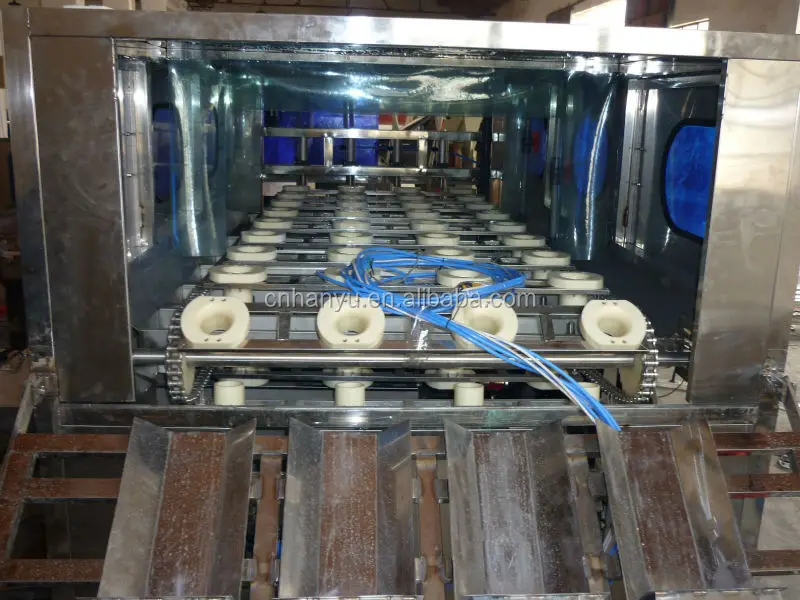

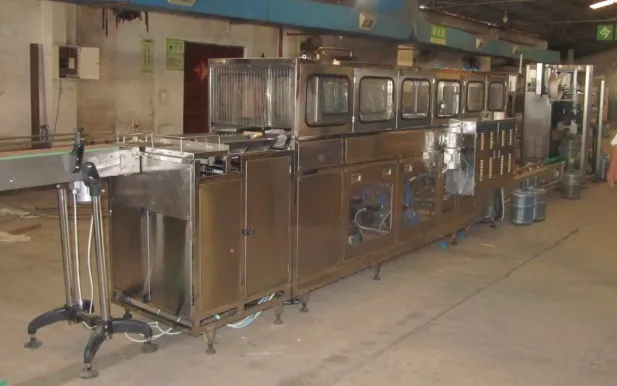

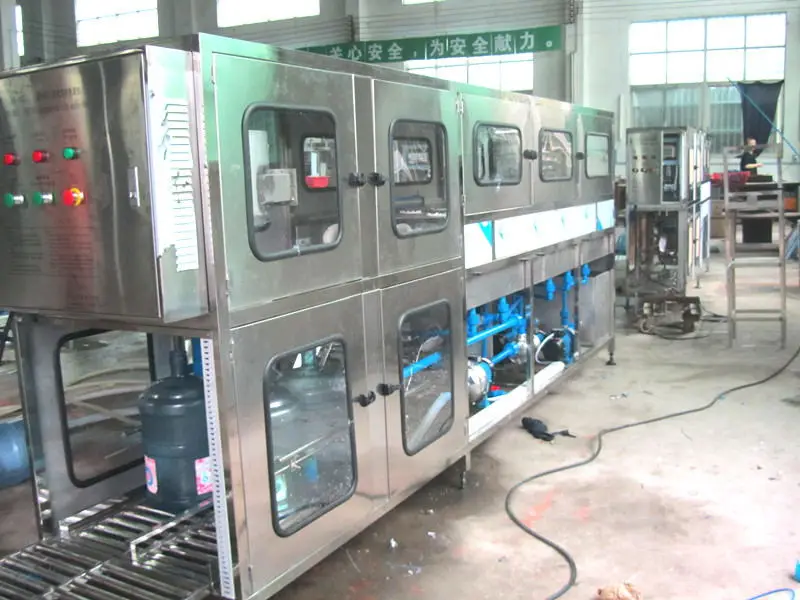

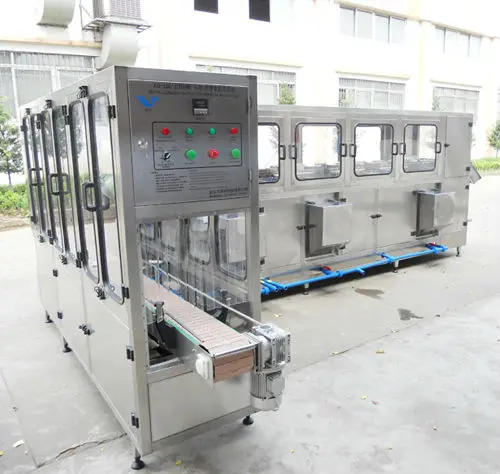

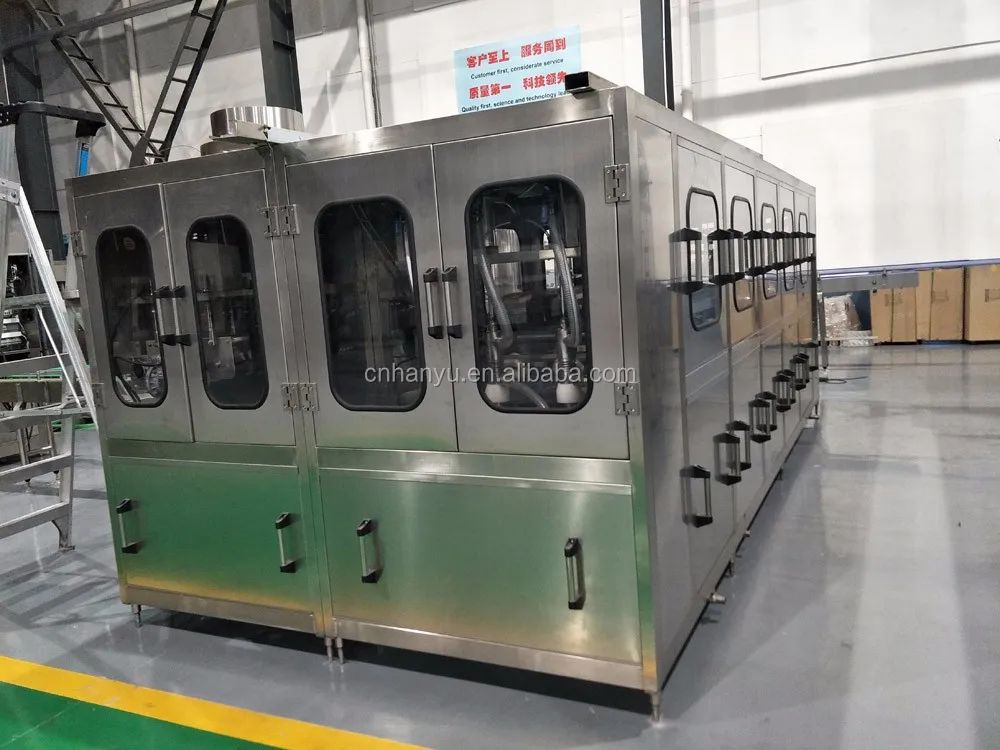

5 Gallon Water Line Production (QGF 1200) 1200 BARRELS/HR
- Category: >>>
- Supplier: ZHEJIANG HANYU AUTOMATION TECHNOLOGY CO. LTD
Share on (276838825):
Product Overview
Description
Product Description
mineral water filling machine (32-32-10)
Washing, filling and sealing devices equipped on the same machine.
The design of the machine is scientific and reasonable.
The appearance is beautiful and the function is complete. Its operation and maintenance is convenient. Its automation is high.
The advanced technology from Italy and Germany are employed.
The speed of filling is fast and the liquid amount is controlled accurately.
The filling can be stopped automatically when there is no bottle or bottles are damaged.
The advanced auto-washing technology is used in system. Pneumatic valve and damped gears are used for bottle conveying, the noise is low and the whole machine runs smoothly.
The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps.
The power of screw capping can also be fixed, and the caps will not be damaged, the capping is shortage of caps in the caps storage tank, an alarm signal will be generated and the caps will be fed automatically.
The whole machine is controlled by PLC with touch-screen as the interface between human and machine.
The amount of the drinks in the drink tank can be controlled automatically.
The filling and capping will be stopped automatically when there is no bottle. When are cramped wrongly or when caps are not available, the machine can be stopped automatically.
Model | DXGF18-18-6 | DXGF24-24-8 | DXGF32-32-10 | DXGF40-40-10 | DXGF50-50-12 | ||||
Capacity(500ml)(b/h) | 6000 | 8000 | 12000 | 15000 | 18000 | ||||
Total power(kw) | 5.18 | 6.58 | 8.18 | 9.2 | 10.1 | ||||
Bottle shape: | roud or square | ||||||||
PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | ||||||||
Bap | PE srew cap | ||||||||
Filling precision: | ≤±5mm | ||||||||
Filling pressure:(Mpa) | 0.15-0.35 | ||||||||
Rinsing pressure:(Mpa) | 0.2-0.25 | ||||||||
Filling volume :(L) | 3.5 | 4 | 6 | 8 | 10 | ||||
Overall size:(mm) | 2450×1800×2350 | 2780×2200×2350 | 3600×2650×2350 | 3800×2950×2400 | 3800×2950×2400 | ||||
Weight: (kg) | 3500 | 4500 | 5500 | ||||||
Automatic pet bottle pure mineral water filling machine type: SWF32-32-10
Machine introduction:
SWF32-32-10 3in1 bottled water machine integrating with washing, filling and capping part, it realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of mineral water and purified water.
The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new micro-negative pressure filling. Compared with the machines of the same specification, the capacity of this machine is larger.
Machine adopts advanced Mitsubishi programmable logic controller (PLC) to control. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable.
Machine Parameter | ||
Washing Workstation | 32 | |
Filling Workstation | 32 | |
Capping Workstation | 10 | |
Production Capacity | 14000B/H (500ml) | |
Machine Power | 5.5 kw | |
Machine Weight | 5500Kg | |
External Dimensions (L*W*H) | 3,500 (mm)* 2,550 (mm) *3,000 (mm) | |
Detailed Images
Packing & Delivery
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |

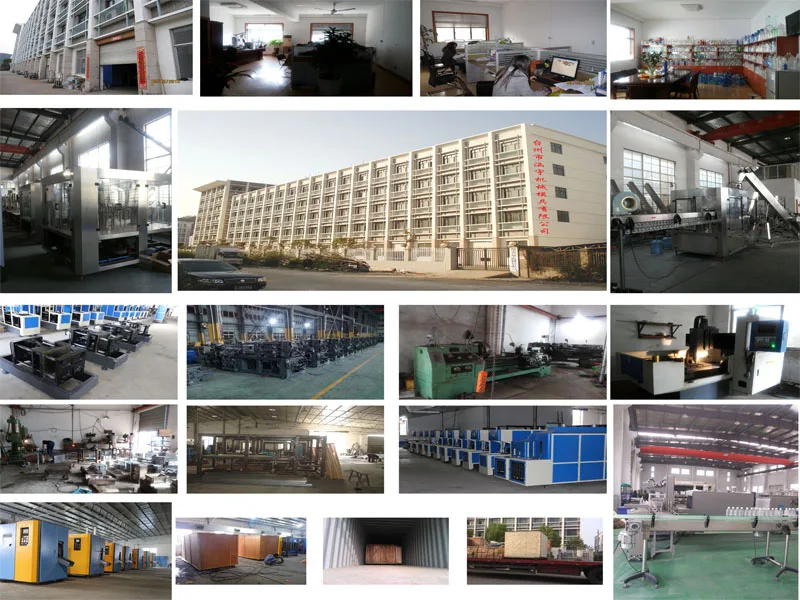

Our Factory
FAQ
Q:Have the blow molding machine in stock
A:semi-automatic blow molding machine in stock ,and the fully automatic are newly,the mold according your sample to make .
Q:What is the delivery time?
A:15-30 days for this machine.
Q:What is the payment team?
A:T/T.L/C
Q:Can i trust you?
A:YES.We are "Alibaba" verified supplier
Q:May i visit your factory?
A:Of course,welcome any time,we can also pick you up at airport or station,
