STC 12 STC12 12kw 4 pole Three phase Dynamotor A.C.Synchronous Generator Alternator OEM Factory

Product Overview

Description

STC-12 STC12 12kw 4-pole Three-phase Dynamotor A.C.Synchronous Generator Alternator OEM Factory



The characteristic of alternators are as the followings:
1. They are designed as per standard JB/T3320.2-2000. And in conformity to IEC34-1.
2. Insulation  is class B or F, drip-proof type is IP21,
3. Tight in construction for casting frame; If our customers ask for steel constuction,we can meet .
4. The generators are three-phases with output four terminals, connectiong for the star connection, 400V rated L-L voltage,  230V rated L-N voltage, 50Hz, 0.8P.F..If our customers ask for 60Hz or diferenent voltage, we can meet .
5. Generally the generators are two-bearing comstuction, also can produce for single-bearing constuction; They can be coupled with engine s by leather belt, and can ratote in two different direction.
6. The steady voltage regulation of generators are good in 3% speed variation, load from no-load to full-load and power factor from 0.8 to 1.0.
7. The voltage regulation of generators are excellent, and the capability for directly-starting motor also is fine.

The requirements for environment:
1. Altitude: not exceed 1000m.
2. Cooling air temperature: 258~313K (-15oC~40oC).
3. Relative air humidity: not exceed 90%.

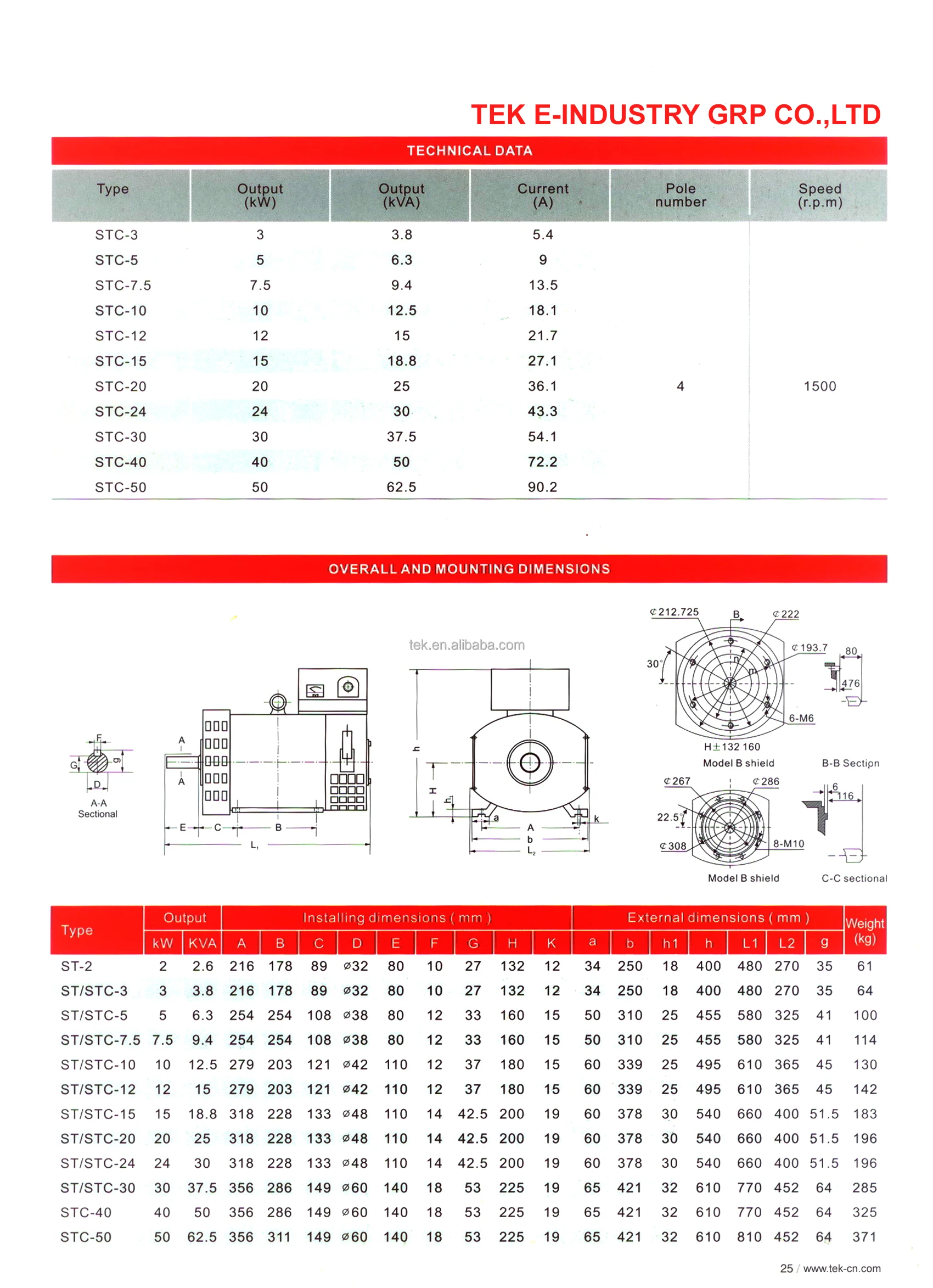

Model	Output		Rated Volt.	Rated Curr.	Poles	Factor	Speed(r.p.m.)		Dimension(L*W*H)			Weight
	KW	KVA	(V)	(A)		(CosΦ)	50Hz	60Hz	mm	mm	mm	(kg)
STC-3	3	3.75	400	5.4	4	0.8	1500	1800	480	270	400	64
STC-5	5	6.25	400	9.0	4	0.8	1500	1800	580	325	455	100
STC-7.5	7.5	9.38	400	13.5	4	0.8	1500	1800	580	325	455	114
STC-10	10	12.5	400	18.1	4	0.8	1500	1800	610	365	495	130
STC-12	12	15.0	400	21.7	4	0.8	1500	1800	610	365	495	142
STC-15	15	18.8	400	27.1	4	0.8	1500	1800	660	400	540	183
STC-20	20	25.0	400	36.1	4	0.8	1500	1800	660	400	540	196
STC-24	24	30.0	400	43.4	4	0.8	1500	1800	660	400	540	196
STC-30	30	37.5	400	54.1	4	0.8	1500	1800	770	452	610	285
STC-40	40	50.0	400	72.2	4	0.8	1500	1800	770	452	610	325
STC-50	50	62.5	400	90.2	4	0.8	1500	1800	810	452	610	371
