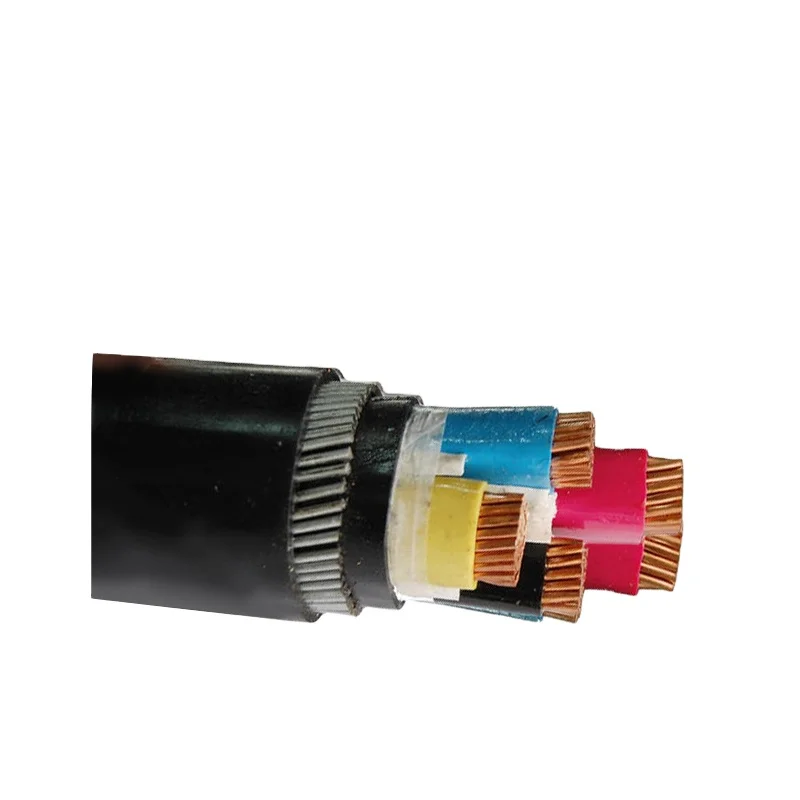

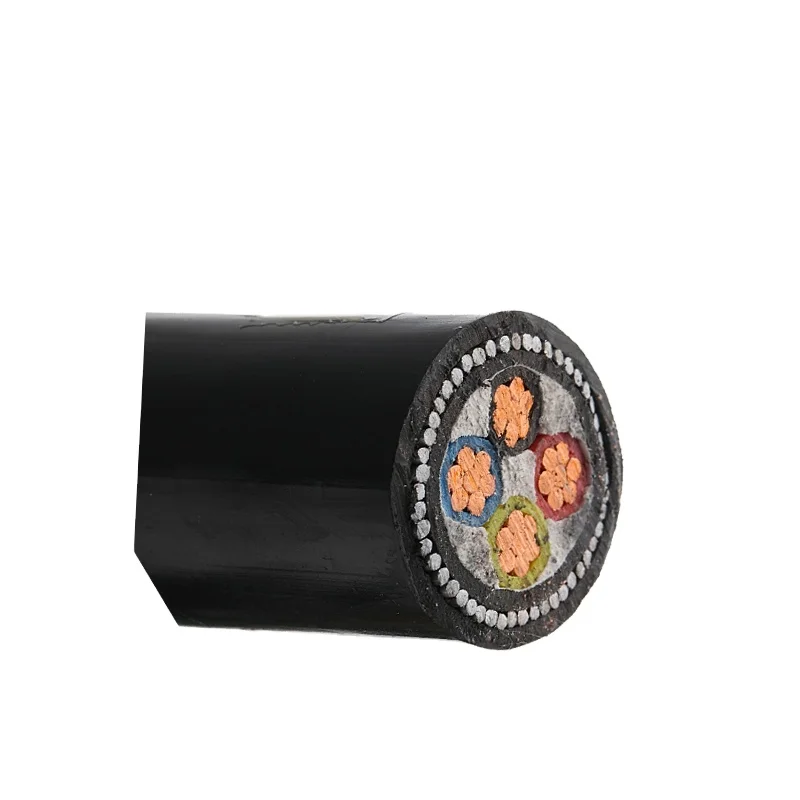

Factory supply good quality 0.6/1kv armoured copper cable Hot Exporting For Project

Product Overview

Description

armoured copper cable is included the followings:



armoured copper cable are mainly complying with iec 60502 standard, also can be produced according to OEM requirements and other standards, such as bs standard, din standard, ASTM standard, etc.

armoured copper cable Laying conditions: For lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.

-Conductor:
Solid or stranded Aluminum&cooper



armoured copper cable Include following code and specification

Nominal sectional area mm 2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
				Cu	Al		Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0



MOQ, Capacity& Payment method

For electric wire, aerial cable and power cable, the Minimum Order Quantity is 1000
meters each type. The capacity is 20 kilometers per day.



For electric conductor(AAC,ACSR,AAAC,AASC) for transmission line, the Minimum Order
Quantity is 1 ton each type. The capacity is 50 tons per day.



Our payment term is 30% deposit in advance, 70% rest against copy of B/L; or 100%
irrevocable L/C at sight



Packing Pictures:
