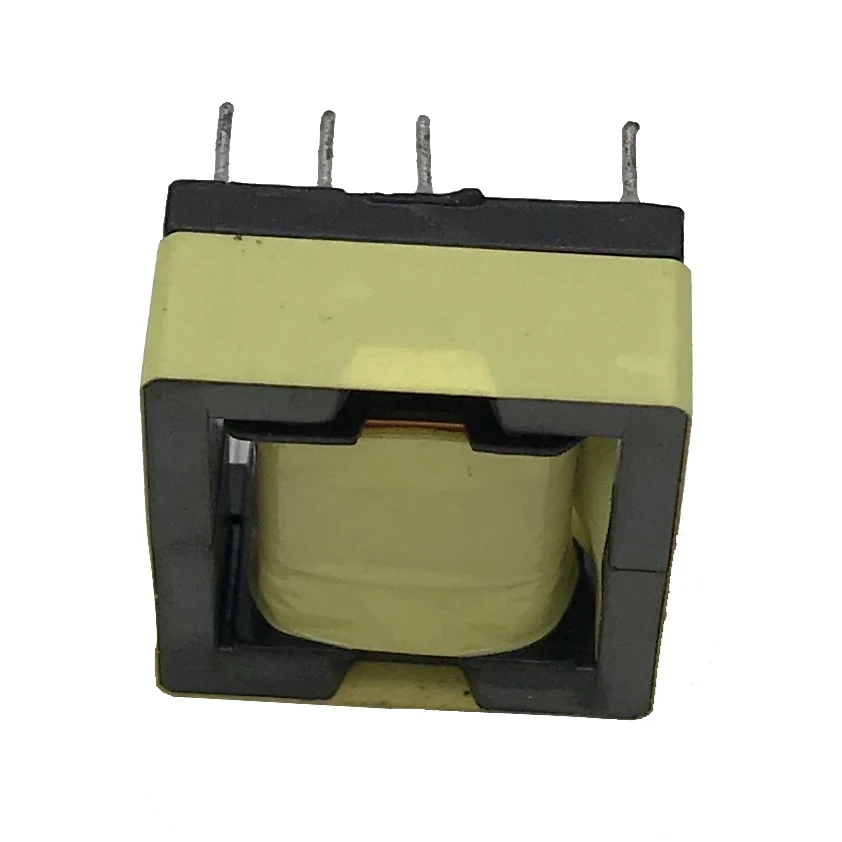

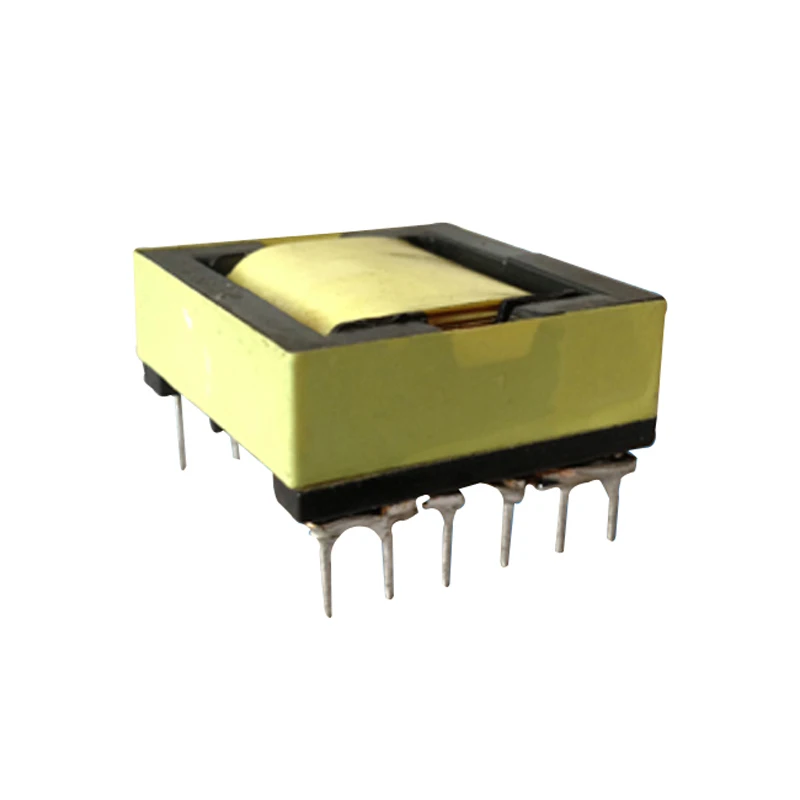

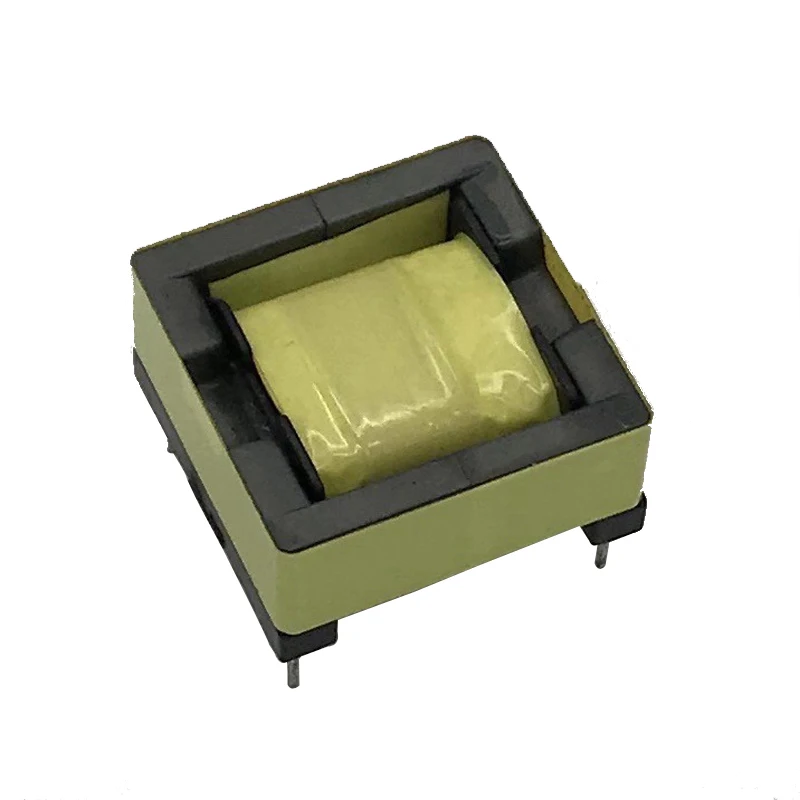

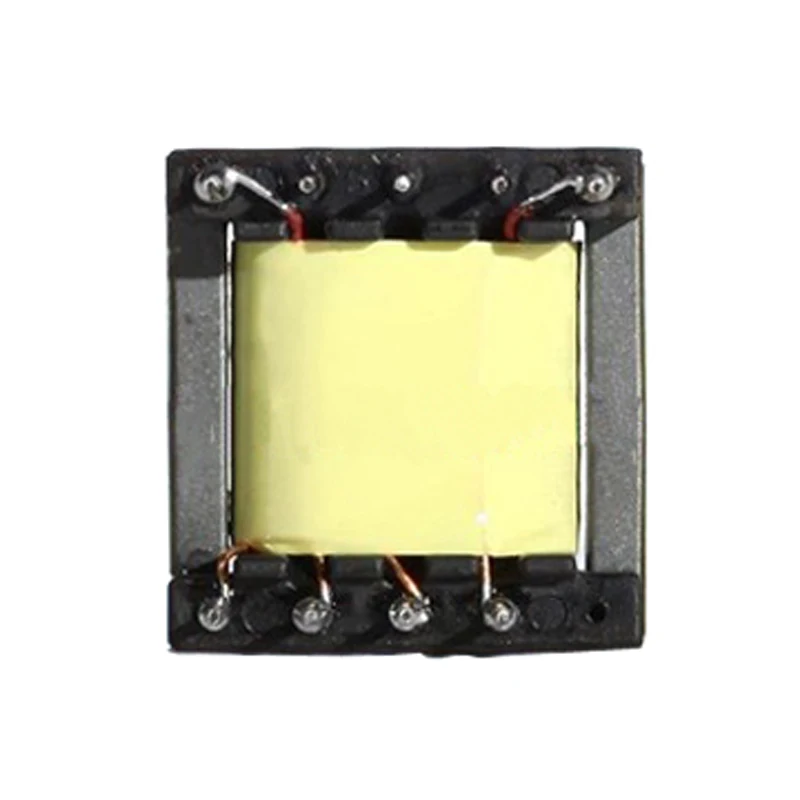

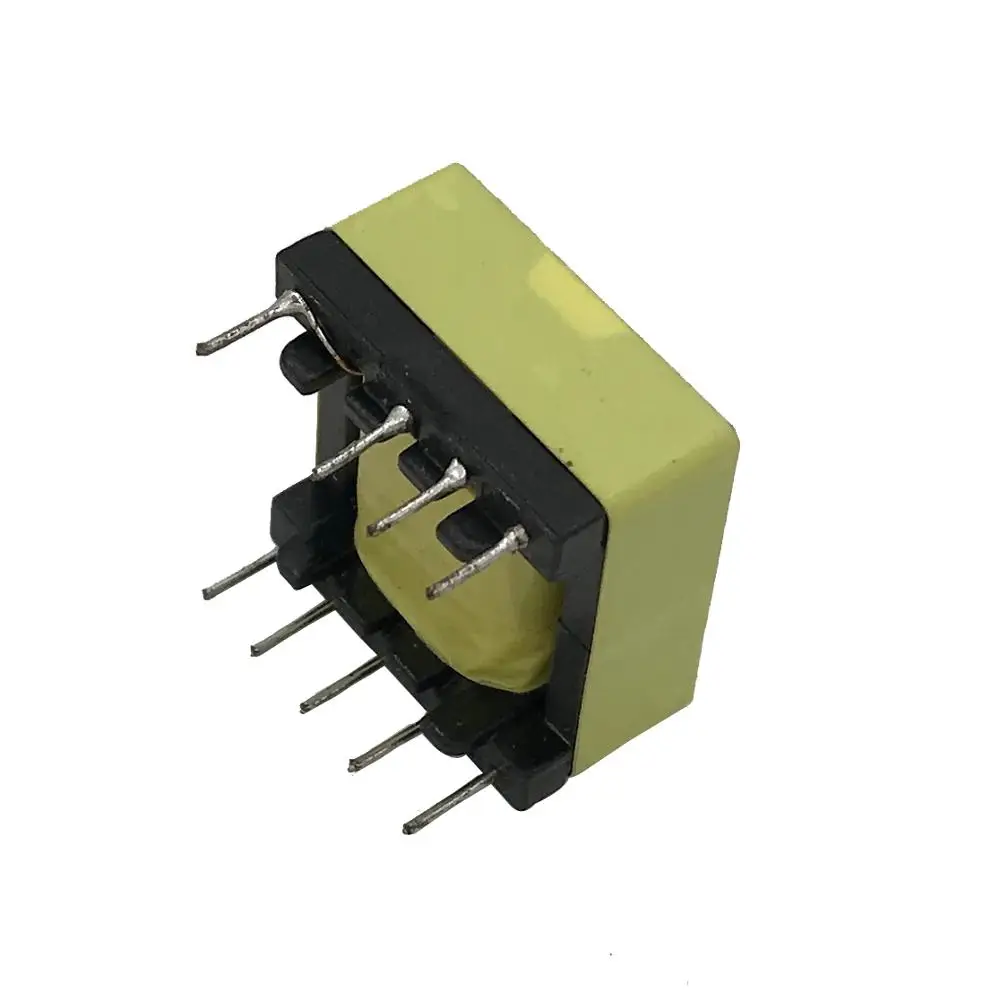

EFD25 SMD power transformer for LED driver

Product Overview

Description

 EFD25 SMD power transformer for LED driver



EFD25 transformer features:

• Description: EFD
• Type: from EFD 9.5 to EFD 25
• Applications:
  • Switching power supplies
  • LED Driving
  • DC/AC-DC converters
  • DC/AC-AC inverters
  • Ballasts
  • TV/monitors
  • ADSL
  • Audio visual equipment
  • Office automation
  • PDAs
  • Notebook computers
  • DSC
  • TFT-LCD monitors
  • ISDN
  • Various electronic equipment
  • Ultra-thin electronic devices
• Customers' specifications are welcome

 EFD15 EFD18 EFD20 EFD25 EFD30 SMD transformer

	A	B	C	D	E	F	G
EFD15/15/5	15.0±0.4	11.0±0.35	5.3±0.15	4.65±0.15	7.5±0.15	5.5±0.25	2.4±0.1
EFD15/18/7	14.9±0.6	11.1±0.3	5.6±0.2	6.8±0.2	8.75±0.15	6.2±0.2	4.6±0.2
EFD18/40/5	18.5max	13.1min	6.0±0.15	5.3±0.15	20.1±0.2	17.1±0.2	3.0±0.2
EFD20/20/7	20.0±0.55	15.4±0.5	8.9±0.2	6.65/+0.2/0.15	10.0±0.25	7.7±0.25	3.6±0.2
EFD20/23/6	20.0±0.55	15.4±0.5	8.9±0.2	5.6±0.1	11.5±0.15	9.3±0.15	3.6±0.15
EFD20/23/5	20.0±0.4	15.4±0.5	8.9±0.2	5.4±0.1	11.5±0.15	9.3±0.15	3.6±0.15
EFD25/25/9	25.0±0.65	18.7±0.6	11.4±0.2	9.1±0.2	12.5±0.25	9.3±0.25	5.2±0.25
EFD25/26/12	25.05±0.65	18.8min	8.8±0.25	12.45±0.25	12.9±0.2	9.85±0.25	8.3±0.3
EFD25/31/11	25.0±0.5	19.0min	10.0±0.2	11.0±0.2	15.3±0.25	12.0±0.3	6.5±0.2
EFD30/30/9	30.0±0.8	22.4±0.75	14.6±0.3	9.1±0.3	15.0±0.25	11.2±0.3	4.9±0.15
EFD30/30/9A	30.75max	23.1min	14.6±0.25	9.0±0.2	15.5max	11.5±0.2	4.9±0.15
EFD31/30/9	31.7max	23.8min	14.6±0.30	9.0/+0.3/-0.2	15.2±0.3	11.5±0.2	4.9±0.15
EFD33/40/10	33.0±0.5	25.5min	13.0±0.2	10.0±0.2	20.0±0.25	15.5±0.25	5.5±0.2



SMD power transformer:
1. Low profile.
2. Low D.C. resistance and large permissible D.C. current.
3. Little co-planarity due to special design of construction.
4. Wire burst resistant due to special construction.
5. This can be surface mount assembly and reflow soldering is also possible.
6. Available for mounting machine due to supply in a form of embossed tape carrying.

Application:
1. Multi-output DC-DC converter transformer.
2. Camcordey.
3. LCD television set.
4. Small size communicating equipment.
5. Portable telephone.
6. Personal Digital Assistants.
7. Applicable to light up cold cathodes fluorescent lamp of display.
8. DSC, PDA, Scanner, Car Navigation, Notebook PC, LCD monitor and LCD TV.
