Price:RUB 539.46

Quantity:


Product Overview

Description

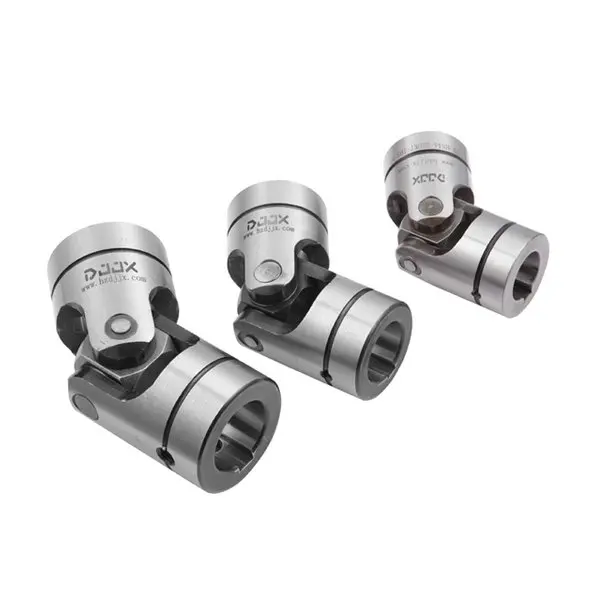

Single universal joint with operating angles up to 35 degrees
Full range of sizes from 3/8" to 2"



Single universal joint with operating angles up to 35 degrees
Full range of sizes from 3/8" to2"

Ultimate static strength up to 26,040 lbs-in

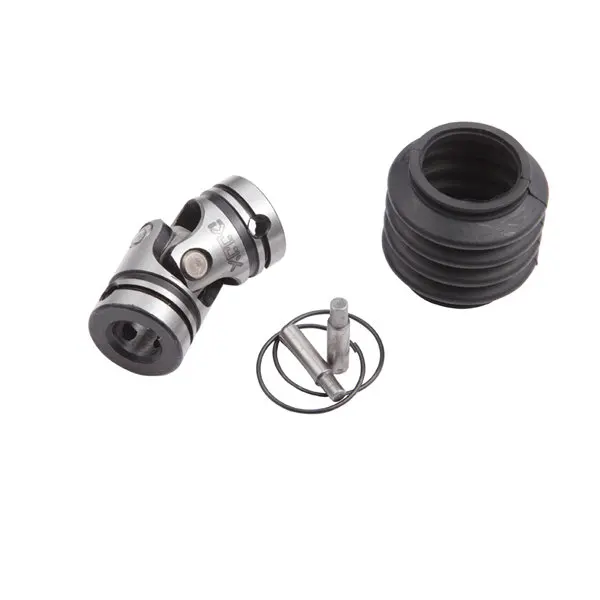

Available with or without lubrication covers
Standard cover supplied is Neoprene others available
Select from solid hubs, bored hubs and bores with keyways
Hubs do not need to be the same on both ends
Field/customer machinable alloy steel
Plating available upon customer request
Economical alternative

Specifications



Material is 40Cr/20Cr
Max speed of rotation may reach 1500r/min
Max torque is 100N.M
Max working angle is 20

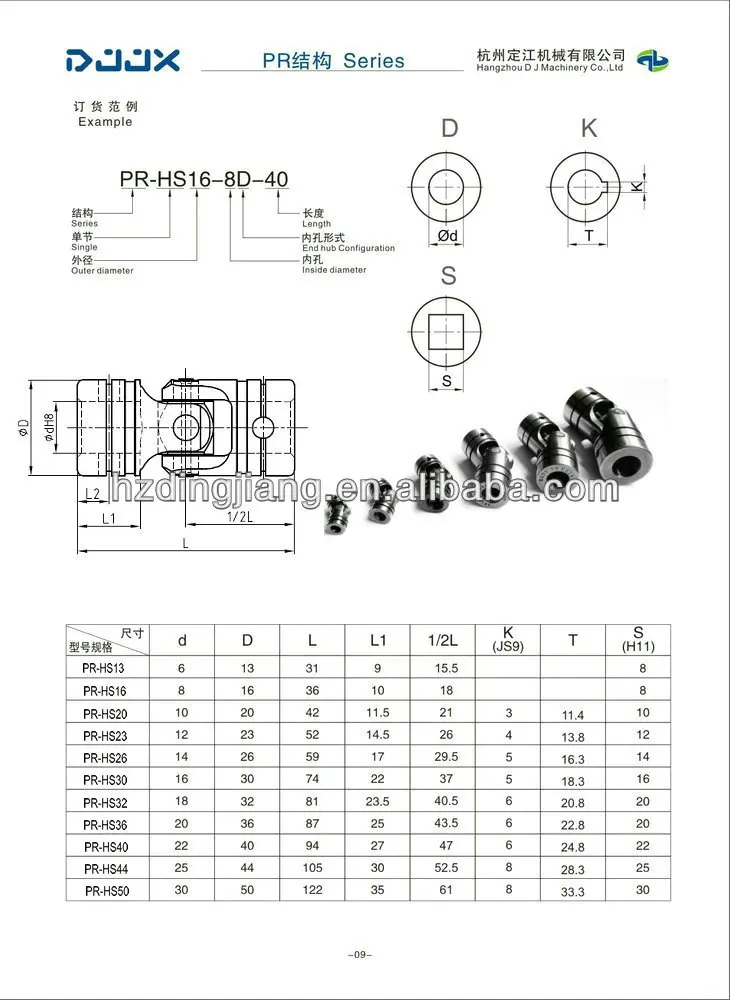

PR Series



Typical applications:
Can be used as a linkage, or transmission, between two intentionally misaligned shafts, rather than just as a coupling . The needle bearing universal joint is fitted with pre-lubricated needle bearings.

Application: Car, Printing machine, Punching machine, Grinding machine, Woodwork machine, Sky parking and so on.



Advantages of DJJX’s Universal Joints, over those of other manufacturers:
• Roller bearings lubricated for life
• Select from solid hubs, bored hubs and bores with keyways
• Max. angle 35 degree
• Max. speed – 4000 rpm
• Available in various materials
• All subcomponents very precisely machined from bar: No cheap castings or powdered metal parts, resulting in better overall and more consistent performance
• Several subtle design innovations that optimize performance and reduce cost
• Could manufacture products according to your provided drawing or samples

Variations offered by DJJX Universal joints :
• Materials for midsection: o8F,20Cr,40Cr,GCr15
• Materials for hub: 40Cr/45#steel
