Automatic recognition of power in machine and work piece, the processing is both quick and good
Slow returning core, boosted by barrow, imporving the apprearance of the angle.
The whole operation is in the computer, simple, quick and correct
Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
Rebound test: comparison test on the features of lots of pipe materials
Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.
Automatic drawing of the graphics of dies-clear help to develop new products
Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
passwords, keys, working hours/ recordings of quantities, are applied to management of production
Technical parameters:
Specification/Model
1. DW50CNCX5A-3S
Remark
Max bending capability
Φ50mm×3mm
1. The Minimum bending diameter of CNC tube bender based on the pipe diameter
2.The Max bending diameter of CNC tube bender can accordingto the customers requirement
3.The Max length of mandrel of CNC tube bender can according to customers requirement
Max bending radius
R250mm
Min bending radius
R20mm
Max bending angle
190°
Max feeding length
2600mm
feeding method
direct feeding clamping feeding
Working speed
Bending speed
Max 85°/s
Rotary speed
Max 200°/s
Feeding speed
Max 1000mm/s
Working accuracy
Bending accuracy
±0.1°
Rotary accuracy
±0.1°
Feeding accuracy
±0.1mm
Information inputting method
1. axisX . Y. Z 2.working valueY. B. C
Bending method
1.Servo bending : 1kw 2. Servo motor
Power of rotary servo motor
750w
Power of feeding servo motor
1kw
Max bending groups
1. 12 2. 33
Max storing components
1. 330 2. 125
Motor power
7.5kw
Oil pressure
12 Mpa
Size
4900 x 1300 x 1300mm
Weight
2500kg
Packaging & Shipping
Packaging Details
The Machine is packed in wooden or iron case
Port
Shanghai
Lead Time :
Quantity(Pieces)
1 - 1
>1
Est. Time(day)
30
To be negotiated

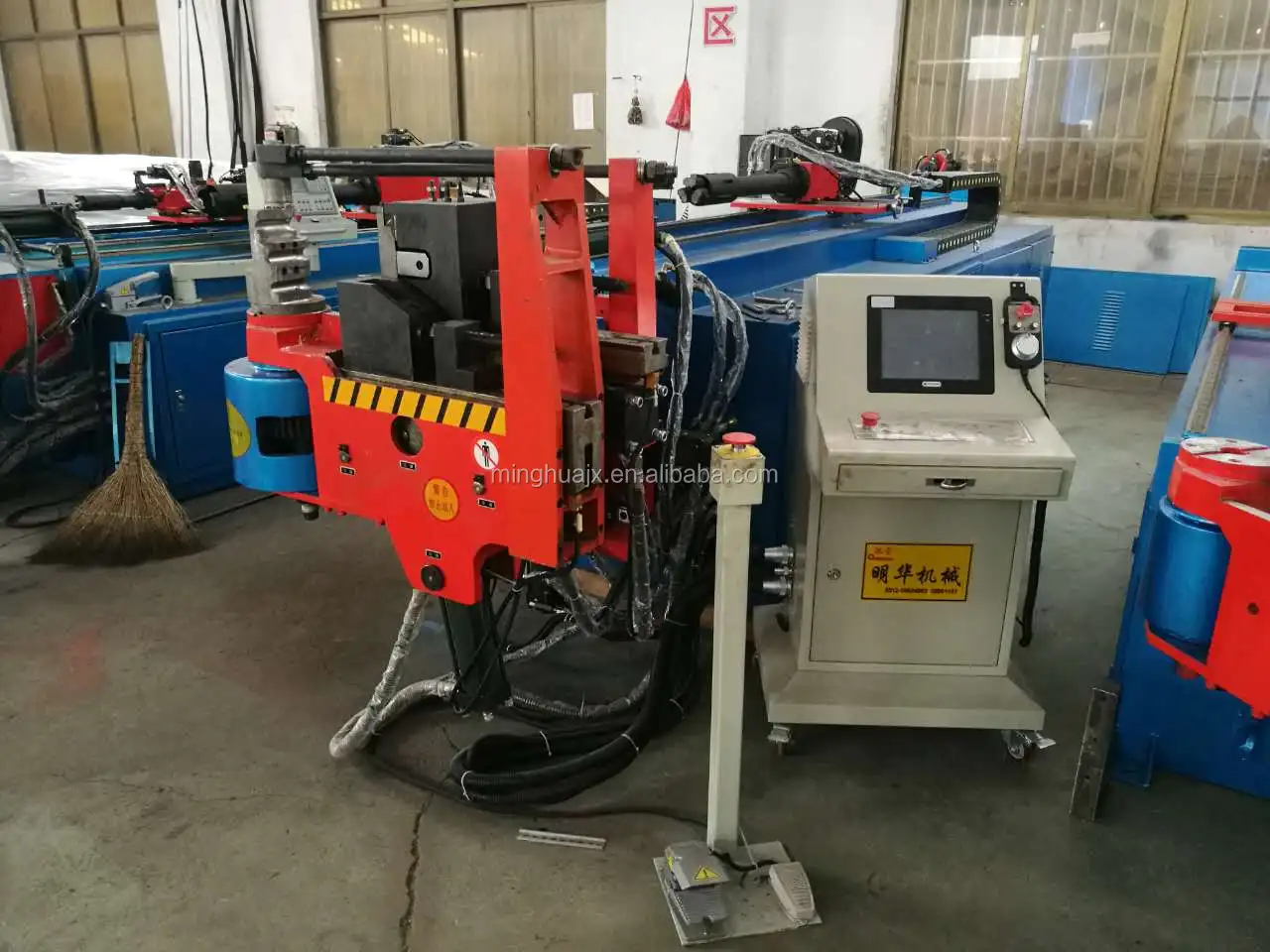

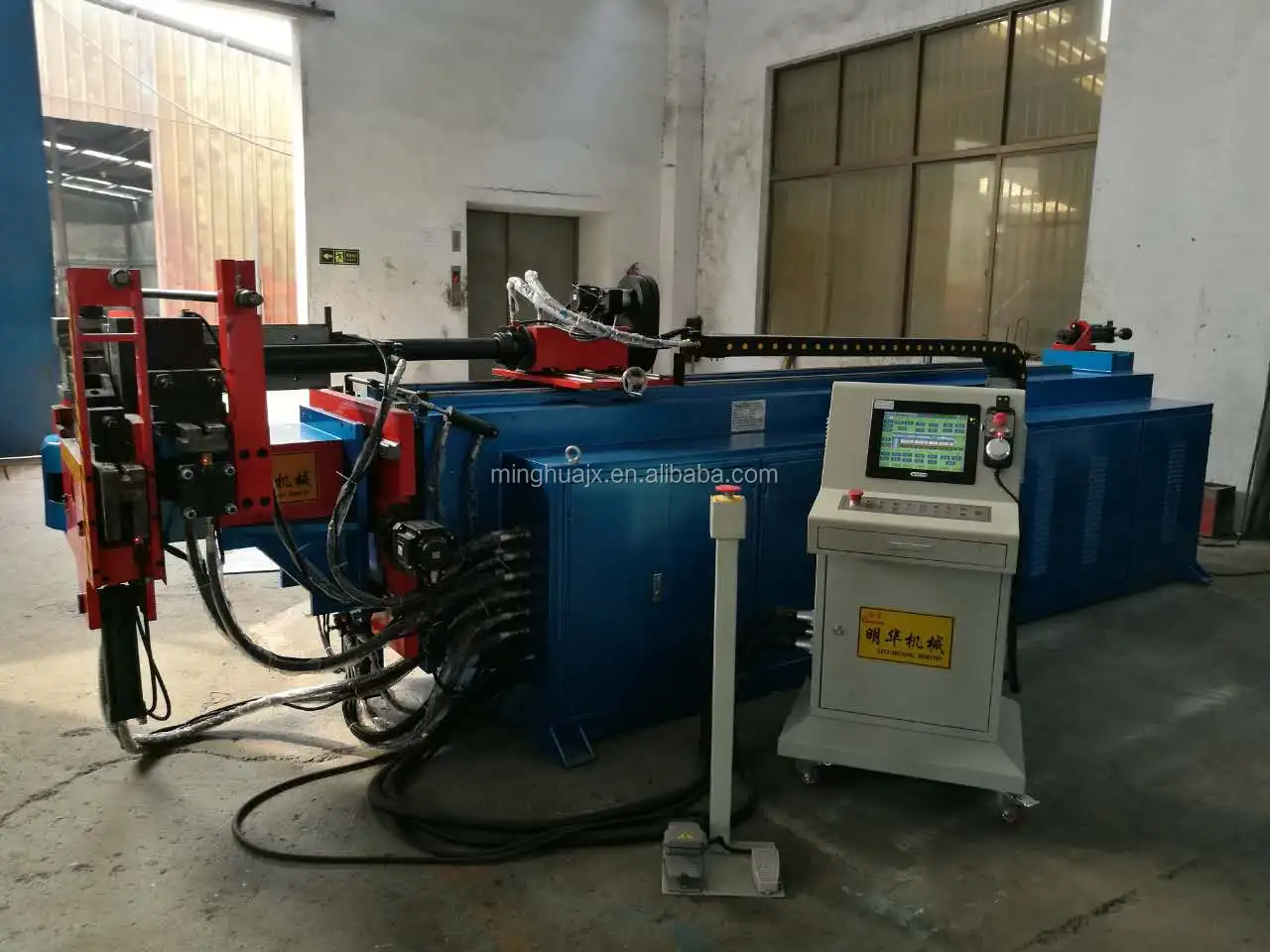

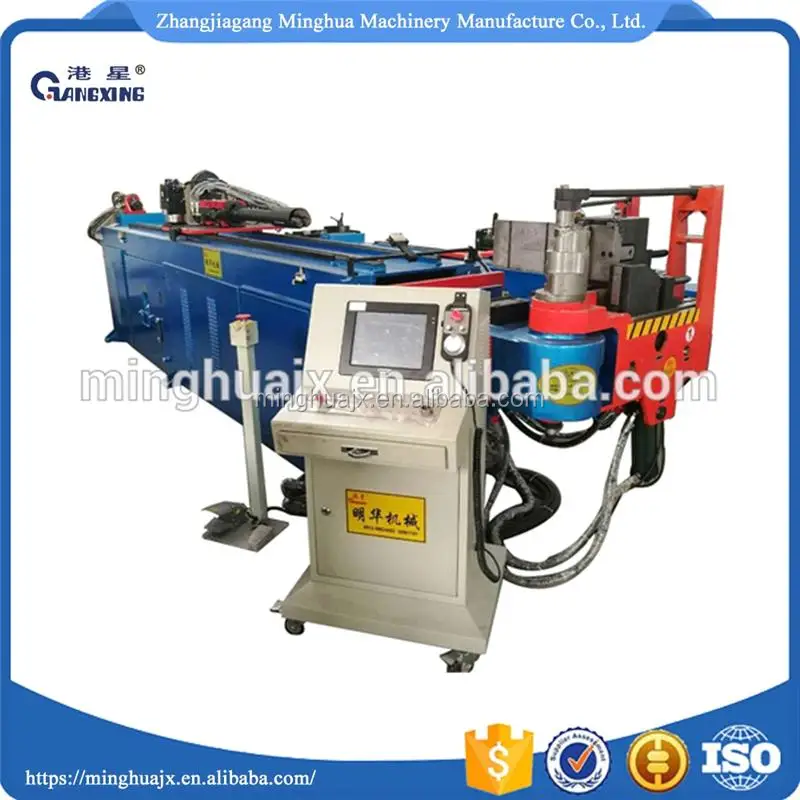

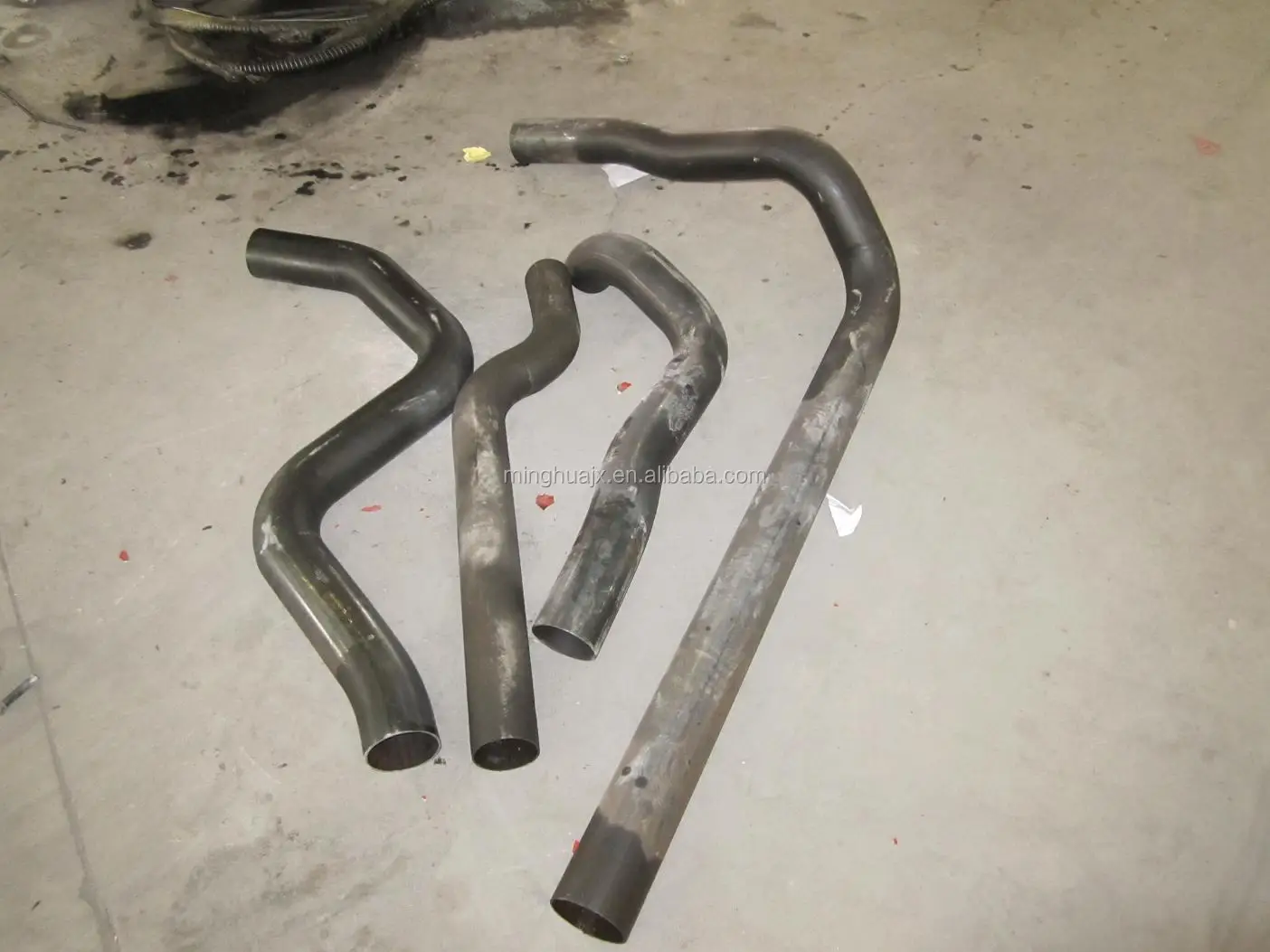

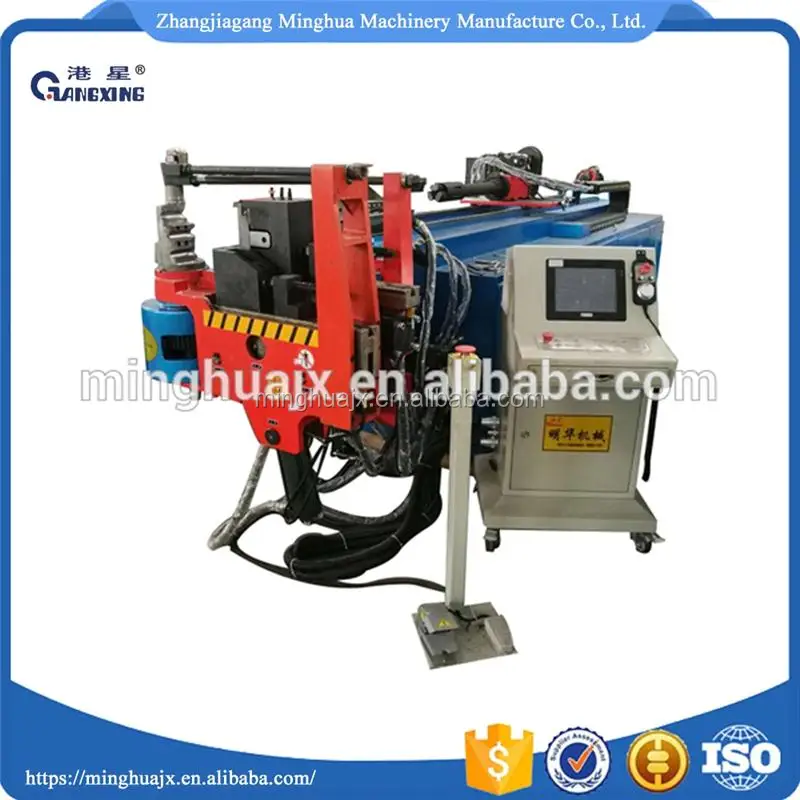

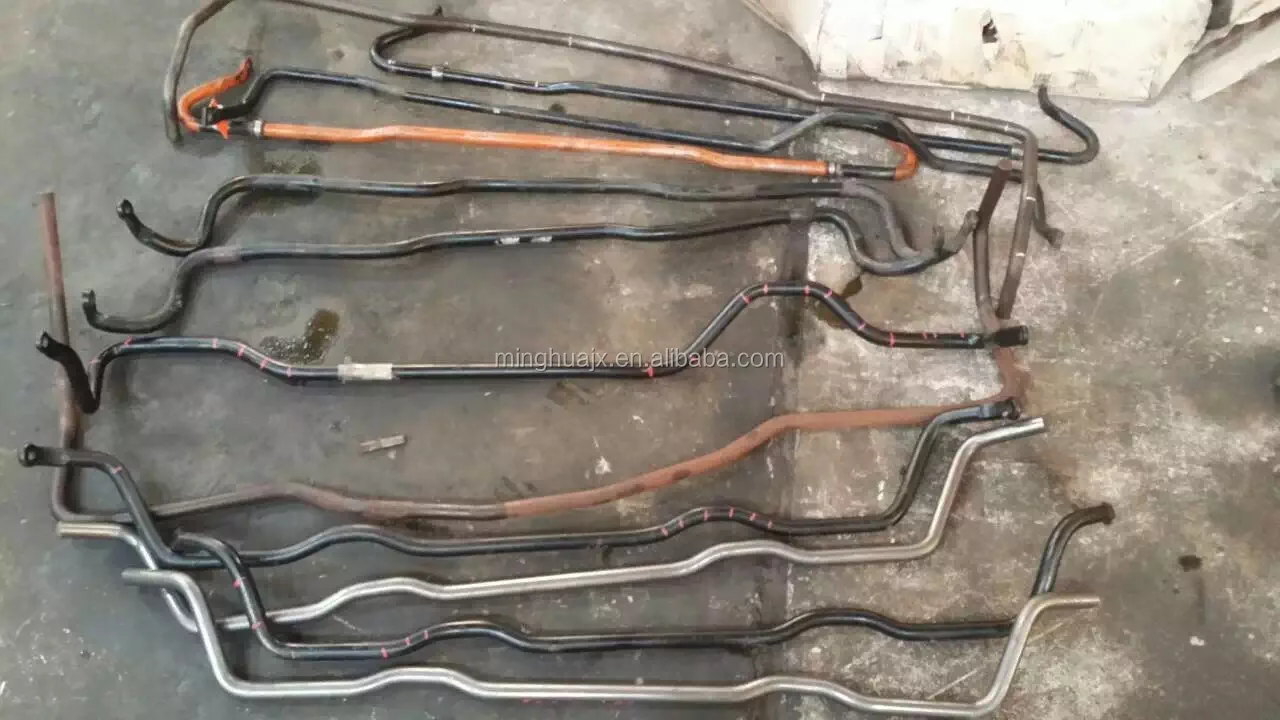

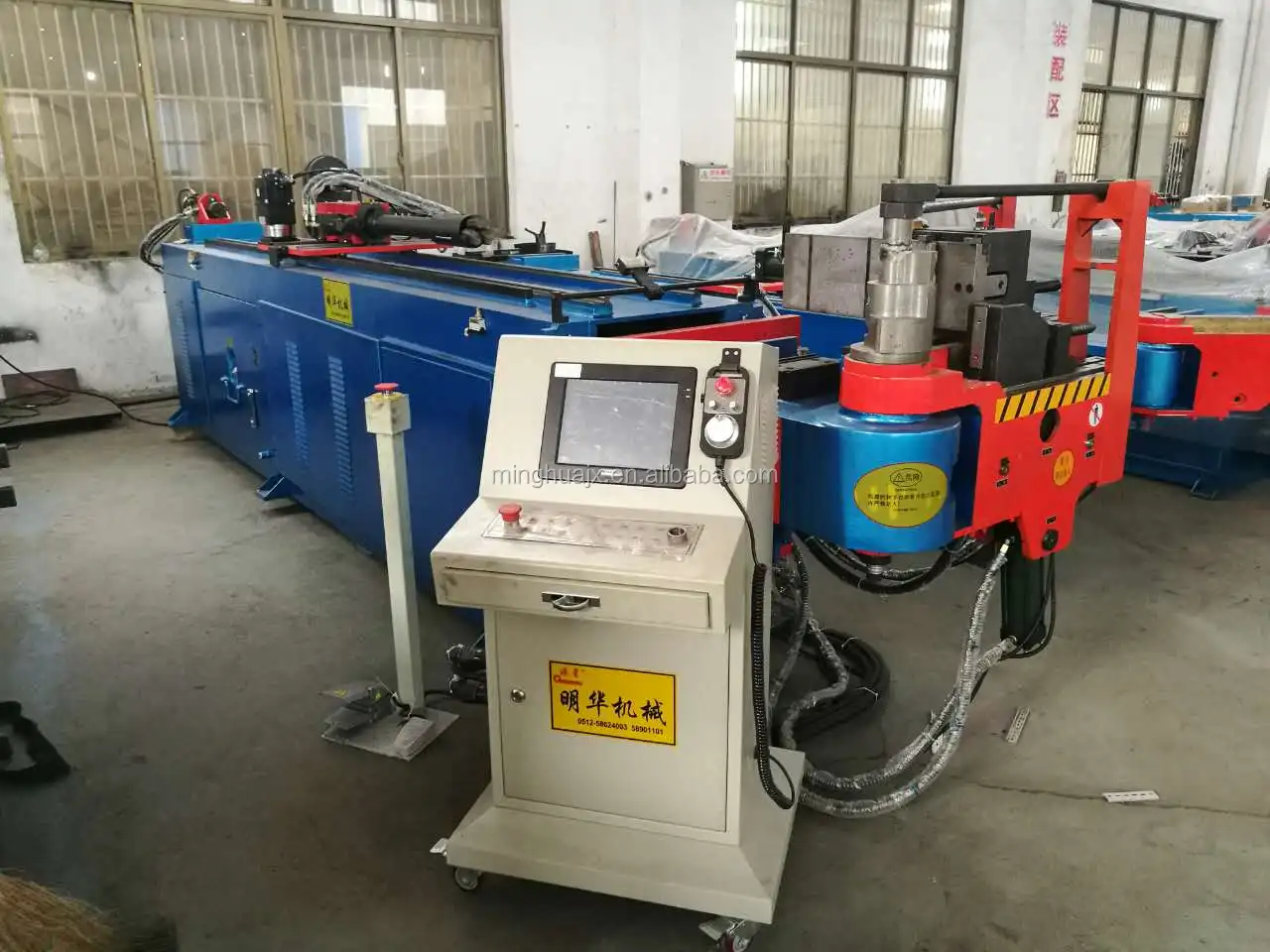

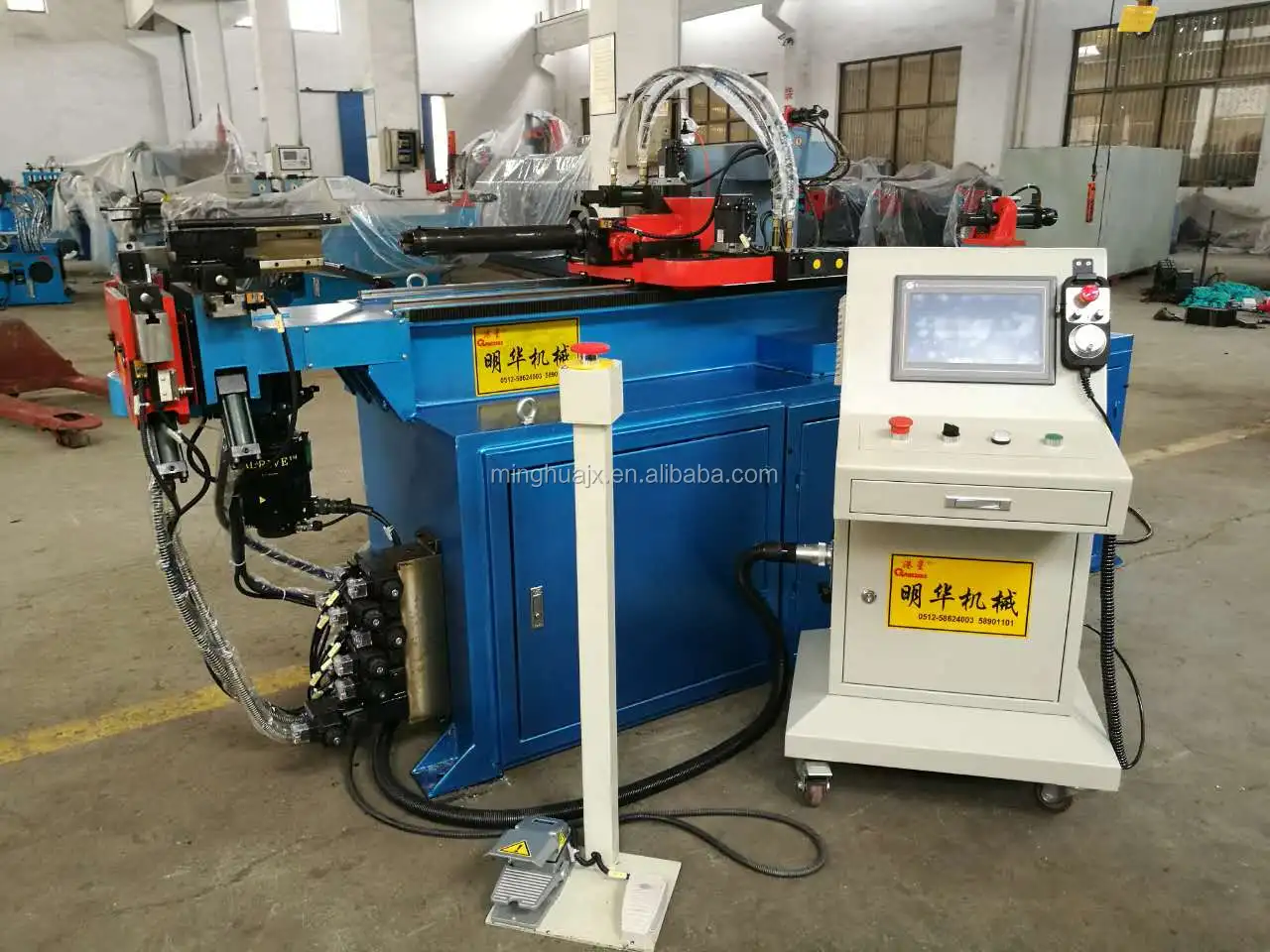

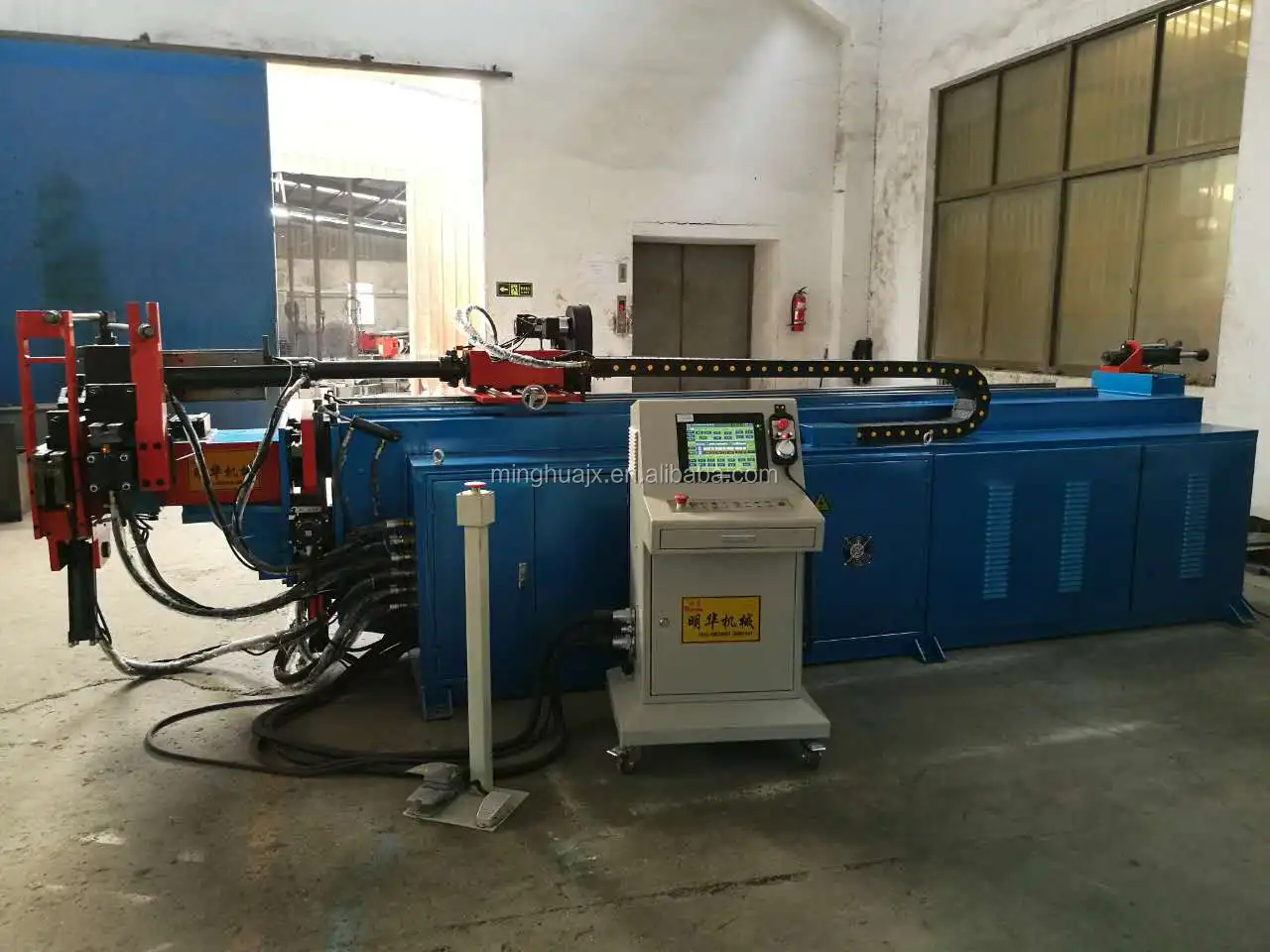

Detailed images
Our Services
1. Our guarantee time is one year, if any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
2. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by WhatsApp, Skype, Email and Telephone at any time, we provide 24 hours on-line service. Our factory also will make DVD to show the operation steps for the customer.
FAQ
1,Q: Are you a manufacturer or trading company? A: We are a manufacturer, We are dedicated to pipe processing equipment manufacturing.
2,Q: Where is the nearest airport and port from your factory? A: The nearest airport and port is shanghai.
3,Q:What is the spare parts about the machines? A:Pipe bender is seal components and valves. Pipe cutter is seal components and saw blades.
4,Q:how about the training and installment after we buy your machines? A: Our factory can send our engineer to the customer’s factory install,commission and training freely. The customer provide the double trip tickets,food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
