22T воздуха гидравлический домкрат

Product Overview

Description

Air Over Hydraulic Jack Features:
1) Rated capacity lify using air-actuated operation.

2) Safety overload system prevents from being used beyond its rated capacity.

3) Extension screw gives added height when necessary.
4) Top release valve allows jack operation at any handle position.
5) Handle locking lever secure handle in a vertical middle horizontal position.

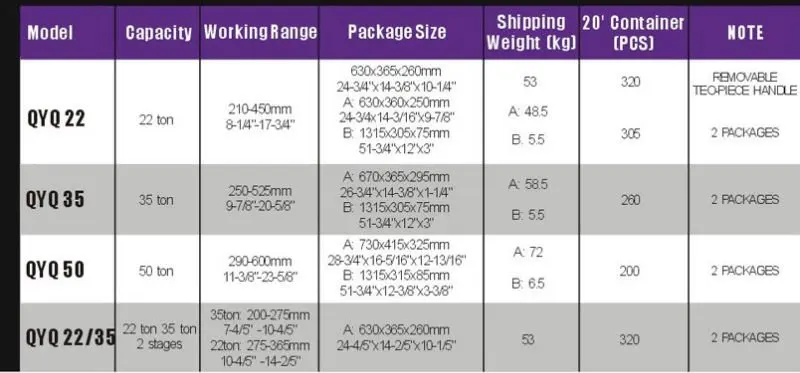

Specifications
1) Model no.: QYQ22

   Capacity: 22T
   Working range: 210-450mm

   Packing:630x365x260mm
                24-3/4"x14-3/8"x10-1/4"

            A: 630x360x250mm

                24-3/4x14-3/16"x9-7/8"

            B: 1315x305x75mm

                 51-3/4"x12"x3"
   Weight: 53kg

               A:48.5kg

               B:5.5kg
