Product Overview

Description



Description:

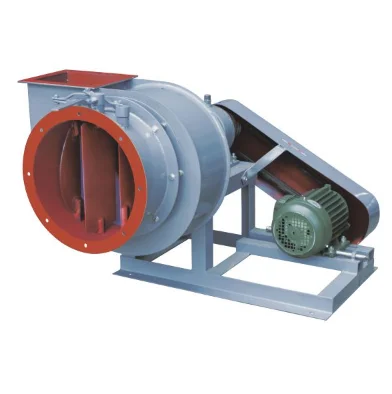

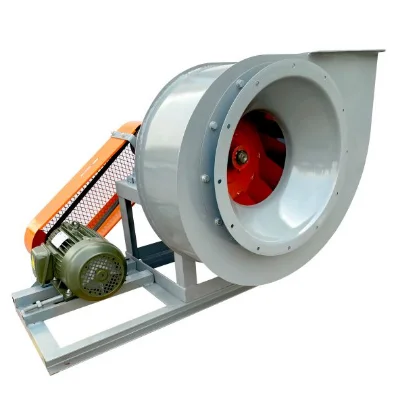

Y5-47 series boiler centrifugal induced draft fan is designed to use with the domestic boiler or 0.2-20t/h industrial boiler which is burned all kinds of coal properties and is equiped with smoke and dust exhuasting equipment. There are C style drive and D style drive. The fan is equiped with water-cooled bearing support, ensure the fan can translate the temperature of gas less than 250°C .The dustiness of translated gas should be less than 150mg/ m³,  the temperature of inlet gas should be higher than 160°C abd less than 250°C. If the temperature of inlet gas is higher than 250°C, the clients could use stainless boiler induced draft fan, the stainless boiler induced draft fan can be customized.

Technical Parameter

Model No.	Power (kw)	Revolution (rpm)	Wind Flow (m3/h)	Pressure (Pa)
3.15C	1.5	2990	1218-2297	883-608
4C	4	3000	2151-5190	1922-1393
	3	2900	2417-4561	1481-1079
5C	7.5	2900	4723-8909	2324-1687
	5.5	2620	4267-8048	1893-1373
6C	18.5	2850	8020-15129	3364-2452
	15	2620	7372-13908	2844-2069
7C	30	2580	11529-21747	3756-2746
	22	2320	10367-19556	3040-2206
	18.5	2200	9830-18545	2376-1991
	15	2050	9159-17280	2373-1716
8C	30	2020	13474-25417	3001-2187
	22	1860	12407-23404	2550-1853
9C	45	1900	18045-34039	3364-2452
	37	1800	17095-32247	3032-2197

Voltage and materials can be customized by clients' requirement.

Composition: High quality manganese steel housing and impeller, 100% copper wiring, water cooling and water cooling funtion bearing.

Packing: plywood case
