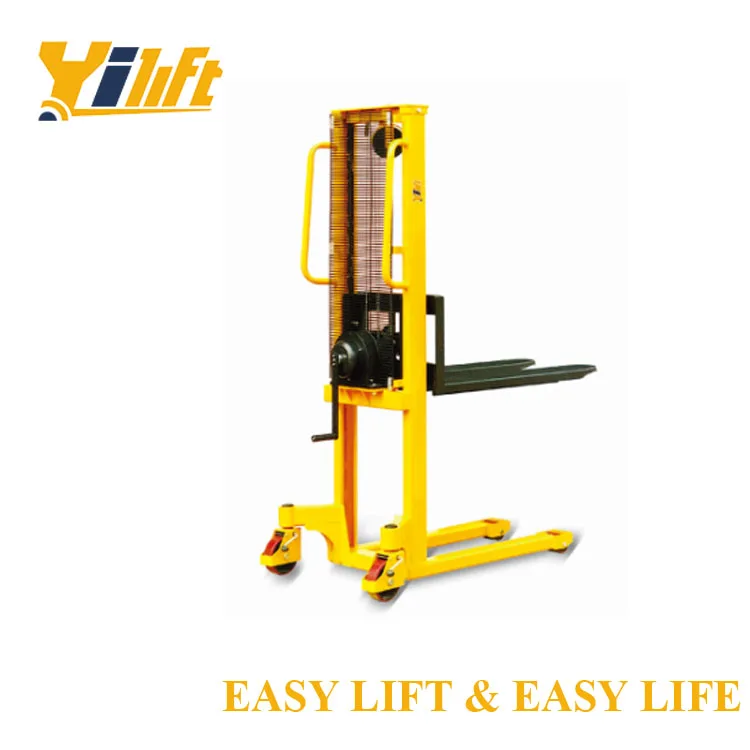

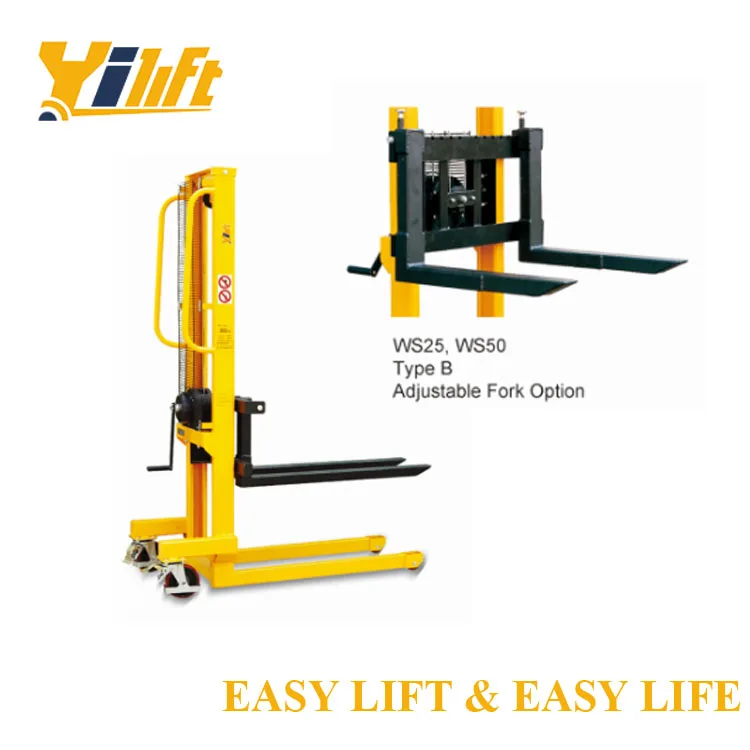

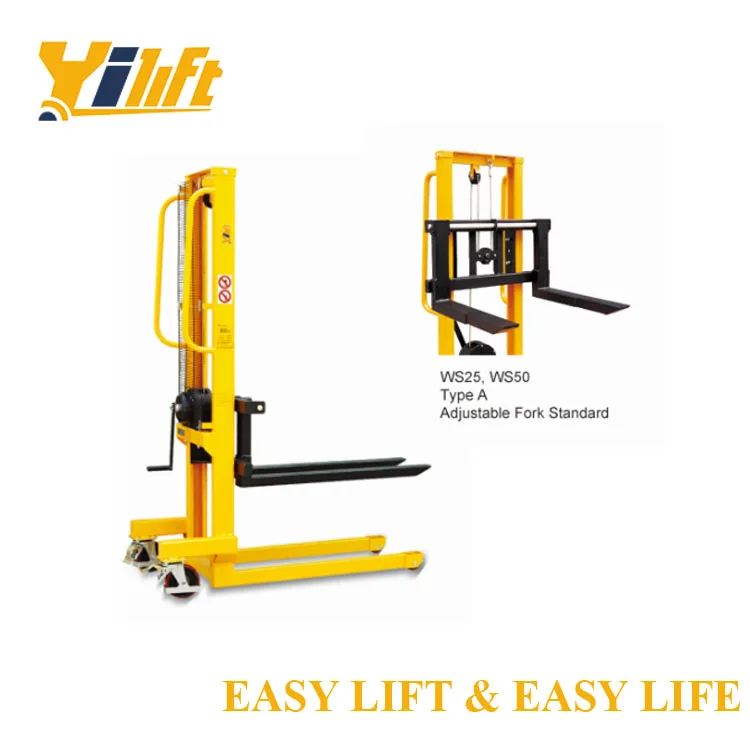

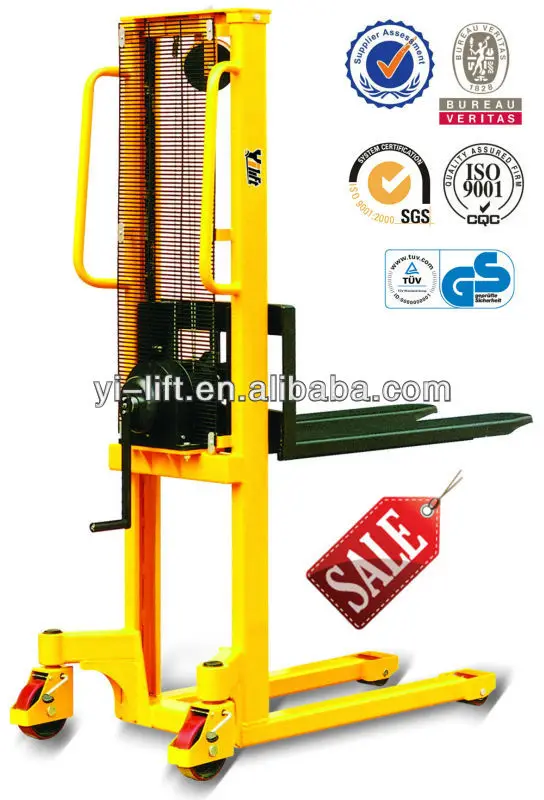

Hot selling Products Ws Series Winch Pallet Lifting Hand Stacker
- Category: >>>
- Supplier: Changzhou Yi-Lift Mhe Co. Ltd.
Share on (282291874):
Product Overview
Description
Model | WS25 | WS50 | WS100 | |
Capacity | kg | 250 | 500 | 1000 |
Load Centre | mm | 400 | 500 | 575 |
Max. Fork Height | mm | 1560 | 1560 | 1500 |
Lowered .Fork Height | mm | 90 | 90 | 88 |
Fork Adjust Widrh | mm | 150-690 | 160-690 | 540 Fixed |
Fork Width | mm | 60 | 70 | 160 |
Fork Length | mm | 800 | 1000 | 1150 |
Effort Force to Rated Load | mm | 100 | 120 | 100 |
Lifting Height per stroke | mm | 40 | 22 | 9.5 |
Ground Clearance | mm | 18 | 18 | 24 |
Min. Turning Radius(outside) | mm | 1075 | 1075 | 1250 |
Front Load Roller | mm | Φ80X47 | Φ80X47 | Φ80X94 |
Steering Wheel | mm | Φ125X40 | Φ150X40 | Φ150X50 |
Overall Size(LxWxH) | mm | 1325X725X2030 | 1325X725X2030 | 1600X725X1930 |
Net Weight | Kg | 140 | 146 | 182 |
Minimum Qty. | pcs | 6 | 6 | 6 |
Note: Specification and materials are subject to change without notice.
What the mainly currency YI-LIFT can accept?
Prices are quoted mostly in US dollars or EURO. All prices are subject to change without notice.
Can you introduce the shipment of YI-LIFT?
Shipping charges for all YI-LIFT orders are calculated based on the shipping method of the order, the weight or volume of the items on the order, and the destination.We normally can do FOB/CIF/DAP/DDP/DDU terms and also we can send the goods via express or AIR according customer’s requirements. All wooden packages can be fumigated at our side and we will provide the official certification if your Customers need.
CIF TERM: YI-LIFT will arrange the shipping company and will be in charge to assure the goods shipped to destination port. You will not need to pay the shipping company upon delivery to destination port.
FOB TERM: If you would like your preferred shipping company to pick up your order, simply let us know when you place your order. You will be responsible for paying your shipping company sea freight charges besides your order.YI-LIFT only in charge of sending the goods to loading port as agree on order.
What about the delivery time?
Most of items can be shipped out within 30days, some items need a little bit longer time to prepare, we will explain these to you if this situation happens.
What’s the payment term of YI-LIFT?
YI-LIFT accepts L/C at sight or T/T, anyway we prefer T/T mainly because it will save money for both parties, Your first order with YI-LIFT must be prepaid with T/T, after first time, we accept the payment as we ship out goods, then fax the copy of documents to you, you balance the rest payment ,and we will express the original documents to you after we get the money. Any other info please contact us for detail.
Prices are quoted mostly in US dollars or EURO. All prices are subject to change without notice.
Can you introduce the shipment of YI-LIFT?
Shipping charges for all YI-LIFT orders are calculated based on the shipping method of the order, the weight or volume of the items on the order, and the destination.We normally can do FOB/CIF/DAP/DDP/DDU terms and also we can send the goods via express or AIR according customer’s requirements. All wooden packages can be fumigated at our side and we will provide the official certification if your Customers need.
CIF TERM: YI-LIFT will arrange the shipping company and will be in charge to assure the goods shipped to destination port. You will not need to pay the shipping company upon delivery to destination port.
FOB TERM: If you would like your preferred shipping company to pick up your order, simply let us know when you place your order. You will be responsible for paying your shipping company sea freight charges besides your order.YI-LIFT only in charge of sending the goods to loading port as agree on order.
What about the delivery time?
Most of items can be shipped out within 30days, some items need a little bit longer time to prepare, we will explain these to you if this situation happens.
What’s the payment term of YI-LIFT?
YI-LIFT accepts L/C at sight or T/T, anyway we prefer T/T mainly because it will save money for both parties, Your first order with YI-LIFT must be prepaid with T/T, after first time, we accept the payment as we ship out goods, then fax the copy of documents to you, you balance the rest payment ,and we will express the original documents to you after we get the money. Any other info please contact us for detail.
