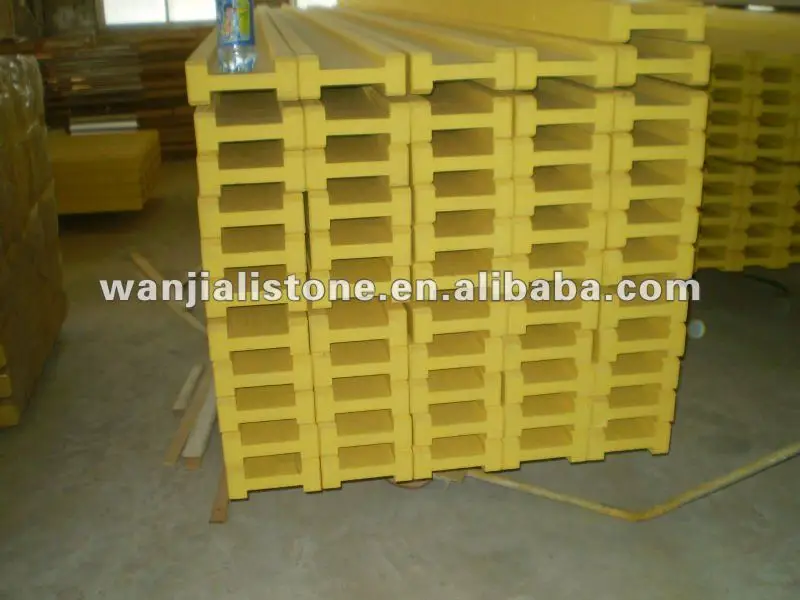

H20 wood beam

Product Overview

Description

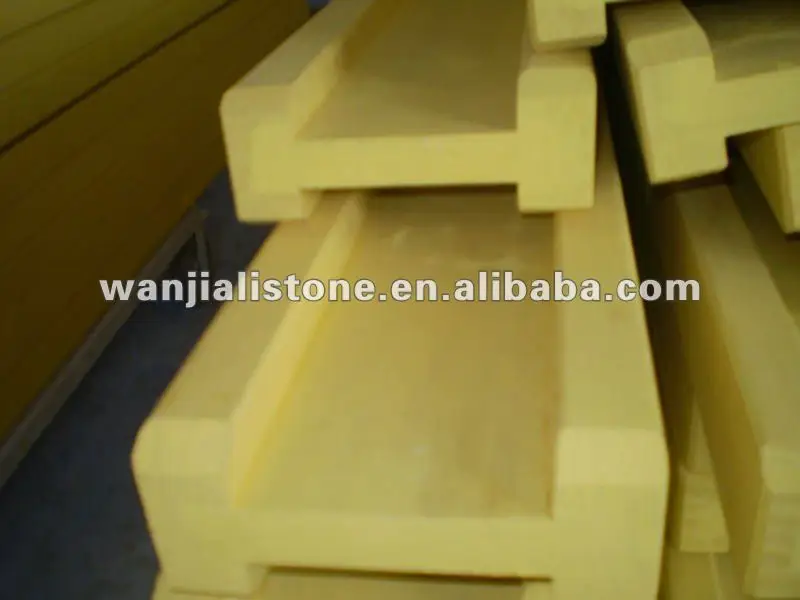

1. Composing

* Pine LVL flange + pine plywood web
* WBP phenolic resin
* Environment friendly Yellow painting: waterproof, fireproof, rot-proof and frozen-proof

2. Spec
* Weight: 5.0kg-5.8kg per running meter
* Max. Bending moment M: 5.0kNm
* Max. Shear force Q: 11.0kN
* Max. Deflection: l/500
* Live load: 1.5 kN/m2 or 20 % of concrete weight
* Standard lengths (CM): 245-265-290-330-360-390-450-490-590
  Special lengths upon request
