Fhc028 Cb27 Cb26 Swimming Plate Heat Exchanger Gasket For Heat Exchanger

Heat load up to 5~15 KW

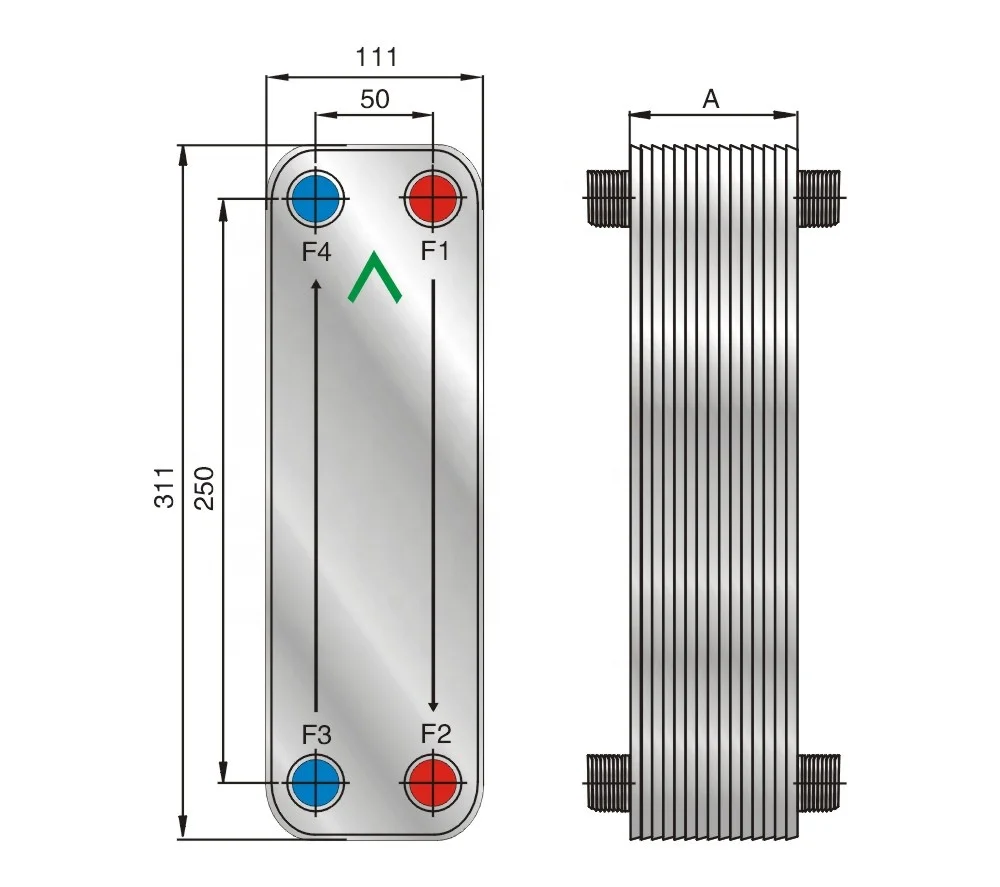

Size 311*111 mm

Thickness of plate0.4mm

Heat exchanger area of each plate 0.028

Volume 0.05L/Channel

Quantity of max plates: 150

Design pressure  3.0/4.5MPa

Testing pressure 4.5/6.7MPa

Design temperature: -196~ +200

Model of flow course plate: H & L & M

The max size of threaded connector: 1"1/4

The max size of welded connector: 1"3/8

Copper brazed & Nickel brazed
