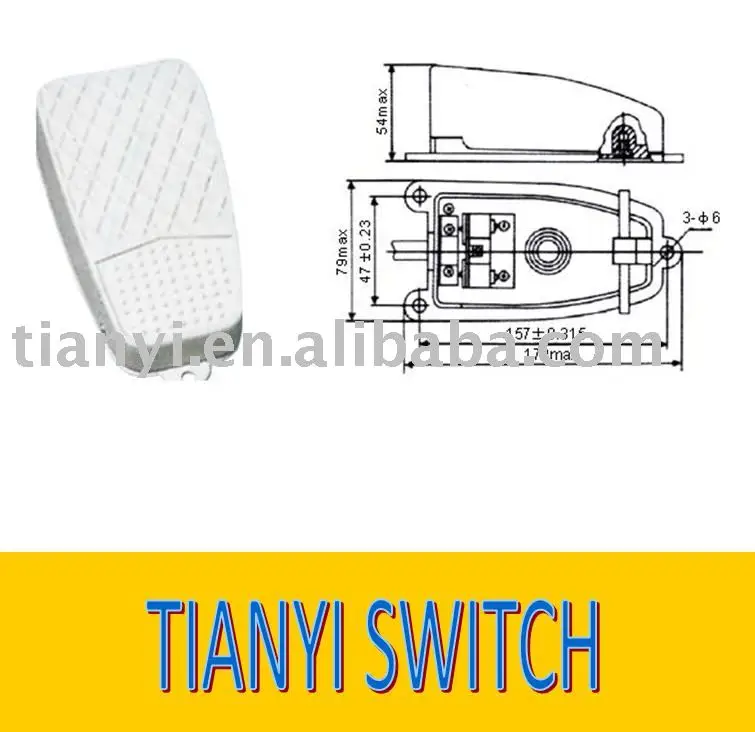

Foot Switch,Penal Switch ,Light Industrial Footswitches

Product Overview

Description

We can supply different kind of  tattoo foot switch ,Pedal switch ,Light Industrial Foot switches etc...



Feature:



Tough,all plastic,steel lightweight construction footswitch offering a wide variety of switching combinations, it can be sealed up to IPX8 upon request. Foot guard and colour options are available upon request.

Economic moulded plastic construction

Versatile plastic switch designed to reduce operator fatigue

Ideal for repetitive use for office equipment, domestic/medical appliances and general

    industrial applications



Technical data:



Model No.	FS-3
Contact Rate	10A 250VAC
Structure form	1NC+1NO
Material	Steel
Contact Resistance	500 mn MAX
Insulation Resistance	500 mn min at 500VDC
Electric Strength	2000VAC for 1 min
Operating Temperature	-25 to +70
Operating Humidity	45%-85%RH
Mechanical Life	1 X 106
Electrical Life	1 x 105
