Chemical mineral fertilizer high pressure auger feeding double roller compaction for briquetting

Product Overview

Description

Roller compaction for briquetting operating principle:

The dry granulator adopts two rollers compaction. Between 2 rollers, there is a gap. One roller is fixed and the other is floating. With the support of hydraulic pistons, the floating roller is pushed close to the other and the hydraulic system can has the action of compensation and protection. In the surface of the roller, it is profiled with plenty of die holes of "Eggs" shape. Feedstock (powders) is fed into the gap between two rollers by screw. With rotating in reverse of two rollers, powder are compacted into Final product directly.



In addition to high quality and consistency, dry roller compaction produces granules that are:

** More durable, for improved crush strength.
** Roll compaction produces consistent, irregular-shaped granules that "interlock" to reduce product stratification during shipping and handling.
** Highly flowable powders compared to powders that bridge and cake.
** Sized specifically to meet your precise product requirements. Roller compaction offers control and range of granule size.
** Dust free to prevent cross-contamination in the next stage of production. By converting your raw material to granule form, you greatly minimize dust that can cause health and production problems while decreasing maintenance costs.
** Easily handled, transported and stored because of increased bulk density and flow properties.

Roller compaction for briquetting parameter:

a).roller diameter: 600mm       width: 310mm

b).roller speed:12-18rpm.

c).screw feeder: 11kw motor with VFD

d).accumulator pre-pressurization: 8 - 10Mpa

e).linear pressure 55kN/cm

f). briquette size: 41*28*22mm

g).power of compactor: 90kw

h).installed capacity: about 104kw

i).dimension (L×W×H) : 3660×2450×2700mm

j).weight: about 22t

k).briquette output:8-10t/h

l). briquette shape: oval/oblate/almond

Roller compaction for briquetting line component:



Roller compaction for briquetting applications:

1.fertilizer:

Potassium Sulfate(SOP), potassium chloride, Russia red potassium, potassium nitrate, ammonium chloride, Ammonium Phosphate Monobasic, Diammonium phosphate(DAP), NPK compound fertilizer, import Russia Potassium Sulfate(SOP), ground phosphorite, NH4SO4, concentrated superphosphate, humic acid etc.

2.powder material

 zinc oxide, lead oxide, calcium chloride, calcium phosphate, High test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile etc.

3.chemical raw material, fine chemical material

4.FGD gypsum

5.coal powder

Note: It takes desulfurization gypsum for example, vary in accordance with the material to be briquetted.

Roller compaction for briquetting application Roller compaction principle

Difference of Roller compaction for briquetting A and  B.

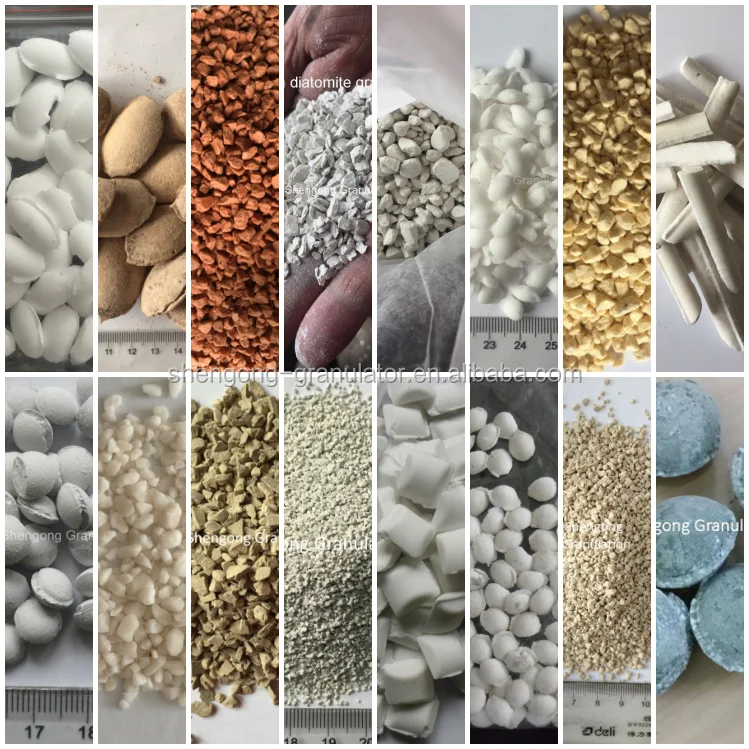

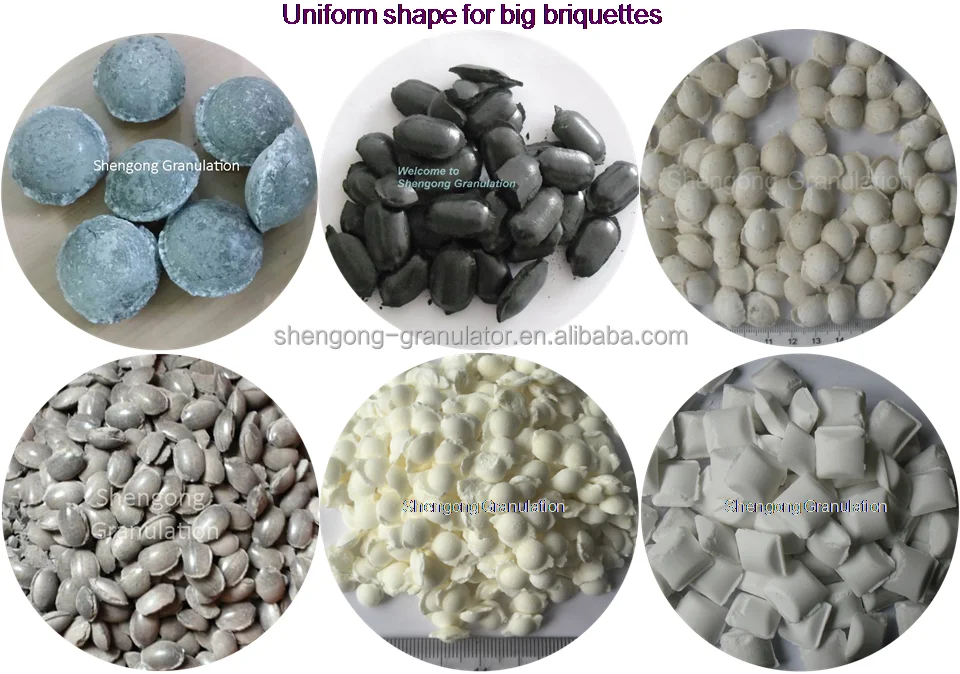

Roller compaction for briquetting consists of screw feeder (upper taper) and double roller compactor Roller compaction for briquetting peripheral equipments Briquette vairable shape

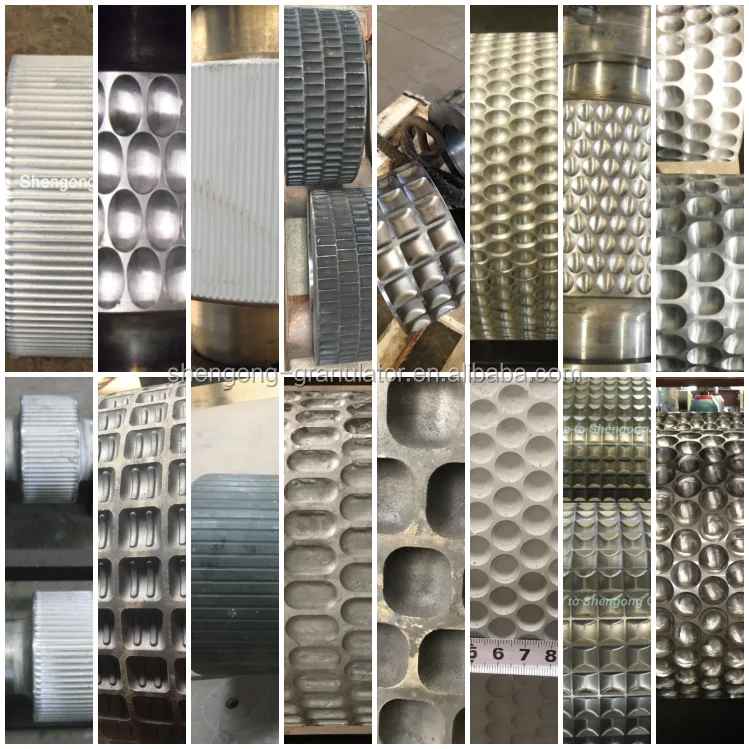

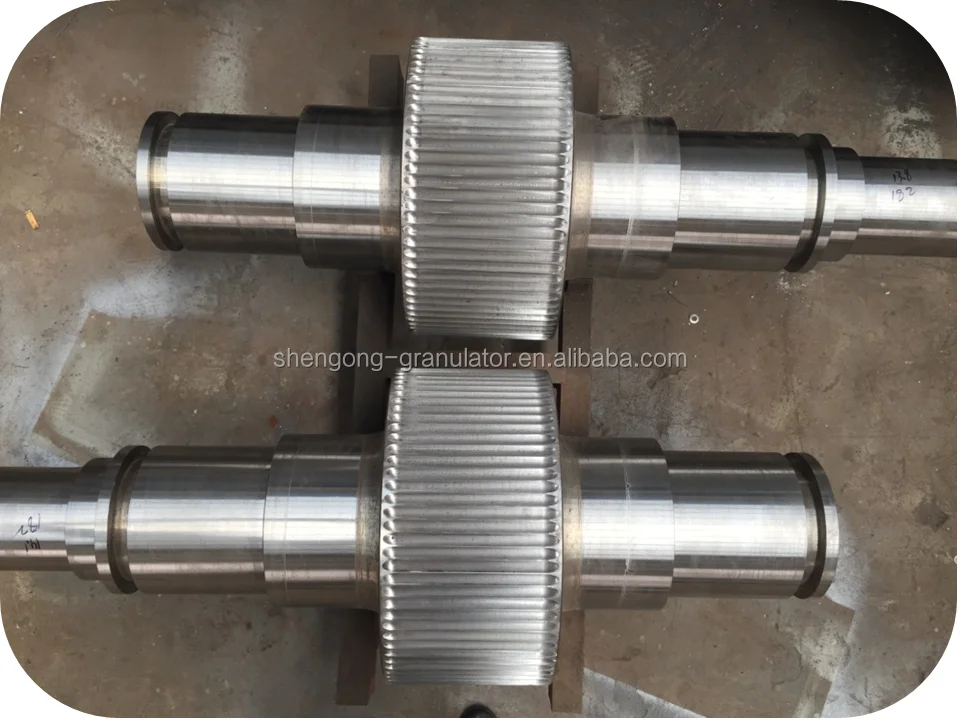

 Roller compaction for briquetting and its rollers

Roller compaction for briquetting  and its peripheral equipments are being loaded in one 40ft. container
