The Third Generation Sand And Gravel Machine Fine Crusher For Sale
Product Description
Sand and Gravel Machine description
Sand and gravel machine also called the third generation sand making machine. It is a kind of high efficient, gravel sand making equipment and energy saving, energy saving 50% than traditional crushing machine.
Sand and Gravel Machine characteristics
The small size materials, grain-uniform capacity, hammer, long life, supporting small power, and change three step crushing to two step crushing, process simplification, simple structure, easy maintenance, the smooth running and so on.
Equipment investment lower than the same size of the traditional technique and equipment 35% -50%, higher than the same scale output efficiency of traditional technique and equipment 35% -50%(limestone as an example: one product size ≤ 5 mm accounting for 85 percent). Long-term maintenance costs run less than the same size of the traditional technique and equipment 35% -50%, widely used mechanism aggregate,cement, Refractories, and metallurgical industries.
Sand and Gravel Machine Applications
Sand and gravel machine could crush the raw material from 200mm to 5mm with only one stage. It is usually used in cement industry to crush some medium hard solids, such as limestone, gypsum, glass, chamotte and other mix materials.
Usually, glass crushing machine, such as hammer crusher and jaw crusher can not crush the glass to 5mm, but PXJ fine crusher could. The discharge size of fine crusher(glass crushing machine) is 0-10mm and 0-5mm is more than 90%
Specifications
Sand and Gravel Machine specification
Model Rotor Diameter*Width (mm)
| Feed opening (mm)
| Max feed size (mm)
| Discharge size(mm)
| Discharge grate adjusting range (mm)
| Capacity (T/H) | Power (kw)
| |
Cement Clinker | Lime stone | ||||||
Ø800×400 | 400×185 | <120 | <5 | 5-20 | 20-30 | 35-45 | 37-45 |
Ø800×600 | 500×250 | <180 | <5 | 5-20 | 35-40 | 45-55 | 45-55 |
Ø800×800 | 550×330 | <180 | <5 | 5-20 | 35-45 | 55-65 | 45-55 |
Ø1000×1000 | 1000×350 | <180 | <5 | 5-20 | 45-55 | 65-75 | 55-75 |
Ø1200×1000 | 1200×400 | <180 | <5 | 5-20 | 55-80 | 75-100 | 100-110 |
Ø1200×1200 | 1200×450 | <180 | <5 | 5-20 | 75-90 | 90-100 | 100-132 |
Ø1400×1400 | 1500×500 | <190 | <5 | 5-20 | 90--130 | 100-150 | 160 |
Ø1600×1600 | 1600×550 | <190 | <5 | 5-20 | 170-210 | 190-250 | 250 |
Ø1800×1800 | 1800×800 | <190 | <5 | 5-20 | 250-270 | 280-310 | 315 |

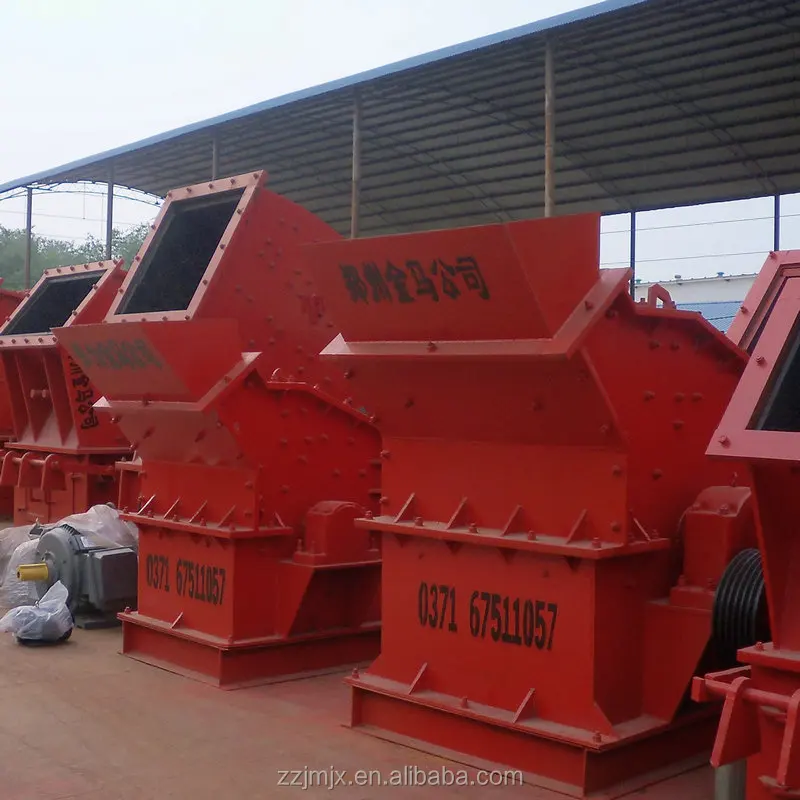

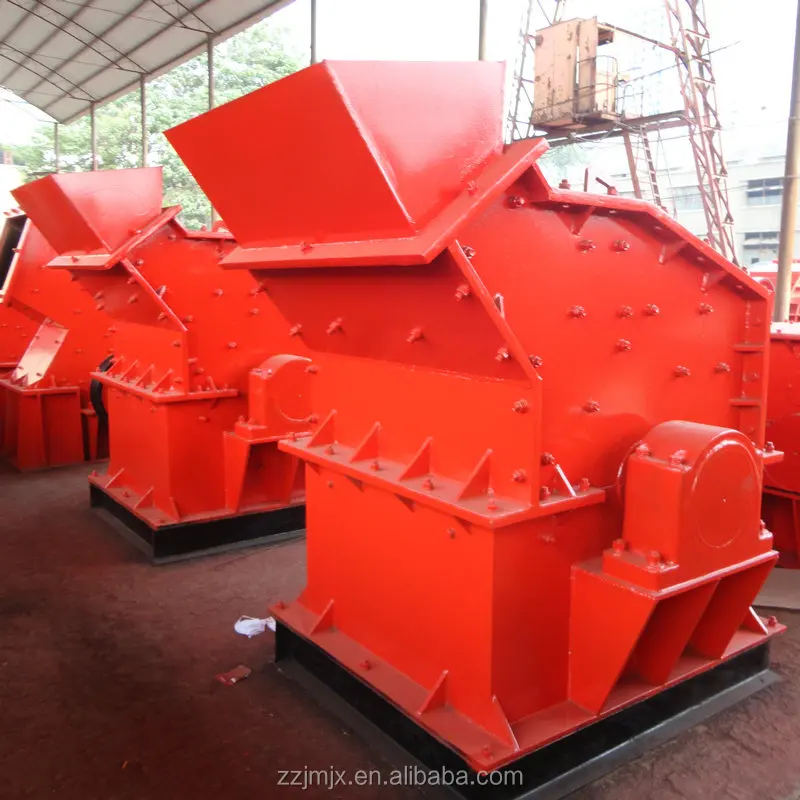

Detailed Images
Sand and Gravel Machine more details
Sand and Gravel Machine Spare parts
Packaging & Shipping
Packaging Details
1. Main machine is packed with plastic wrap or steel box, depends on machine weight
2. Electric motor is packed with steel box or wood box
3. Motor control is packed with carton box
4. Loaded container at factory.
Shipping ways: By sea ,by train ,by air or as your required deposit.
Delivery time: 5 working days after receiving your 30%
Port: Qingdao ,Tianjin Shanghai or as required.
Warranty: 12 months including spare parts.
The machine is packing and shipping
Our Services
1. Jinma provide the design, process diagram and foundation drawings according to clients' request.
2. Clients are welcome to inspect the equipment when the equipment are ready to delivery.
3. Equipment will be delivered with English Manuals and technical drawings
4. Engineers available to service machinery overseas, to make the layout design, foundations, guide the installation, commissioning run test, training workers, etc.
5.The equipment ordered from jinma will be guaranteed within 2 years since the day of purchasing if the problem is due to the equipment’s quality. If there is big quality problem with the equipment, the seller will discuss with the buyer and offer proposals to solve the problems within 72 hours since the notice from buyer.
6. Offer spares for the equipment within at least 10 years.
