FHC014 CB14 R410A refrigeration 45bar high pressure plate heat exchanger

Product Overview

Description





Heat load up to 5 KW

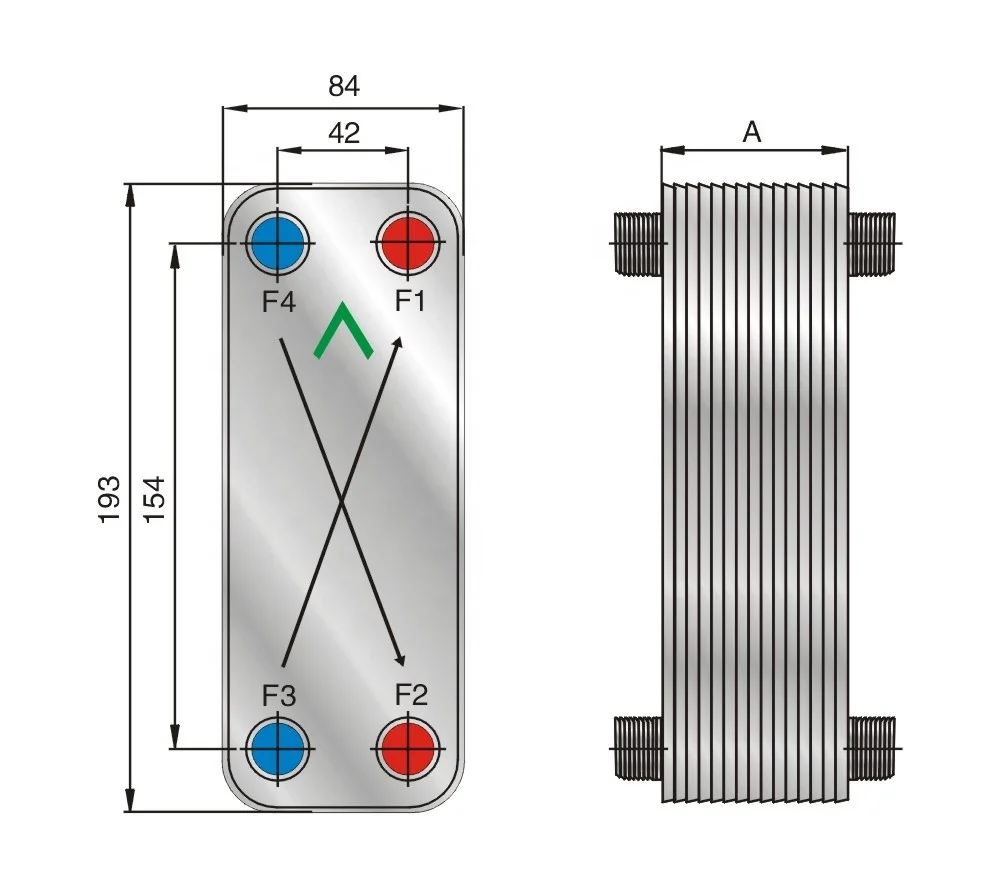

Size 193*84 mm

Thickness of plate  0.3mm

Heat exchanger area of each plate  0.014

Volume  0.022L/Channel

Quantity of max plates:  50

Design pressure   1.0/3.0MPa

Testing pressure   1.5/4.5MPa

Design temperature:  -196  ~  +200

Model of flow course plate: H

The max size of threaded connector:  3/4"

The max size of welded connector:  7/8"
