Melting furnace & Holding Furnace, copper cathode as raw material
Melting furnace type
Shaft furnace
Capacity
12t
Holding furnace type
Hydraulic tilting -type
Capacity
12t
Melting furnace, when red copper scraps are used
Type
Stationary reverberatory furnace
Capacity
60~100t
Casting machine
Casting wheel dia.
Φ1800mm
Casting bar speed
10.1~15.5m/min
Casting bar section
2600mm²~2700 mm²
Water consumption
170m³/h
Motor for casting wheel
5.5kW (AC inverter)
Motor for pinch roller
15.5kW (AC inverter)
Automatic shearer
Shearing length
~700mm
Motor
15kW
Straightener & edge shaver
No. of straightening roller
5
No. of shaving tools
2
Cast bar brushing machine
No. of brushing rollers
1
Motor
0.75kW
Rolling mill
Type
2-highhorizontal-vertical stand in rough rolling
3-high stand in finished rolling
Outlet rod dia.
Φ8 mm
No. of rolling stand
12(2+12)
Rollers dia.
Φ255 mm
Finished rolling speed
7~10 m/s
Production capacity
12~15t/h
Center height
1902.5mm
Main motor
450kW (DC)
Emulsion consumption
100m³/h
Rod cooling and surface treatment unit
Max. coolant flow-rate
90m³/h
Coolant pump motor
15kW
Water consumption
60m³/h
Rod orbital coiler
Pulling speed
11m/s
Pulling motor
5.5kW (AC inverter)
Coiling size
Φ1400m
Laying head motor
5.5kW (AC inverter)
Collecting basket
Φ1800×1500mm
Coiling weight
3000~5000kg
2.Design / Structure / Details Pics
1) Features

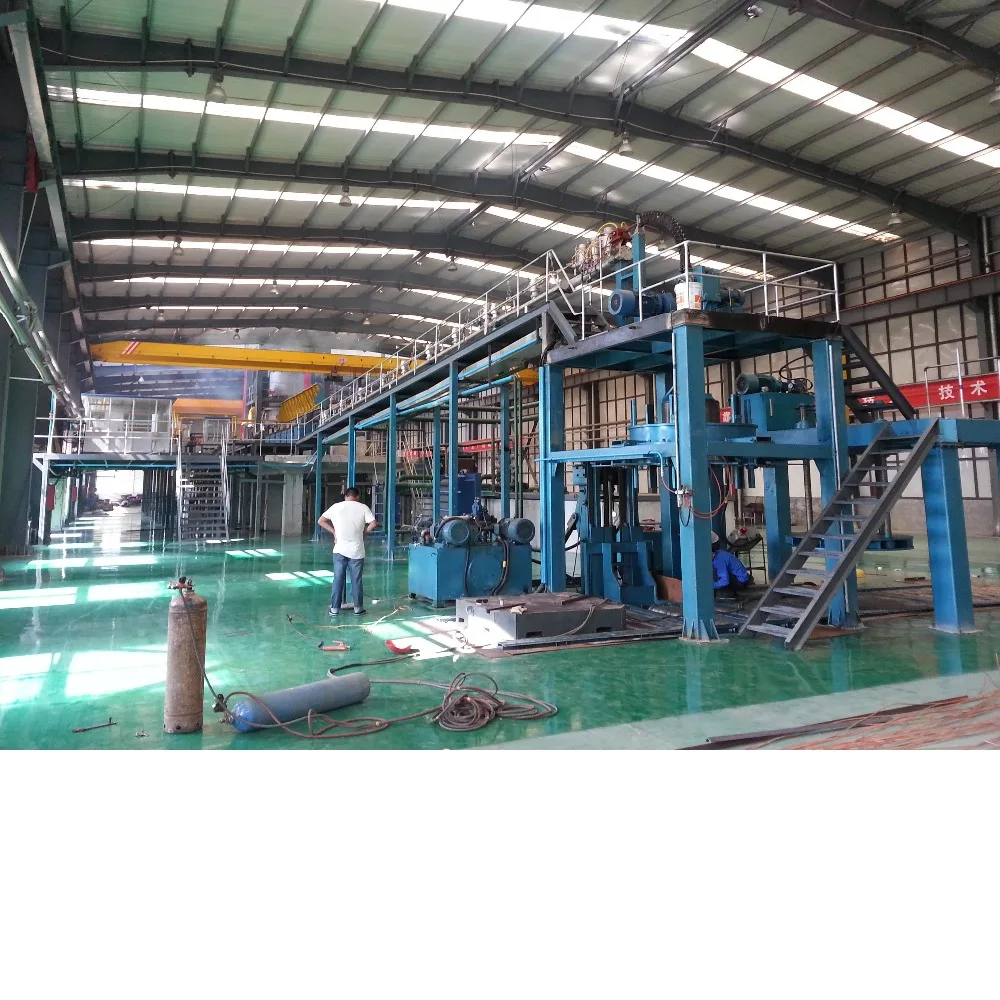

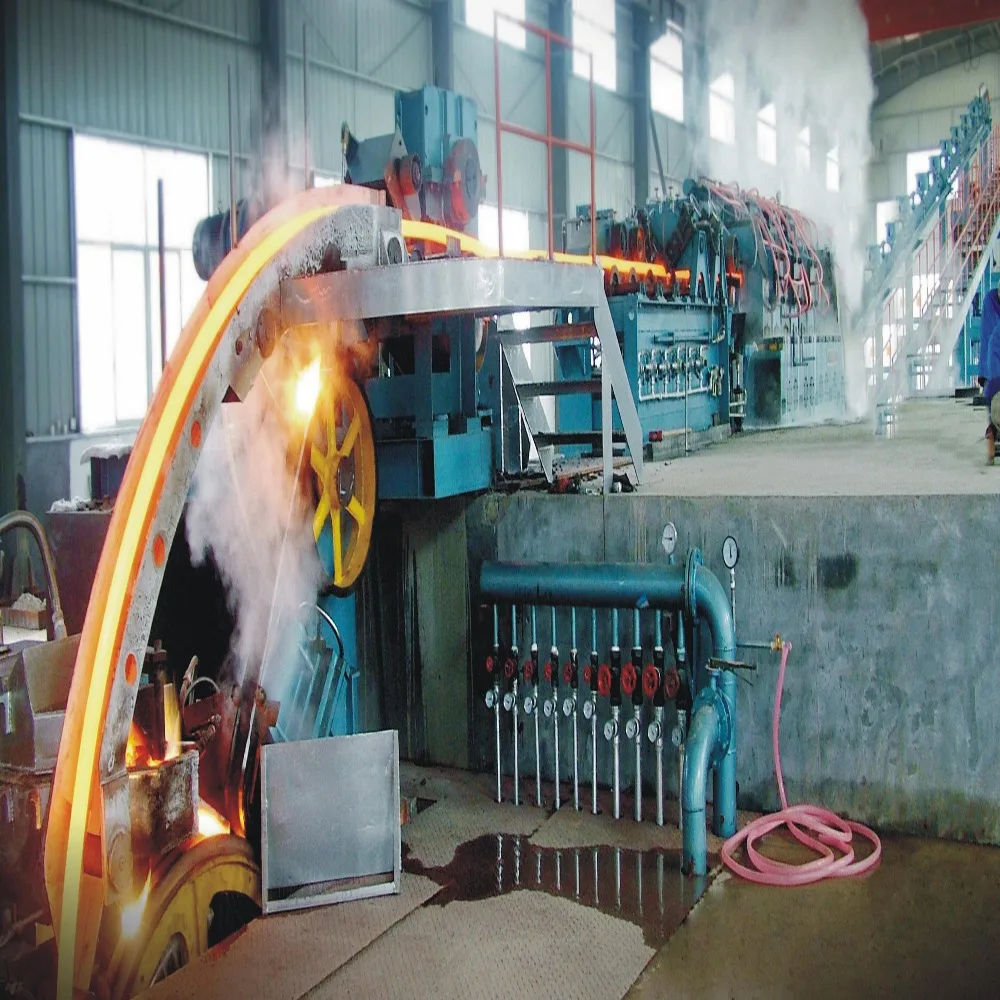

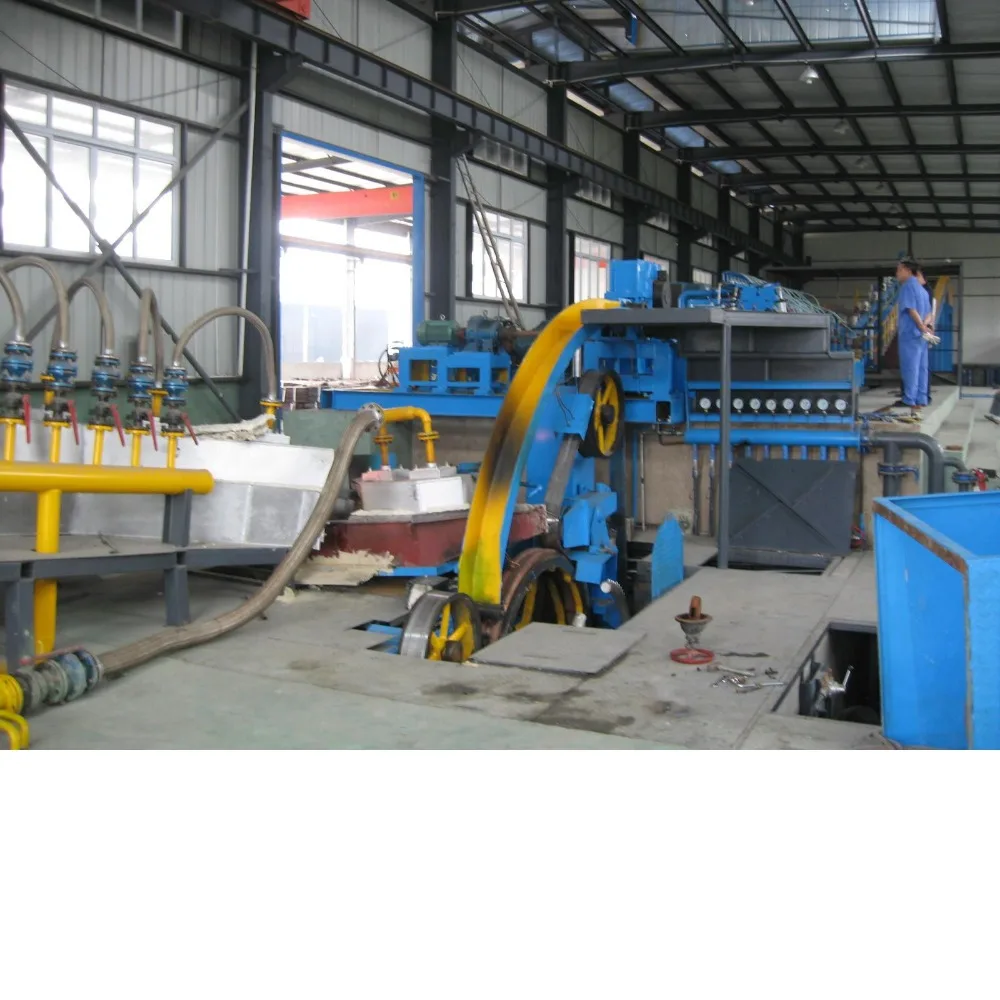

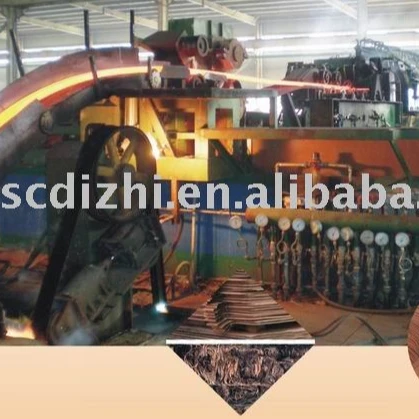

§ Crystallizing wheel is in type of “H”, on every side of which there is an adjustable nozzle spraying water to ensure the crystal of the cast bar close and equal.
§ The copper rod continuous casting and rolling line is with an unique rolling method combining 2-high mould with 3-high mould
§ The copper rod continuous casting and rolling line is with perfect outlook & lower noise and vibration.
§ The transmission system is in type of DC motor fully-digital speed adjusting.
§ High efficiency & quality of production but low dissipation energy.
2) Application
§ The copper rod continuous casting and rolling line can be equipped with different kinds of melting furnaces according to various raw materials (copper cathode or red copper scraps)
§ The copper rod continuous casting and rolling machine, ccr line can produce ETP and FRHC with dia. 8mm.
§ The copper rod continuous casting and rolling machine, ccr line is mainly designed to produce φ8mm low oxygen and bright copper rods by continuous casting and rolling.
