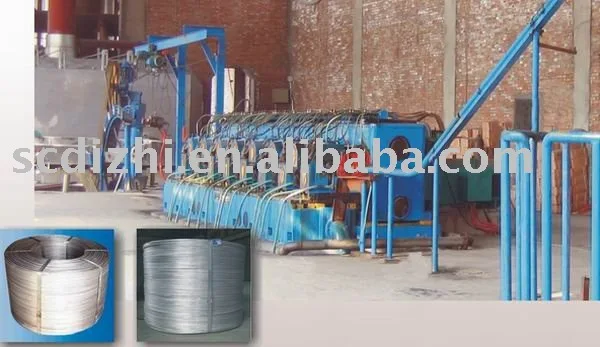

Aluminum Rod Continuous Casting Rolling Machine

Product Overview

Description

1. Product Information

Casting machine	Crystallizing wheel diameter	Φ1200mm
	Section surface of casting ingot	600mm2
	Casting speed	280mm/s
	Driven motor	1.5kw (AC)
	Type of casting machine	2-wheel
Cantilever balancing pendant oil hydraulic shearer	Max. shearing force	12000kgf
	Max. shearing stroke	65mm
	Motor power	4kw
Rolling mill	No. of rolling stand	7
	Outlet rod diameter	Φ9.5mm
	Max. production capacity	1.6t/h
	Finished rolling speed	2.45m/s
	Center height	902.5mm
	Main motor	75 kw
Coiler	Max.coiling weight	1.5~2t
	Max.coiling diameter	ø 1850mm
	Coiling driven motor power	2.2kw

2. Design / Structure / Details Pics

1) Features

§ The aluminum rod continuous casting and rolling machine is competitive with the relative international products.

§ By adopting PLC and man-machine interface for the complete line control, it can check and display the running parameter of machines as well as indicate the breakdown.

§ The aluminum rod continuous casting and rolling machine is with perfect outlook and lower noise and vibration.

§ The aluminum rod continuous casting and rolling machine is easy to disassemble and assemble.

§ High efficiency and quality of production but low dissipation energy.

2) Application

It is special for producing electrical aluminum rod with dia. 9.5mm by means of continuous casting and rolling.
