Предохранительный выключатель с функцией отдыха
- Category: Limit Switches >>>
- Supplier: Suns Electric (zhangzhou) Co. Ltd.
Share on (285468202):
Product Overview
Description
Basic Parameters:Safety Pull Switch
| Features: electrical switches | |
| 1)Global general standard | |
| 2)Mechanical movement and electrical line separtes | |
| 3)Positive Opening Mechanism | |
| 4)4x90ºactuator position,omni-directional | |
| 5)Cable entry available:M 20,PG 13.5 AND 1/2"NPT | |
| 6)Metal shell conforms to EN50041 standard | |
| 7)Plastic shell conforms to EN50041 standard | |
| 8Contact form zb | |
| Specifications: | |
| Operating Speed: | 0.05mm-2m/sec |
| Operating Frequency: | Mechanical: 120 ops/min Electrical: 30 ops/min |
| Insulation Resistance: | >100mΩ@500V DC |
| Contact Resistance: | <25mΩ |
| Rated Current/Voltage: | 10A/600V AC (EN60947-5-1) |
| UL/cUL Listed (E216958) AC15 A600/DC13 Q300 | |
| Dielectric Strength: | 1000VAC for 1 min between non-continuous terminals |
| 2500VAC for 1 min between each terminal and ground | |
| Service Life: | Mechanically 1.0×107 (operations) |
| Electrically 5×105 (operations) | |
| Operating Temperature: | -25~+80℃ (-13~+176°F) without formation of ice |
| Humidity: | <95%RH |
| Weight: | 150~250g |
| Degree of Protection: | IP67 |

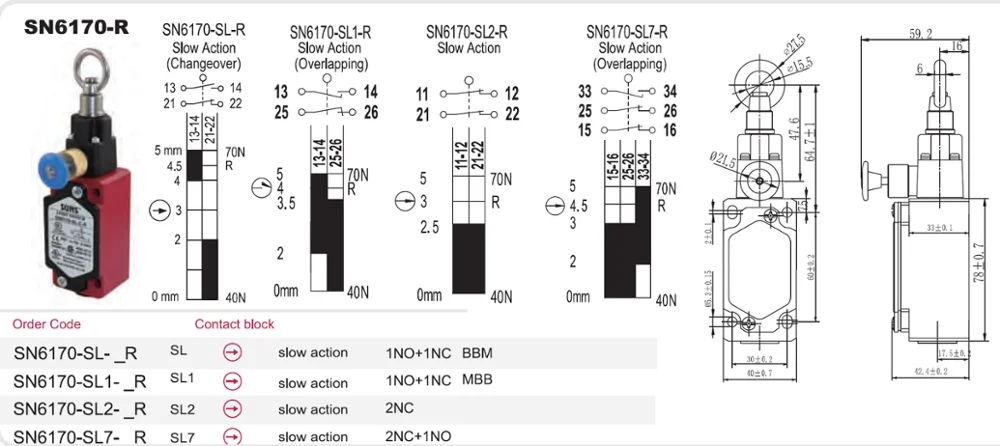

Technical Drawing:Safety Pull Switch
SUNS Certifications
Company Information
Introduction
We are committed to delivering world-class products and services efficiently and effectively to our customers and your total satisfaction is our goal. As an established member in the industry, we will continue our endeavors in delivering better products and services to our new and old customers. With this dedication and long-term commitment, Suns Electric (Zhangzhou) Co., Ltd. is ready to become a leader in the industry.
Workshop & Production
Product & Service
FAQ
1. A:Where is your company?
Q:We are a USA company and have our own manufacture factory in Fujian China.
2. A:Do you have any certifications?
Q: We have TUV, CSA, UL, UR, CE, CCC approved, and RoHs, REACH compliance
3. A:What is your payment term ?
Q:T/T, L/C
4. A:Could I have some samples for testing ?
Q:Samples(Depends) can be sent per request on your express cost.
5. A:What is your delivery time ?
Q:Delivery lead time 2-4 weeks normally
Our Service
- Provide wide variety of Limit Switch, Foot Switch, Micro Switch, Industrial Switch,etc.
- Offer customized solution to clients based on various situations
- Satisfactory delivery service to domestic and international clients
- Promote extended after-sale service
Advantage
- Reliable supplier/partner for dozens of world leading manufacturers
- Provide value added service and flexible
- Maintain leading-edge technology through continuous innovation
- Provide most reliable products and services
- Offer the most complete switch portfolio
- Stable work force with people-oriented management style
