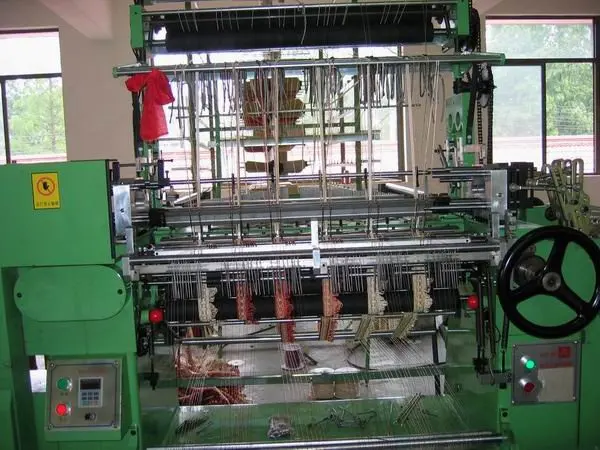

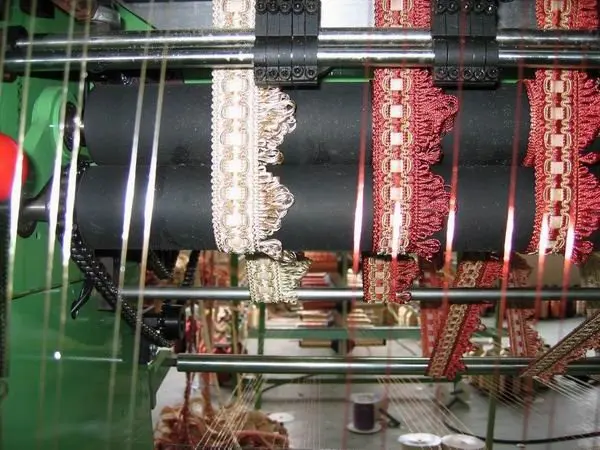

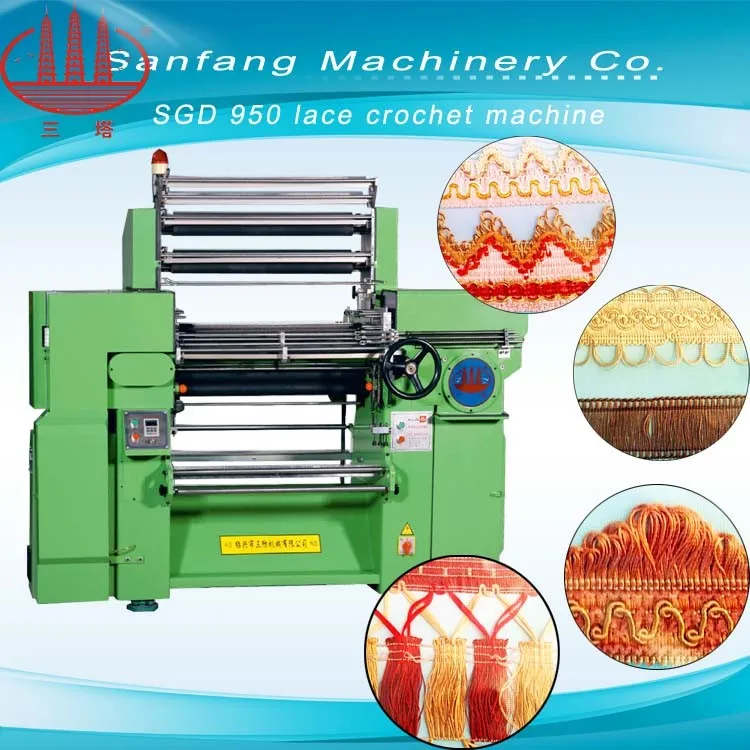

SGD 950 Lace Fringe Making Machine
- Category: >>>
- Supplier: Shaoxing Sanfang Machinery Co. Ltd.
Share on (285626352):
Product Overview
Description
Product Description

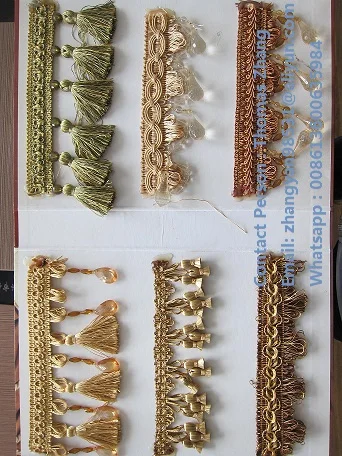

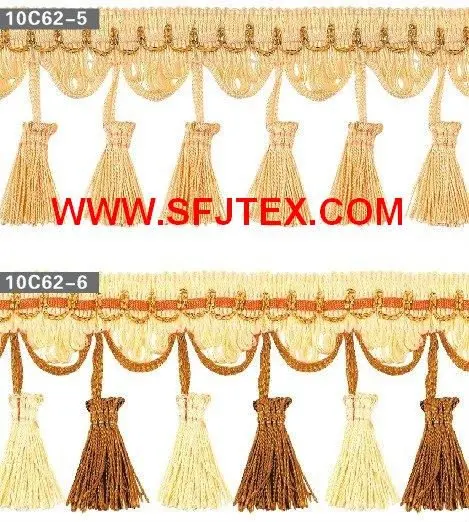

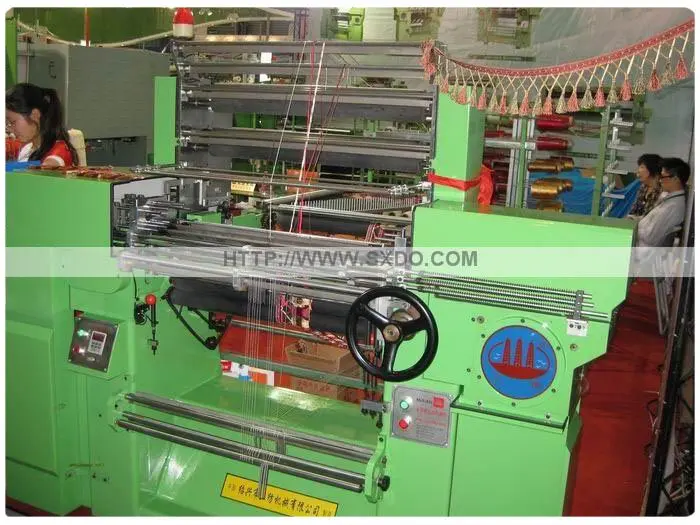

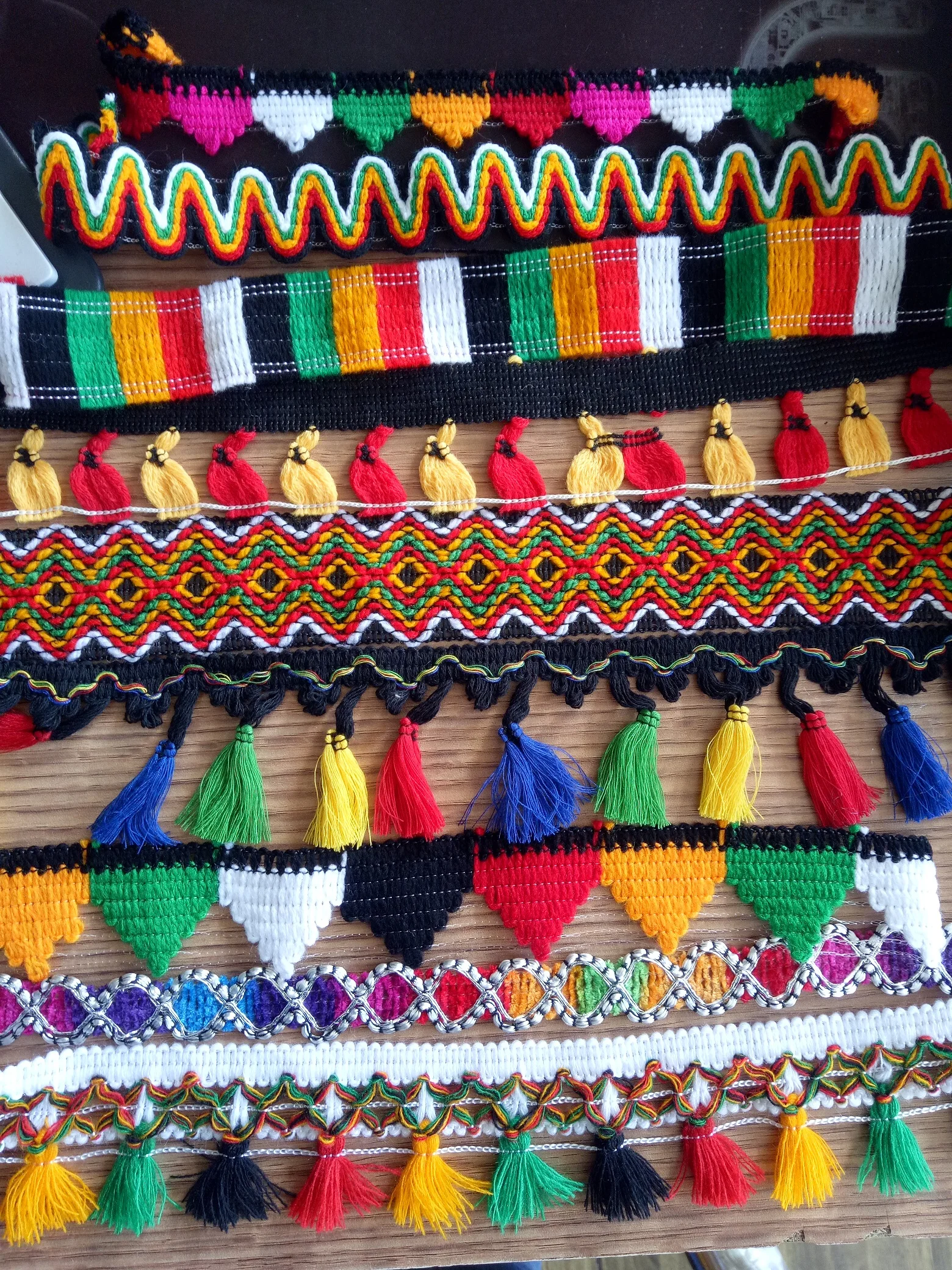

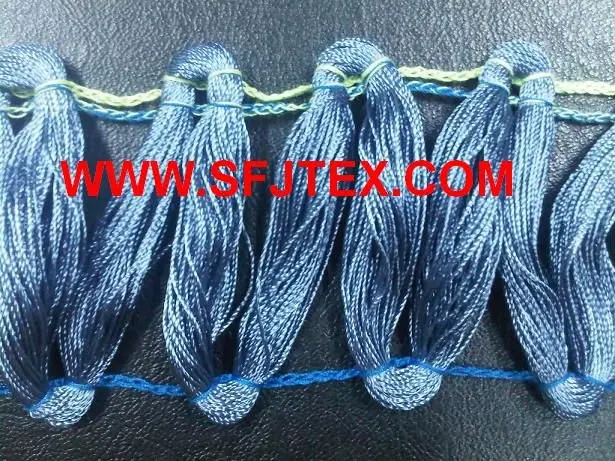

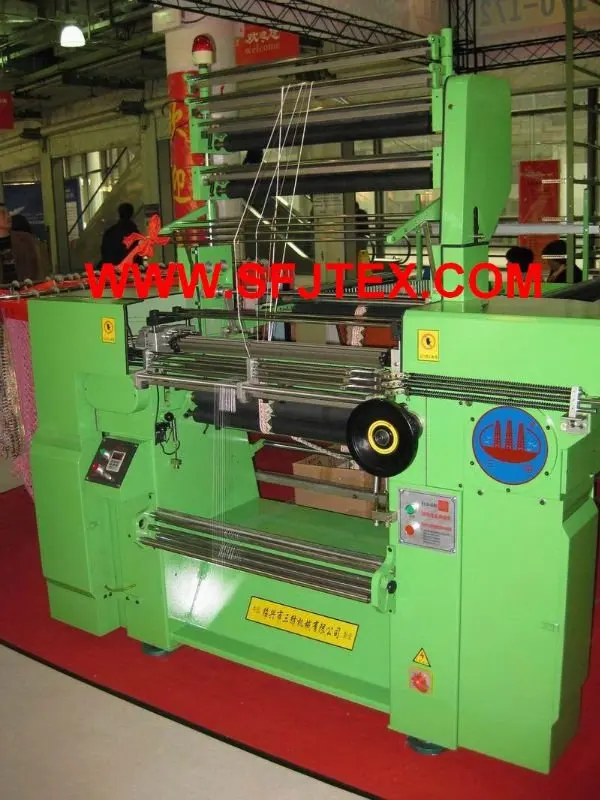

SGD-950 Lace Fringe Making Machine is designed for kinds of laces, it can produce curtain lace fringe ,Upholstery braid fringe , special laces fringe and etc.

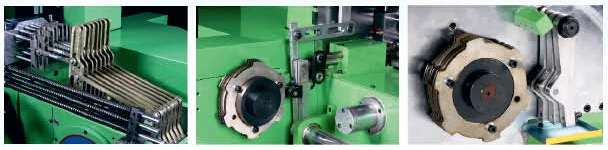

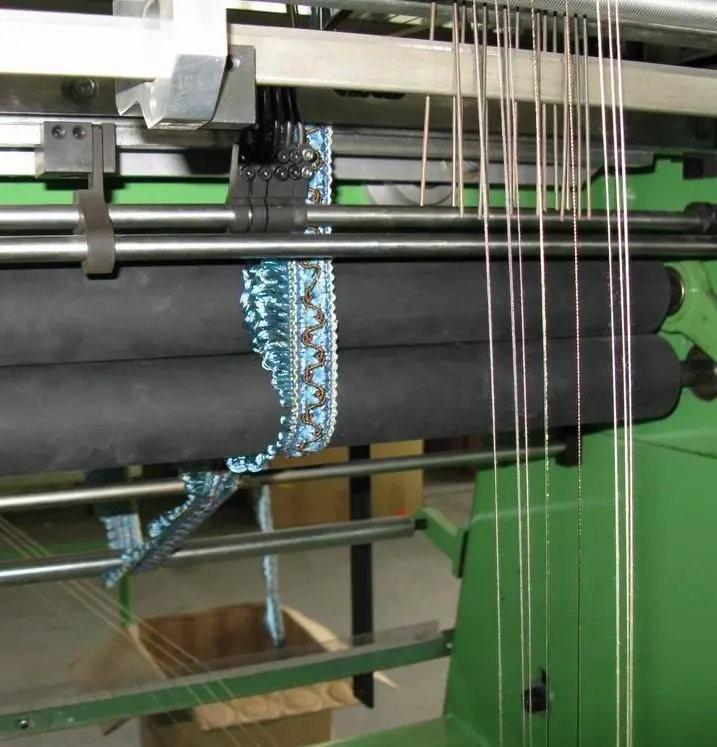

The lace crochet machine adopt two groups of cam gear, it make the machine can produce various kinds of laces.with special weft bars driver, the machine can manufacture wide lace very easy.
Lace crochet machine adopt frequency inverter to adjust the speed, so the machine can change corresponding speeds according to different raw materials.
Automatic Lubrication for link chain allows the machine to run quietly and smoothly at high speeds.
is equiped with a pair of front blocker and a pair of back blocker, and a pair of crossing device, Arm width device. Cubic Device can be optioned.

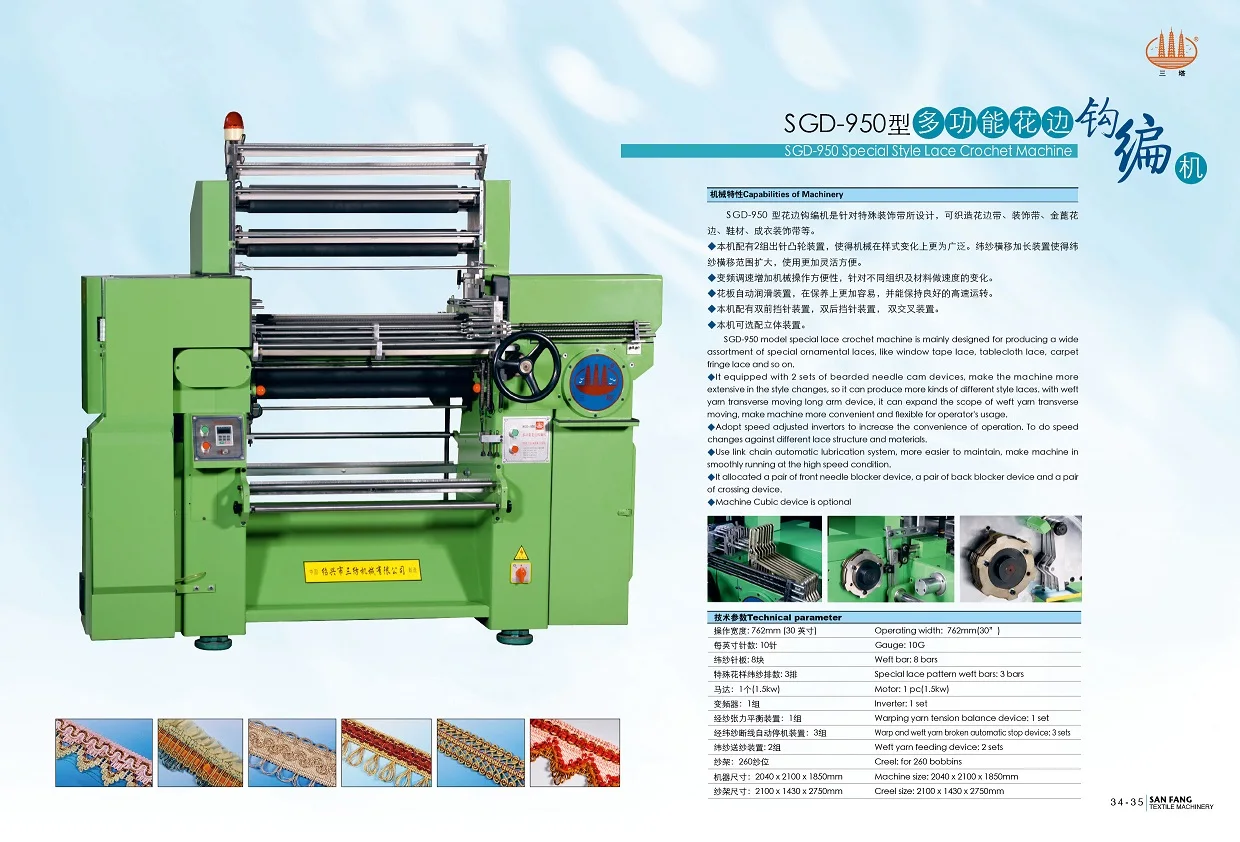

Technical parameter
|
Operational breadth: 762mm (30 inches)
|
Gauge Needles per inch: 10G
|
Weft Bar: 8 bars
|
Special Pattern bar: 3 bars
|
Motor: 1 unit
|
Inverter: 1 set
|
Automatic tensioner for warp yarns: 1 set
|
Auto stop motion system: 1 set
|
weft feeder systerm: 2 sets
|
Creel: 260 bobbins
|
Machine size: 2000 x 800 x 2150 mm
|
Creel size: 2080 x 2800 x 1150 mm
|
