Automatic Crochet Knitting Machine for sales

Product Overview

Description

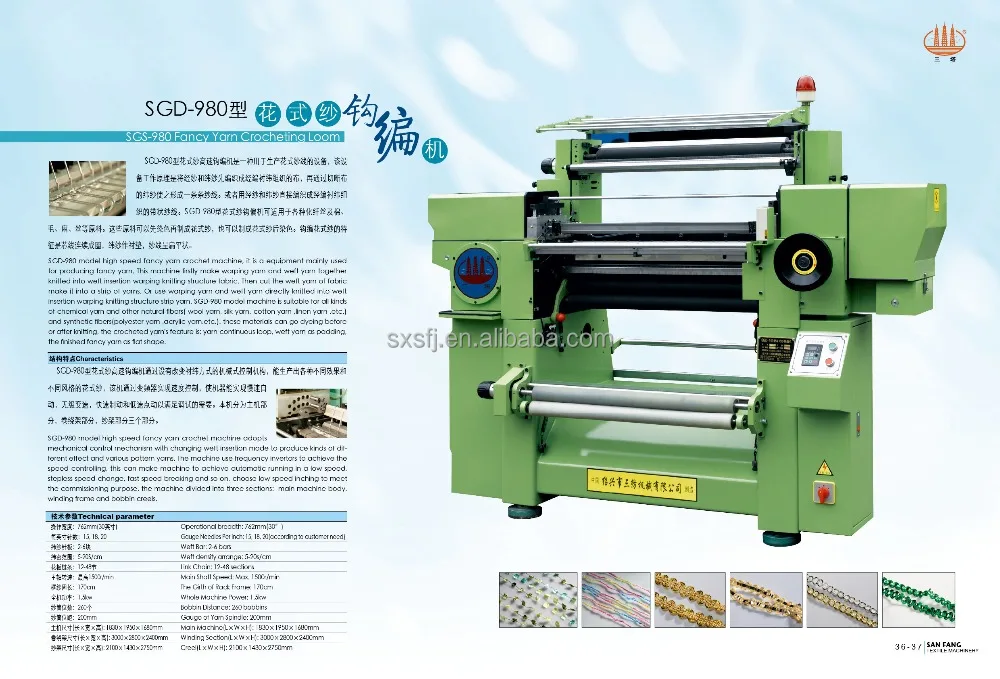

:: SGD-980 high speed automatic crochet knitting machine for fancy yarn,lace,tape,bandage,



It is a high speed fancy yarn crochet machine. The machine first knits cloth with warp and weft yarn, then cuts warp yarn to form the final yarn. Otherwise it knits warp and weft yarn to straightly knit belt yarn. SGD-980 machine is suitable to knit various kind of fancy yarns, both natural fibers(wool, silk, cotton, linen, etc.) and synthetic fibers (polyester, acrylic etc.) This entire material can be dyed before or after knitting, in accordance with its mattress. The finished yarn is of flat shape.

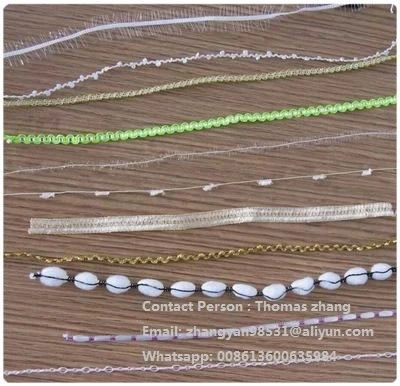

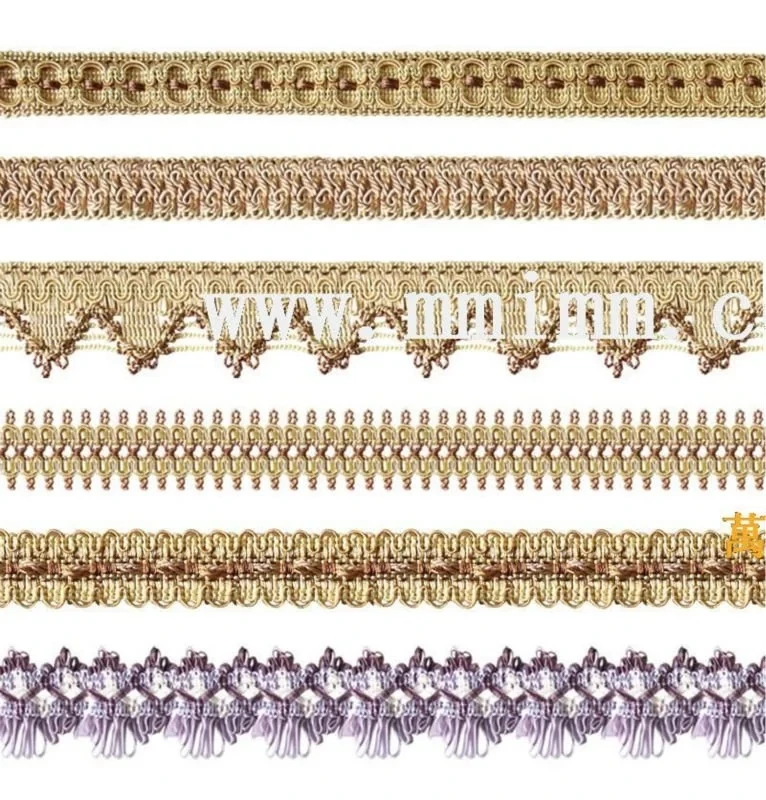

:: SGD-980 fancy yarn crochet knitting machine can produce like feather yarn, centipede yarn, dragonfly yarn, curtain lace and so on.



 CUSTOMER OPTION :



SGD-980 High speed automatic crochet knitting machine can adopt with PLC computer system ,it is selected by customers,it has a servo system to replace the former mechanical controlled link mechanical system based on pattern designed by link chains.make the machine for higher automatic.this called SGD-980 C model ( with computers)



TECHNICAL PARAMETER:



Operation Width: 762mm (30 inch)

Needles Per inch(Gauge): 10,12,15, 18, 20,24 gg

Weft Bar: 2-8 bars

Stitch Density: 5-20S/cm

Link Chain: 12-50 sections

Main Shaft Speed: Max. 1500r/min

The Girth of Rack Frame: 170cm

Whole Machine Power: 1.5kw

No. of Yarn Bobbin: 260 position-360 position - 520 position bobbins

Gaugo of Yarn Spindle: 200mm

Main Machine(L×W×H): 1750×1950×1750mm

Winding Section(L×W×H): 3000×2800×2400mm

Yarn Frame(L×W×H): 2100×1880×2750mm

Total Machine Weight  : 1100 kgs
