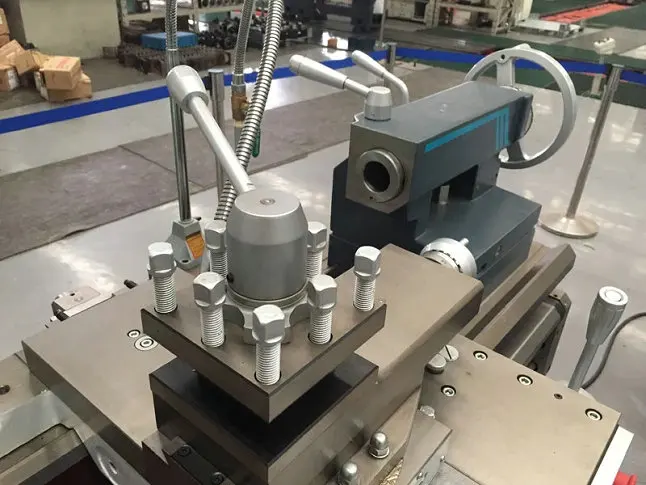

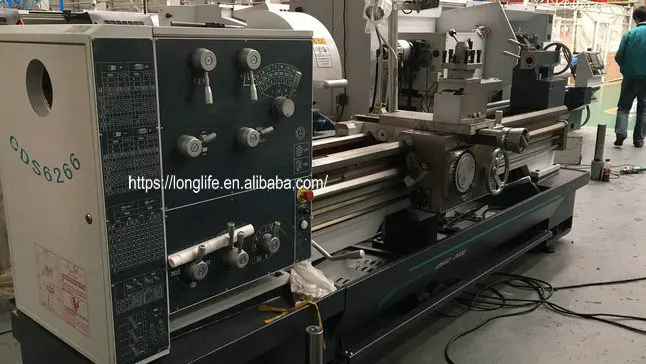

CDS6266B/Cx1500 Mechanical Lathe Machine
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (286584220):
Product Overview
Description
CDS6266B/Cx1500 mechanical lathe machine
Brief Introduction
+CDS6266 series mechnical lathe machine/torno mechnical are capable of various turning applications, mainly used for I.D and O.D. cylindrical face taper surface and other parts that features rotating surface.
+such mechnical lathe machine/torno mechnical is suitable for face turning, grooving, parting, drilling and other popular metric, inch, module and diametral pitch threads.
+such mechnical lathe machine/torno mechnical is perfectly suitable for small valume production plant and machinery maintenance shops, and can machine a range of materials, including steel, cast iron and non-ferrous metals.
+Gap lathe features a removable gap, which is the main difference between horizontal lathe and gap lathe, and can be adjusted to machine larger or longer workpieces, thus suitable for process disk parts and irregular shaped parts.
+Various combinations of metric, imperial lathes with miscellaneous functions are available on request.
* As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice.
Main Technical Data
Specifications | Unit | Parameter |
Max. swing over bed | mm | 660 |
Max. swing over carriage | mm | 440 |
Max. swing over gap | mm | 870 |
Width of gap | mm | 280 |
Max. length of work piece | mm | 1500 |
Max. Turning Length | mm | 1450 |
Width of guide way | mm | 394 |
Spindle nose |
| D8 |
Spindle speed | rpm | 26~1700 |
Dia. of spindle bore | mm | 110 |
Taper of spindle bore |
| 110/1:20 |
Max. bar diameter allowed to pass | mm | 105 |
Longitudinal feed | mm/rev | 0.044~1.48 |
Cross feed | mm/rev | 0.022~0.74 |
Metric thread | mm | 0.5~80 (73 kinds) |
Inch thread | tpi | 7/16~80 (47kinds) |
Module thread | mm | 0.5~40 (45 kinds) |
Diametrical pitch thread | DP | 7/8~160 (47kinds) |
Max. travel of cross slide | mm | 340 |
Max. travel of longitudinal slide |
| 1450 |
Travel of top slide | mm | 150 |
Travel of tailstock quill | mm | 150 |
Diameter of tailstock quill | mm | 75 |
Taper bore of tailstock quill |
| M5 |
Main motor power | kW | 7.5 (10HP) (11kW. optional) |
Main motor speed | rpm | 1440 |
Pallet packing(standard) | mm | 3430x1223x1370 |
Wooden box(optional) | 3350x1160x1930 | |
N.W | kgs | 2700 |
Free Std Accessories
S.N | Name | Remark |
1 | 3-jaw chuck | Φ315 mm |
2 | Steady rest | Φ30~Φ200 mm |
3 | Follow rest | Φ20~Φ100 mm |
4 | Catch plate | 1 Set |
5 | Foot brake | 1 set |
6 | Dead center | D115, DB1221 |
7 | Center sleeve | 1 Set |
8 | Oil gun | 1 Set |
9 | Wrench tool | 1 set |
10 | Foundation bolt | 1 set |

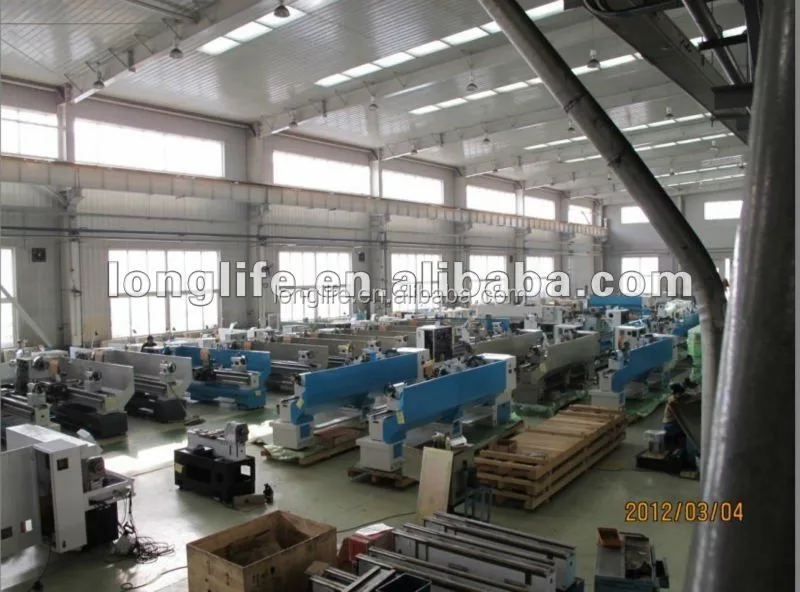

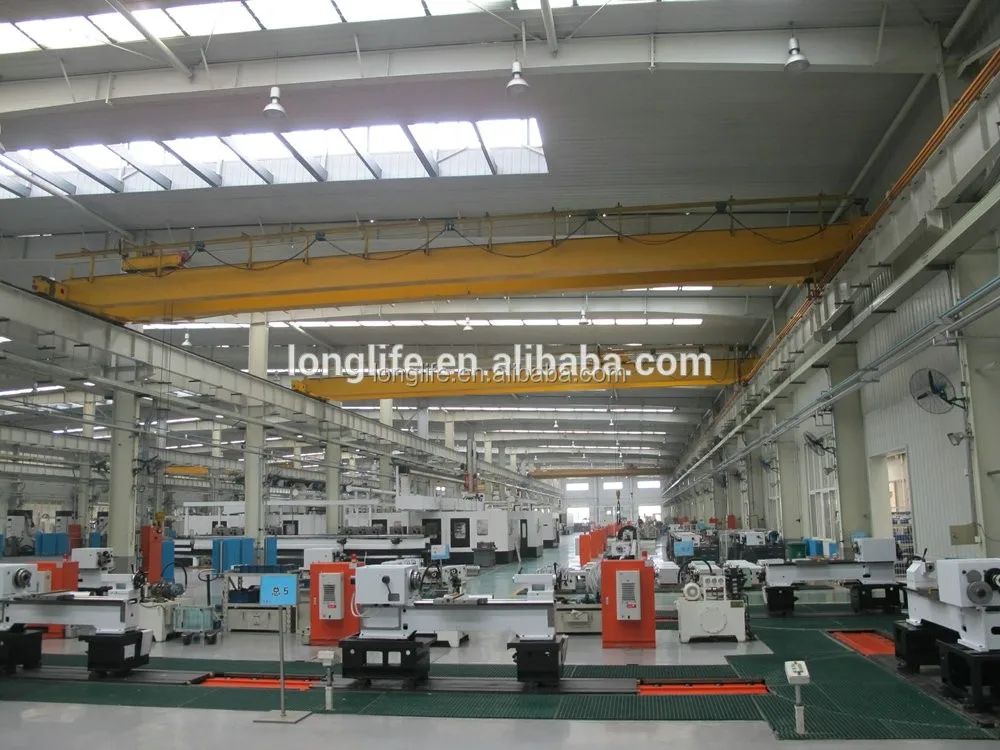

Factory Overview:
