1/4 дюймов холодильные запасные части доступ к меди/зарядки/игольчатый клапан без обратный клапан

Product Overview

Description

1/4 inch refrigeration spare part copper access valve no return valve

Brass copper



Product description



Copper access valve / pin valve1/4", 1/8", 3/16", 5/16", 3/8"



Copper access valve / pin valve



1.Charging valve,access valve,check valve,one-way valve,valve for refrigerator,Refrigeration tool Access Valve



2.Refrigeration parts for refrigerator,air conditioner,and auto air conditioner industries



3.Different specifications available:1/4,3/16,3/8.



4.Tube length can be according to customer's requirements:

40mm,50mm,60mm,70mm,80mm,90mm,100mm,120mm



5.The charging valve is an one-way service valve with valve inside.



6.The charging valve is used on the freezer, cold store and air conditioning unit.



Features of access valve



·Equipped with imported valve inside of reliable performance.
·Double sealing ensure leak-tight.
·Copper tube of various lengths and hardness are available.
·Valve bonnet is knurled for easy handling.



Specification:



Type	Connection	Size	Overall Dimension					Hexagonal S	Thread M	Weight
			A	B	Ø D	H	L
Type A	1/4SAE	1/8	60	14	3.17		4	11	7/16-20UNF	22
		3/16			4.76					23
		1/4	90		6.35		124			28
Type B	1/4SAE	1/4	90	14	6.35	118		12	7/16-20UNF	30
	1/2SAE			16				14	1/2-20UNF	39
	1/2ACME								1/2-16ACME	40

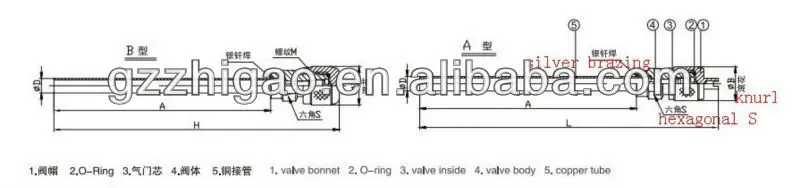

Drawings of charging valve:

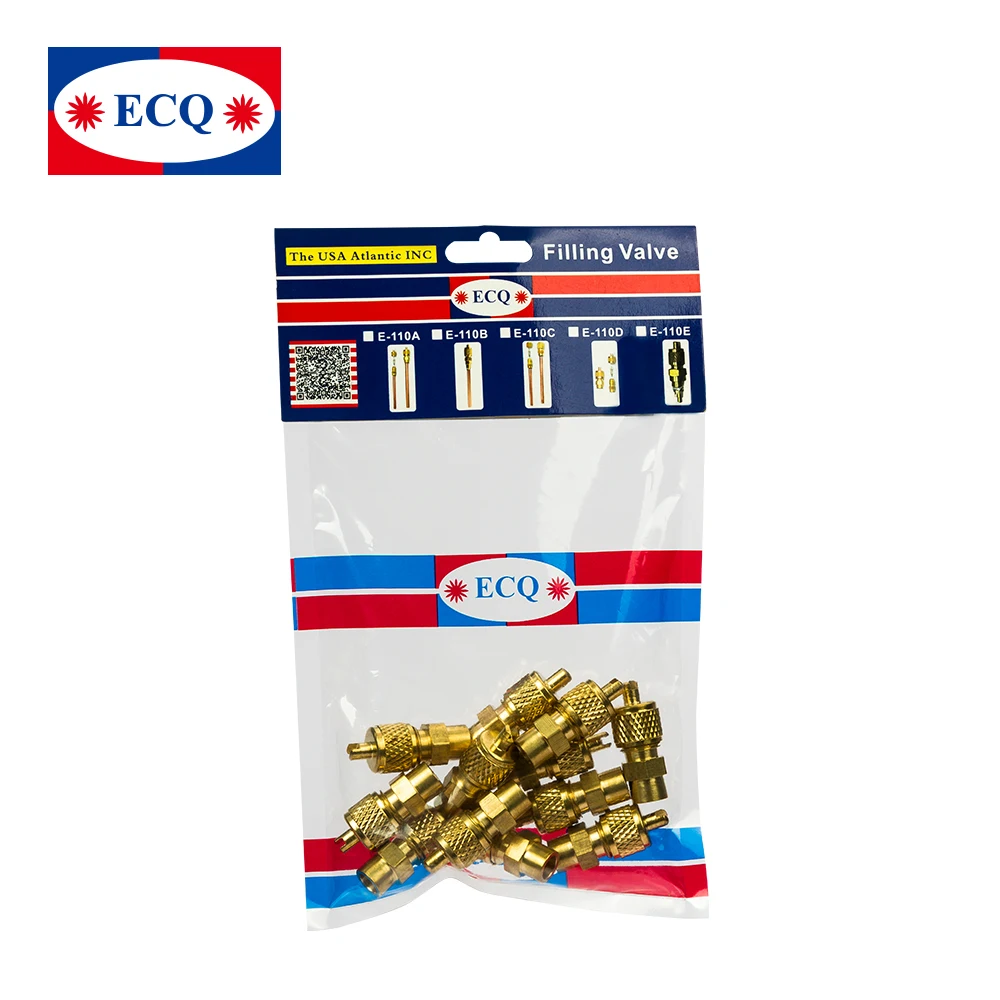

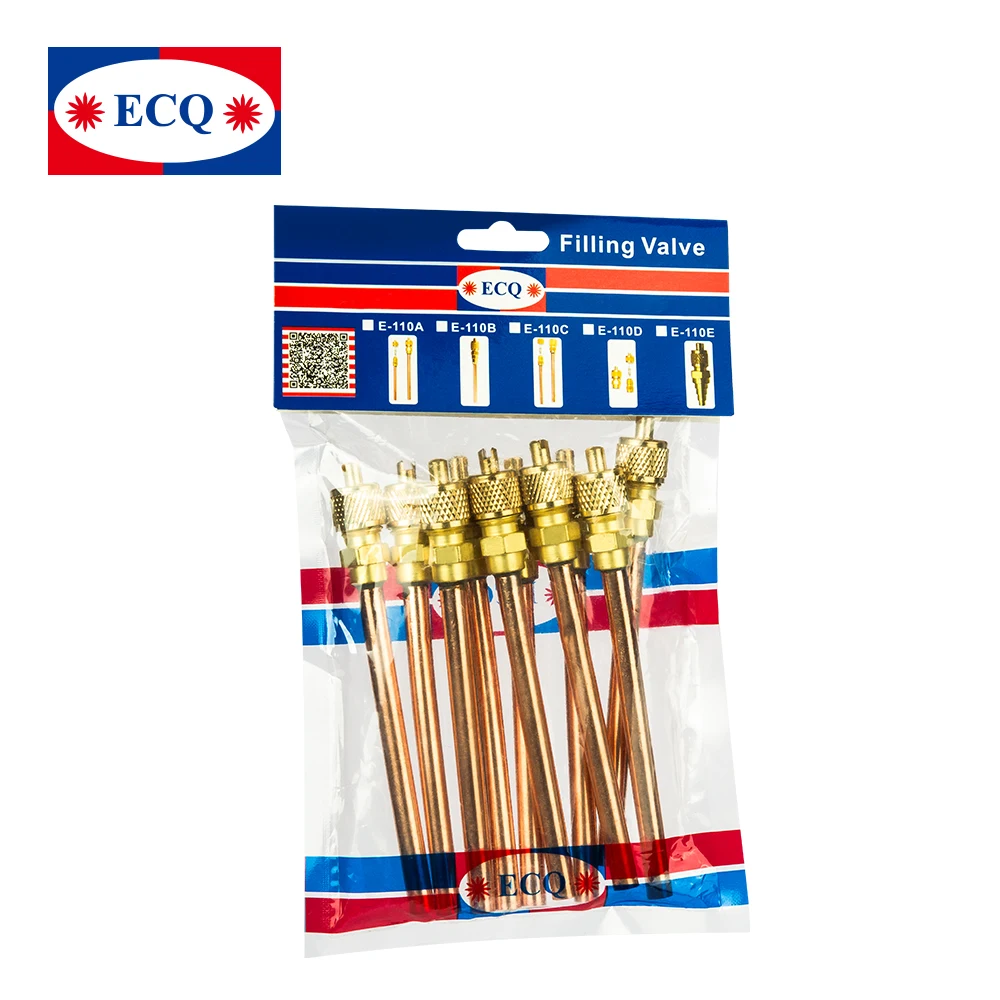

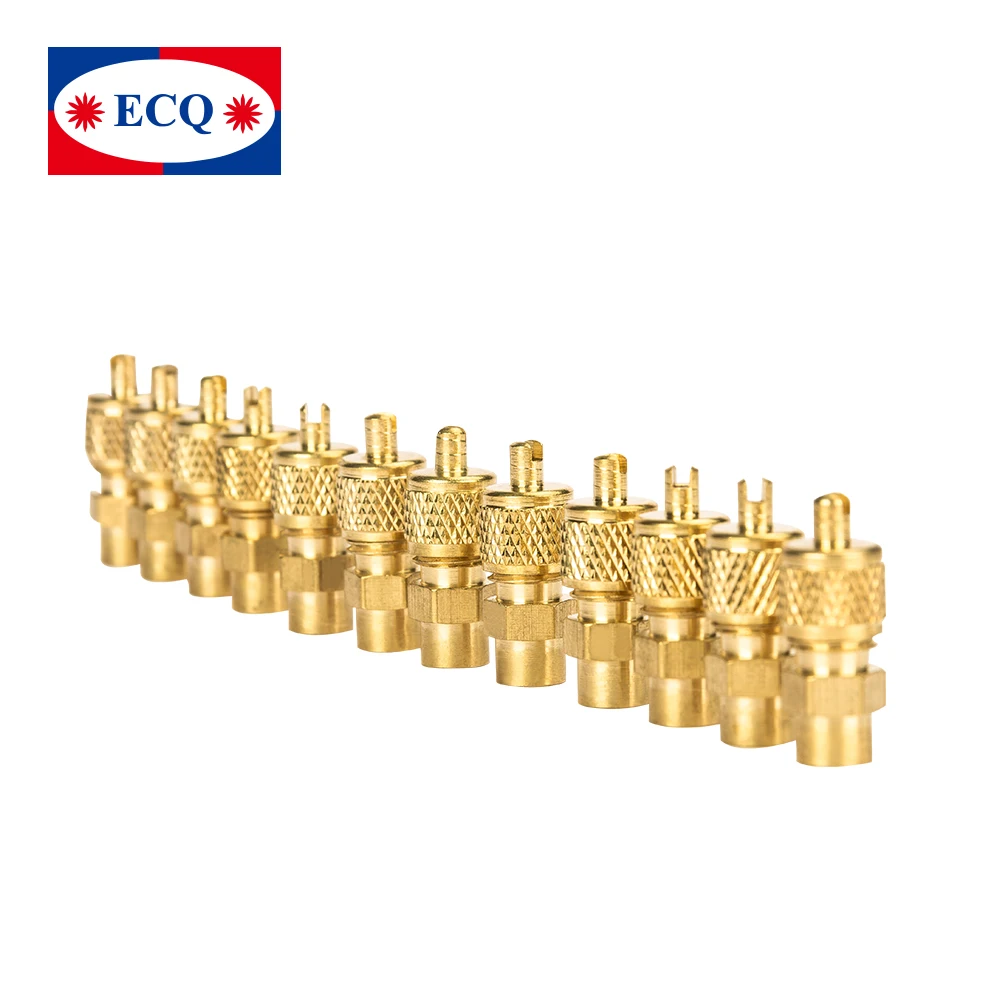

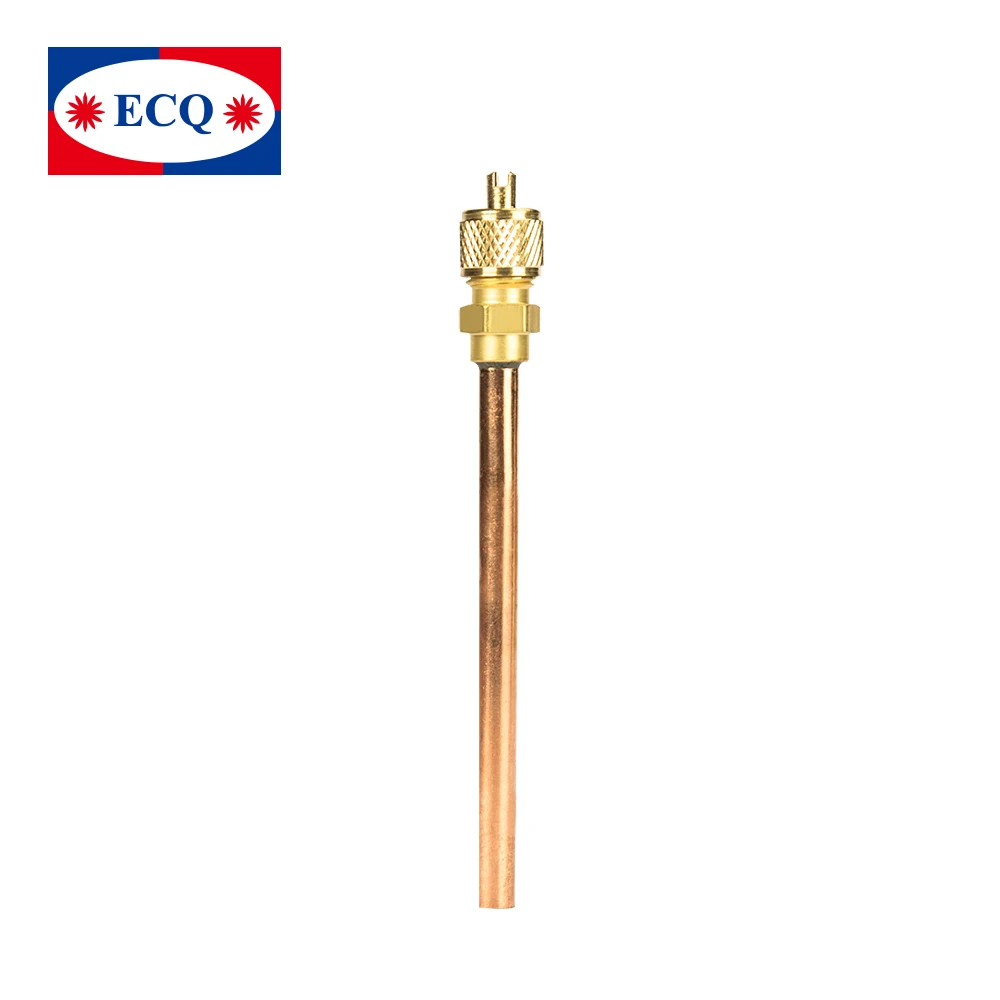

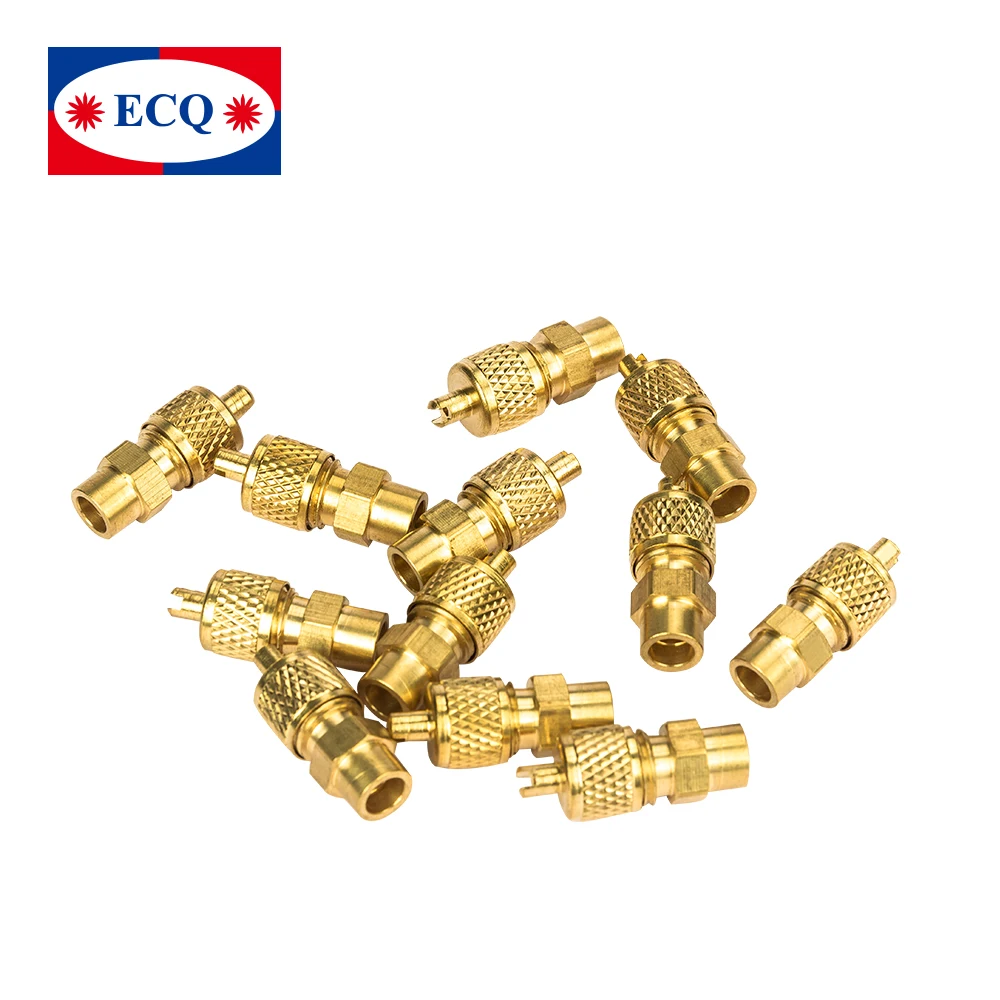

 Pictures of access valve:

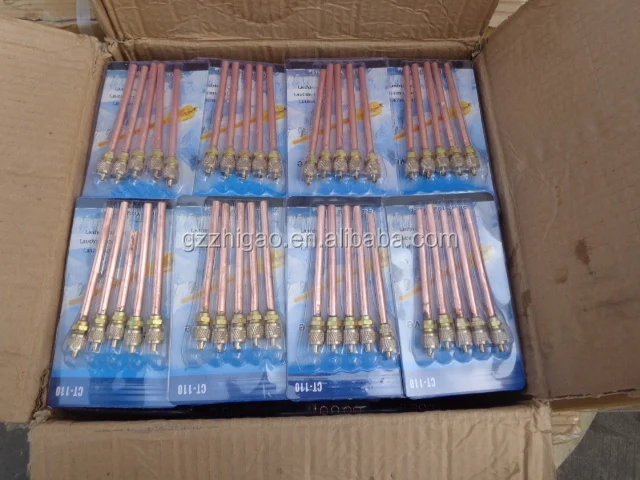

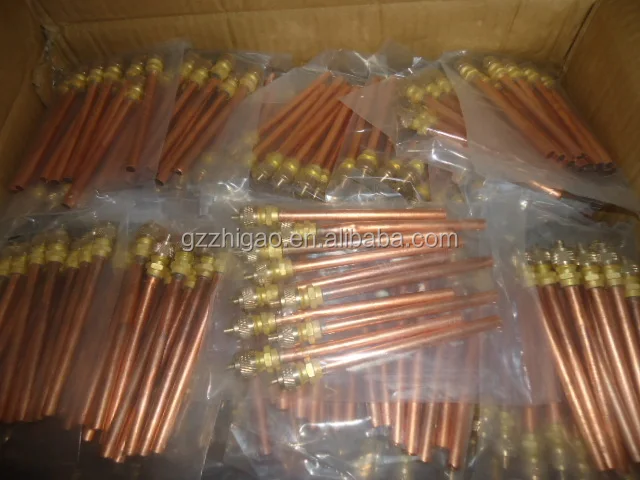

Packing:



Other products that we supply:

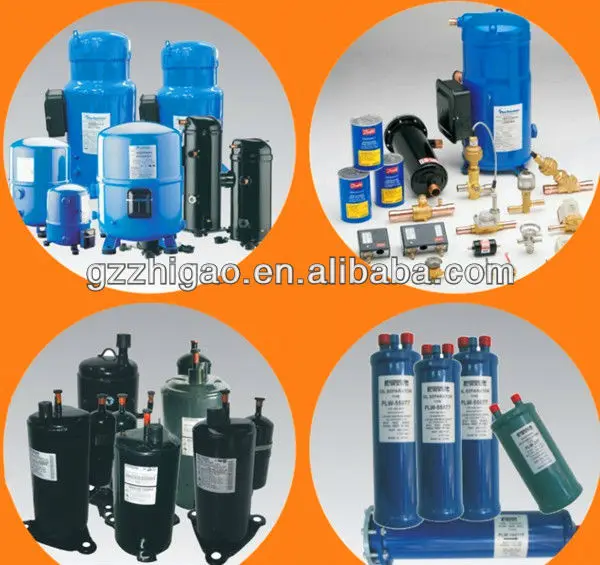

1) all kinds of compressors for air conditioner and freezer such as Panasonic,Toshiba,Danfoss,Bitzer,etc

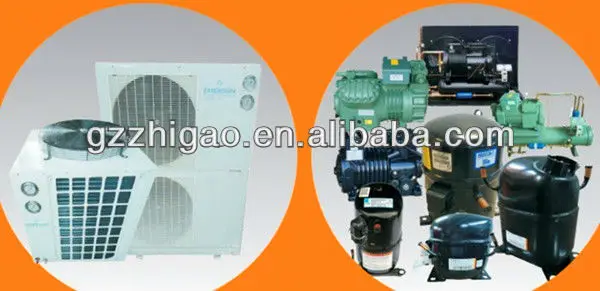

2) condensing units for cold storage,fish boat,train,etc



3) ac tools and accessories such as tube cutter,copper tube,vacuum pump,condenser,etc



4) refrigerant gas and oil
