Zhuxin Brand CY 400 Full Automatic V Bottom Kraft Paper Bag Folding Gluing Making Machine with Printing

Share on (287422451):


Price:$34,500.00 - $35,000.00

Quantity:


Product Overview

Description



Details Images

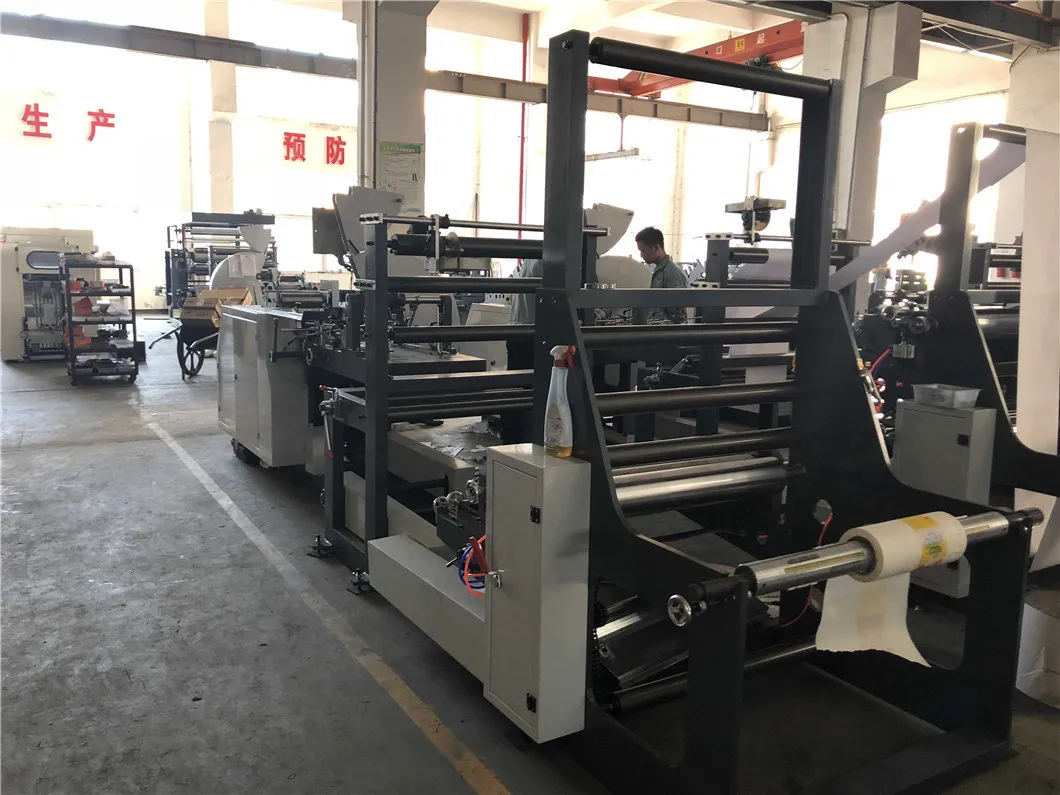

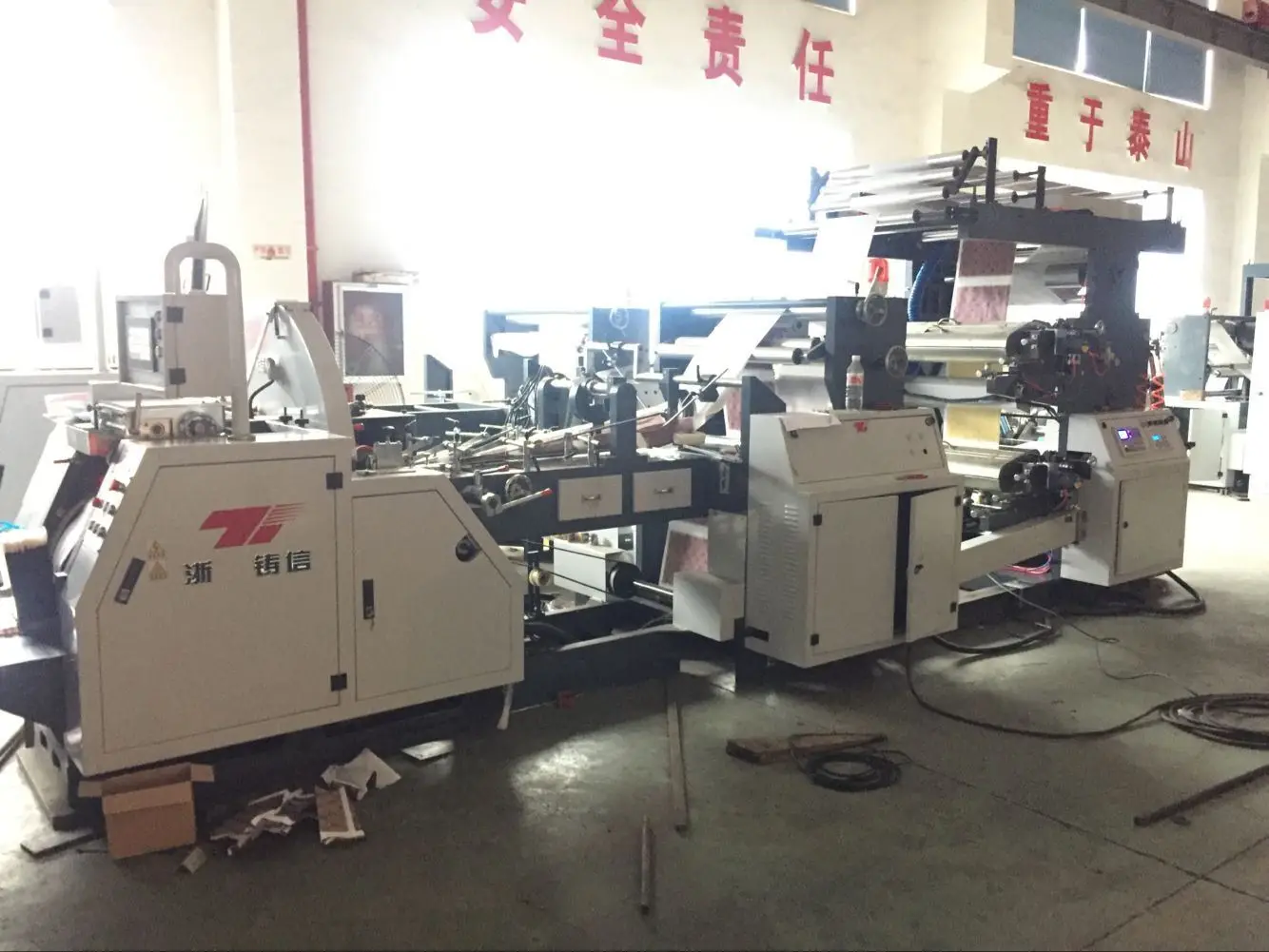

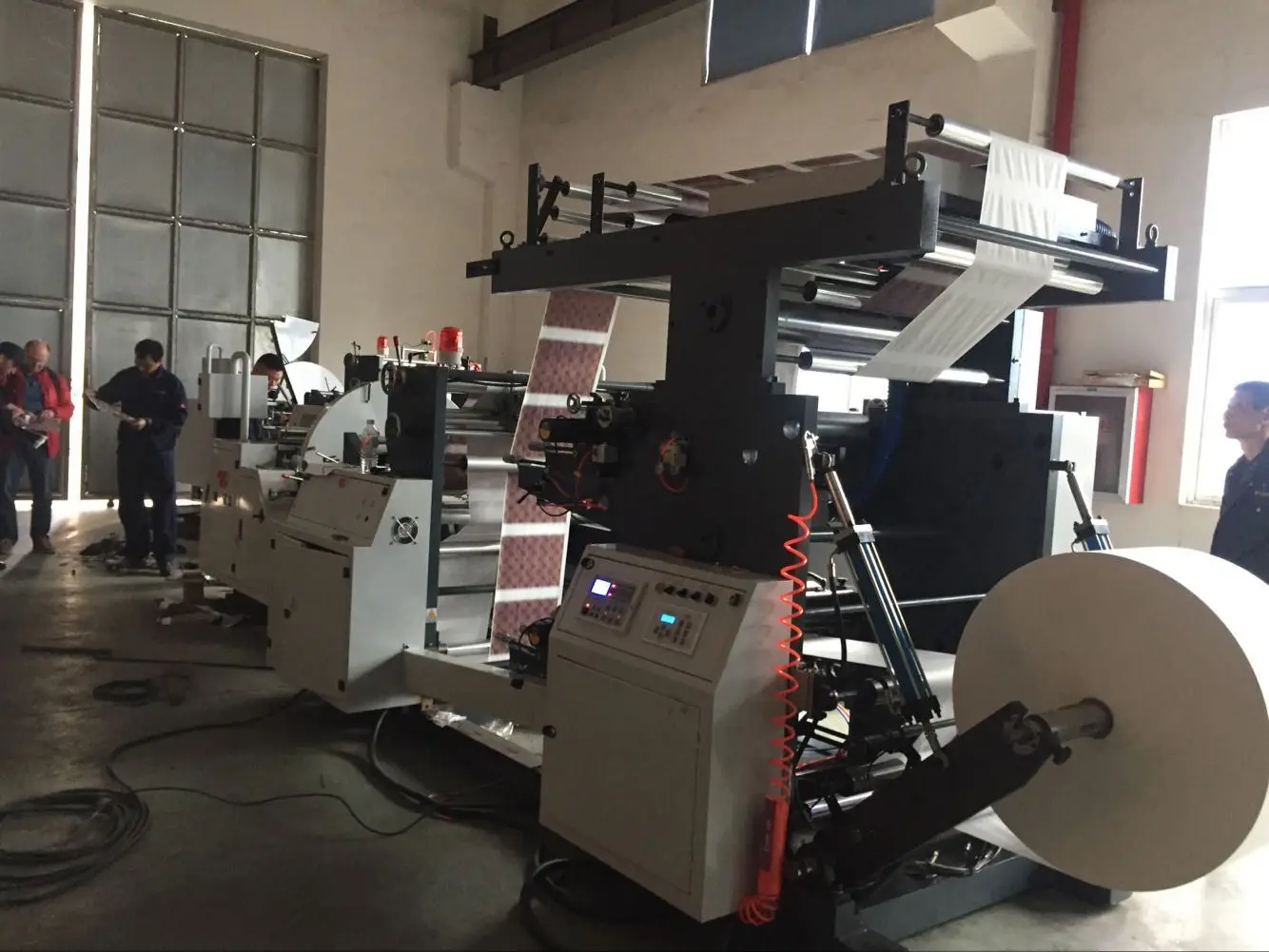

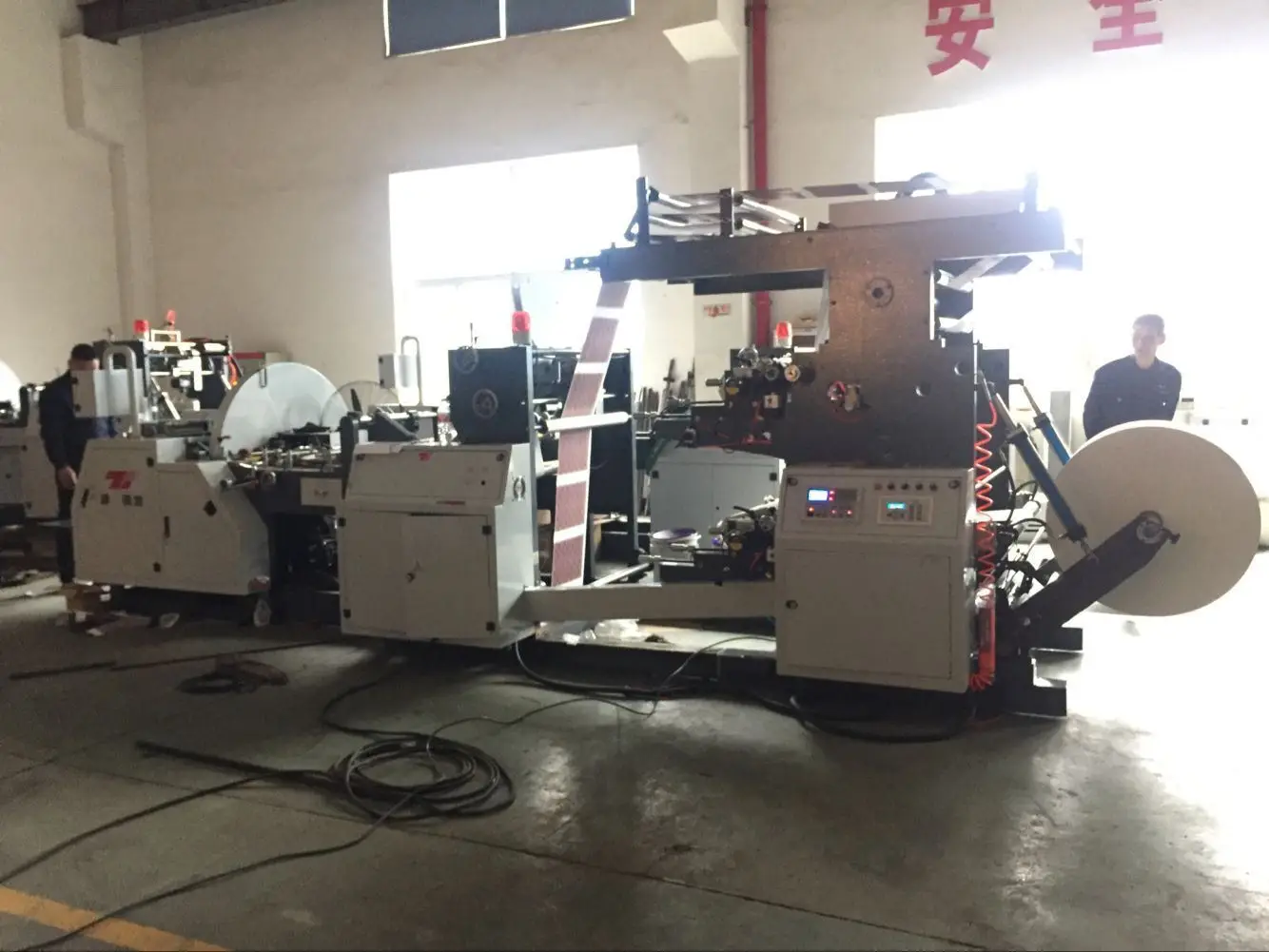

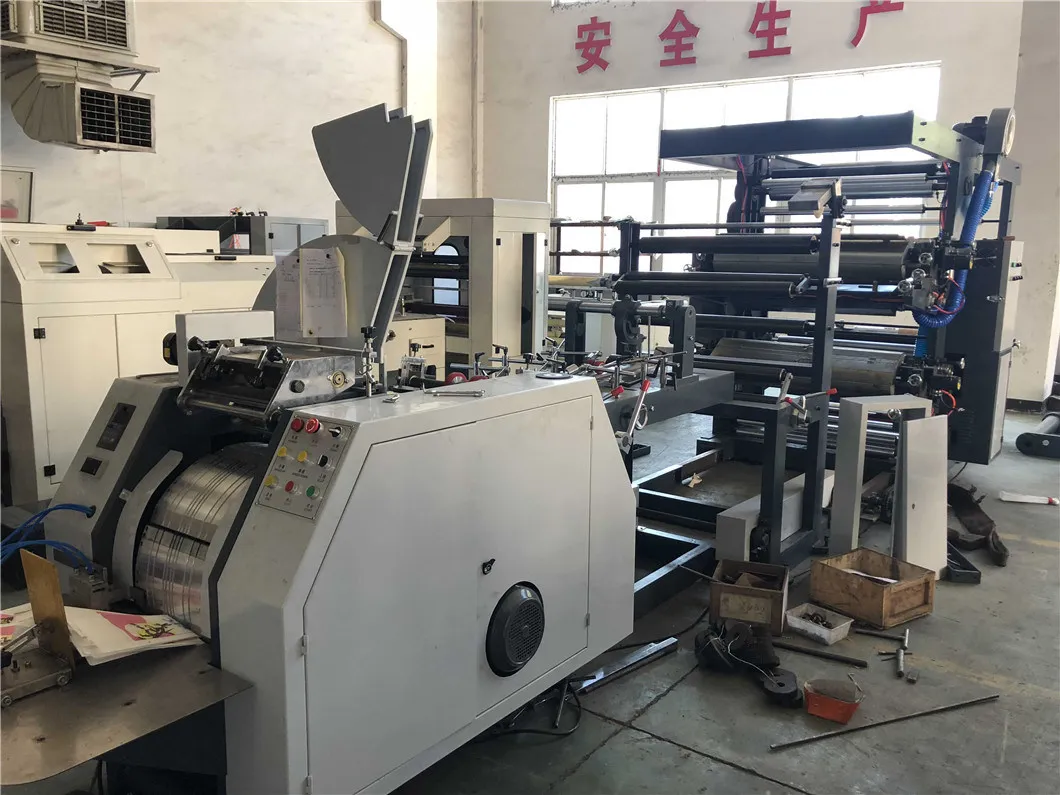

Automatic High Speed Paper Bag Making Machine With Printing Machine In Line
WE HAVE THREE MODEL400,650,850, CAN MAKE DIFFERENT SIZE RANGE BAG FOR CHOICE.
MECHANICAL IS THE BASIC MACHINE, IT HAS OPTIONAL PARTS FOR YOUR CHOICE(NEED EXTRA PAY)
1. AUTO LOADING PNUMATIC  / auto loading hydraulic
2. EPC
3. AUTO TENSION
4. AIRSHAFT
5. INLINE ONE COLOR PRINTING UNIT (different width)
6. INLINE TWO COLOR PRINTING UNIT  (different width)




Product Paramenters


Model
JD-400
JD-650
JD-850
Paper Weight
40-80g/m²


Bag Length
160-420mm
200-650mm
200-850mm
Bag Width
70-260mm
70-300mm
80-350mm
Machine Speed
60-400bags/min
100-400bags/min
100-400bags/min
Max Paper Roll Width
260-720mm
260-840mm
260-960mm
Insert Size
20-120mm


Machine Power
8kw


Machine Total Weight
3000kg
4200kg
5200kg
Machine Dimension(L*W*H)
7000*2100*1900mm
7500*2200*2000mm
7800*2300*2000mm


Model
YT-800
YT-1000
YT-1100
Max Width Substrate
800mm
1000mm
1100mm
Max Printing Width
760mm
960mm
1060mm
Range Of Printing Length
228-1000mm


Printing Speed
5-100m/min


Register Precision
≤±0.20mm


Plate Thickness
2.28mm


Total Power
16kw
16kw
19kw
Machine Size(L*W*H)
2500*2300*2000mm
2500*2500*2000mm
2500*2700*2000mm


Company Profile












Packing & Delivery




FAQ


1.Q: is your factory a trading company or a factory?
A: We are a factory, so we have a price advantage. Moreover, we have nearly 33 years of mechanical design and manufacturing experience, and have passed CE, ISO9001 international quality system certification and obtained the right to import and export.

2.Q: how does your company control the quality of machines?
A: Our machines will be strictly inspected by a professional team of engineers to prove and ensure the quality of the machines

3.Q: how about payment terms, payment security and delivery time?
A: We accept a 30% deposit and pay the balance before shipment. And irrevocable letter of credit at sight.
The delivery time is 20 to 30 days. This is based on the order quantity.

4.Q: what is your after-sales service?
A: We have installation engineers. We provide lifelong maintenance for all products sold, and provide scientific, economic and convenient project budget scheme free of charge according to different production conditions and production capacity of customers.
