Product Overview

Description

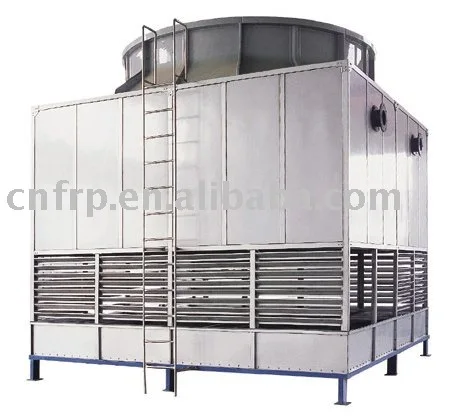

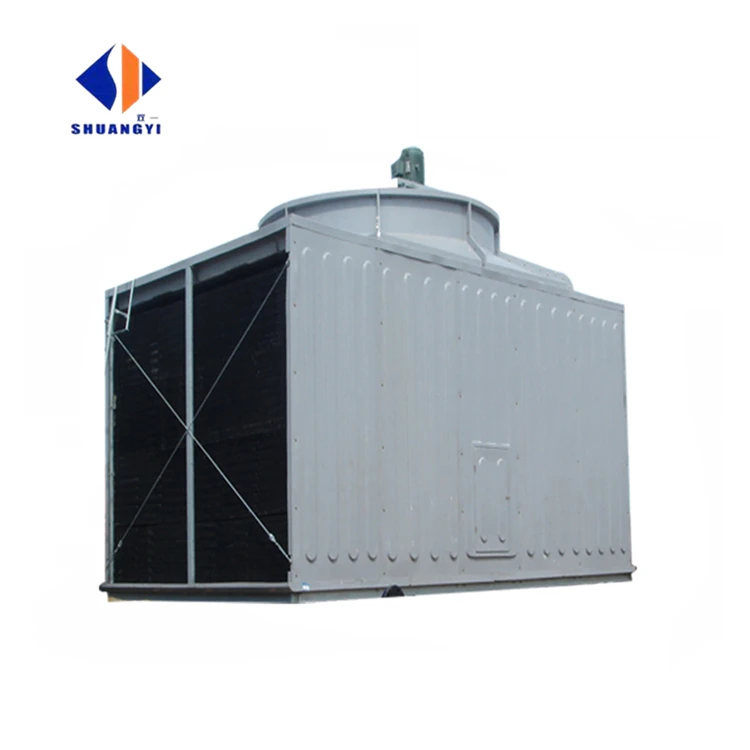

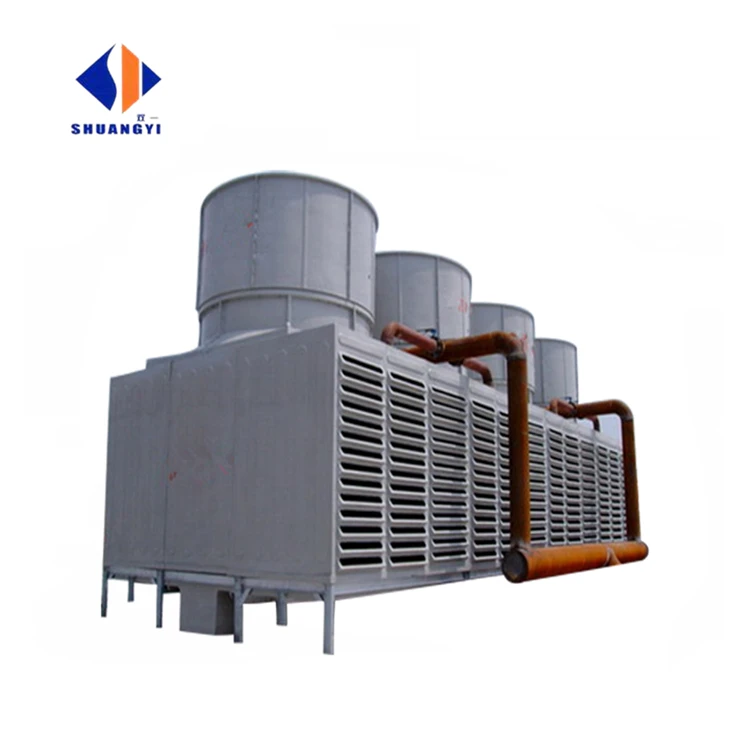

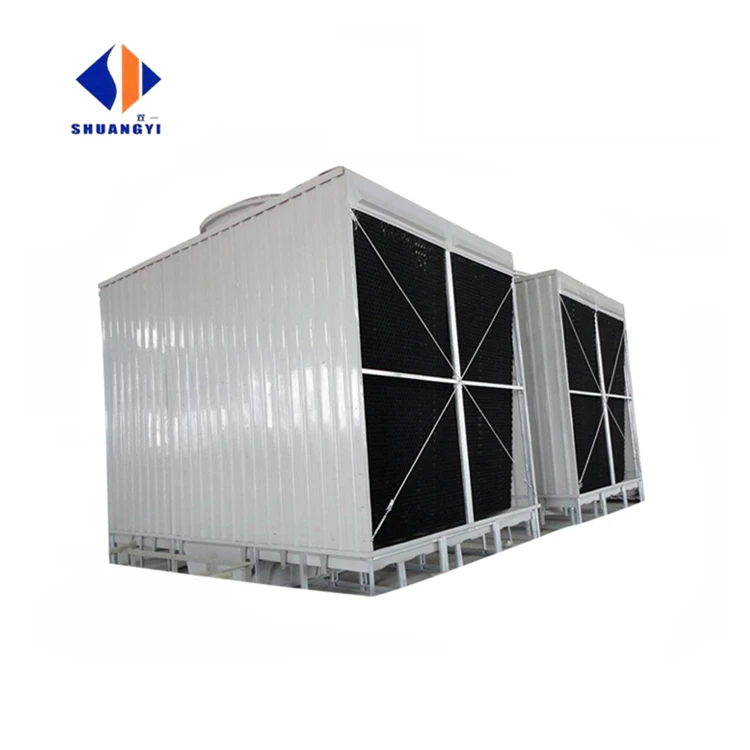

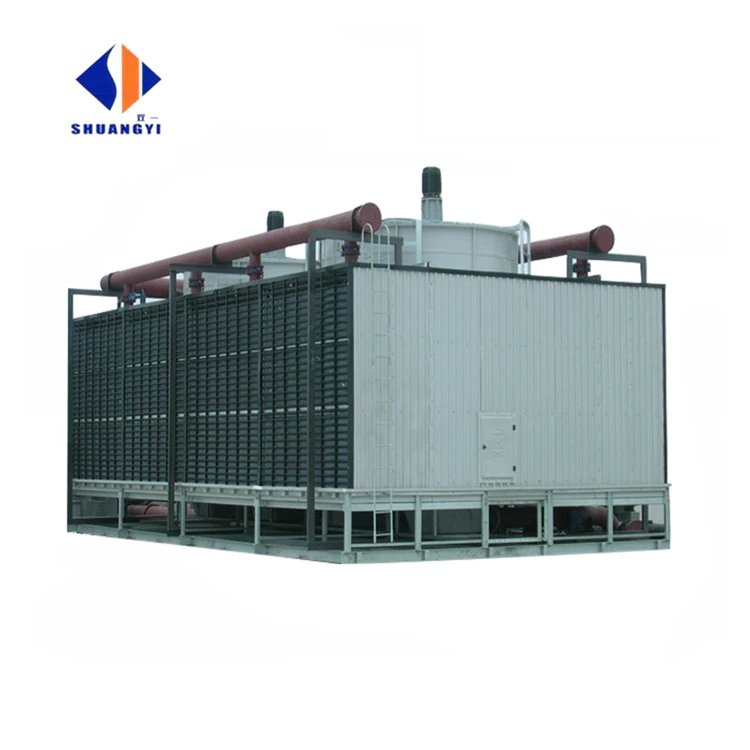

  Stainless Steel Cooling Water Tower

 The detailed parameters as follows for your reference



		YDFH	YDFH	YDFH	YDFH	YDFH	YDFH	YDFH	YDFH	YDFH	YDFH	YDFH	YDFH	YDFH	YDFH	YDFH
		-80	-100	-125	-150	-200a	-200b	-300a	-300b	-400a	-400b	-500a	- 500b	-700	-800a	-800b
Cooling water volume	τ=28 m3/h	80	100	125	150	200	200	300	300	400	400	500	500	700	800	800
	τ=27 m3/h	93	116	146	175	235	235	350	350	465	465	583	583	815	917	917
Refrigerating RT		115	145	185	225	295	295	440	440	590	590	735	735	1025	1180	1180
Effect of cooling ×103kcal/h		400	500	625	750	1000	1000	1500	1500	2000	2000	2500	2500	3500	4000	4000
Power system	Diameter of fan mm	φ1600	φ1600	φ1800	φ2000	φ2400	φ1600	φ2400	φ2000	φ2800	φ2400	φ3400	φ2000	φ2000	φ2800	φ2400
	power kW× number of unit	2.2×1	3.0×1	4.0×1	5.5×1	7.5×1	3.0×2	11×1	5.5×2	11×1	7.5×2	15×1	5.5×3	5.5×4	11×2	7.5×4
Outline size	Length(L) mm	1850	2060	2280	2580	3240	4120	3300	5160	3580	6480	4480	8580	11590	7160	13110
	Width(W) mm	3190	3190	3390	3590	3970	3190	5200	3590	5660	3970	6160	3590	3590	5660	3970
	Height (H) mm	3660	3660	3660	3860	3860	3660	4710	3860	5310	3860	5310	3860	3860	5310	3860
Pipe size	Diameter of inlet mm	100×2	100×2	125×2	125×2	125×2	100×4	200×2	125×4	200×2	125×4	200×2	125×6	125×8	200×4	125×8
	Diameter of outlet mm	150×1	150×1	200×1	200×1	200×	150×2	300×1	200×2	300×1	200×2	300×1	200×3	200×4	300×2	200×4
	Diameter of overflow mm	50×1	50×1	80×1	80×1	80×1	50×2	80×1	80×2	100×1	80×2	100×1	80×3	80×4	100×2	80×4
	Diameter of evacuation mm	32×1	32×1	32×1	32×1	32×1	32×2	40×1	32×2	50×1	32×2	50×1	32×3	32×4	50×2	32×4
	Diameter of auto supply water pipe mm	32×1	32×1	32×1	32×1	40×1	32×2	40×1	32×2	50×1	40×2	50×1	32×2	32×4	50×2	40×4
	Diameter of supply water by hand  mm	50×1	50×1	80×1	80×1	80×1	50×2	80×1	80×2	100×1	80×2	100×1	80×3	80×4	100×2	80×4
Weight	Weight kg	810	855	970	1175	1387	1693	2587	2343	3032	2724	4440	3645	4862	5767	5271
	Operating weight kg	2177	2286	2714	3088	3805	4510	6200	6080	7330	7012	9320	9126	12700	13930	13580
Standard point noise dB(A)		57	57	58	59	60	58	62	60	64	61	66	61	61	66	62
Base compilation page reference		P6	P6	P6	P6	P6	P7	P6	P7	P6	P7	P6	P8	P8	P7	P8





Notes:The above parameters only for your reference,which is only a part of this serie,we also can product as customers design.
