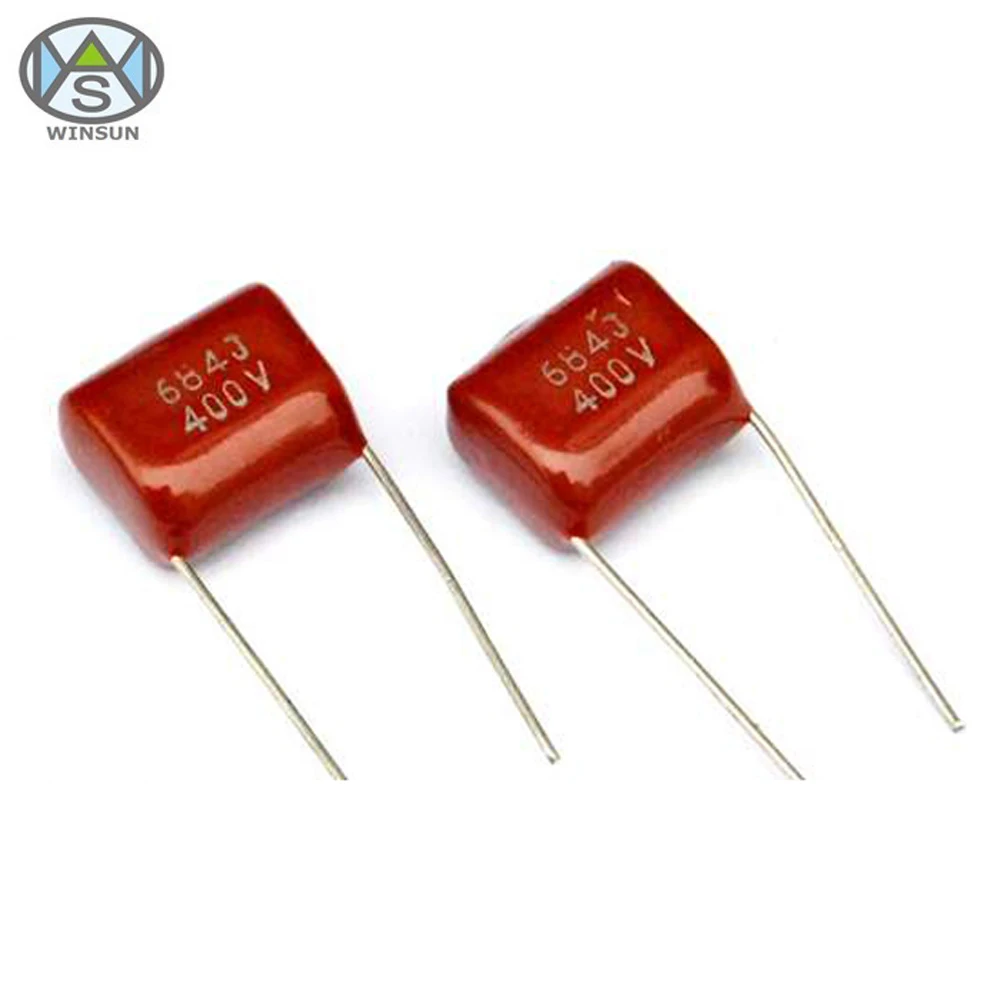

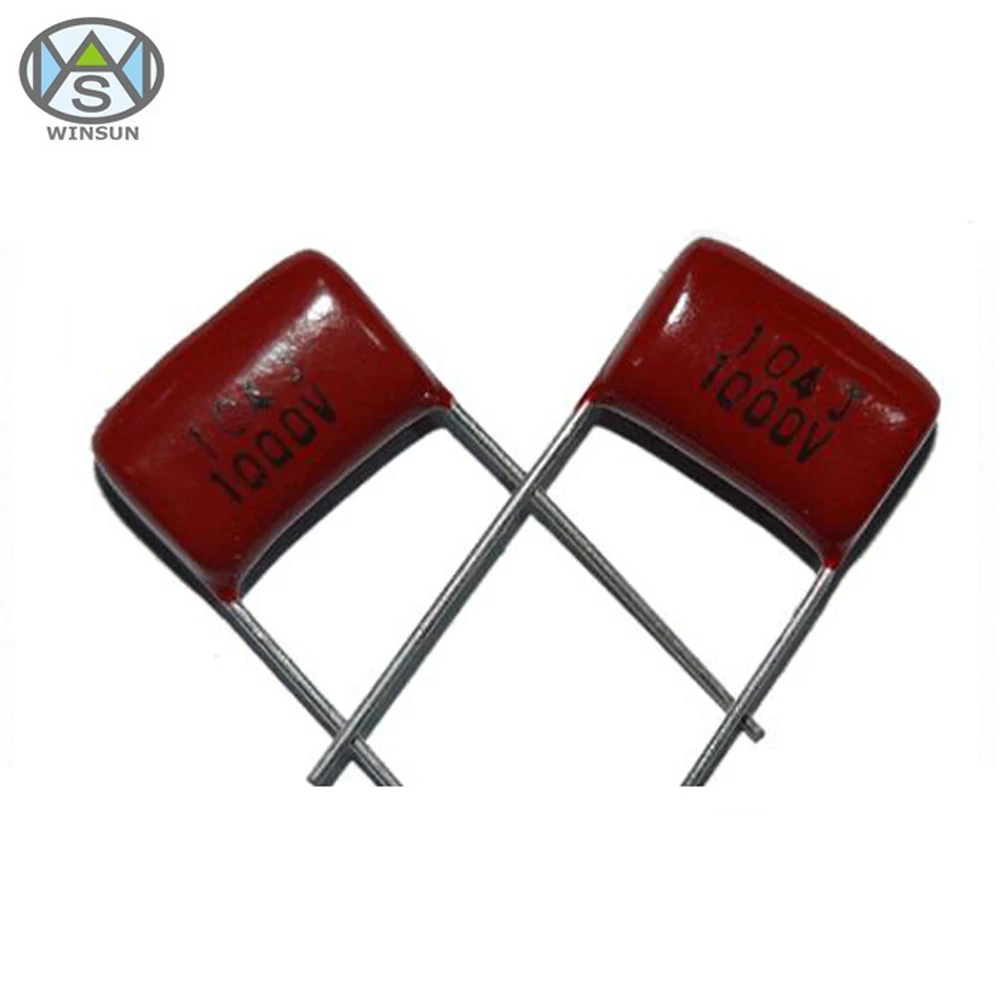

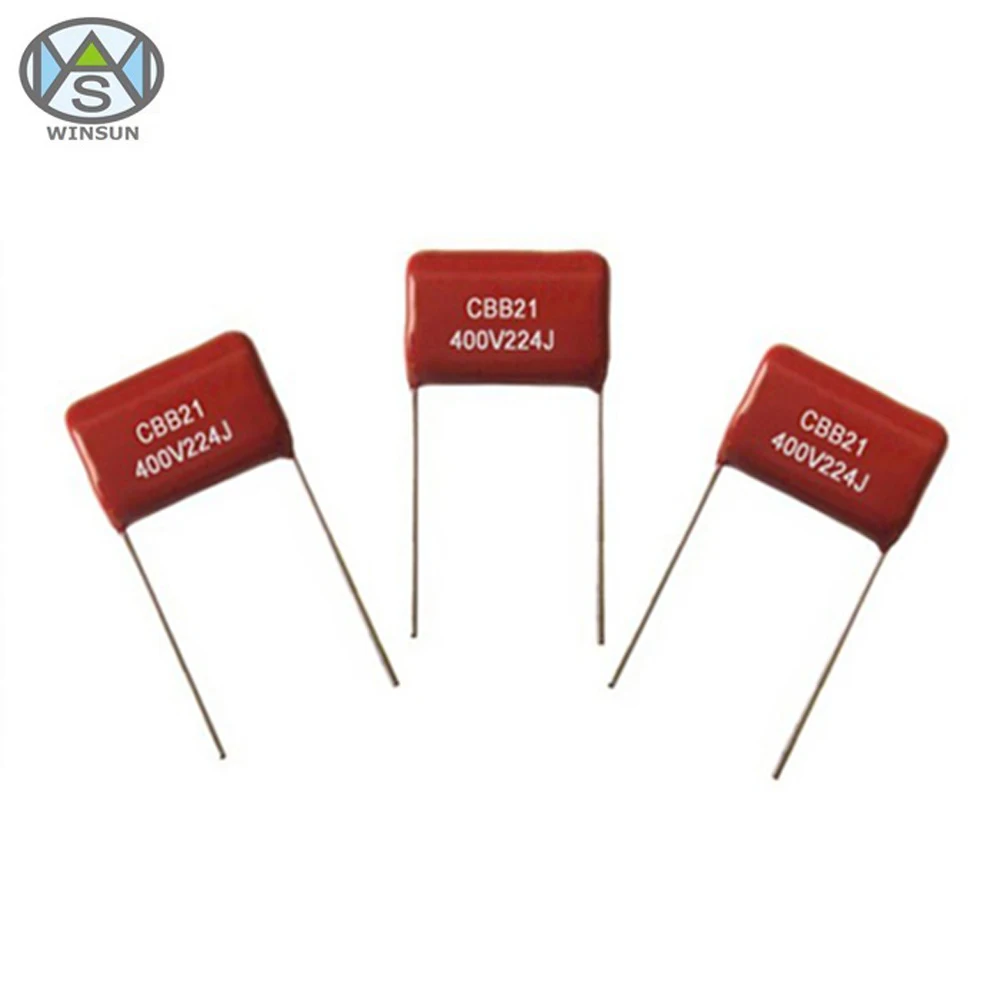

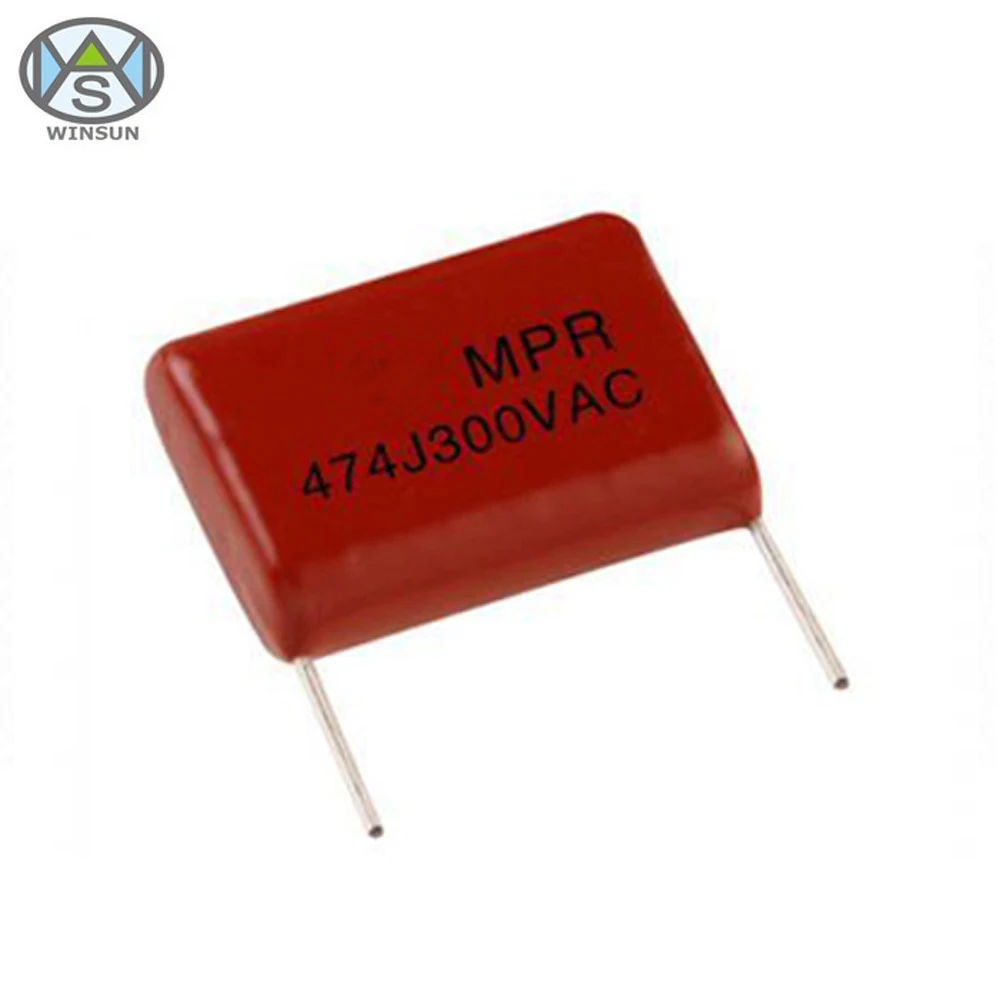

High Quality CBB21 MPP Metallizd Film Polypropylene Capacitor

Product Overview

Description

High Quality CBB21 Metallizd Film Polypropylene Capacitor





Features:
1 Operating Temperature: -40 ~+85 C
2 Rated VoltageDC: 100V/250V/400V/630V
3 Capacitance Range: 0.01μF ---3.3μF
4 Capacitance Tolerance: +/-5%, +/-10%
5 Insulation ResistanceVoltage charge:1 min at +25 +/-5
                              50VDC for VR100VDC,100DC for VR≥100VDC
                              9000 or more C≤0.33UF
                              5000 or more C≤0.33UF
6 Dissipation Factor0.008(AT 1KHz +25)
7 Dielectric Strength1.6 x VR applled for 2 sec +25 (between terminal)



Storage temperature: 15 ℃ ~ 35 ℃

Less loss, small internal temperature rise.

Metallized polypropylene film, non - inductive structure.

High pulse, high current, high frequency 100KHz.

Small capacity change, negative temperature coefficient.

Epoxy resin package.



Climatic Category	40/085/21
Rated Voltage	100V,  250V, 400V, 630V
Capacitance Range	0.010μF~3.3μF
Voltage Proof	1.6 UR
Insulation Resistance	≥15 000MΩ, CR≤0.33μF
	≥50 000S, CR>0.33μF
	(20℃, 1min)
Disspation Factor	≤0.0008(20℃, 1kHz)



Application:

Widely used in high frequency, DC, AC, pulse  circuits., and electronic lighter.
