SDC 10 SDC10 10kw 3 phase Copper Wire Generating Welding Synchronous Alternator

Product Overview

Description

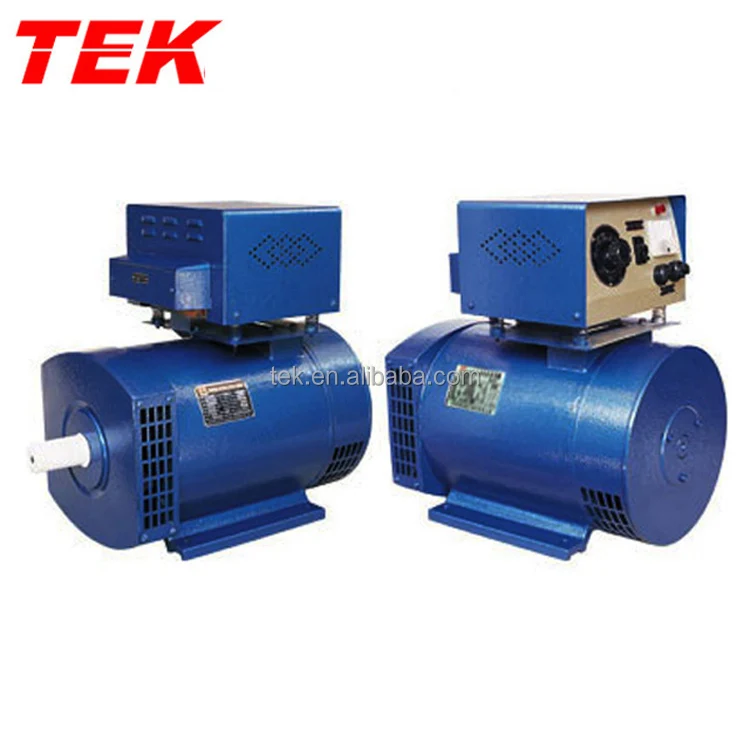

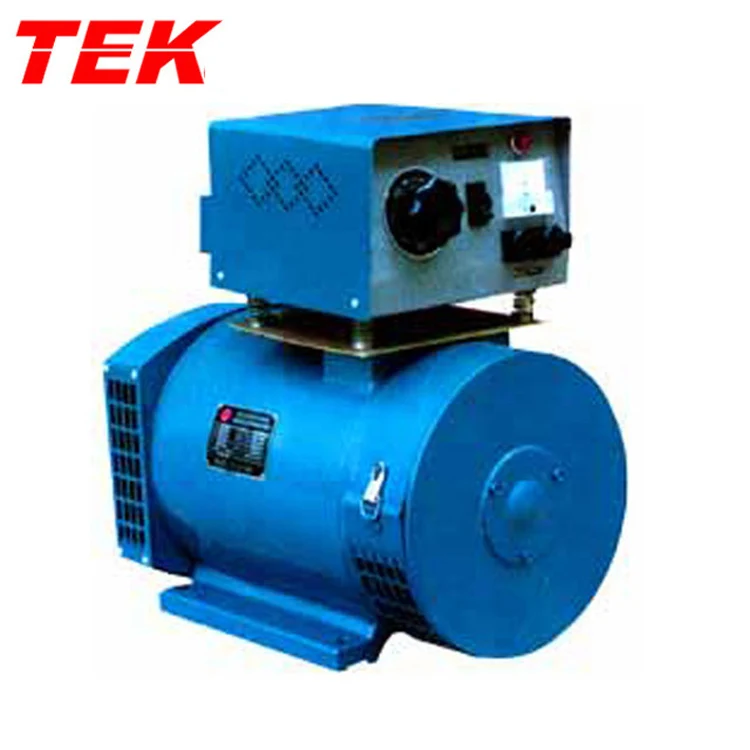

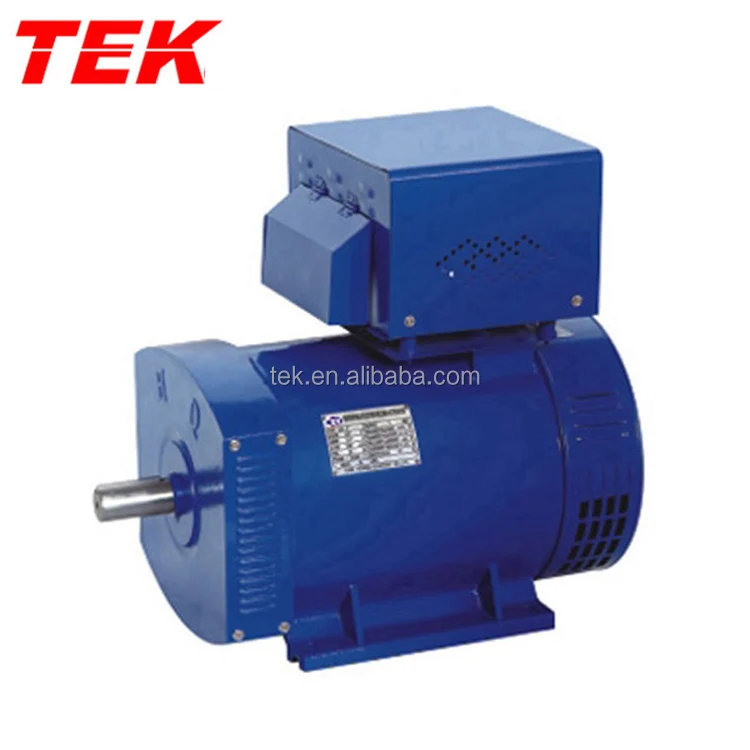

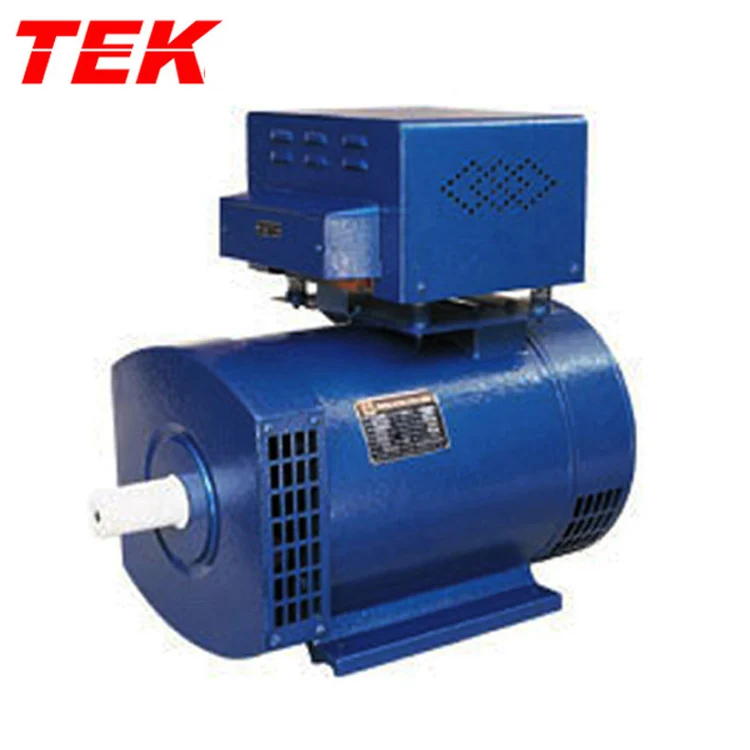

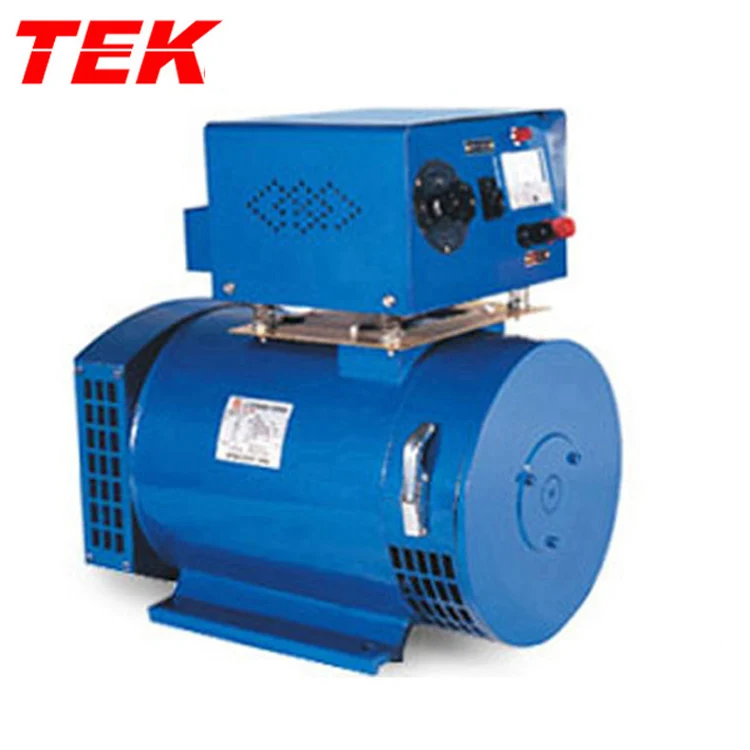

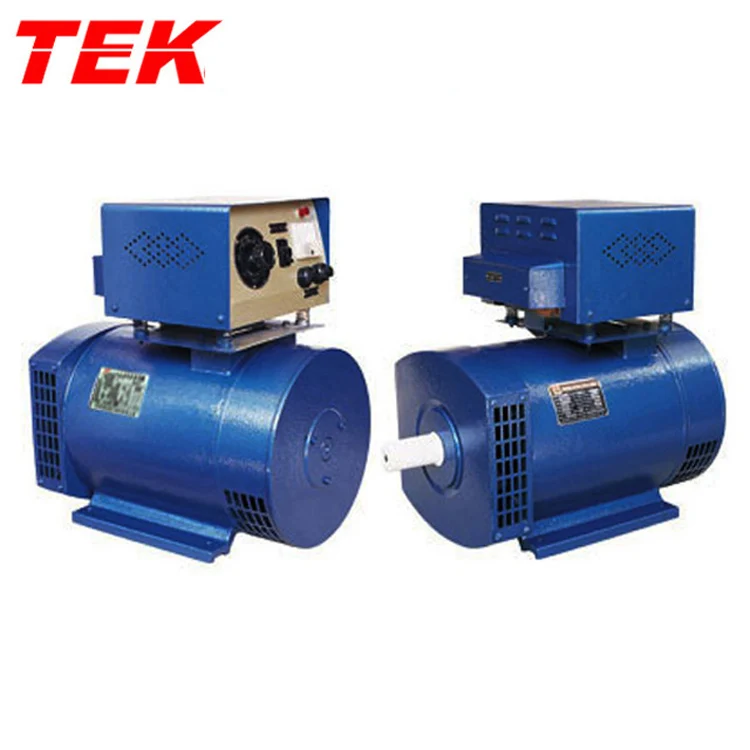

SDC-10 SDC10 10kw 3-phase Copper Wire Generating Welding Synchronous Alternator

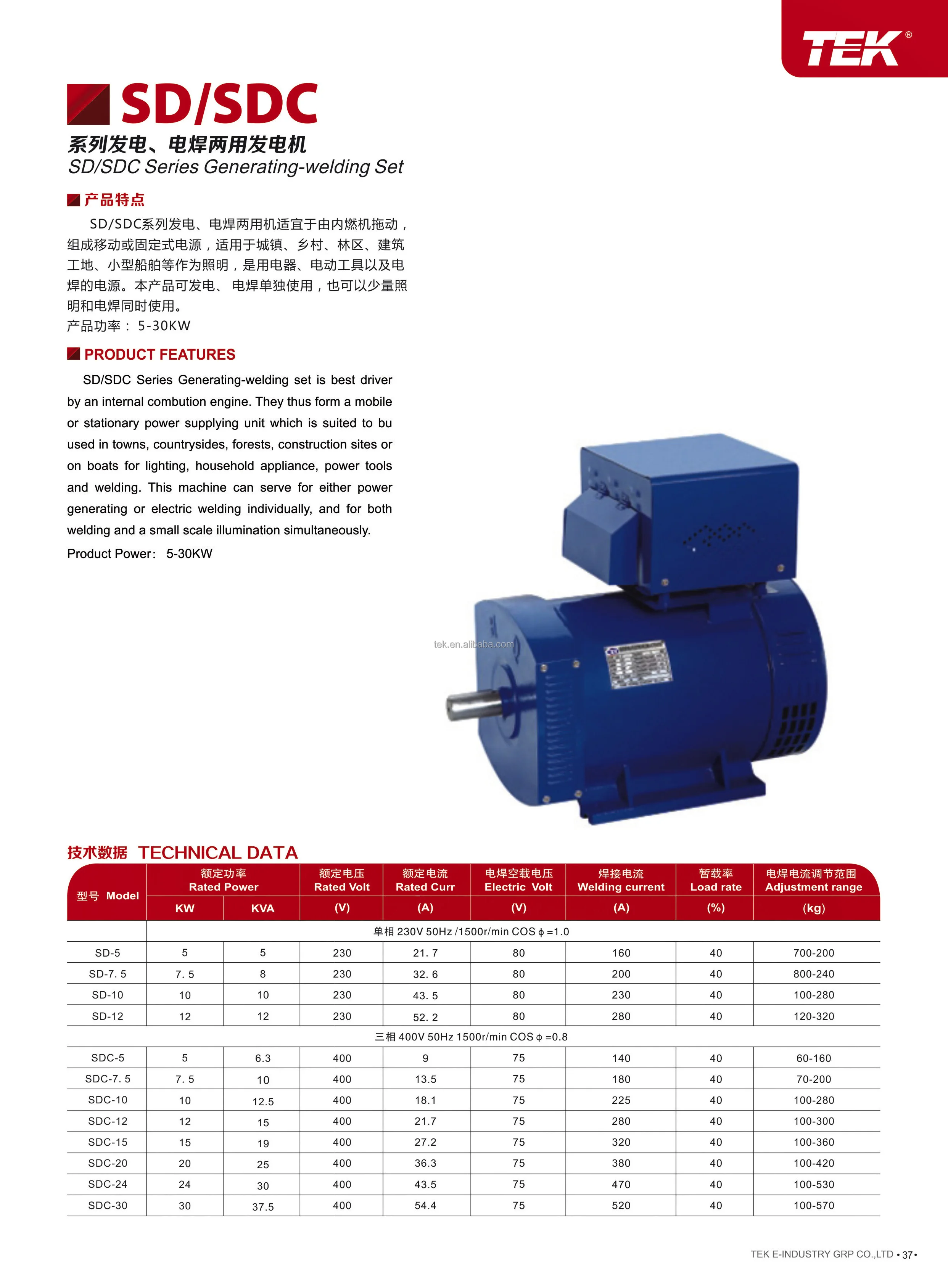

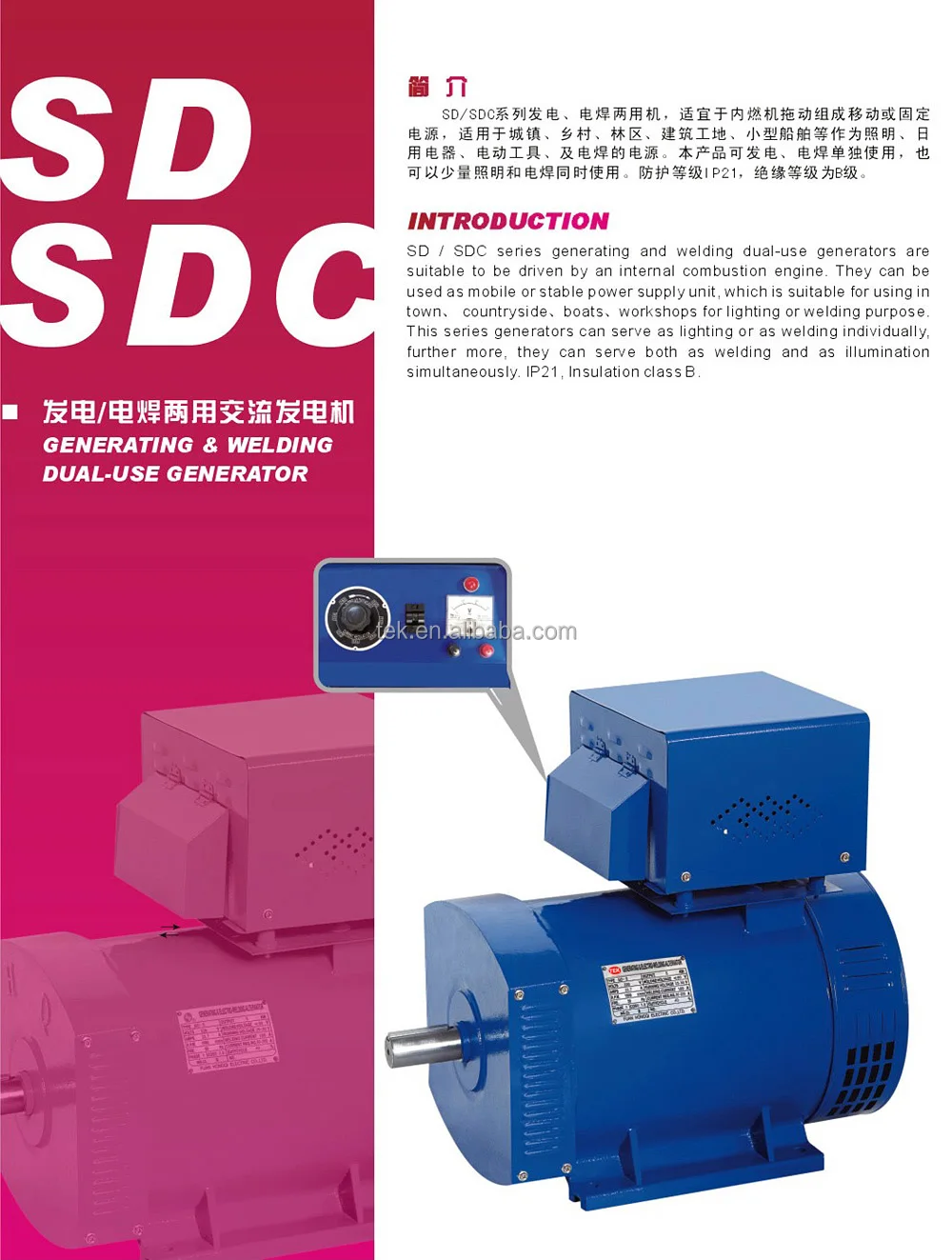

SD/SDC Series Generating-welding Generators

SD/SDC Series Generating-welding set is best driver by an internal combution engine. They thus form a mobile or stationary power supplying unit which is suited to be used in towns, countryside, forests, construction sites or on boats for lighting, household appliance, power tools and welding. This machine can serve for either power generating or electric welding individually, and for both welding and a small scale illumination simultaneously.

Product Power: 10kw



Model	Rated output		Rated voltage	Rated current	Welding voltage under noload	Welding current	Continuous rate under load	Curret adjustment range for welding
	(KW)	(KVA)	(V)	(A)	(V)	(A)	(%)	(A)
	Three-phase 400V/50Hz/1500r/min/cos=0.8
SDC-5	5	6	400	9	75	140	40	60-160
SDC-7.5	8	10	400	14	75	180	40	70-200
SDC-10	10	13	400	18	75	225	40	100-280
SDC-12	12	15	400	22	75	280	40	100-300
SDC-15	15	19	400	27	75	320	40	100-360
SDC-20	20	25	400	36	75	380	40	100-420
SDC-24	24	30	400	44	75	470	40	100-530
SDC-30	30	38	400	54	75	520	40	100-570
