Similar to SPAL VA01 series cooling fan for bus air condenser fan DC brush motor 12V or 24V push/pull 12 inch fan made in China

Product Overview

Description

Since 2002, KEAO has been committed to producing high quality bus air conditioner fans, our quality is very similar to SPAL fan, but  with good price from China as well.

.

KEAO Bus air conditioner fans are all available for brushless motors, which have been widely used for air conditioner evaporator system.

.

1) KLNF251/ 251F Parameters

.

Available for both blowing and Suction type.

.

a) Voltage: 24V

b) Current: 10A

c) Static pressure: 100Pa

d) Air flow: 2000m³/h

.

Blowing type is same as SPAL VA01-BP70/LL-36S

Suction type is same as SPAL VA01-BP70/LL-36A

.

Same as SPAL fans series.

.

For more  information of our bus air conditioner fans, please feel free to contact us.

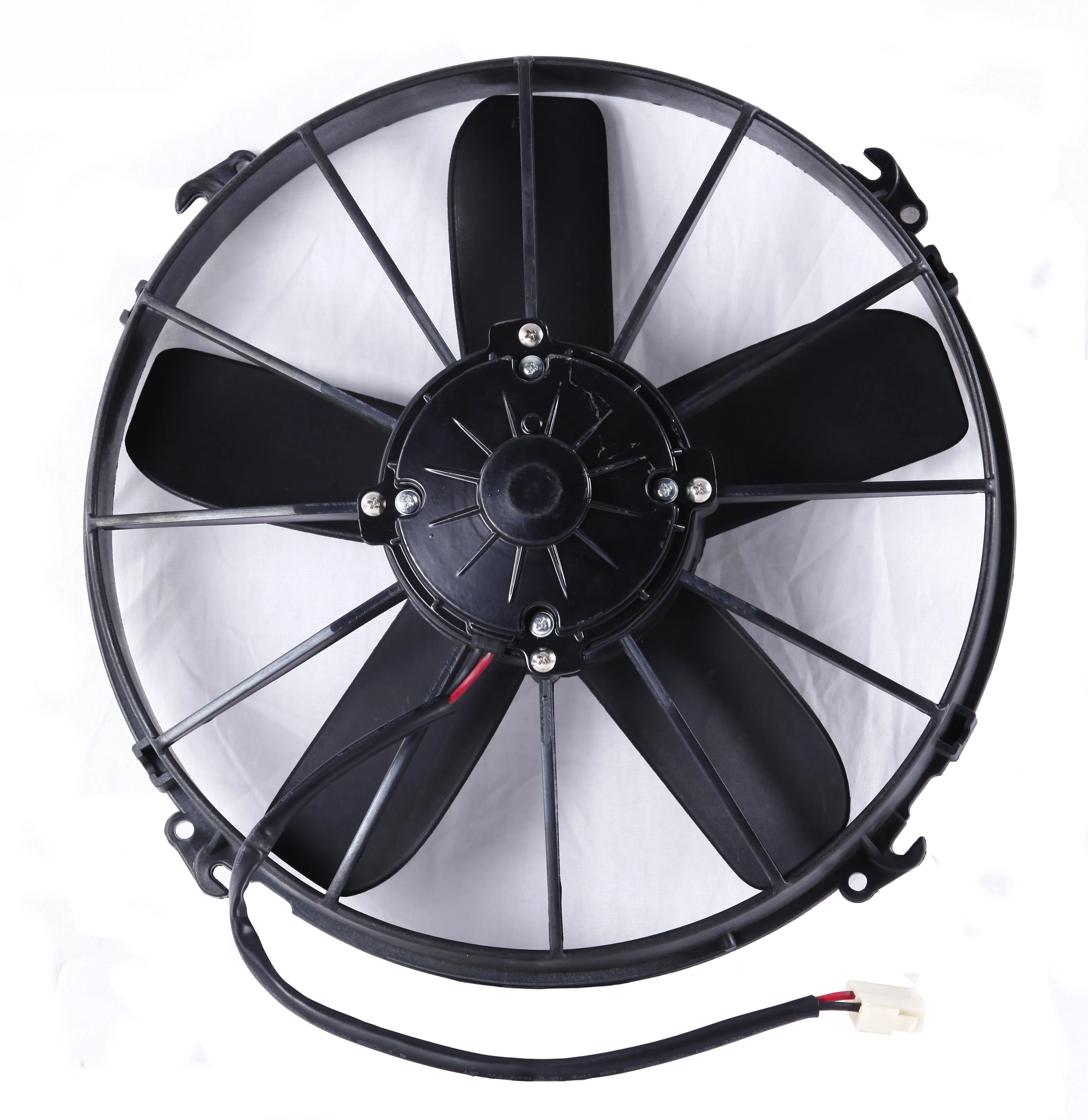

Bus cooling axial fan used for YUTONG   KINGLONG buses

Part NO.	KLNF251F
Name	Condenser Fan
Place of Origin	Guangdong, China
Voltage	DC24V
Current	≤10A
Speed	≥3000±150rpm
Static pressure	100pa
Air Flow	2000m3/h
Direction of air	Pull/suction
Warranty	13 months
Life Time	≥6000 hrs
Packing	4 pcs/carton
