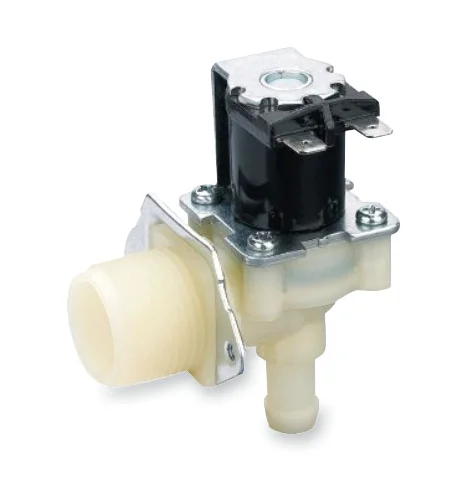

  • CNKB High Quality Product Solenoid Valve For Washing Machine FCD 90A AC220V
CNKB High Quality Product Solenoid Valve For Washing Machine FCD 90A AC220V
CNKB High Quality Product Solenoid Valve For Washing Machine FCD-90A AC220V
CNKB High Quality Product Solenoid Valve For Washing Machine FCD-90A AC220V

CNKB High Quality Product Solenoid Valve For Washing Machine FCD 90A AC220V

Share on (289330268):


Price:

Quantity:


Product Overview

Description

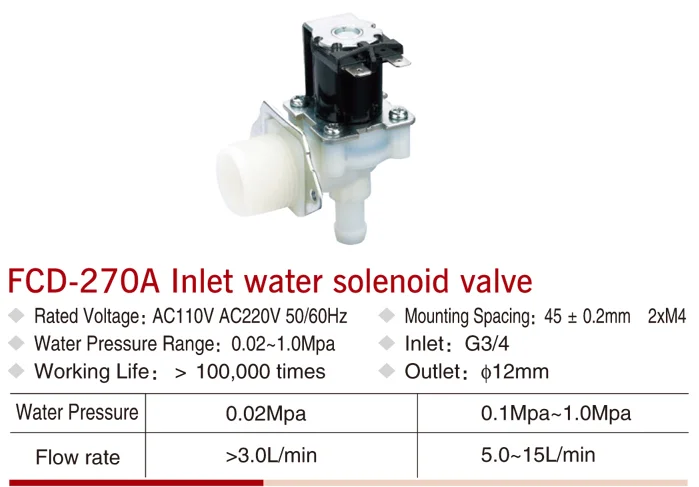

FCD-270A 3 DATA.png


















The brief:

FCD-270A

this series is the latest development of the new water solenoid valve, advanced and reasonable structure, a special anti-plug design, applicable to  as the drum washing machines the water supply electric control equipment.










main technical details
































rated voltage


AC 110 V 50/60 HzAC 220 V 50/60 Hz
working voltageAC 110 V ±15%AC 220 V ± 15%
Pressure range0.02~1.0 Mpa0.02~1.0 Mpa
medium temperature0~100℃0~100℃
working life≥100,000 times≥100,000 times








flow characteristic
















hydrauli pressure0.02 Mpa0.1~1.0 Mpa
flow rate>3 L/min

5-15 L/min











assembly dimensions:2×M 4 Mounting bracket(optional)
Inlet: G 3/4


Outlet: Φ1 2mm


spacing:45.0±0.2 mm


Customer design and OEM service are provided
