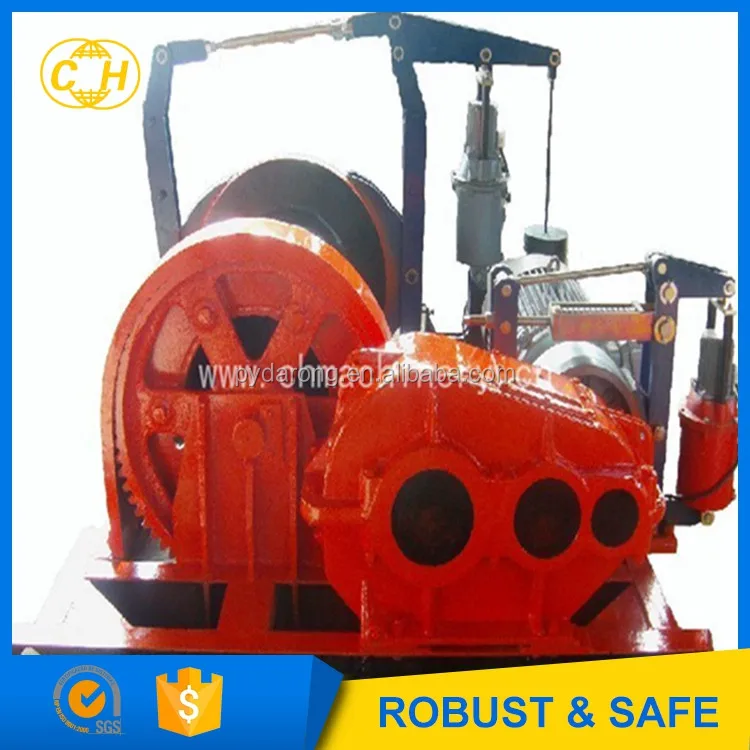

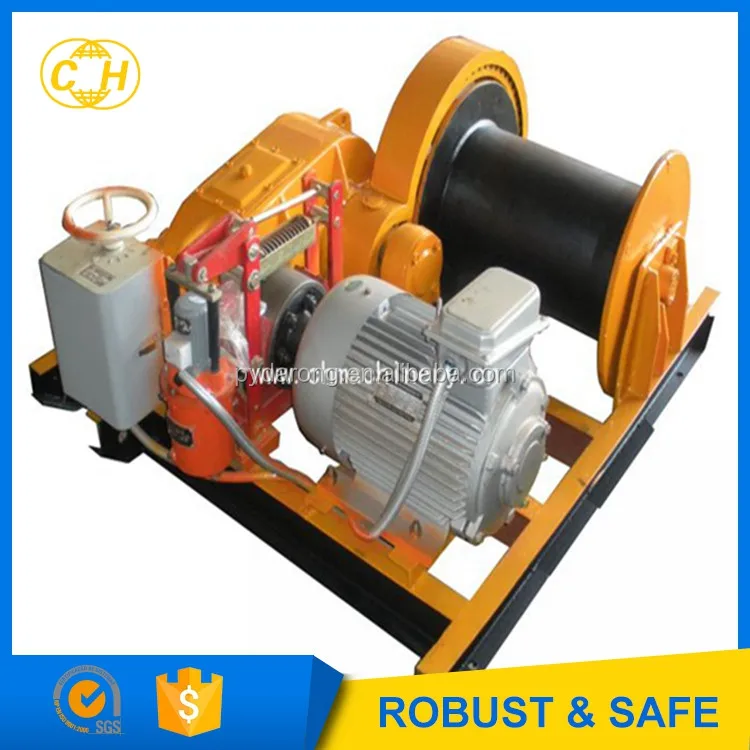

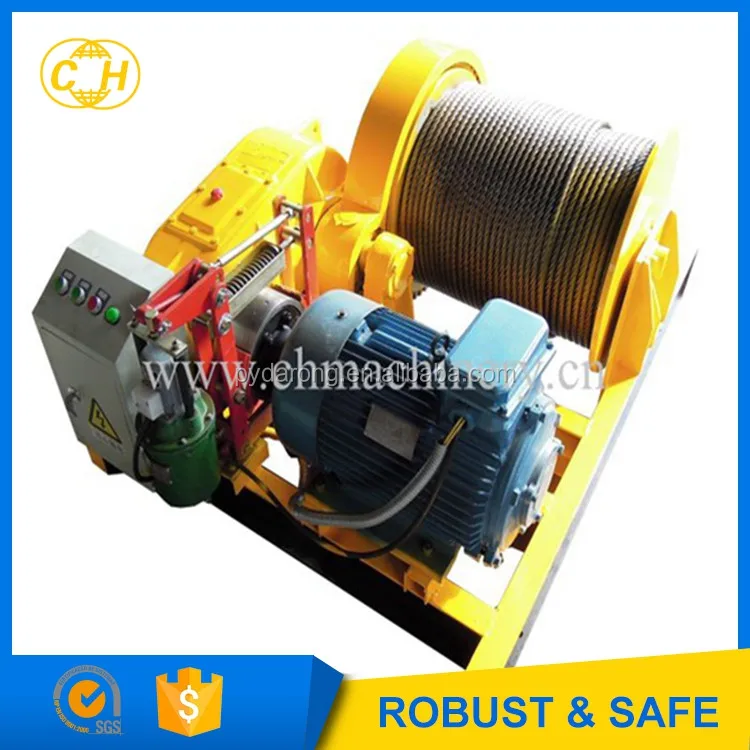

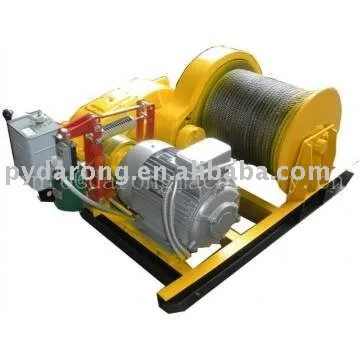

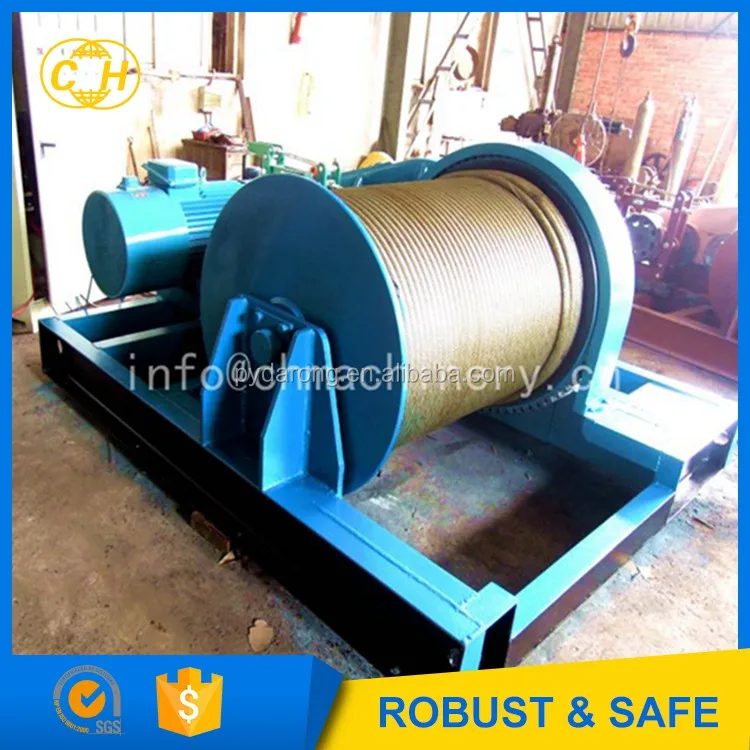

electric hoist winch for lifting and pulling in construction site
- Category: >>>
- Supplier: Pingyang Construction Hoisting Machinery Co.
Share on (290044335):
Product Overview
Description
Model | JM2 | JM3 | JM5 | JM8 | JM10 | |
Line pull capacity (kg) | 2000 | 3000 | 5000 | 8000 | 10000 | |
Wire rope average speed (m/min) | 12 | 10 | 10 | 10 | 9 | |
Wire rope(mm): | 12.5 | 15.5 | 21.5 | 26 | 30 | |
Reduction box | Type | JZQ350 | JZQ350 | JZQ400 | JZQ500 | JZQ650 |
Transmission ratio | 23.34 | 31.5 | 23.34 | 31.5 | 40.17 | |
Drum (mm) | Diameter | 273 | 325 | 406 | 500 | 550 |
Length | 480 | 520 | 645 | 900 | 1000 | |
Capacity(m) | 150 | 180 | 250 | 300 | 450 | |
motor | Type | YZ160M2-6 | YZ160M2-6 | YZ160L-6 | YZR225M-8 | YZR250M1-8 |
Power(kW) | 7.5 | 7.5 | 11 | 22 | 30 | |
Rotate speed(r/min) | 948 | 948 | 953 | 720 | 720 | |
Hydraulic Brake | YWZ-200/25 | YWZ-200/25 | YWZ-300/45 | YWZ-300/45 | YWZ-300 | |
Equipment Dimension (cm) | 142 x96 x62 | 154 x107 x70 | 185 x135 x90 | 205x275x105 | 220x190x110 | |
Weight(kg) | 630 | 680 | 1400 | 3000 | 4000 | |
supply various electric hoist winch runing forward,reversing
more safer, Also supply non-standard winch made by customer required, for example groove drum, double brake and so on..
,
