optical and ophthalmic Indirect Ophthalmoscope YZ25B

Product Overview

Description

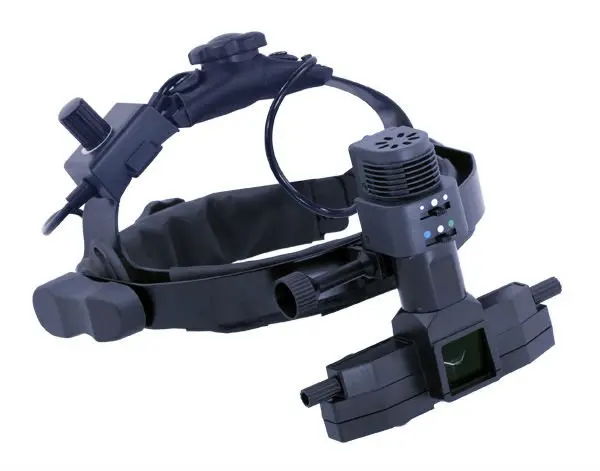

Indirect Ophthalmoscope YZ25B



Feature



·Advanced optical design, no reflection, broad field and sharp image.
·Super light and comfortable design effectively reduces the tireness.
·+20D aspheric Lenses.

·Adjustable locking button and illumination control button ensure comfortable observation angles.
·Filters and reflector with internal dustproof device ensure good observation performance.

·Filters: red-free, cobalt blue, compensation filters.
·Light Spot: large(F60mm),middle(F40mm),small(F20mm), suitable for various pupils.

·Teaching tube,double sides coated beam splitter, ensure the synchronous observation.
·Smooth surface of the two types of iris compressors prevent tissue from injurying.



Specifications :

Field Angle	45°±5°
Adjustable Interpupillary Distance	52mm-74mm
Adjustable Range of Head Bracket	Head Circumference:530mm-630mm,Depth: 85mm-125mm
Illuminance	≥500lx
Illumination Source	6V/10W,Halogen Bulb
Power Supply	AC220V/ 50Hz,AC110V / 60Hz
Dimension of Main Body(mm)	142×48×128(L×W×H)
Weight of Main Body	230g
