AC 1800kg Durable Heavy Duty Remote Control Automatic Sliding Gate Motor
- Category: >>>
- Supplier: Shenzhen Wejoin Machinery & Electrical Technology Co. Ltd.
Share on (290965931):
Product Overview
Description
AC 1800kg Durable Heavy Duty Remote Control Automatic Sliding Gate Motor
Product Description
Specification
1) Integrated mechanical and eletrical,all functions on one controller
2) Radio controller or linesto control open,close and stop functions
3) Magenetic limit switch,the door stops when it moves to the limit
4) Accurate limit braking
5) Electronic soft-start
6) Dialing switches to adjust the motor rotation in both directions
7) Open and close limits have a self-locking function
8) Intelligent operation-if an obstacle is detected when the door is closing,it will reverse to open,then after 10 seconds it attempts to close automatically unless you press the stop key-stroke.
9) Movement indication-the indicator lights up when the door is moving.
10) Optional line control or remote control
2) Radio controller or linesto control open,close and stop functions
3) Magenetic limit switch,the door stops when it moves to the limit
4) Accurate limit braking
5) Electronic soft-start
6) Dialing switches to adjust the motor rotation in both directions
7) Open and close limits have a self-locking function
8) Intelligent operation-if an obstacle is detected when the door is closing,it will reverse to open,then after 10 seconds it attempts to close automatically unless you press the stop key-stroke.
9) Movement indication-the indicator lights up when the door is moving.
10) Optional line control or remote control
Motor Data Contact Us Save Money
| Model | WJKMP202 | |
| Voltage | 220V±10% | 110V±10% |
| Frequency | 50HZ | 60HZ |
| Current | 2.7A | 5.8A |
| Motor voltage | AC220V / 110V | |
| Capacitor | 20μf | 60μf+14μf |
| Output Power | 350W | |
| Absorbed power | 594W | 638W |
| Torque | 35nm | |
| Mode number | M=4 | |
| Motor speed | 1350rpm | 1620rpm |
| Reduction ratio | 23:1 | |
| Gear speed | 58.5rpm | 70.2rpm |
| Travel speed | 11m/min | 13.2m/min |
| Working temperature | -40°C∼+55°C | |
| Overload protection temperature | 130°C | |
| Motor making technique | Die casting aluminum alloy | |
| Manual Release | Yes | |
| Product weight(approx) | 10.19kg | 10.25kg |
| Max.weight of gate | 1800kg | |
Electronic Data
| Model | WJKMP202 |
| Soft start | YES |
Stop on obstacle (sensitivity adjustable) | YES |
Auto warming-up (at freezing temperature) | YES |
| Remote control | 418MHZ(50m,approx) |
| Wire control | Available |
| Auto closing | YES |
| Vehicle loop detector socket | YES |
| Photocell socket | YES |
| Alarm light socket | YES |
If you are not sure whether it is what you need,you need our support. Click Here
WJKMP 202 Dimension
Installation Drawing
Optional Parts

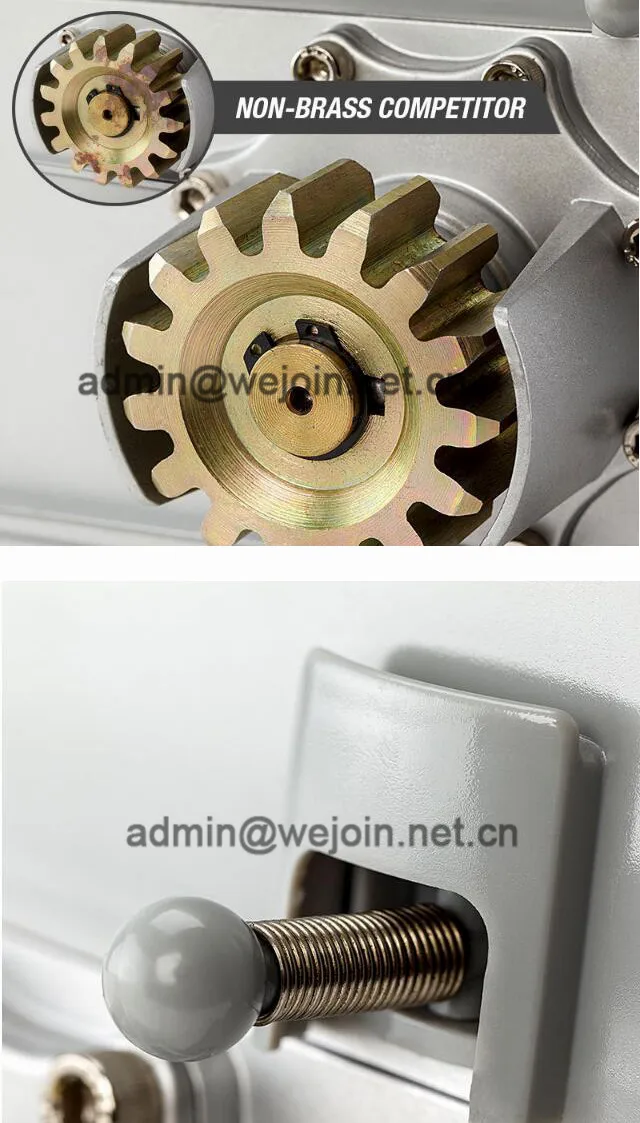

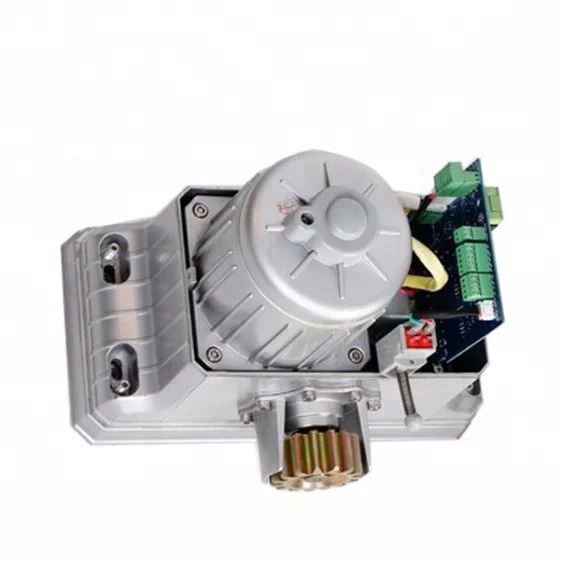

Detailed Images
The picture of connecting the beam sensor , push button and access control keypad to the motor.
About Us
SHENZHEN WEJOIN WECHANICAL & ELECTRICAL CO., LTD.
Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
If you would like to know more about our company, please contact us. Click Here
Packaging & Shipping

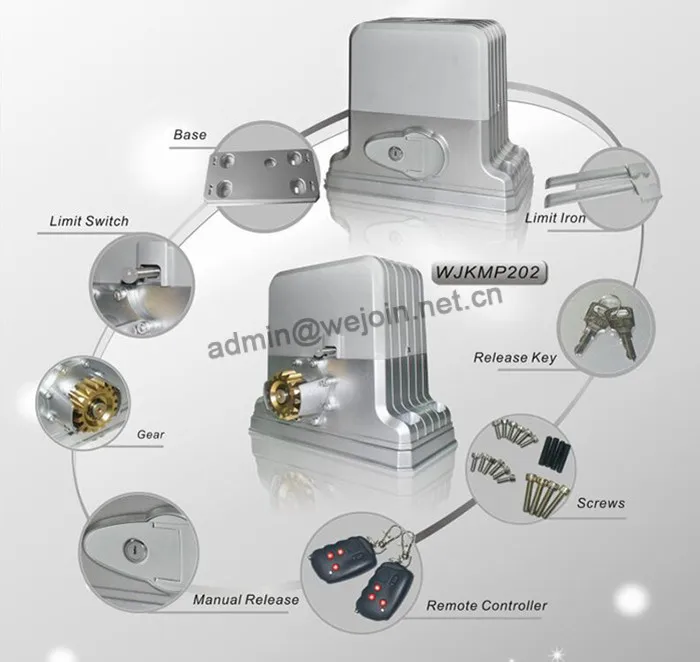

Packing list
| Name | Quantity | Unit | Remark |
| Sliding gate operator | 1 | set | Necessary |
| Remote control | 2 | pcs | Necessary |
| Internal hexangular bolt | 4 | pcs | M8*40 |
| Internal hexangular bolt | 4 | pcs | M6*16 |
| Left limit iron | 1 | pcs | Necessary |
| Right limit iron | 1 | pcs | Necessary |
| Base board | 1 | pcs | Necessary |
| Release key | 2 | pcs | Necessary |
| Manual | 1 | pcs | Necessary |
| Infrared photocell | 1 | set | Optional |
| Radio emitter | 1 | set | Optional |
OUR SERVICES
| 1. Your inquiry related to our products or prices will be replied in 12 hours. |
| 2. Well-trained and experienced staffs to answer all your enquires in fluent English. |
| 3. OEM&ODM, any your customized we can help you to design and put into product. |
| 4. OEM&ODM welcome under competitive price but high quality. |
| 5. We have our professional R&D, produce the products according your requests. |
FAQ
FAQ
Q1: What is your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you manufacturer? Do you provide ODM / OEM service?
A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.
Q3: Do you sell only the motor without electronices?
A: Yes, we can.
Q4: What is the output power?
A: The slidng gate motor output power is 350W.
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: What is the Max.weight of gate?
A: The max.weight of gate we can do is 1800KG.
Q9: How much warranty time do you have?
A: Whithin one years, if any problems, we will offer the accessories.
Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?
A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.
