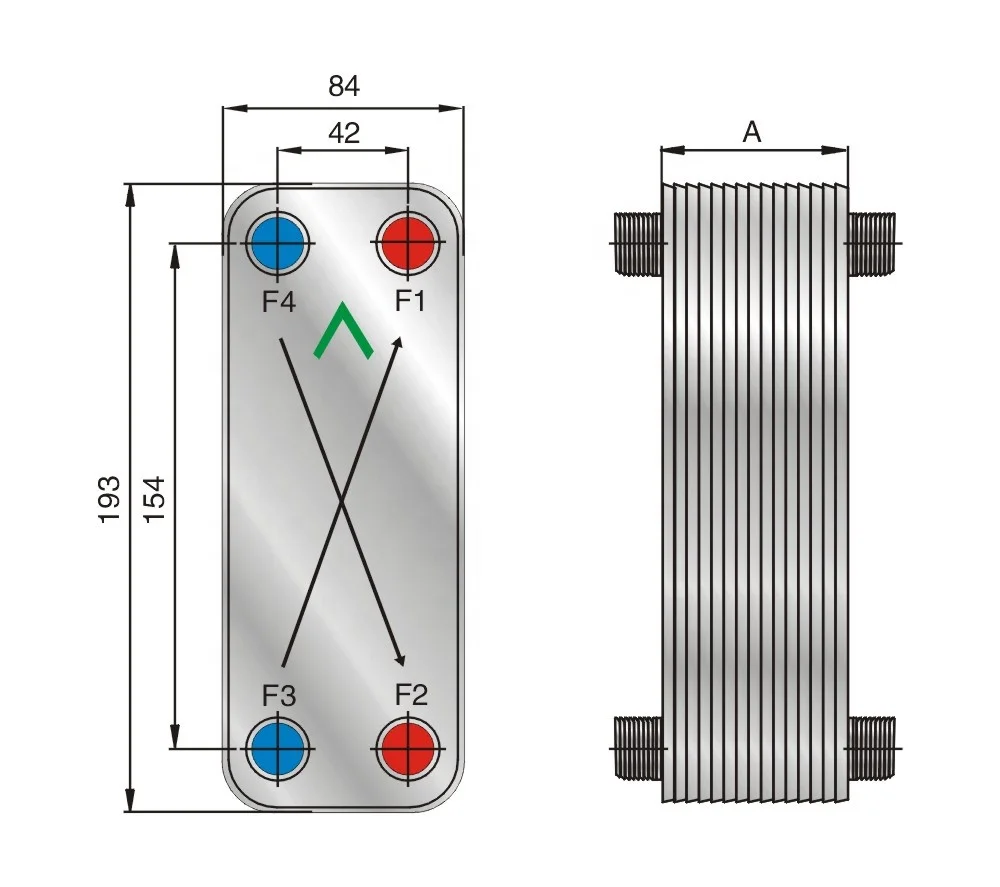

Fhc014 Cb14 Swimming Pool Brazed Welded Plate Heat Exchanger

Heat load up to 1~5KW

Size 203*73 mm

Thickness of plate0.3mm

Heat exchanger area of each plate 0.014

Volume 0.020L/Channel

Quantity of max plates : 60

Design pressure  3.0/4.5MPa

Testing pressure 4.5/6.7MPa

Design temperature : - 196~ +200

Model of flow course plate: H & L & M

The max size of threaded connector : 3/4"

The max size of welded connector : 3/4"
