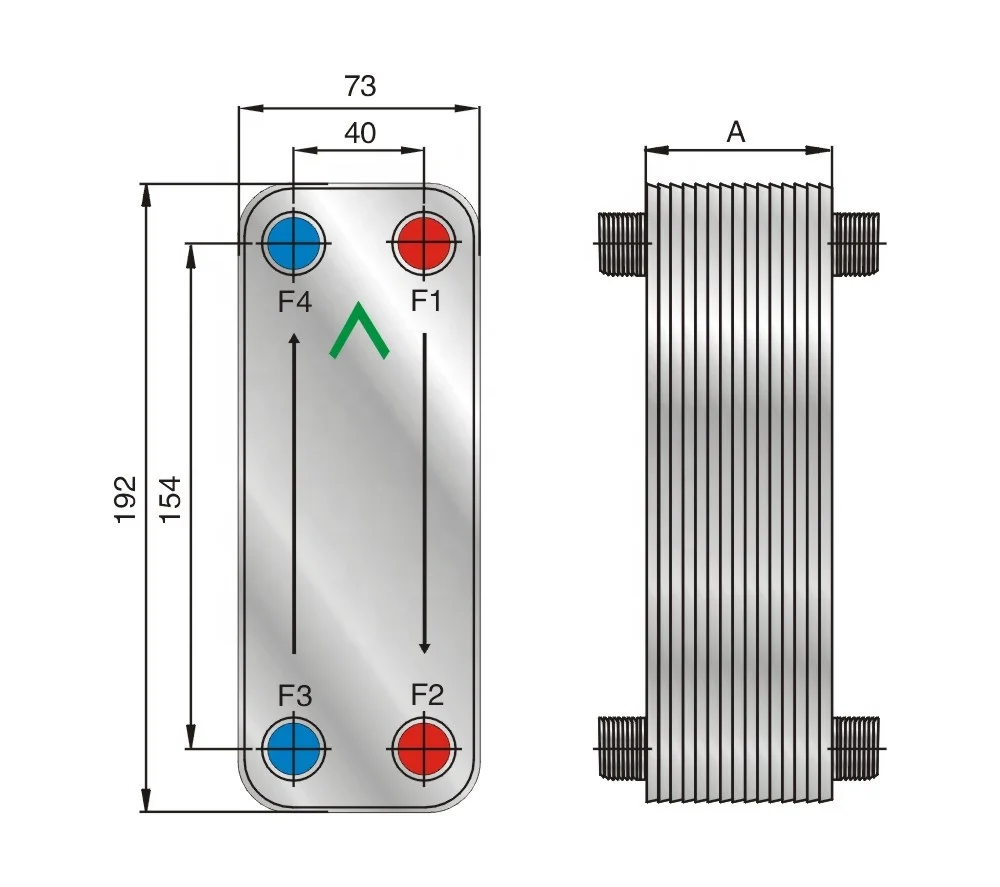

FHC012 Air Cooled Gas Boiler Copper Brazed Plate Heat Exchanger

Heat load up to 1~5KW

Size 192*73 mm

Thickness of plate0.4mm

Heat exchanger area of each plate 0.012

Volume 0.018L/Channel

Quantity of max plates : 50

Design pressure  3.0/4.5MPa

Testing pressure 4.5/6.7MPa

Design temperature : - 196~ +200

Model of flow course plate: H

The max size of threaded connector : 3/4"

The max size of welded connector : 3/4"
