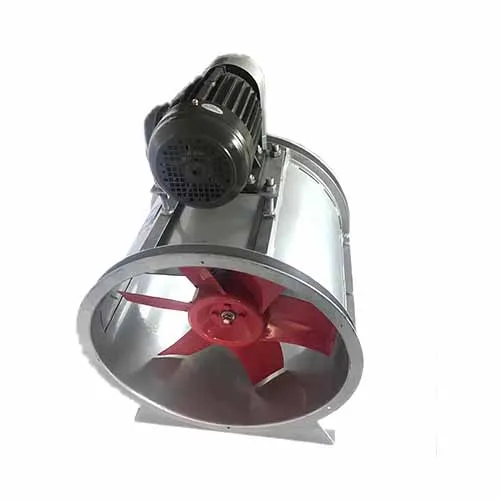

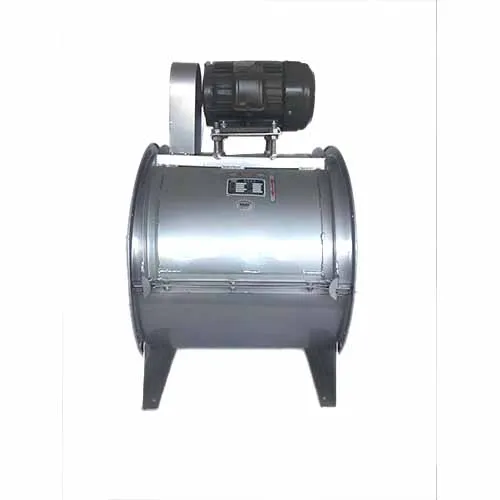

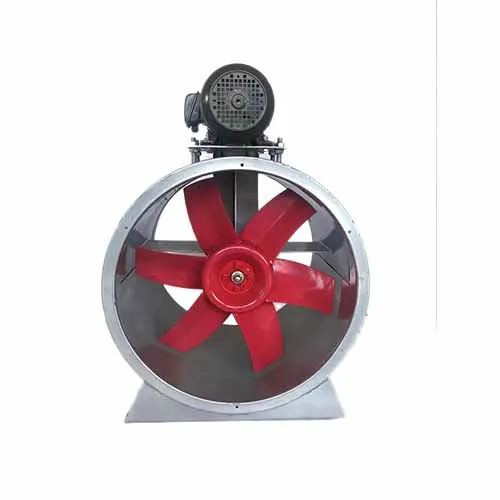

Yuton T40 C Series Axial Blower belt drive air cooler dust remover fume aspirator draft cooling circulation fan blower

Product Overview

Description





Description:

T40 series axial blower fan is surrogate products of 30K fan with the features of reasonable structure, high intensity fan blades, low noise and high efficiency. It is mainly used for ventilation or exhausting high temperature gas, oily gas and dust gas. The transmitted air must be non causticity air, non inflammable and explosive air and no notable dust air, the temperature of transmitted medium must be below 80°C, also can be used in series pressurizing, air supply, air exhausting for common industrial ducts.

Technical Parameters:

Model	Voltage (V)	Power (kw)	Revolution (rpm)	Wind Flow (M3/h)	Pressure (Pa)
4C	30	0.75-4	1450	7200	130
	380	1.1-4	1450	8500	150
5C	380	0.75-4	1450	10000	170
	380	1.5-4	1450	10000	210
6C	380	1.5-4	1450	13900	230
	380	2.2-4	1450	16300	270
7C	380	3-4	1450	19700	294
8C	380	4-4	1450	24500	325

Packing: Carton packing or polywood case

Materials: 100% copper motor, high quality metal steel basing, cast iron fan blade

The voltage and frequency could be customized.
