Электрическая горная Лебедка для вытягивания waggon на рельсе
- Category: Mining Machinery >>>
- Supplier: Pingyang Construction Hoisting Machinery Co.
Share on (291692993):
Product Overview
Description

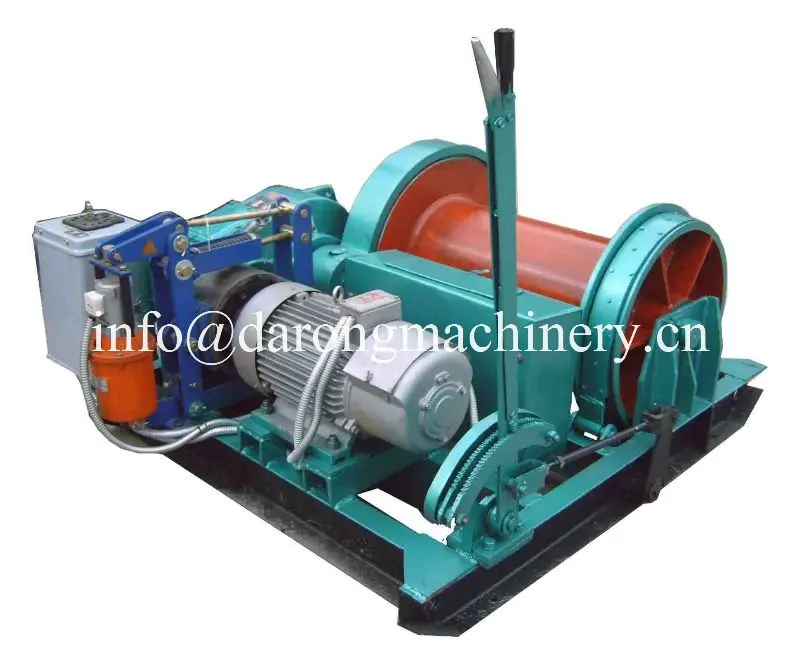

8Ton mine winch with hand brake
10m/min speed
350m x 26mm(dia.) wire rope capacity
ideal for working well of the small mine. we can supply various winches for mine lifting and tractionl.
Also we can supply high speed winch.
Below is slow speed hoist winch technical data sheet:
Model | JM2 | JM3 | JM5 | JM8 | JM10 | |
Line pull capacity (kg) | 2000 | 3000 | 5000 | 8000 | 10000 | |
average speed (m/min) | 12 | 10 | 10 | 10 | 9 | |
Wire rope(mm): | 12.5 | 15.5 | 21.5 | 26 | 30 | |
Reduction box | Type | JZQ350 | JZQ350 | JZQ400 | JZQ500 | JZQ650 |
Transmission ratio | 23.34 | 31.5 | 23.34 | 31.5 | 40.17 | |
Drum (mm) | Diameter(mm) | 273 | 325 | 406 | 500 | 550 |
Length | 480 | 520 | 645 | 900 | 1000 | |
Capacity(m) | 150 | 180 | 250 | 300 | 450 | |
motor | Type | YZ160M2-6 | YZ160M2-6 | YZ160L-6 | YZR225M-8 | YZR250M1-8 |
Power(kW) | 7.5 | 7.5 | 11 | 22 | 30 | |
Rotate speed(r/min) | 948 | 948 | 953 | 720 | 720 | |
Hydraulic Brake | YWZ-200/25 | YWZ-200/25 | YWZ-300/45 | YWZ-300/45 | YWZ-300 | |
Equipment Dimension (mm) | 1060x1500x750 | 1600x1100x820 | 1400x1910x950 | 2050x1640x1000 | 2470x2280x1180 | |
Weight(kg) | 630 | 680 | 1400 | 3000 | ||
