Удобная/600/1000 комбинированная графическая Рото гравюра

Product Overview

Description

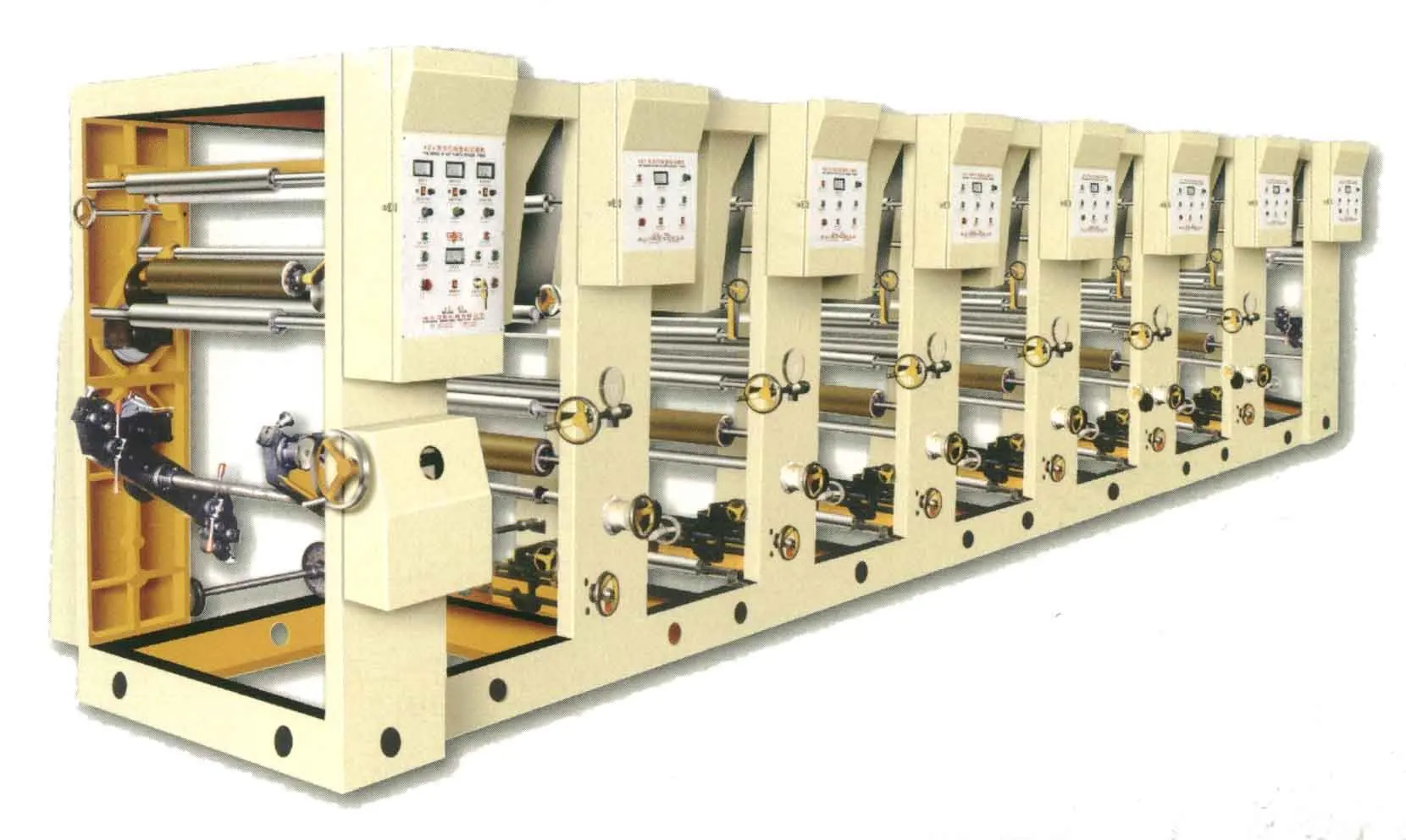

ASY/600/1000 Combined Type graphic roto gravure



Usage:
This ASY/600/1000 Combined Type graphic roto gravure is used for multicolor and continuous printing BOPP, PET, PVC, PE, rolling paper and other finished printing performance rolling materials.

Characteristic:
T1.his machine is a combined type, it can increase and decrease printing unit according to the user's request, to finish positive side and negative side printing continuously in one time.



2.It has such features as 360 degree chromatography device, ease operation, reliable performance, the tension control system uses the magnetic powder clutch and winding and unwinding uses double location structure, which can change the film roller without stopping.



3.This machine is specialized in design of membrane blown machine to make membrane blown and printing one time.



Main Technical Parameters:
Length of printing	220-1000mm
Breadth of printing	600-1000mm
Speed of printing	5-35m/min
Precision of overprint	≤0.15mm
Gross installation power	18kw
Weight of machine	4000kg
External dimension	8400*2100*200mm
